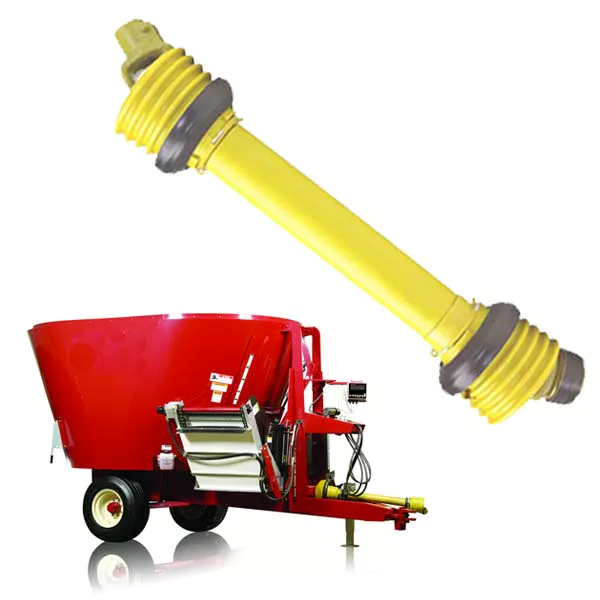

PTO Shaft for Jaylor Vertical TMR Feed Mixers Single Auger, Twin Auger and Total Mix

PTO Shaft for Single Auger, Twin Auger, and Total Mix

Pto shaft for Jaylor Vertical Mixers TMRThe device transmits the motion in a single rotation direction when the tractor drives the implement. During the stopping phase, the tractor PTO disengaged, and the implement moved. The transmission is disconnected.This device helps operate machinery with high rotation inertia because, during the stopping phase, the tractor PTO is disengaged from the driven machine.

Original Equipment is shown as Size 6 or Size 8 BYP copy.)- depending on HP

60 HP or less = CAT4 = Size 6 ******* More than 60 HP = CAT5 = Size 8

Jaylor offers Constant Velocity shafts or standard PTO

We can also supply all the parts for the feed mixer

MAIN SHAFT: Constant Velocity PTO

	Category	Series	Tractor
Tractors with 1.375"-6 PTO	4 (60 HP@540 RPM)	S6	1.375-6
	5 (90 HP@540 RPM)	S8	1.375-6
Tractors with 1.375"-21 PTO	4 (60 HP@540 RPM)	S6	1.375-21
	5 (90 HP@540 RPM)	S8	1.375-21
Tractors with 1.750"-20 PTO	4 (60 HP@540 RPM)	S6	1.750-20
	5 (90 HP@540 RPM)	S8	1.750-20

Shear Bolt Yokes:

	Part Number	Model	Diameter	No of Splines	C-to-bolt	Bolt	c-e Length	Torque
Size 6 Shear Bolt Yokes	6060H3702R	LB	1.375	21	55	M10x50	134	2700nm
	BTB06215510A	LB	1.375	21	55	M10	4.8	2700nm
	6060H0302R	LB	1.375	6	55	M10x50	134	2700nm
	BTB06385510A	SB	1.375	6	55	M10		2500nm
	BTB06205510A	SB	1.750	20	55	M10		2500nm
	BTB06345510A	LB	1.750	6	55	M10	4.8
	6060H3802R	LB	1.750	20	55	M10x50	134	2700nm
	6060H3707R	LB	1.750	27	55	M10x50		2700nm
	6060H0402R	LB	1.750	6	55	M10x50	134	2700nm
Size 8 Shear Bolt Yokes	6060M3702R	LB	1.375	21	50mm	M12	143mm	3800nm
	BTB08215712A	LB	1.375	21		M12	pin QD	3500nm
	6060M0302R	LB	1.375	6	50mm	M12	143mm	3800nm
	6060M0307R	LB	1.375	6	50mm	M12	143mm	3500nm
	BTB08385712A	LB	1.375	6		M12	pin QD	3500nm
	6060M3802R	LB	1.750	20	50mm	M12	143mm	3800nm
	BTB08205712A	LB	1.750	20		M12	pin QD	3500nm
	6060M3902R	LB	1.750	27		M12
	6060M0403R	LB	1.750	6	50mm	M12	143mm	3800nm
	BTB08345712A	LB	1.750	6		M12	pin QD	3500nm



PARTS OF THE PTO SHAFT

It’s essential that you understand sizes, measuring, horsepower, and agriculture PTO shaft parts to choose the proper PTO shaft for your farm machinery. Though the yokes and U-joints are necessary for function, the safety chains and shield are essential parts of the PTO shaft to keep you safe during use.

• Internal Yoke- There are two, located at both ends of the PTO shaft -tractor and implement. This is welded to the drive end.
• Universal Joint- There are two at both ends of the PTO shaft.
• External Yoke- There are two at both ends of the PTO shaft. It has a “Y” shape to connect to the U-joint and a female hole.
• Safety Chains- The chains secure the PTO shaft onto the equipment and the tractor.
• Safety Shield- These cones are found on both ends.

SIZE IMPORTANCE of PTO shaft

Regardless of what job you’ll be using a PTO shaft to complete, it’s essential that you have the correct size. The manufacturer should provide length recommendations to help you get an idea. When measuring a PTO shaft, use a tape measure and measure from the outside of each yoke to obtain the closed length. The series size should correspond with the amount of horsepower your tractor has. Two different speeds are used most commonly with tractor PTO shafts, the 540 (type 1) and 1000 (type 3) RPM.
