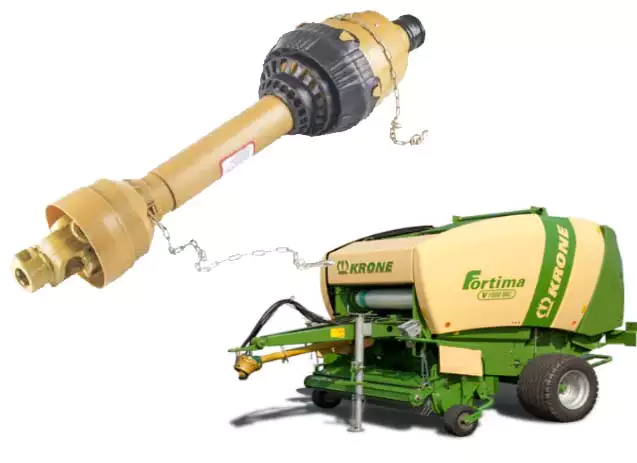

PTO Shaft for Krone Round Balers

PTO Shaft for Krone Round Balers

Our PTO Shaft Adaptable Models

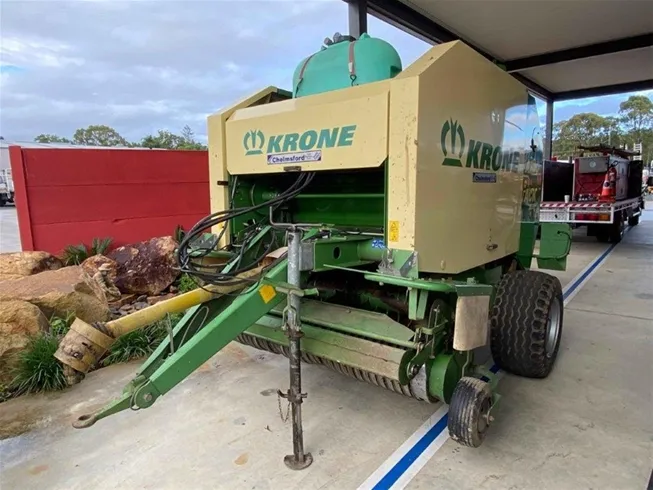

Krone Round Balers

Models : KR100 / 130 / 155 / 160 / 1250 / 1260 / 1500 / 1550

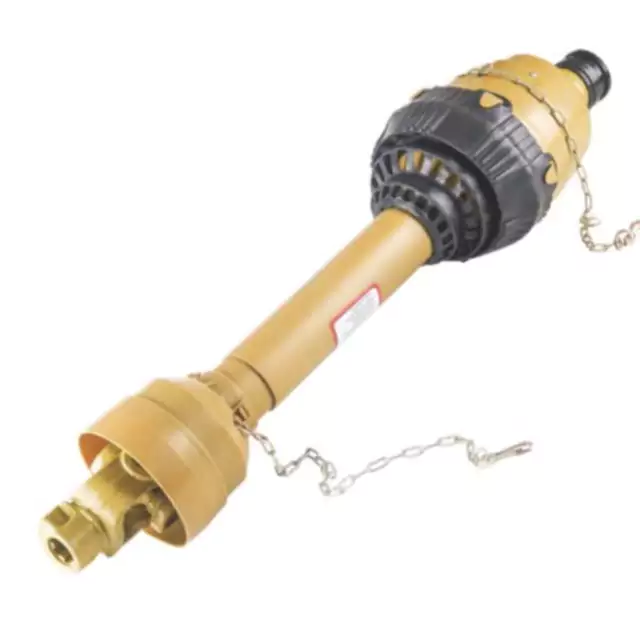

Available in both the Raydafon metric series, PTO drive shafts are used extensively throughout the global agriculture market. Each custom-designed PTO shaft may include a telescoping shaft, yokes (tube, shaft, tractor, and implement), cross and bearing kits, and a guard. PTO shaft used within the machinery itself or for power take-off, a wide array of design options, including telescoping, high speed, and double telescoping, ensure an ideal match to every application. Raydafon’s patented easy lock guard system can be used to cover the drive shaft with fast and simple removal and replacement.

Round Baler PTO Shaft Corresponding Specification

Model	PTO	Protection
KR100/125/155/130/160	Size 4 Standard *1210 * 1.375-6Size 4 CV * 1210 * 1.375-6	FT34 * 1.375-6 * 1000nm
1500 / 1800	Size 4 or Size 6 CV with 1.375-6	FT32 @ 1000nm or FT42 @ 1450nm
1500V / 1250 MC	2380 or 2480 CV with 1.375-6	K64/2 Cutout @ 1050 or 1500nm * 1.375-6
1250 / 1550	size 4 (cat3) CV with 1.375-6	FT32 or FF1 @ 1000nm
1250 / 1500	some using size 6 CV (cat4)	FT42 @ 1450nm

Constant Velocity PTO	Tractor	Base Part Number(add implement device)
CAT3/540	1.375-6	71R4121UCW07000
CAT4/540	1.375-6	71R6121UCW07000

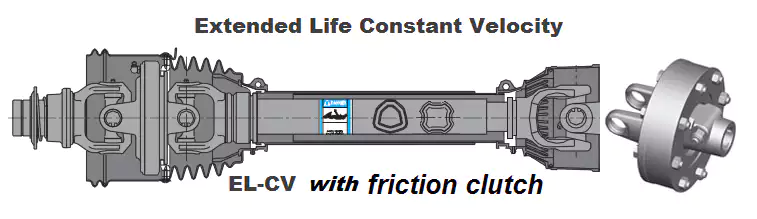

Krone Round Balers are equipped with a friction or cutout clutch

Baler Input Requirements

FT Clutches for 1.375-6 Spline Input

Universal Size	Torque nm	Part Number
CAT3 / S4	1000nm	6QE344901R
CAT3 / S4	1000nm	635E41203R
CAT4 / S6	1800nm	663H53403R

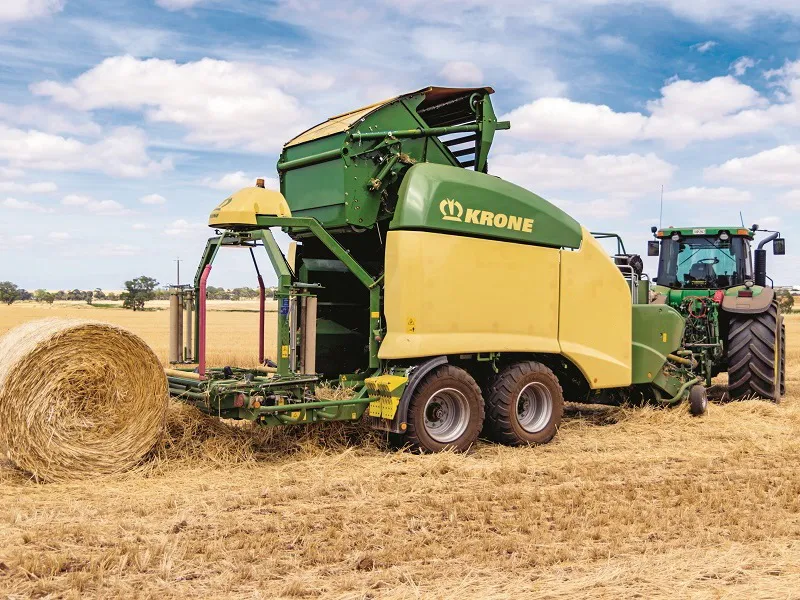

How to Used PTO Shaft Correctly?

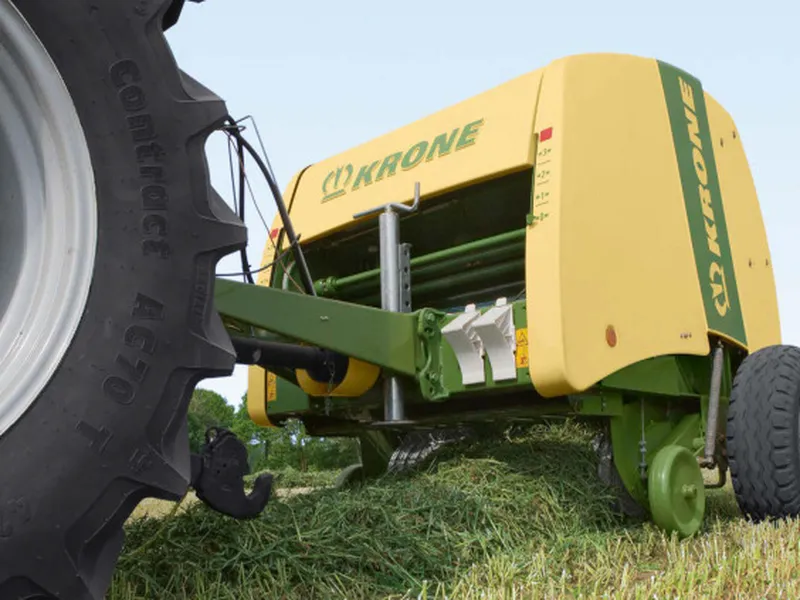

All kinds of farm machinery need the main engine to provide power. However, the PTO shaft is the key to the supply of farm tools and mechanical power. The PTO shaft of agricultural machinery has the characteristics of universal transmission while carrying out power output and input. The input and output may not be on the same plane. In Agricultural PTO shafts, according to different types of structure, the output end and input end include Angle up to 0-80°, and the working process can be in the specified range of expansion. As a good PTO shaft, not only the service life is long, and the working vibration is small, it will not cause damage to the main engine and farm tools. The PTO shafts of balers, harvesters, and rototillers are customized according to the actual size and characteristics of the PTO shafts of agricultural machinery to provide the best power transmission for agricultural machinery operations. Taking the round baler as an example, the following PTO shaft problems should be paid attention to when it is used with the tractor.1. when hitching the baler, the PTO drive shafts should be in line with the PTO shaft of the crawler tractor.2. the PTO shaft assembly is an important working part for transmitting tractor power. When installing the PTO shaft assembly, it should be noted that the opening directions of the two forks of the middle PTO shafts should be located in the same plane. It is easy to install incorrectly without paying attention. If the opening directions are staggered by 90 °, it is very easy to cause damage to the PTO shaft u joint.3. when turning at the headland, the PTO shafts shall be separated, the baler cultivator shall be stopped, and then it shall be connected after turning; otherwise, the power will be wasted, or the PTO shaft will collide with the limit chain.4. due to the large working resistance of the baler, it is necessary to regularly add lubricating grease to the intermediate gearbox and PTO shaft during use to reduce wear.

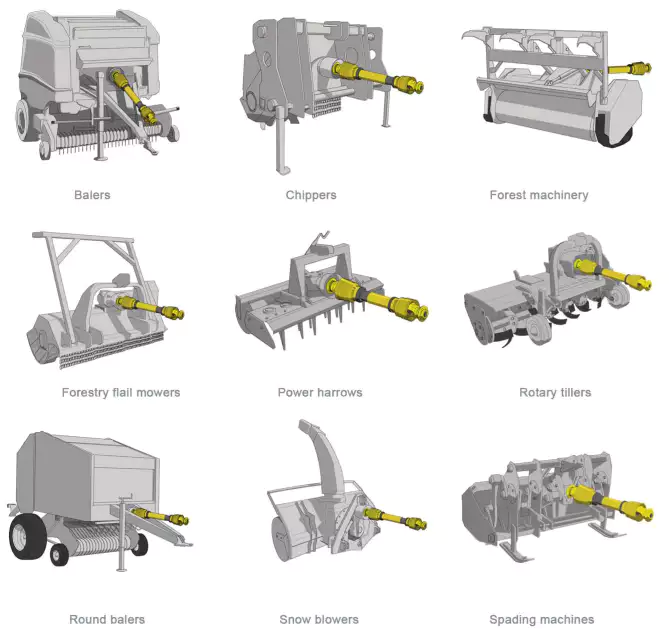

Agricultural PTO Shaft Application

You will see it being used if the device does not have its own engine. For example, you will often see power takeoff used in commercial vehicles and agricultural equipment. In fact, PTO shaft innovation mainly comes from the wisdom of farmers. The tractor engine is used as a PTO shaft to operate a jackhammer or other equipment.Some other applications you see for using PTO shafts include:(1) Snow blowers(2) Hay baler(3) Harvester(4) Round bales(5) Rotary tillers

Agricultural PTO Shafts Daily Inspections

The agricultural PTO shaft comprises a shaft tube, expansion device, and universal joint. Although the PTO shaft connects and assembles various accessories, the accessories of circular objects that can move and rotate are generally made of lightweight alloy steel pipe with good torsional resistance.1. To ensure the dynamic balance of the agricultural PTO shaft, attention should be paid to the desoldering of the balance weldment, and the new PTO drive shaft components should be provided in a matching manner. When loading the agricultural PTO shaft, attention should be paid to the assembly mark of the expansion device and confirm that the flange yoke is in the plane. When repairing and disassembling agricultural tools' PTO shafts, the assembly mark must be printed on the expansion sleeve and the flange shaft to maintain the original assembly relationship during reassembly.2. regularly check the fastening of the hanger of the agricultural PTO shaft, whether the support rubber is damaged, whether the connecting part is loose, and whether the agricultural transmission shaft is deformed.3. do not press the clutch pedal on the agricultural PTO shaft, and do not start at high speed.4. overload and Overspeed driving are strictly prohibited.5. the agricultural tractor PTO shaft should be frequently filled with grease. Lithium grease No. 3 should be filled in summer, and lithium grease No. 2 should be filled in winter.

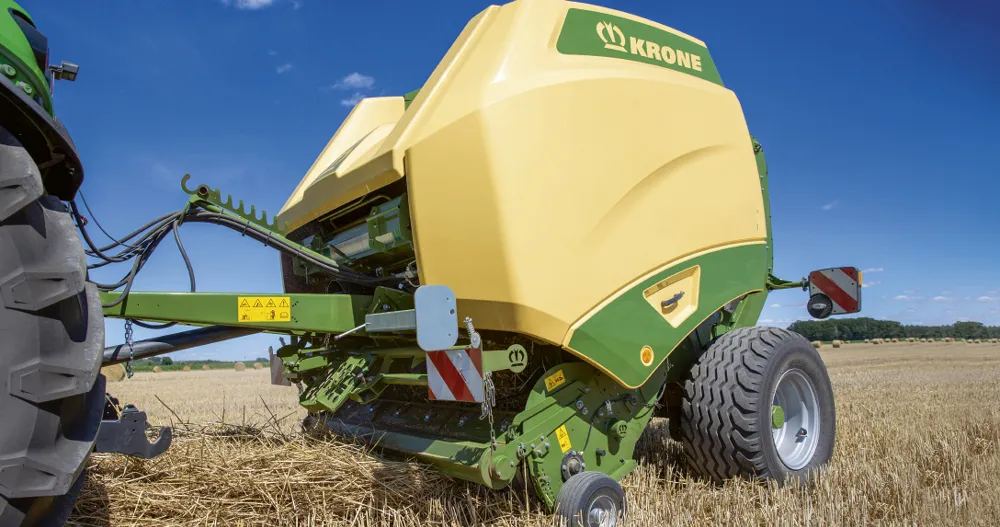

Agricultural PTO Shaft Safety First

PTO shaft accidents are one of the most common and severe causes of tractor-related injuries. Before doing anything with the tractor and implementing PTO shaft components, read and follow every safety instruction and best practice in the tractor and implement operator’s manuals. Ensure all shielding and other tractor and implement PTO shaft components are in good operating condition. Do not do any work with the tractor and implement PTO shaft components while the tractor engine is running or while any portion of the PTO shaft powered implement is still in motion.

• PTO shaft guards should always be in place and well-maintained. If the guards or any other component on the PTO shaft is broken or worn, the PTO shaft should be replaced immediately – we stock various PTO shaft sizes and types here.
• Disengage the PTO shaft, turn off the tractor and ensure that it is stationary before cleaning, repairing, servicing or adjusting machinery.
• Never step over a rotating shaft.
• Always use your machine’s recommended driveline, and never switch them between machines.
• Ensure that the PTO shaft driveline is securely locked onto the tractor PTO stub shaft.
• Position the tractor’s drawbar correctly for each machine so stress is decreased on the driveline on uneven ground or turns, to prevent separation.
• Avoid tight turns that pinch the rotating shafts between the tractor and the attachment.
• Engage power to the PTO shaft gradually.
• Keep an overlap of at least 40% between the two ends of the PTO shaft.
• Avoid overtightening of slip clutches on PTO-driven machines.
• Wear close-fitting clothing and keep your hair back while working around the PTO shaft.

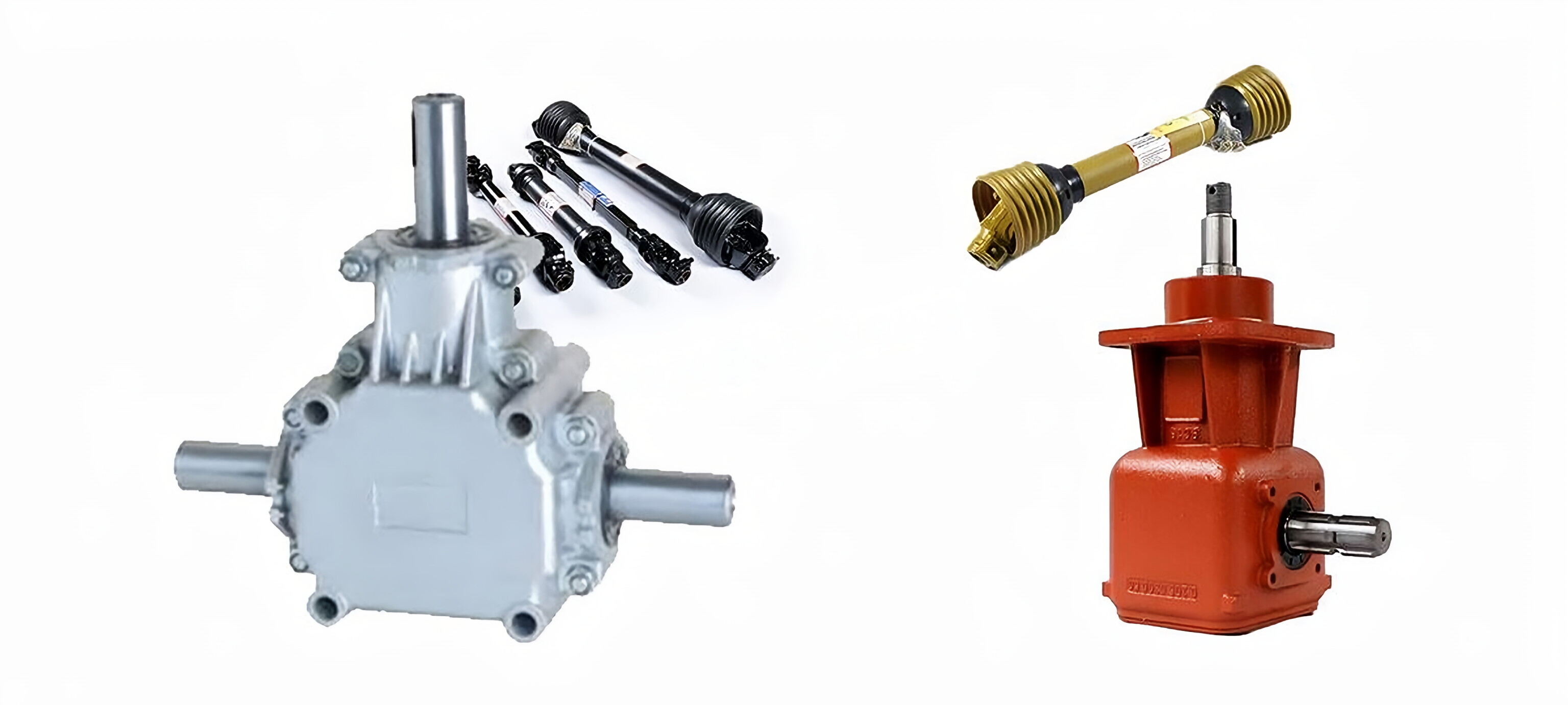

PTO Shaft for Agricultural Gearbox

Agricultural gearbox and PTO shaft: These components work together to transfer mechanical power between farm tractors. A PTO shaft converts engine energy into hydraulic pressure. This is what allows the tractor to pull heavy loads. When properly functioning, it reduces the risk of damage to the tractor and to the operator. When used properly, it is an important component of a tractor, but it can also become defective. When choosing an agricultural gearbox, consider the durability and mechanism of the product, as well as its materials. A durable gearbox will last for many years, avoiding repeated replacements. A high-quality agricultural gearbox will be durable for many years to come, and you don't want to end up replacing it for a while. This can be costly, so consider your needs when purchasing an agricultural gearbox and PTO shaft. Raydafon offers PTO shafts and agricultural gearboxes wholesale at low prices! Contact us now if you are interested!

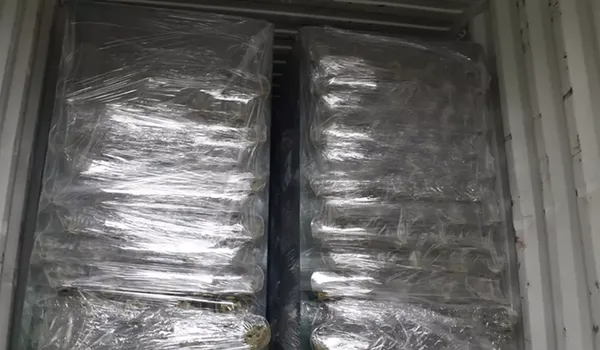

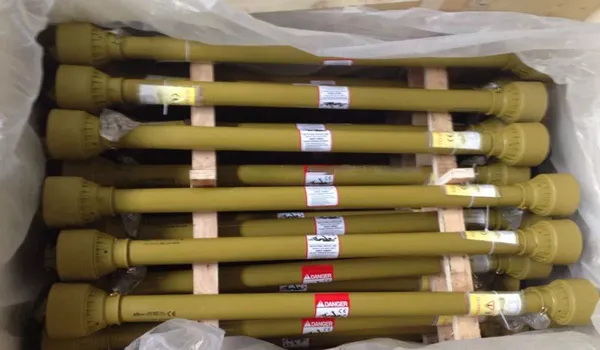

Agricultural PTO Shaft Manufacturers

For 60 years, we have been manufacturing PTO drive shafts, safety devices, torque limiters, agricultural gearboxes, speed multipliers, and speed reducers for agricultural mechanization. As of today, we are certainly among the world leaders in engineering, producing, and commercializing agricultural PTO drive shafts. Our company also can make made-to-order PTO shafts with special yokes and lengths to meet your specific needs; when ordering or requesting a quotation on Made to-order PTO drive shafts, specify the style number and dimensions per drawing.For more information about us, contact us right away. We will do our best to meet your requirements for the product and provide the most perfect after-sales services for you. Feel free to take a closer look around our pages, and if you have interested in it, please inquire to us about your favorite items. Welcome you connect with us or come to our factory to make an order with sample for the good development of our distribution.
