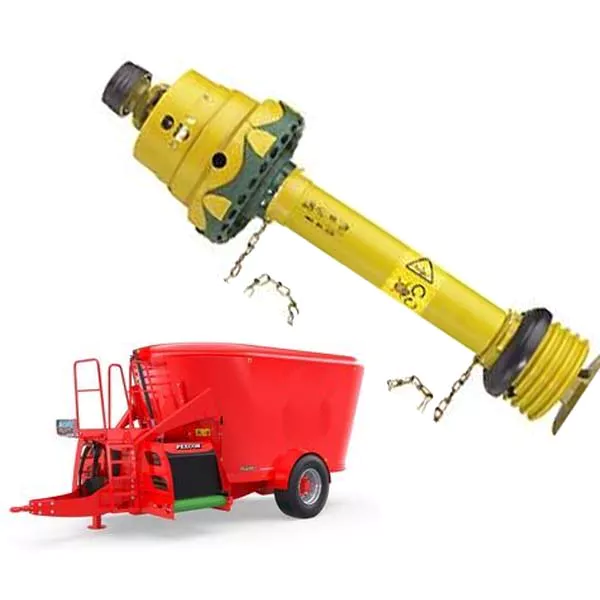

PTO Shaft for PEECON Vertical Feed Mixers

Raydafon Group presents the PTO Shaft for PEECON Vertical Feed Mixers – a durable, high-performance component designed to power your agricultural mixing equipment with ease. Featuring robust stainless steel construction and precision engineering, it ensures smooth operation and long-lasting reliability for farmers and agricultural professionals. This shaft solves common wear-and-tear issues, delivering peace of mind and efficiency in demanding farm settings. Stand out with its superior compatibility and enhanced torque control, setting a new standard in the market. Elevate your feed mixing today with Raydafon Group's trusted quality – your partner in productive farming.

Send Inquiry

Product Description

PTO Shaft for Vertical Feed Mixers

PEECON Vertical Feed Mixers Models

MODEL	CAPACITY	# OF AUGERS	MIN. POWER REQUIREMENTS
865	865 CFT	2	95 hp
1100	1100 CFT	2	135 hp
1300	1300 CFT	3	180 hp
1500	1500 CFT	3	200 hp

Our research indicates most tractors use 1.750-20 spline, and the input shaft on most models is 1.750-6 spline.Other combinations are available.

We can also supply all the parts for the feed mixer.

Main Shaft: CAT 6 Constant Velocity


Tractor Output Shaft	Complete CV Assembly Part Number (no implement yoke)	CV 1/2 shaftPart Number	Implement Half (2500)Part Number
540rpm1.375‘’×6 spline	392206	392206-HALF	2500-IMPLEMENT-HALF
1000rpm1.375‘’×21 spline	392221	392221-HALF	2500-IMPLEMENT-HALF
1000rpm1.750‘’×20 spline	392220	392220-HALF	2500-IMPLEMENT-HALF

Mixer Input Requirements

	Part Number	Model	Diameter	Splines	Torque

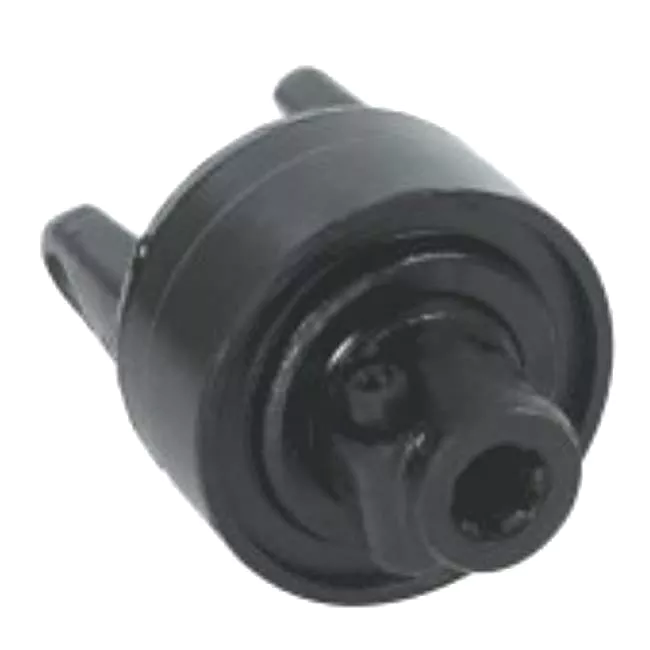

2500 Series Automatic Cutout Clutches	134467	K64/24	1.750	20	3500nm
	LAF20250MDAL67	K64	1.750	20	2500nm
	135416	K64/24	1.375	6	2700nm
	135362	K64/24	1.750	6	2700nm
	135986	K64/24	1.750	20	2700nm
2500 Series Shear Bolt Yokes	BTL67214810A	KB61	1.375	21
	BTL67385610A	KB61	1.375	6	2920nm
	355272	KB61/2	1.375	6	2920nm
	4250104	KB61/2	1.375	6	2920nm
	BTL67205610A	BTL	1.750	20	2920nm
	4250105	KB61/2	1.750	20	2920nm
	BTL67345610A	KB61	1.750	6	2920nm
	338427	KB61/2	1.750	6	2920nm
	392340	KB61/2	1.9375 RD	0.50 KEY

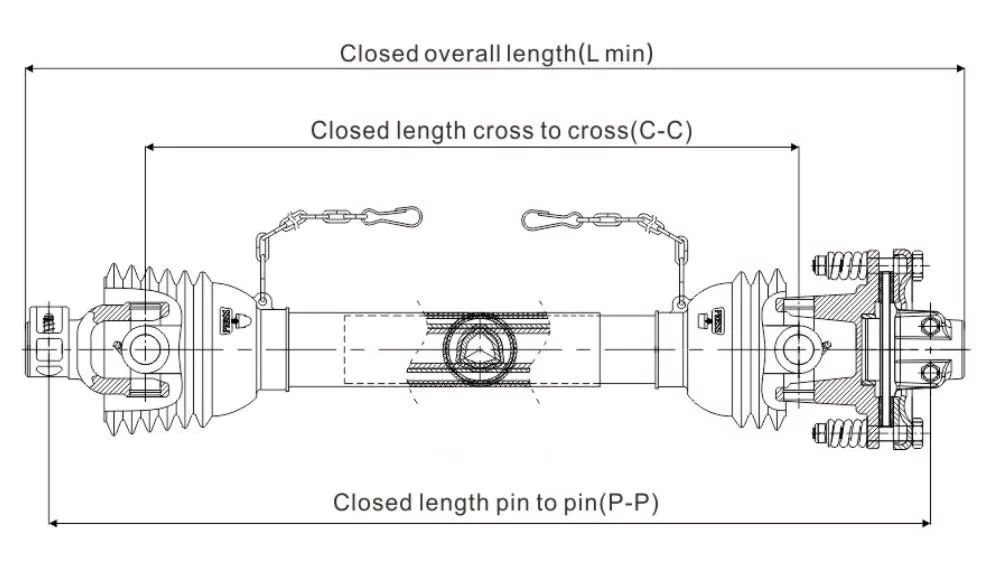

What size is a PTO shaft?

Whether buying a new implement with a PTO shaft or replacing an old one, most PTO shafts need to be cut to fit the length between the tractor and the implement using it. This is a simple process that we have outlined in the following steps.

Connect the implement to the tractor's three-point linkage without connecting the PTO shaft.
To determine the length of the PTO shaft, it is necessary to measure the distance between the groove on the tractor's PTO output shaft and the implement's PTO output shaft.
Once you have measured, we usually recommend taking an additional 75mm from the PTO shaft as a buffer to facilitate connection. If there is no buffer, it may not allow any movement and damage the universal joint on the PTO shaft, the implement, or the tractor.To help explain, we used the following example:End-to-end length of new PTO shaft = 1000mm.Distance between the tractor output shaft and implement output shaft=800mmAdditional buffer=75mmTherefore, to obtain our measurement results, we need to do the following:PTO shaft length – the distance between the tractor and implement+75mm buffer.1000mm – 800mm + 75mm = 275mm, which needs to be removed from the PTO shaft.
The simplest way to cut the PTO shaft to the proper size is to pull it in half so that there are internal and external parts. It is not necessary to remove the plastic cover. In the above example, we need to remove 275mm from the length, so we need to cut 275mm and 275mm steel pipes on the plastic PTO shaft cover and inner and outer parts, respectively. First, measure the required amount on the plastic to cover and mark it with text, then cut off the excess. Then measure the required amount from the steel pipe and cut it with a hacksaw or angle grinder. Repeat this procedure for the other half of the PTO shaft.
You need to ensure that any burrs on the cut end of the PTO shaft are removed so that the PTO slides correctly. We also recommend applying some grease to both sides of the PTO before reassembly. After reassembling the PTO shaft, you can connect it to the tractor and implement it.Note: The above information is for reference only. Diesel Machinery is not responsible for any damage or injury to personnel or equipment when measuring and cutting the PTO shaft.
