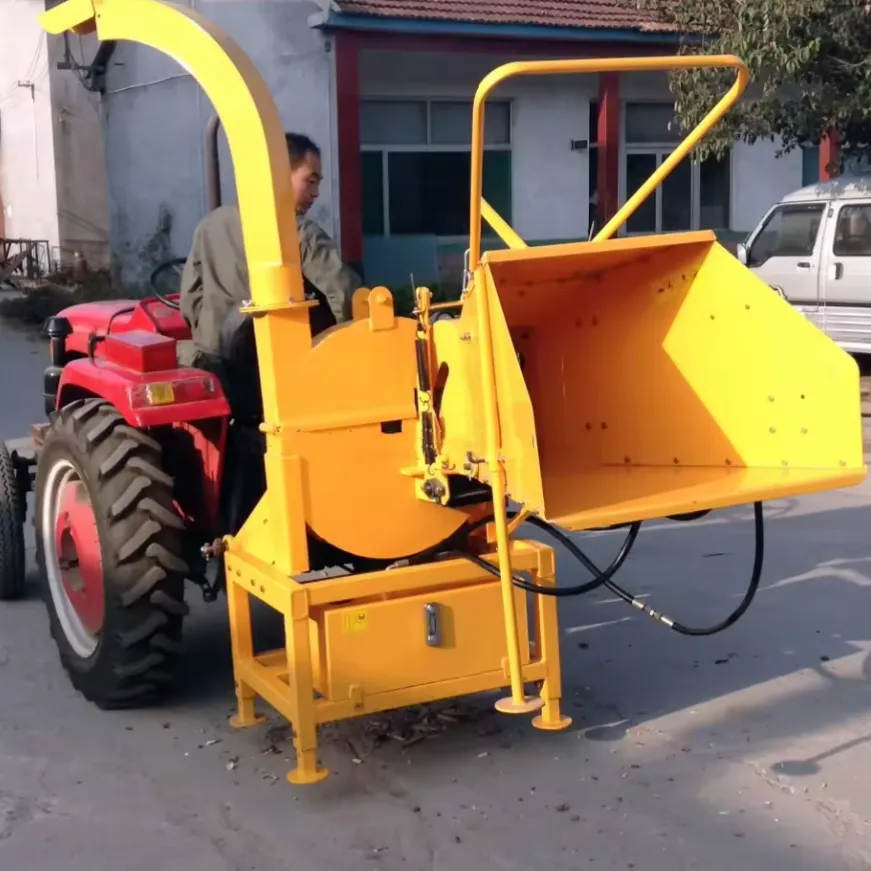

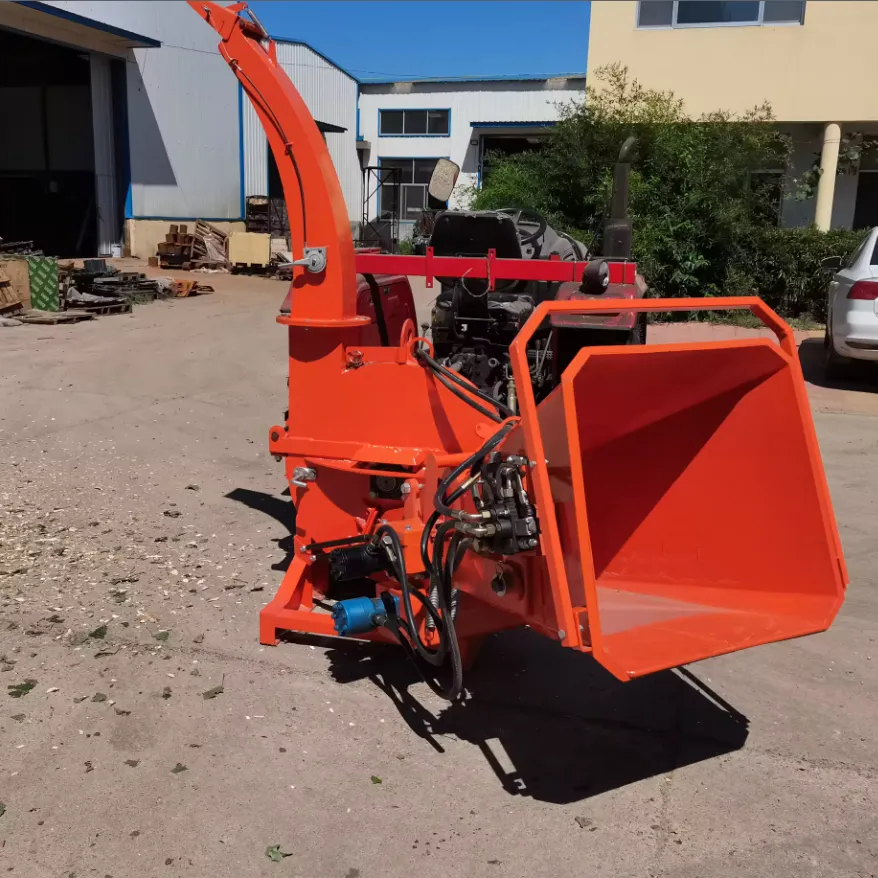

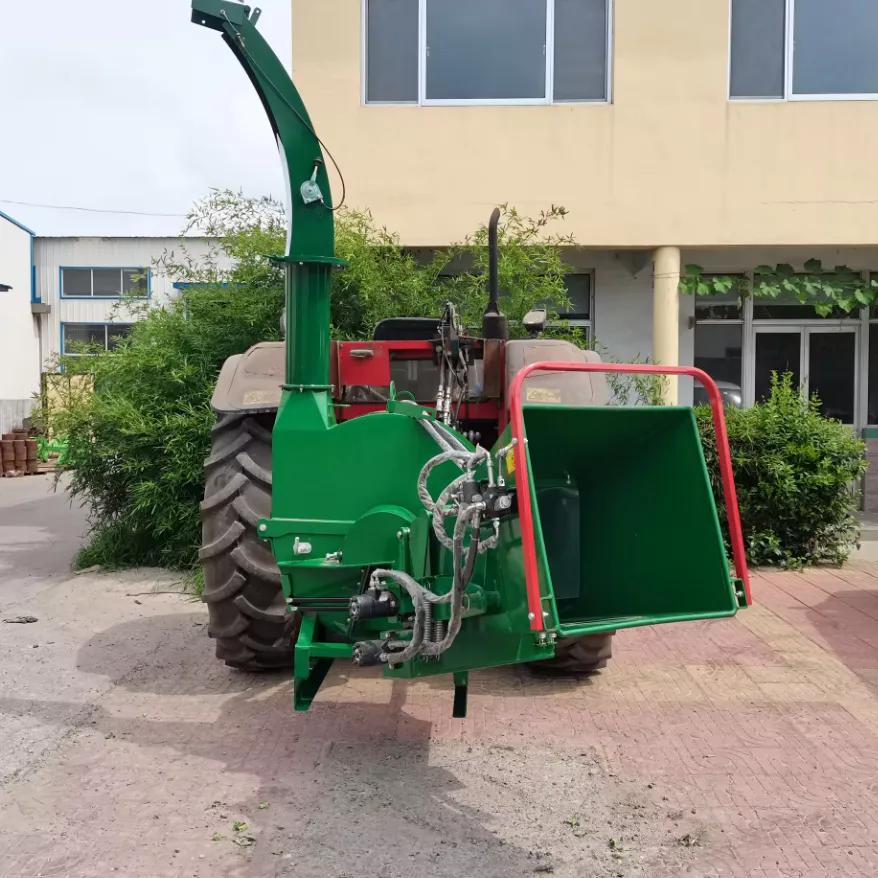

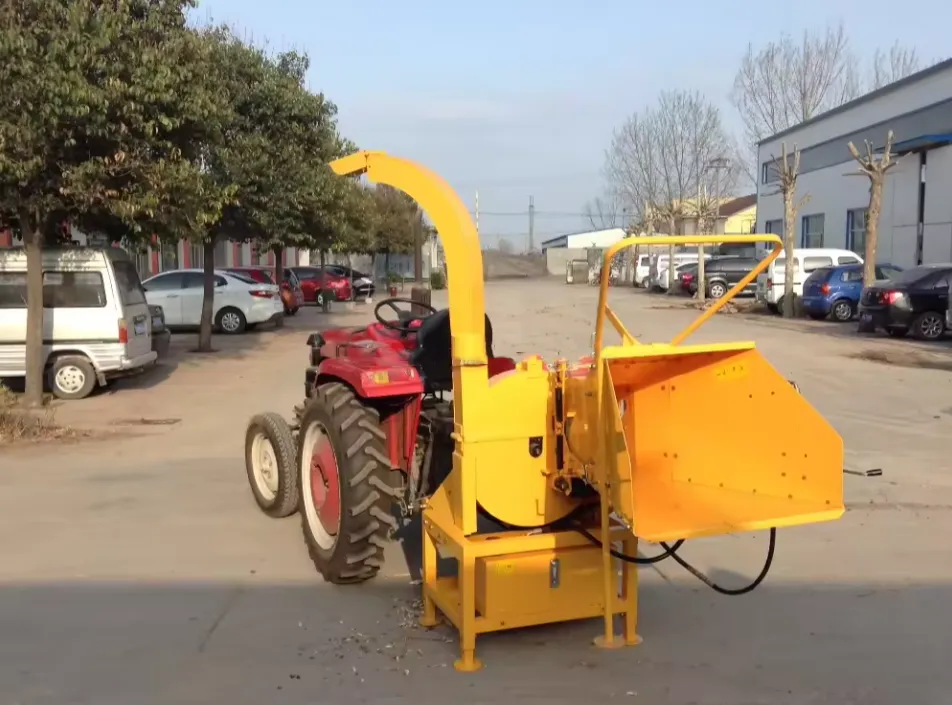

PTO Type Hydraulic Wood Chipper WC-6 for Chipping Wood and Tree Branch

The PTO Type Hydraulic Wood Chipper WC-6 is a new, certified, high-quality wood chipper available in a variety of colors including red, blue, yellow, green and white. This power take-off (PTO) type hydraulic wood chipper, with a dimension of 1.5x1x1.8, weighs 400kgs and comes with a year-long warranty. It's packaged in iron crates and shipped from the port of Qingdao. This chipper employs a steel disc with rectangular mounted upon it, and fans on the other side. When the disc rotates, powered by PTO shaft or engines, the blades cut the wood into pieces and the fans blow the chips out from the chute. PTO TYPE WC-6

MODEL	WC-6
Dimensions	1680x1400x1620mm
Structure Weight	370kgs
Blade Turning Radius	600mm
Chipper Max diameter	150mm
Chipper Efficiency	8~9m3/h
PTO RPM	540
Power Required	25hp~40hp

Advantages of PTO Type Hydraulic Wood Chipper WC-6

1. Efficient Operation: With a chipper efficiency of 8~9m3/h, the WC-6 model ensures rapid and effective wood chipping. 2. Power Flexibility: The chipper can operate on power ranging from 25hp to 40hp, offering flexibility to users. 3. Diverse Wood Diameter Capacity: Capable of chipping wood with a maximum diameter of 150mm, this model can handle a wide range of wood sizes. 4. Optimal Blade Turning Radius: The 600mm blade turning radius ensures precise and clean cuts, yielding high-quality wood chips. 5. Compact and Portable: With dimensions of 1680x1400x1620mm and a structure weight of 370kgs, the WC-6 is compact and portable. 6. Reliable and Safe: This model is CE certified and comes with a 1-year warranty, ensuring reliability and safety for users.

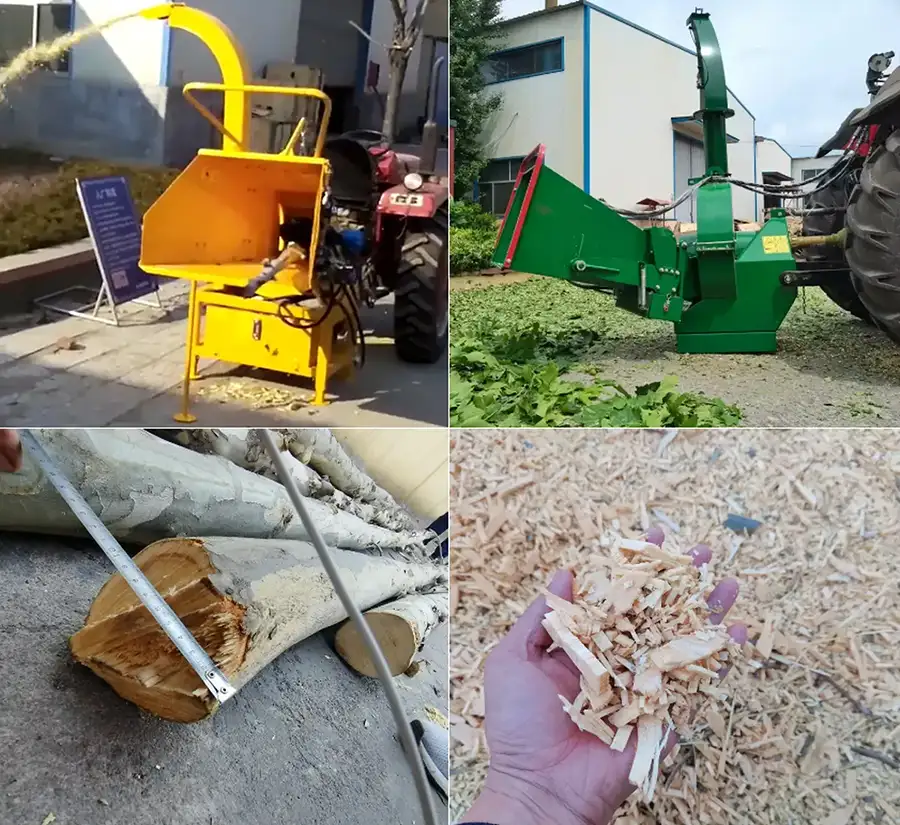

Applications of PTO Type Hydraulic Wood Chipper WC-6

1. Forestry Management: Efficiently manages forest waste by chipping fallen branches and logs. 2. Landscaping: Perfect for chipping wood for mulch in gardening and landscaping projects. 3. Farm Use: Helps in managing farm waste, turning branches and twigs into useful wood chips. 4. Park Maintenance: Ideal for maintaining cleanliness in parks by chipping fallen branches and twigs. 5. Construction Sites: Useful in managing wooden waste in construction and demolition sites. 6. Home Use: Suitable for home use in managing garden waste, turning it into useful mulch.

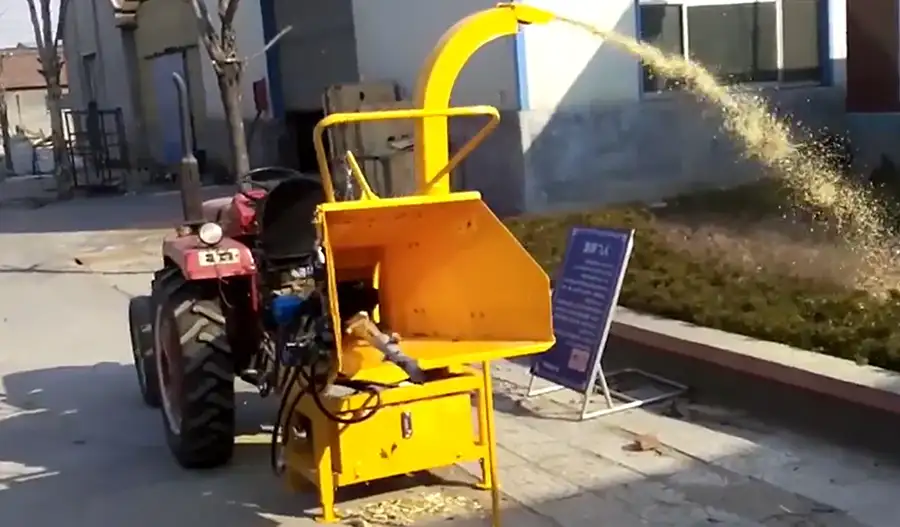

How Does the Tractor PTO Wood Chipper Work?

The operation of a 3-point hitch tractor PTO wood chipper involves the following steps: 1. Attachment: The chipper is positioned behind the tractor and aligned with the tractor's 3-point hitch. 2. Power Source: The chipper is powered by the tractor's PTO (Power Take-Off) shaft. 3. Input Hopper: The wood material to be chipped is fed into the chipper through the input hopper. 4. Cutting Mechanism: Inside the chipper, there is a heavy-duty rotor equipped with sharp blades or knives. 5. Discharge Chute: Once the wood is chipped, it is discharged through a chute or spout. 6. Tractor Controls: The operator controls the operation of the chipper using the tractor's controls.

How to Install the 3 Point Hitch PTO Wood Chipper to Tractor?

Installing a 3-point hitch PTO wood chipper to a tractor involves the following steps: 1. Prepare the Chipper and Position the Tractor 2. Align the Chipper 3. Attach the Lower Arms 4. Adjust the Top Link 5. Connect the PTO Shaft 6. Check the Attachment 7. Test the Operation

Common Troubleshooting of the PTO Wood Chipper

Here are some common troubleshooting steps for a 3-point hitch tractor PTO wood chipper: 1. Chipper Does Not Start 2. Chipper Vibrates Excessively 3. Chipper Produces Inconsistent Chip Sizes 4. Chipper Clogs or Material Does Not Feed Properly 5. Unusual Noises or Excessive Heat

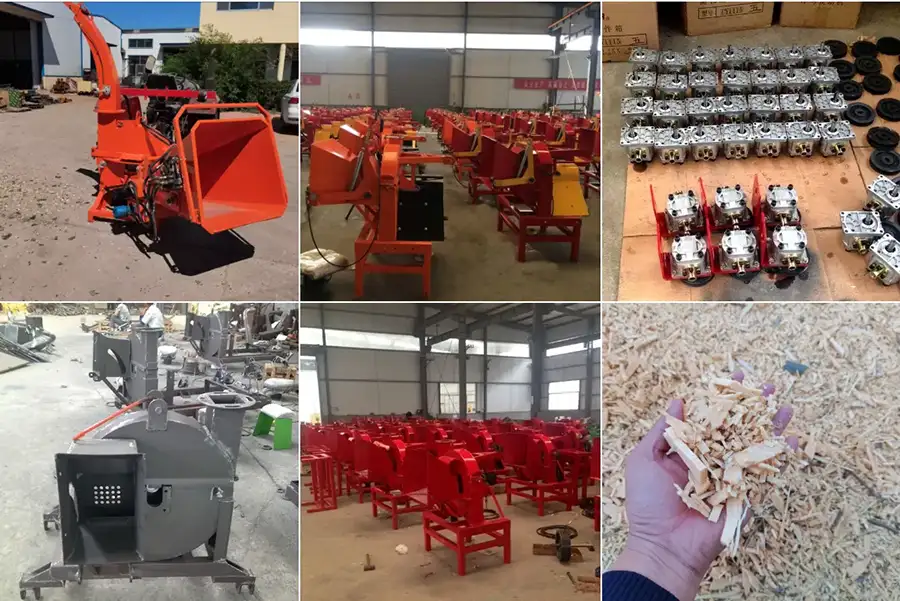

Why Choose Raydafon's PTO Wood Chipper?

Raydafon Agricultural Machinery Co., Ltd. is a highly reputable company with more than ten years of production experience, specializing in a wide range of products such as PTO shafts, agricultural gearboxes, corn seeder, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. Author: Yjx.
