PWD Series Winch Drives Planetary Gearbox Replace Replacement of Brevini Riduttori PWD2100 PWD3150 PWD3200 PWD3300 PWD3700 PWD3850 PWD31100

Description of PWD Series Winch Drives

We have developed tens of thousands of specifications of planetary reducer/gearbox, walking drive, rotary drive, and winch drive, with a transmission ratio of 3.3~9000 and output torque range of 500~1200000n m. The installation, size, and performance parameters of the final drive are entirely consistent with those of well-known European brands Replacement of Brevini Riduttori and can be ideally replaced and interchanged.The Brevini planetary gear unit with rotating housing is designed to be installed in the winch drum: the PWD series is used for 3 to 12-ton drive applications, and the slow-new series is used for more than 12-ton applications.These winch drives have two closely connected flanges: one is bolted to the fixed winch frame, and the other is screwed to the drum as its first support. The drum and winch frame have any shape and size: the only engineering limitation is the socket on the flange coupling during installation. The winch drive is connected to the drum by bolts inserted from the motor side to facilitate immediate access to the fill, level, and drain plugs.Thanks to seals, all devices are protected from adverse environmental effects and can be protected from seawater corrosion by epoxy coating.Through this solution, Raydafon provides manufacturers with a standard product that can be adjusted according to specific dimensions, which means that lighter and more compact winches can be manufactured.The performance of the PWD and SLW-SCW series meets the FEM M5 standard, with an output speed of 15 rpm, which is the most widely accepted standard for self-propelled and truck-mounted cranes in the market.

Parameter of PWD Series Winch Drives

Size	Output Torque*[Nm]	Max Input Speed[rpm]	Weight[kg]
2100	6.100	4.000	65
3150	9.700	5.000	130
3200	12.800	5.000	140
3300	18.500	5.000	162
3500	22.200	5.000	205
3700	34.900	5.000	300
3850	70.000	5.000	380
31100	85.000	5.000	435

Features Of PWD Series Winch Drives

•  Robust design with a high load capacity
•  Suitable for hydraulic or electric motors
•  Available in Level 2 and level 3 versions
•  Internal or external parking brake
•  Check device
•  DNV type approval
•  Brevini provides CTD series truck drivers for equipment requiring a low-speed ratio, which can provide primary or secondary gear reduction.
•  For equipment requiring a high transmission ratio, Brevini offers two-stage and three-stage gears.CTU series for deceleration. • The torque and load capacity of the compact track unit will be in the most rugged and  steep terrain
•  Carry the device on the. • Our gearboxes are designed to install plug-in motors of almost any brand. • Both CTD and CTU models include an integrated multi-disc parking brake while maintaining a compact drive • steel or high impact (ductile iron / spherical) cast iron structure.

Alternative Brand/Model Inquiry

Note: the installation dimensions of our planet gearbox, wheel drive gearbox, winch drive gearbox, and track drive gearbox are entirely consistent with the following brands, and their performance parameters are very close to them, which can be used instead of their products.If you are interested, you can click here to find the specific models that can be replaced.

Trasmital Replacement of Bonfiglioli	Replacement of Brevini Riduttori	Replacement of Bosch Rexroth	Replacement of Comer Industries
Replacement of Reggiana Riduttori	Replacement of Rossi	Replacement of Zollern

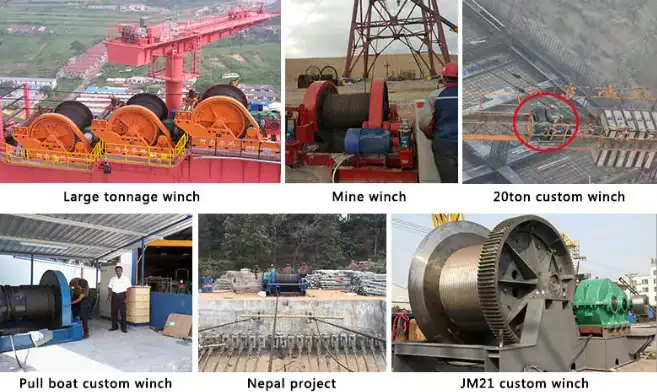

Application of PWD Series Winch Drives
