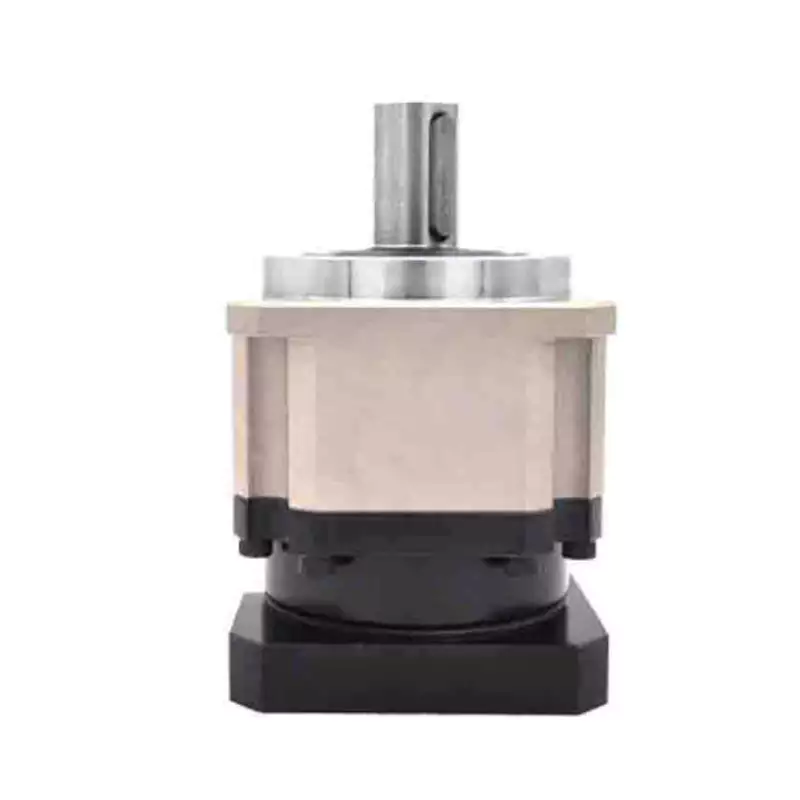

PZB Series High Precision Planetary Gearbox

PZB Series High Precision Planetary Gearbox

Overview

PZB Series High Precision Planetary Gearbox is a type of gearbox that has a compact structure and high precision performance. It is designed to provide high torque density, smooth operation, and reliability. The gearbox is commonly used in various industries such as robotics, automation, and machine tools.

Definition

PZB Series High Precision Planetary Gearbox is a type of gearbox that consists of a sun gear, planet gears, ring gear, and carrier. The sun gear is located in the center and transmits power to the planet gears which rotate around it. The planet gears are then meshed with the ring gear which is fixed to the gearbox housing.

Function

The function of PZB Series High Precision Planetary Gearbox is to transmit power and torque from the input shaft to the output shaft. It is designed to provide high precision and efficiency in power transmission.

Features

1. Precise transmission
2. High torque density
3. Smooth operation
4. Reliability and durability
5. Multiple mounting options and configurations
6. Wide speed range adjustment
7. High adaptability
8. High efficiency
9. Protective measures

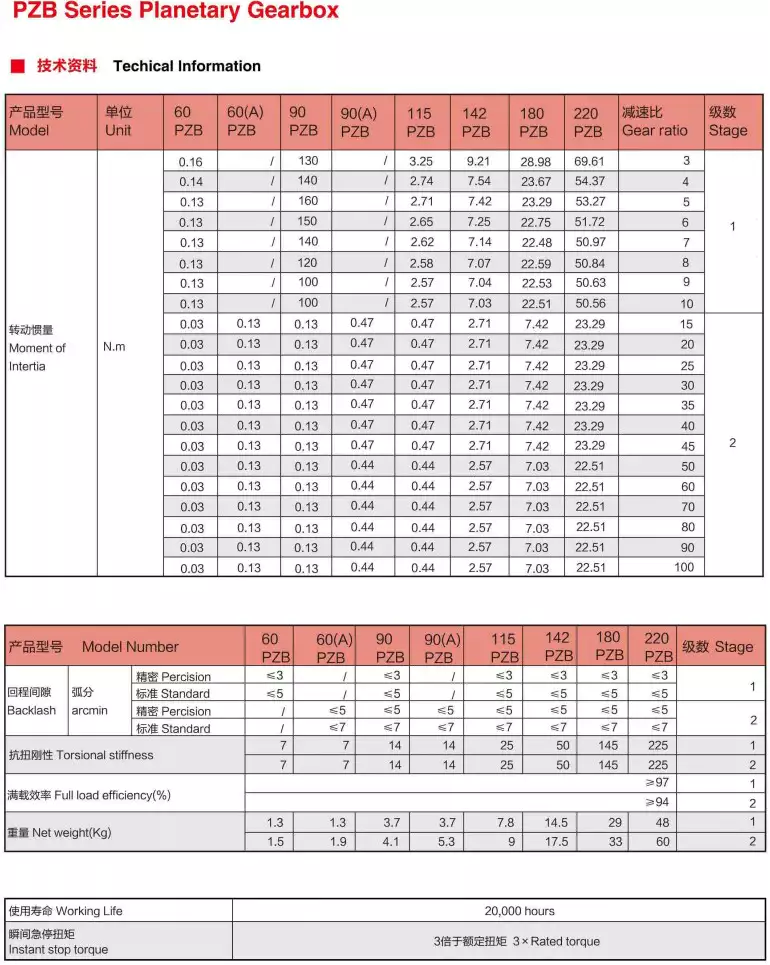

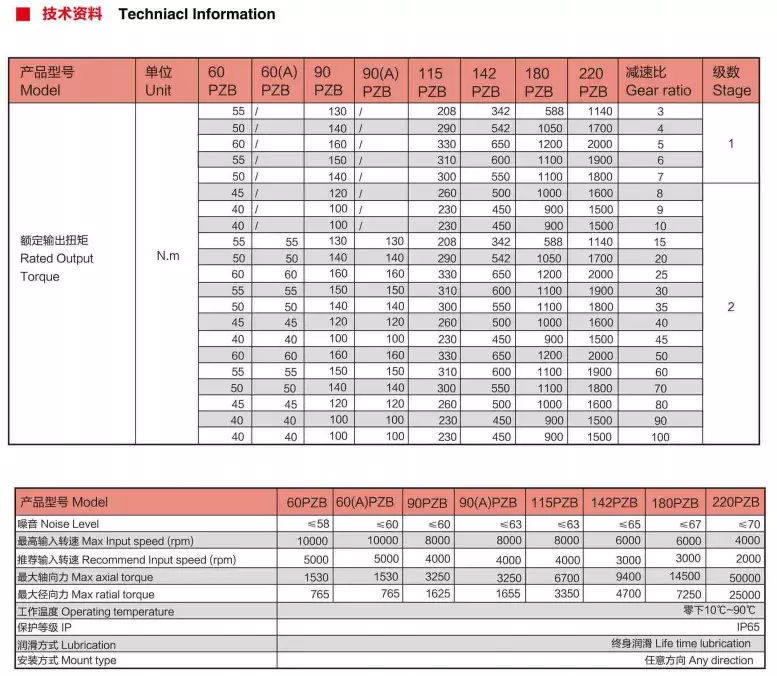

Technical Parameter

Internal Structure

The internal structure of PZB Series High Precision Planetary Gearbox consists of the following parts:

1. Integral double wall planet pinion carrier - This part is responsible for carrying the planet gears.
2. Bearing for the output shaft - This part supports the output shaft.
3. Steel output flange - This part connects the gearbox to the output device.
4. Integral inner gear housing - This part houses the planet gears and the ring gear.
5. Planetary wheel - This part rotates around the sun gear.
6. Sun wheel - This part is located in the center and transmits power to the planet gears.
7. Bearing for the input shaft - This part supports the input shaft.
8. Integral hoop clamp coupling - This part connects the gearbox to the input device.
9. Back cover - This part provides protection to the internal components of the gearbox.

Applications

PZB Series High Precision Planetary Gearbox is widely used in the following industries:

1. Robotics - PZB Series High Precision Planetary Gearbox is commonly used in robotic arms, joints, and grippers to provide precise motion control and high torque density.
2. Automation - PZB Series High Precision Planetary Gearbox is used in automated assembly lines, conveyor systems, and packaging machines to provide reliable and efficient power transmission.
3. Machine tools - PZB Series High Precision Planetary Gearbox is used in CNC machines, milling machines, and grinding machines to provide high precision and stability during operation.
4. Medical equipment - PZB Series High Precision Planetary Gearbox is used in various medical equipment such as MRI machines, X-ray machines, and ultrasound machines to provide precise motion control and high torque density.
5. Aerospace - PZB Series High Precision Planetary Gearbox is used in aerospace applications such as satellites and rockets to provide reliable and efficient power transmission.
6. Renewable energy - PZB Series High Precision Planetary Gearbox is used in wind turbines and solar trackers to provide precise motion control and high torque density.
