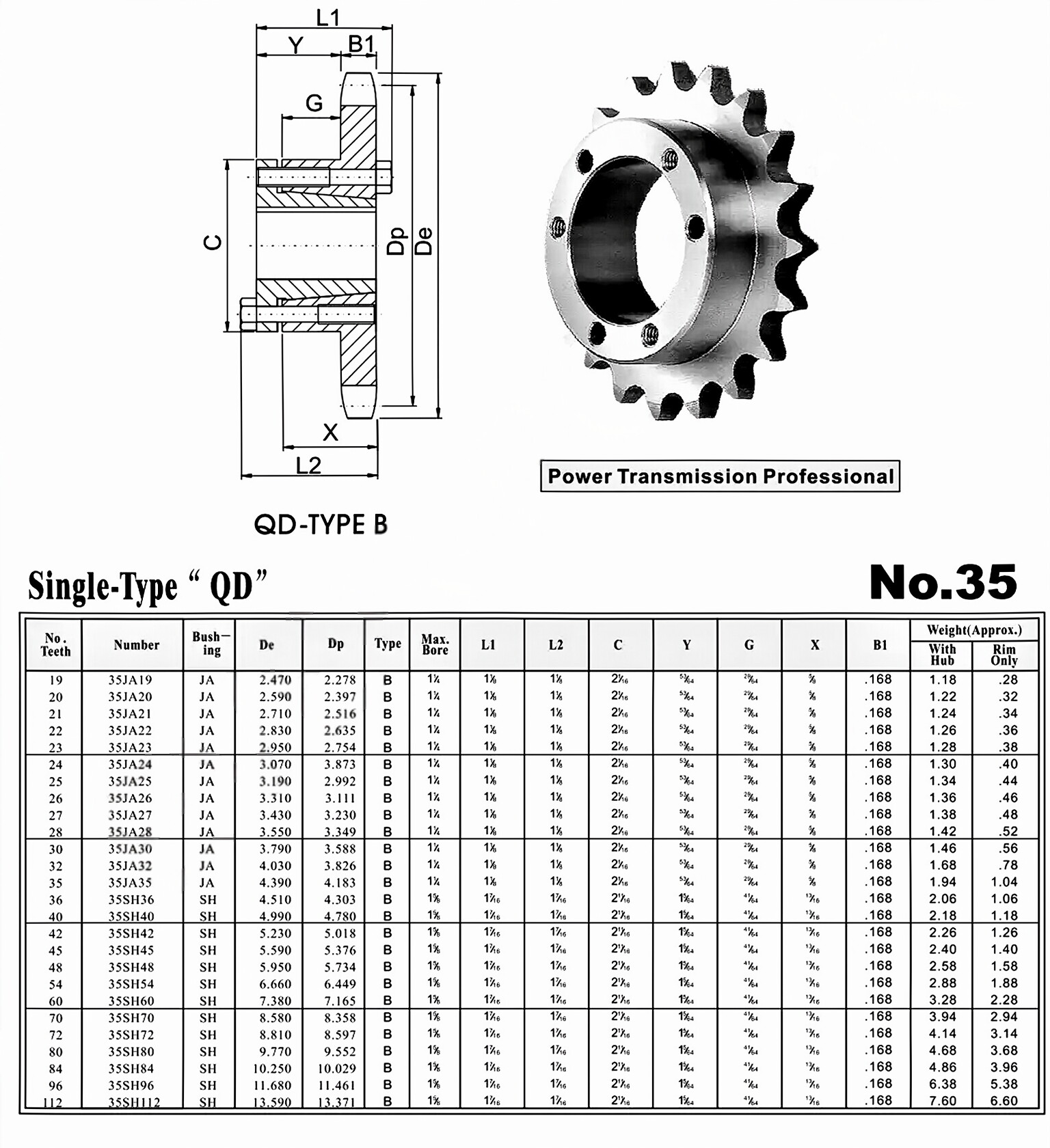

QD Sprocket No.35 Single Type

Introduction to QD Sprocket No.35 Single Type

QD Sprocket No.35 Single Type is a type of chain sprocket used in power transmission systems. The QD sprocket is designed for easy installation and removal, making it a popular choice in many industrial applications.

Definition and Basic Structure of QD Sprocket

A QD sprocket is a type of chain sprocket that features a quick-disconnect bushing, allowing for easy installation and removal. The basic structure of a QD sprocket includes a hub, teeth, and a bushing.

Features and Functions of QD Bushing

• Ease of Installation: QD bushings can be installed quickly and easily, reducing downtime and increasing productivity.
• High Load Capacity: The design of QD bushings allows for a higher load capacity than traditional bushings.
• Standardized Design: QD bushings are made with standardized dimensions, making them easy to replace and interchangeable with other QD bushings.
• Compact Design: QD bushings are designed to take up less space than traditional bushings, making them ideal for applications with limited space.
• Low Maintenance Cost: QD bushings require minimal maintenance, reducing maintenance costs over time.

The ease of installation and removal is a particularly important advantage of QD bushings, as it allows for quick and easy sprocket replacement without the need for specialized tools or equipment.

Installation and Removal Process of QD Bushing

1. Prepare Tools and Materials: Gather all necessary tools and materials, including the QD bushing, sprocket, and any necessary fasteners.
2. Clean Shaft and Sprocket Surface: Clean the shaft and sprocket surface to ensure proper installation.
3. Position Sprocket: Position the sprocket on the shaft in the desired location.
4. Install QD Bushing: Slide the QD bushing onto the shaft until it is snug against the sprocket, then tighten the bushing set screws.
5. Secure Sprocket: Tighten any necessary fasteners to secure the sprocket in place.
6. Check: Verify that the sprocket and bushing are properly aligned and tightened before use.

Manufacturing Process of QD Sprocket

The manufacturing process of QD sprockets involves several steps:

• Raw Material Preparation: The raw materials for the sprocket are prepared, typically in the form of steel bars or plates.
• Cutting: The raw materials are cut to the required size and shape.
• Forging or Casting: The metal is forged or cast into the desired shape.
• Machining: The sprocket is machined to the required dimensions, including the teeth and hub.
• Rolling: The teeth are rolled into the sprocket to ensure proper engagement with the chain.
• Heat Treatment: The sprocket is heat-treated to improve its strength and durability.
• Surface Treatment: The sprocket is coated or plated to improve its corrosion resistance and appearance.
• Quality Inspection: The finished sprocket is inspected for quality and compliance with specifications.

FAQ

1. Can QD sprockets be used with any type of chain?

QD sprockets are designed to work with specific types of chain, so it is important to ensure compatibility before use.

2. What is the maximum load capacity of a QD sprocket?

The load capacity of a QD sprocket depends on several factors, including the size and number of teeth, the material and design of the sprocket, and the type of chain used. Consult the manufacturer's specifications for more information.

3. How do I know when it is time to replace a QD sprocket?

QD sprockets should be inspected regularly for signs of wear or damage. Replace the sprocket if any abnormalities are found.

4. Can I reuse a QD bushing?

QD bushings are designed for one-time use only and should be replaced each time the sprocket is replaced.

5. Can QD sprockets be customized?

Yes, QD sprockets can be customized to meet specific application requirements. Consult the manufacturer for more information.

Author: Miya
