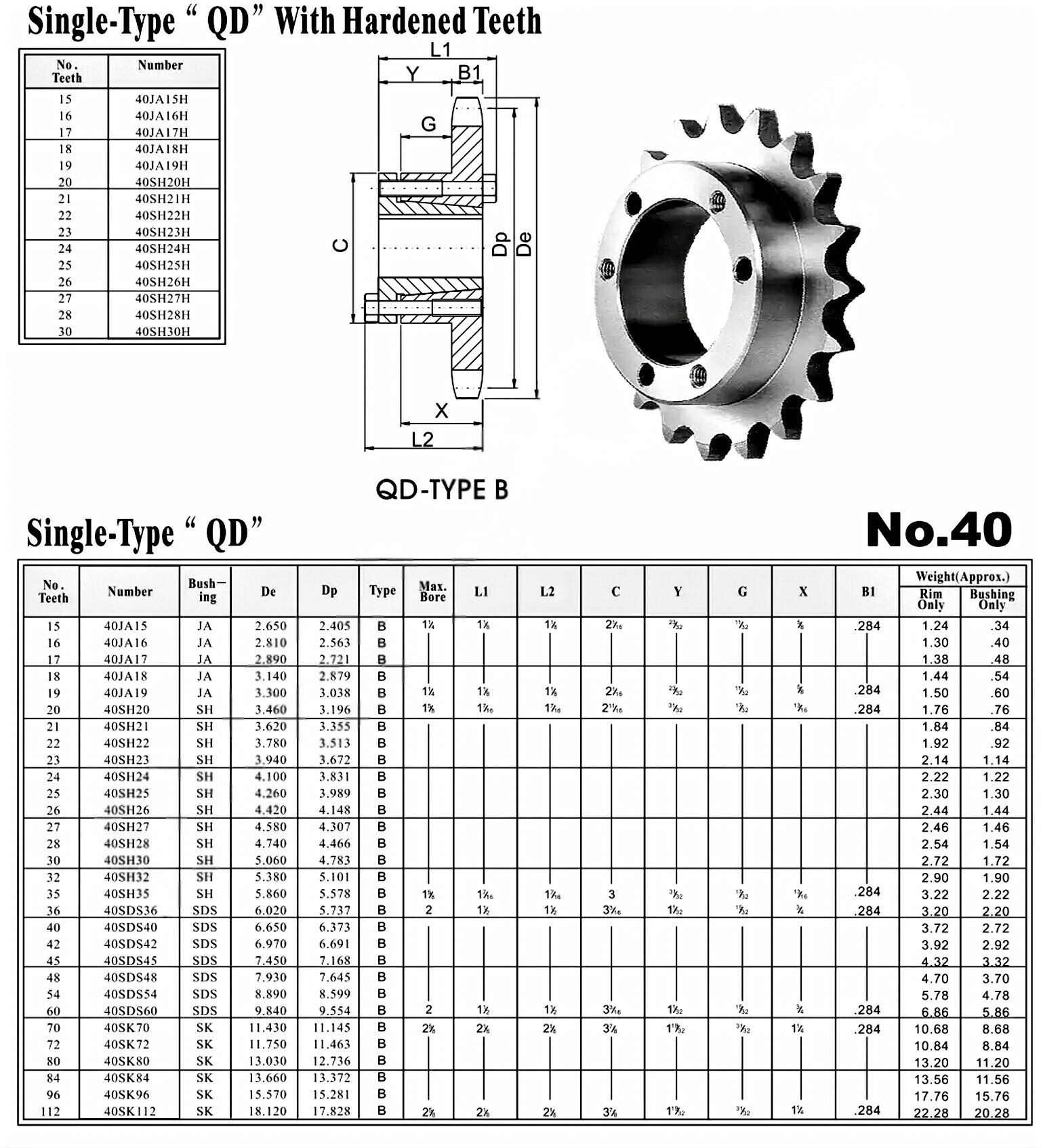

QD Sprocket No.40 Single Type

Introduction to QD Sprocket No.40 Single Type

QD Sprocket No.40 Single Type is a type of sprocket used in power transmission systems. It is a key component in transferring power between rotating shafts.

Definition and Basic Structure

QD Sprocket No.40 Single Type is a type of sprocket that uses a QD bushing system to mount onto a shaft. The QD bushing is a split taper bushing that allows for easy installation and removal of the sprocket.

Features and Functions of QD Bushing

• Easy to Install: QD bushings can be easily mounted onto a shaft without the need for special tools or equipment.
• High Load Capacity: QD bushings are designed to withstand high torque and radial loads.
• Standardized Design: QD bushings are designed to conform to industry standards for easy interchangeability.
• Compact Design: QD bushings are designed to take up less space than traditional mounting methods.
• Low Maintenance Cost: QD bushings require little maintenance and can be easily replaced when necessary.

The easy installation and removal of QD bushings make them a popular choice for sprocket mounting systems.

Installation and Removal Process of QD Bushing

The following steps outline the process for installing and removing a QD bushing:

1. Prepare Tools and Materials: Gather all necessary tools and materials for the installation or removal process.
2. Clean Shaft and Sprocket Surface: Use a cleaning agent to remove any dirt or debris from the mounting surfaces of the shaft and sprocket.
3. Position Sprocket: Position the sprocket onto the shaft in the desired location.
4. Install QD Bushing: Slide the QD bushing onto the shaft and tighten the screws until the bushing is fully seated onto the shaft.
5. Secure Sprocket: Slide the sprocket over the QD bushing and tighten the set screws to secure the sprocket onto the bushing.
6. Check: Double-check the installation to ensure that the sprocket is securely mounted and properly aligned.

Manufacturing Process of QD Sprocket No.40 Single Type

The manufacturing process of QD Sprocket No.40 Single Type involves the following steps:

1. Prepare Raw Materials: Acquire raw materials, such as steel, according to specifications.
2. Cut to Size: Cut the raw materials to the appropriate size for the sprocket.
3. Forge or Cast: Forge or cast the sprocket into the desired shape.
4. Machining: Machine the sprocket to create the teeth and other features.
5. Rolling: Roll the teeth to ensure proper tooth profile and load-carrying capacity.
6. Heat Treatment: Heat-treat the sprocket to improve its strength and durability.
7. Surface Treatment: Apply a surface treatment, such as painting or plating, to protect against corrosion and wear.
8. Quality Inspection: Perform a quality inspection to ensure that the sprocket meets industry standards and specifications.

FAQs

1. What is the maximum torque capacity of QD Sprocket No.40 Single Type?

The maximum torque capacity of QD Sprocket No.40 Single Type is dependent on the size and material of the sprocket. Please consult the manufacturer's specifications for more information.

2. Are QD bushings interchangeable between different sprocket sizes?

No, QD bushings are designed to be used with specific sprocket sizes. Please consult the manufacturer's specifications for more information.

3. Can QD bushings be reused?

Yes, QD bushings can be reused if they are still in good condition and have not reached the end of their service life. Please consult the manufacturer's specifications for more information.

4. What is the advantage of using QD bushings over other mounting methods?

The advantage of using QD bushings is their ease of installation and removal, which reduces downtime and maintenance costs.

5. What is the typical service life of QD Sprocket No.40 Single Type?

The service life of QD Sprocket No.40 Single Type is dependent on a variety of factors, such as the operating conditions and maintenance practices. Please consult the manufacturer's specifications for more information.

Author: Miya
