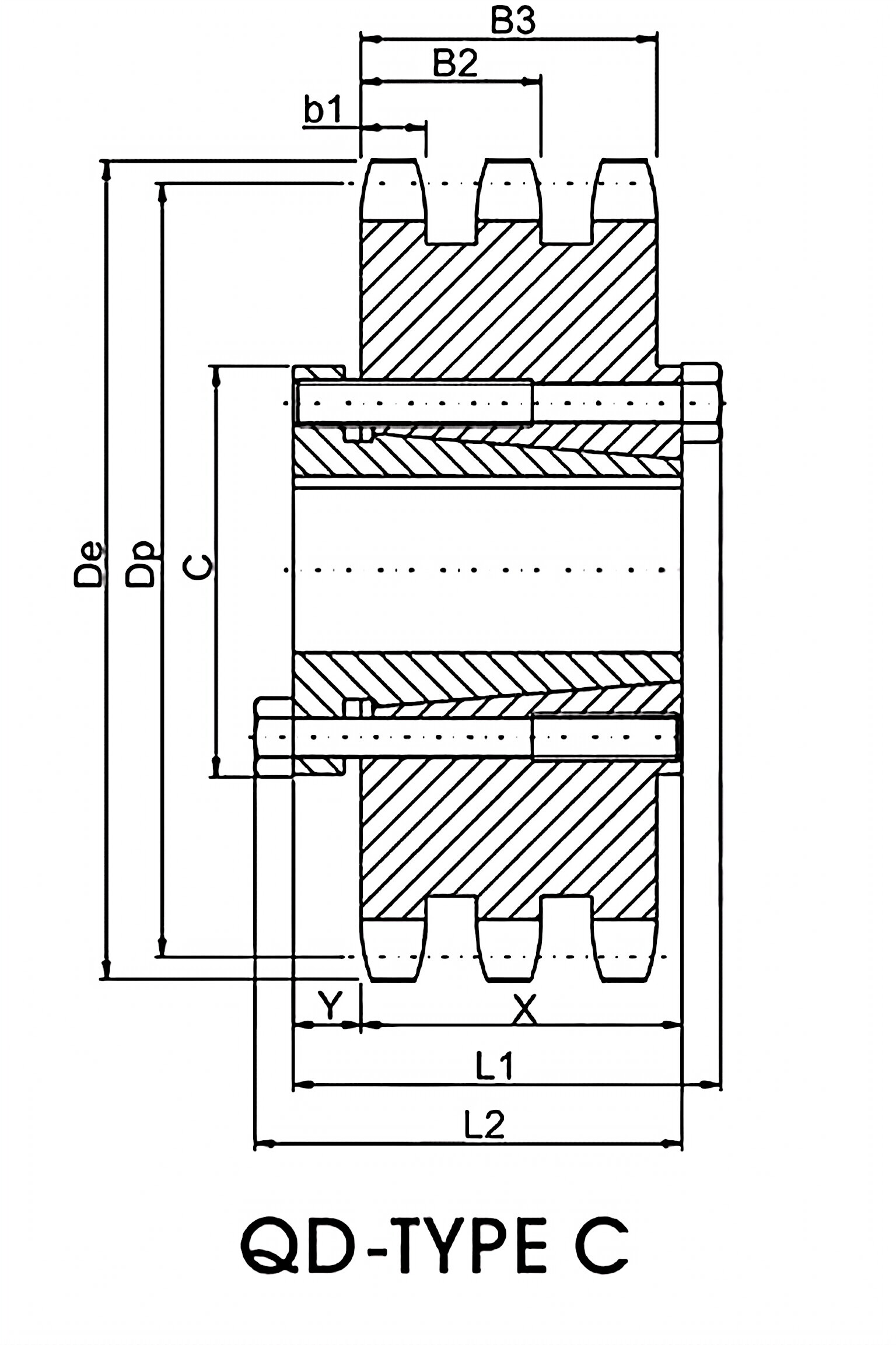

QD Sprocket No.35-3 Triple Type

Introduction

The QD Sprocket No.35-3 Triple Type is a type of sprocket that is commonly used in transmission systems. It plays a crucial role in transferring power from one component to another. QD sprockets are widely used in various industries for their reliable performance and durability.

Definition and Basic Structure

A QD sprocket is a type of sprocket that features a Quick Disconnect (QD) bushing system. The QD bushing allows for easy installation and removal of the sprocket, making it convenient for maintenance and replacement purposes. The sprocket consists of teeth that engage with the links of a chain, enabling power transmission.

Characteristics and Functions of QD Bushing

• Easy Installation: The QD bushing system simplifies the installation process, saving time and effort.
• High Load Capacity: QD bushings are designed to handle heavy loads and provide reliable performance.
• Standardized Design: QD bushings follow standard specifications, ensuring compatibility with various sprockets.
• Compact Design: The compact size of QD bushings allows for efficient use of space in the transmission system.
• Low Maintenance Cost: QD bushings require minimal maintenance, reducing overall maintenance expenses.

One of the key advantages of QD bushings is their ease of installation and removal. This feature allows for quick and hassle-free maintenance or replacement without the need for specialized tools or extensive downtime.

Installation and Removal Process of QD Bushing

1. Prepare Tools and Materials: Gather the necessary tools and materials for the installation or removal process.
2. Clean Shaft and Sprocket Surface: Ensure that the shaft and sprocket surface are clean and free from any debris or contaminants.
3. Position the Sprocket: Place the sprocket in the desired position on the shaft.
4. Install QD Bushing: Align the QD bushing with the sprocket and slide it onto the shaft until it reaches the desired position.
5. Secure the Sprocket: Use the provided set screws or locking mechanism to secure the sprocket onto the QD bushing.
6. Check for Proper Installation: Double-check the alignment and tightness of the sprocket and QD bushing to ensure a secure connection.

Manufacturing Process of QD Sprockets

1. Raw Material Preparation: Select high-quality materials suitable for the production of QD sprockets.
2. Cutting: Cut the raw material into the desired shape and size for further processing.
3. Forging or Casting: Use forging or casting techniques to shape the sprocket and enhance its strength.
4. Machining: Conduct precision machining to create the teeth and other intricate features of the sprocket.
5. Tooth Rolling: Roll the teeth to ensure accurate tooth profiles and proper engagement with the chain.
6. Heat Treatment: Apply heat treatment to enhance the hardness and durability of the sprocket.
7. Surface Treatment: Apply surface treatments such as plating or coating for improved corrosion resistance.
8. Quality Inspection: Perform thorough quality inspections to ensure the sprockets meet the required standards.

FAQ - Frequently Asked Questions

1. Q: How do I choose the right QD sprocket for my application?

A: The selection of a QD sprocket depends on factors such as the desired speed ratio, power requirements, and chain specifications. Consulting with a knowledgeable supplier can help you make the right choice.

2. Q: Can I reuse a QD bushing after removing it?

A: QD bushings are designed for multiple installations and removals. However, it is essential to inspect the bushing for any signs of wear or damage before reusing it.

3. Q: Are QD sprockets suitable for high-speed applications?

A: Yes, QD sprockets are designed to withstand high speeds and transmit power efficiently. However, it is crucial to consider factors such as dynamic balancing and proper lubrication for optimal performance.

4. Q: Can I install a QD bushing on an existing sprocket?

A: Yes, QD bushings are designed to be compatible with various sprocket types. Ensure that the sprocket has the appropriate mounting configuration to accommodate the QD bushing.

5. Q: How often should I inspect and maintain QD sprockets?

A: Regular visual inspections and maintenance are recommended to ensure the proper functioning of QD sprockets. Factors such as operating conditions and load requirements can influence the maintenance frequency.
