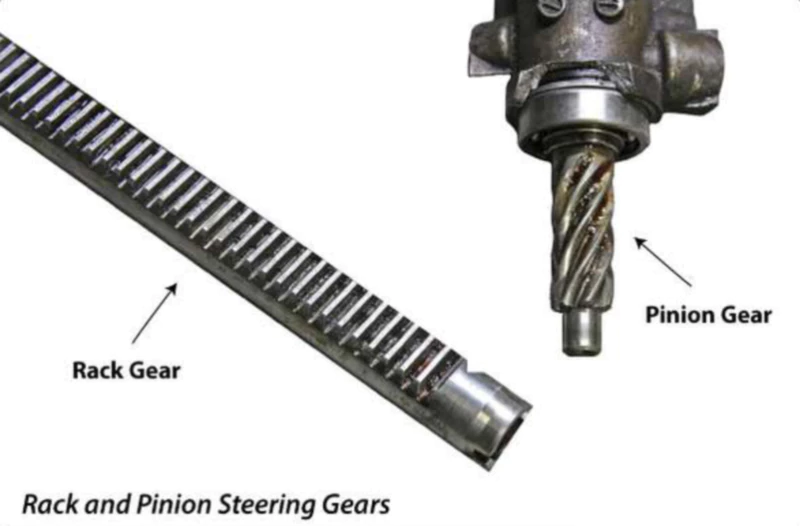

Rack and pinion steering is a type of steering mechanism commonly used in vehicles to control the direction of the front wheels. It involves the use of a rack, a long, straight bar with teeth, and a pinion gear.The rack is a linear component positioned horizontally and connected to the front wheels through tie rods. The pinion gear, which is a small gear, meshes with the teeth on the rack. The pinion gear is connected to the steering wheel via the steering column.
About the rack and pinion steering

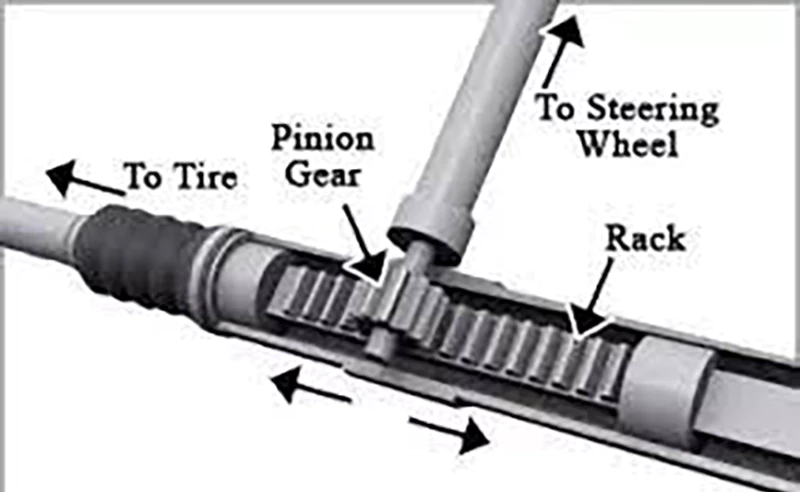

The rack and pinion steering mechanism allows for precise and responsive steering control. It converts the rotational motion of the steering wheel into linear motion, enabling the driver to turn the front wheels and change the vehicle's direction. The gear ratio between the pinion gear and the rack determines the sensitivity and responsiveness of the steering system.When the driver turns the steering wheel, the rotational motion is transferred to the pinion gear. As the pinion gear rotates, it causes the rack to move linearly along its length. This linear motion of the rack is then transmitted to the tie rods, which ultimately control the movement of the front wheels.Rack and pinion steering is widely used in various types of vehicles, including cars, trucks, and SUVs, due to its compact design, efficiency, and accuracy in steering control. It provides a direct and efficient means of translating the driver's input into the desired wheel movement, contributing to overall vehicle handling and maneuverability.[embed]https://youtu.be/1Q6mEd89OG0[/embed]
Rack and pinion steering offers several advantages over other steering systems. Here are the key benefits and common application scenarios:
Advantages of Rack and Pinion Steering:1. Compact Design: Rack and pinion steering systems have a compact and lightweight design, making them suitable for various vehicle types, including passenger cars, sports cars, and light trucks.2. Precise Steering Control: The rack and pinion mechanism provide direct and responsive steering control. It offers a more precise and accurate steering feel, allowing drivers to have better control over the vehicle's direction.3. Efficient Power Assistance: Rack and pinion steering systems can be equipped with power assistance, such as hydraulic or electric power steering. This assistance reduces the effort required to steer the vehicle, particularly at low speeds or during parking maneuvers.4. Minimal Maintenance: Rack and pinion steering systems generally have fewer moving parts compared to other steering systems, resulting in reduced maintenance requirements and lower chances of component failure.5. Improved Handling and Stability: The precise control and responsiveness of rack and pinion steering contribute to enhanced vehicle handling and stability, especially during cornering and maneuvering.Common Application Scenarios:1. Passenger Cars: Rack and pinion steering systems are widely used in passenger cars due to their compact design, precise control, and ease of integration with power steering systems. They provide a balance between maneuverability and comfort for everyday driving.2. Sports Cars: The direct and responsive nature of rack and pinion steering makes it a popular choice for sports cars. It offers the driver enhanced feedback and control, which is crucial for high-performance driving and spirited handling.3. Light Trucks and SUVs: Rack and pinion steering systems are also found in light trucks and SUVs. They provide a combination of precise control and power assistance, making them suitable for both on-road and off-road applications.4. Performance Vehicles: High-performance and luxury vehicles often utilize advanced variants of rack and pinion steering systems, such as variable-assist or electronically controlled systems. These systems offer customizable steering characteristics to enhance performance and comfort according to driver preferences.Overall, rack and pinion steering systems are favored for their precise control, compact design, and ease of integration with power assistance. Their applications range from everyday passenger cars to high-performance vehicles, providing improved handling, stability, and driver confidence on the road.
How does Rack and pinion steering work?

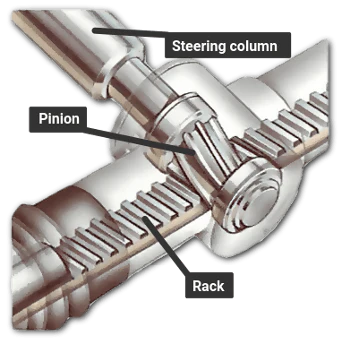

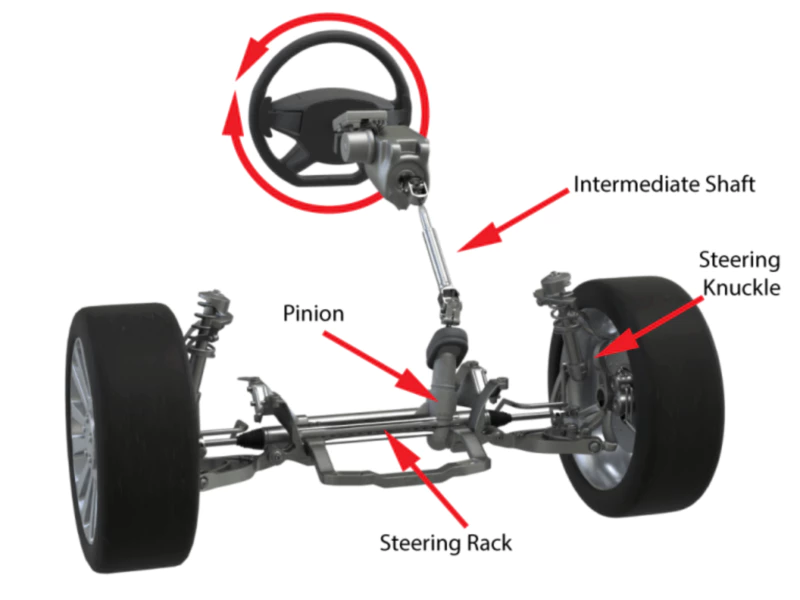

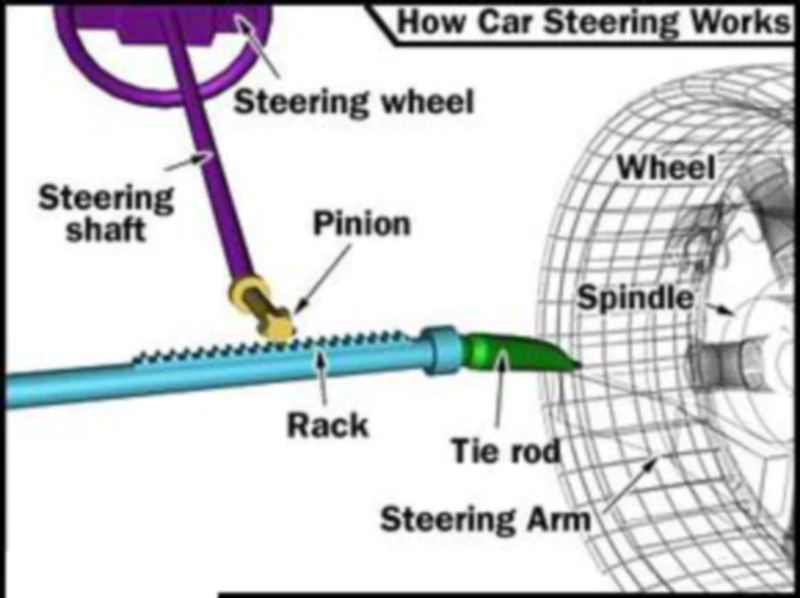

Rack and pinion steering is a mechanism that converts the rotational motion of the steering wheel into linear motion, allowing the driver to control the direction of the vehicle. Here's how it works:1. Components: The rack and pinion steering system consists of two main components: the rack and the pinion. The rack is a long, flat gear with teeth along its length, while the pinion is a small gear attached to the steering shaft.2. Steering Input: When the driver turns the steering wheel, it rotates the steering shaft, which in turn rotates the pinion gear.3. Rack Movement: As the pinion gear turns, it engages with the teeth on the rack. The rotation of the pinion causes the rack to move linearly in either direction, depending on the direction of the steering input.4. Tie Rods and Steering Arms: The ends of the rack are connected to the tie rods, which are linked to the steering knuckles of the front wheels. When the rack moves, it pushes or pulls the tie rods, which then move the wheels accordingly.5. Steering Ratio: The number of teeth on the pinion gear and the length of the rack determine the steering ratio. The steering ratio determines how much the wheels turn in response to a given input from the steering wheel. Different vehicles may have different steering ratios based on their size, weight, and intended use.6. Power Assistance: In some rack and pinion steering systems, power assistance can be added to reduce the effort required to turn the steering wheel. Power assistance can be provided hydraulically or electrically, and it helps amplify the driver's steering input.7. Returnability: The rack and pinion steering system is designed to have a natural returnability, meaning that when the driver releases the steering wheel after making a turn, the system helps to bring the wheels back to the straight-ahead position.Overall, the rack and pinion steering system converts the rotational motion of the steering wheel into linear motion, which is then used to control the movement of the front wheels. It is a widely used steering mechanism known for its simplicity, compact design, and responsiveness.
Rack and pinion steering systems type

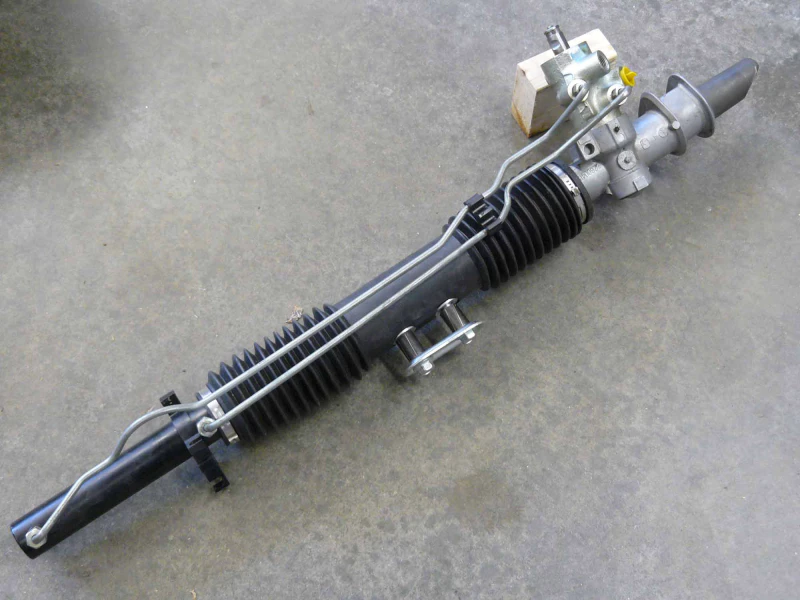

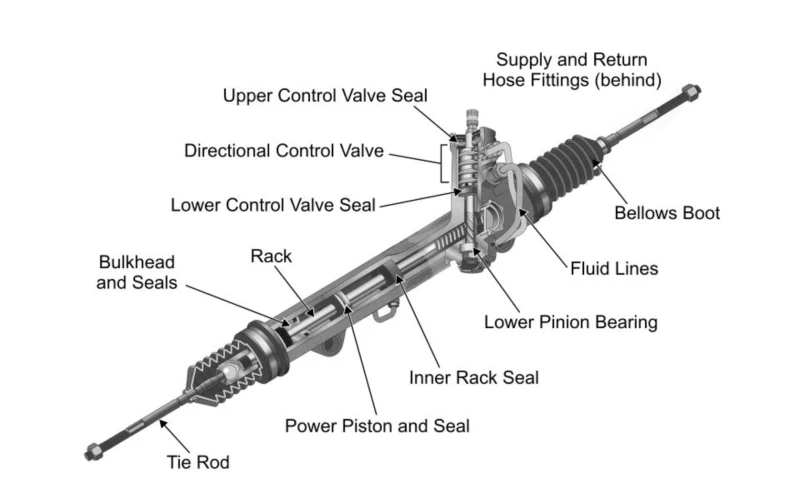

1. Manual Rack and Pinion Steering: This type of rack and pinion steering system does not have power assistance. The driver relies solely on their own physical effort to turn the steering wheel and move the rack, which then translates into the movement of the wheels. Manual rack and pinion steering systems are simpler in design and are commonly found in smaller vehicles or performance-oriented cars.2. Hydraulic Power Rack and Pinion Steering: This type of rack and pinion steering system incorporates hydraulic power assistance. A hydraulic pump, driven by the engine, applies pressure to the power steering fluid, assisting the driver in turning the steering wheel. The fluid pressure helps reduce the effort required for steering, particularly at low speeds or during parking maneuvers. Hydraulic power rack and pinion steering systems are widely used in a variety of vehicles.3. Electric Power Rack and Pinion Steering: In this type of rack and pinion steering system, the power assistance is provided by an electric motor instead of a hydraulic pump. The motor assists the driver's steering input by applying torque to the pinion gear. Electric power rack and pinion steering systems are becoming increasingly popular due to their efficiency, versatility, and the ability to integrate with advanced driver-assistance systems.4. Variable-Assist Rack and Pinion Steering: This type of rack and pinion steering system offers adjustable power assistance based on driving conditions. The system can vary the level of power assistance based on factors such as vehicle speed, steering input, or road conditions. Variable-assist rack and pinion steering systems provide a customized balance between ease of steering and road feel.5. Active or Electrically Controlled Rack and Pinion Steering: This advanced type of rack and pinion steering system incorporates sensors and electronic control to actively adjust the steering response and feel. It can adapt to different driving modes or enhance stability and maneuverability by altering the steering characteristics. Active or electrically controlled rack and pinion steering systems are typically found in high-end or performance vehicles.
Here are some common problems that can occur with rack and pinion steering and their potential solutions:
Rack and pinion steering systems, like any mechanical component, can experience issues over time.1. Excessive Play or Loose Steering:- Problem: The steering feels loose, or there is excessive play in the steering wheel.- Solution: Check for worn-out or damaged components such as tie rod ends, bushings, or rack mounts. Replace any worn or damaged parts and ensure proper tightening of all connections.2. Fluid Leaks:- Problem: Fluid leaks from the rack and pinion assembly or power steering system.- Solution: Inspect the steering system for any visible leaks. Replace faulty seals, hoses, or gaskets. Ensure proper fluid levels and use the recommended power steering fluid specified by the manufacturer.3. Hard Steering:- Problem: The steering wheel requires excessive effort to turn.- Solution: Check the power steering pump for proper operation and fluid levels. Inspect the power steering belt for proper tension. If necessary, replace a worn-out or faulty power steering pump or address any restrictions in the fluid flow.4. Noisy Steering:- Problem: Unusual noises, such as clunking, squeaking, or grinding sounds while steering.- Solution: Inspect the rack and pinion assembly for any loose or worn-out components. Lubricate the steering linkage and other moving parts as per the manufacturer's recommendations. Replace any damaged or worn parts contributing to the noise.5. Uneven Tire Wear:- Problem: Tires wear unevenly, causing uneven tread wear patterns.- Solution: Check the alignment of the wheels and the suspension components. Adjust the alignment if necessary. Inspect the tie rod ends and other steering components for wear or damage. Replace any worn parts and ensure proper tire inflation.6. Steering Wheel Vibration:- Problem: The steering wheel vibrates or shakes while driving.- Solution: Check for imbalanced or damaged wheels and tires. Have the wheels balanced and aligned. Inspect the suspension components for any loose or worn parts. Address any issues found during the inspection.In general, it is advisable to consult a professional mechanic or a qualified technician to diagnose and address specific issues with rack and pinion steering systems. They will have the expertise and necessary tools to identify the problem accurately and perform the required repairs or replacements.
