Raydafon P110 Front Motor Wheel 36V 750W Motor Electric Bicycle Motor Wheel

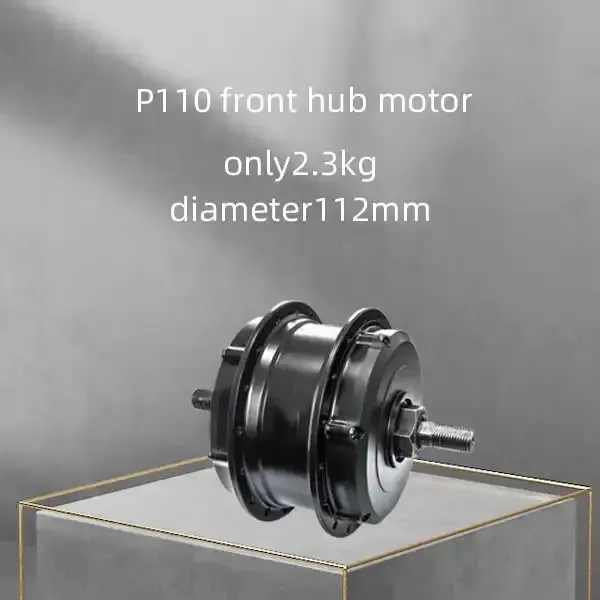

The Raydafon P110 is a powerful electric bicycle front hub motor with a rated output power of 250W and a maximum power of 750W. This brushless motor operates at a rated voltage of 36V and is designed to be super silent while offering optimum performance in all road conditions. The diameter of this motor wheel is 112??1mm with a width of 100??2mm. Its efficiency is an impressive ??90%, and it operates at a rated revolution of 160-260r/min. The motor wheel comes in two colors, black and silver, and weighs 2.3kg.

Specifications of P110 Front Hub Motor for E-bike

Item No.	P110SWXDC36/P110SWXC36
Diameter	113mm±1mm
Width	135±2mm
Brake types	Disc brake / V brake / Roller brake
Outlet position	Under the shaft on the right side
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Solar pedal sensor
Rated power	250W
Max. power	750W
Max. torque	50N·m
Rated voltage	36V
Rated input current	7.8A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	2.3KG

P110 E-bike Front Hub Motor Dimension

Product Advantages

The P110 front hub motor boasts a myriad of advantages that set it apart from other e-bicycle motors. Here are six key features that make this motor a standout choice:1. Built-in controller: This feature allows for seamless integration and optimal control of the motor functionality.2. Wireless pedal sensor: This wireless feature enhances the response of the motor to the rider's pedaling action.3. Easy to install & disassemble: The motor's design allows for easy installation and removal, making it convenient for regular maintenance or replacement.4. Maximum power 750W, torque exceeds 40N??m: The motor is powerful enough to tackle steep gradients and heavy loads with ease.5. Efficiency ??90%: The high efficiency of this motor ensures maximum conversion of electrical energy into mechanical power, thereby maximizing battery life.6. Wireless control: The wireless control feature enhances the convenience and ease of use for the rider.

Applications of the P100/P110 Front Hub Motor

The P100/P110 front hub motors are versatile and can be used in a variety of applications. Here are six common applications where these hub motors excel:1. Commuting: The motors are ideal for use in e-bikes designed for commuting, providing assistance to cover longer distances and tackle steep hills.2. Urban Riding: The smooth acceleration and power provided by the P100/P110 motors make them a popular choice for urban riding.3. Recreation and Leisure: Whether it's trail exploration, scenic cruising, or outdoor adventures, these motors provide an extra boost to enhance the riding experience.4. Delivery Services: The reliability and efficiency of these motors make them a favored choice for delivery services.5. Tourism and Sightseeing: E-bikes equipped with P100/P110 motors are often used for sightseeing, allowing tourists to explore with ease and convenience.6. Electric Bike Sharing Programs: Bike-sharing programs often use e-bikes equipped with P100/P110 motors due to their reliability and ease of use.

How Does the Ebike System P100/P110 Front Hub Motor Work?

Understanding the workings of the P100/P110 front hub motor aids in maximizing its efficiency and longevity. Here is a basic rundown of how the e-bike system with a P100/P110 front hub motor functions:1. Power Source: The rechargeable battery pack provides the electrical energy to the motor.2. Motor Controller: This component manages the flow of electricity from the battery to the motor.3. Torque Sensor or Throttle: The system includes control options that allow the rider to control the motor's power output.4. Motor Assistance: The motor provides aid when the rider applies force to the pedals or activates the throttle.5. Front Hub Motor: The motor is located in the front wheel hub and generates rotational force to propel the e-bike forward.6. Power Transmission: The wheel receives the motor's rotational force through gears integrated into the hub motor.7. Regenerative Braking: Some systems have this feature, which converts kinetic energy back into electricity during braking.8. Display and Control Unit: This unit provides the rider with valuable information and allows them to adjust settings as needed.

Choosing the Right P100/P110 Front Hub Motor

When choosing the right P100/P110 front hub motor for your e-bike system, several factors need to be considered:1. Power and Torque: Consider your riding needs and the terrain you will be traversing.2. Efficiency: A more efficient motor will provide a longer battery life and a more effective riding experience.3. Compatibility: Ensure that the motor's specifications match those of your battery and motor controller.4. Wheel Size: The motor should fit the specific wheel size of your e-bike.5. Weight and Size: The weight and dimensions of the motor can affect the overall handling of your e-bike.

Maintenance of the P100/P110 Front Hub Motor

Regular maintenance is vital to ensure the longevity and optimal performance of the P100/P110 front hub motor. Here are some tips:1. Regular Cleaning: Wipe down the motor regularly to remove dirt, dust, and debris.2. Inspection: Regularly inspect the motor for any signs of damage or wear.3. Lubrication: Some motors may require lubrication for smooth operation.4. Battery Maintenance: Follow the manufacturer's instructions for proper battery care.5. Wheel Maintenance: Regularly inspect the wheel for proper alignment and spoke tension.6. Water and Moisture Protection: Avoid excessive moisture and submerging the motor in water.

Why Choose Raydafon's P100/P110 Front Hub Motor?

Established in 1993, Raydafon Electric Technology Co Ltd. is a leading manufacturer of high-end electric bicycle parts. We provide efficient, reliable, and stylish products that are CE-certified and protected by independent intellectual property rights. Our products are designed to provide electric power support for bicycles while maintaining their original appearance and characteristics. If you are looking for high-quality electric bicycle components, Raydafon welcomes you. We look forward to collaborating with you to promote the development of the electric bicycle industry and contribute to environmental protection.
