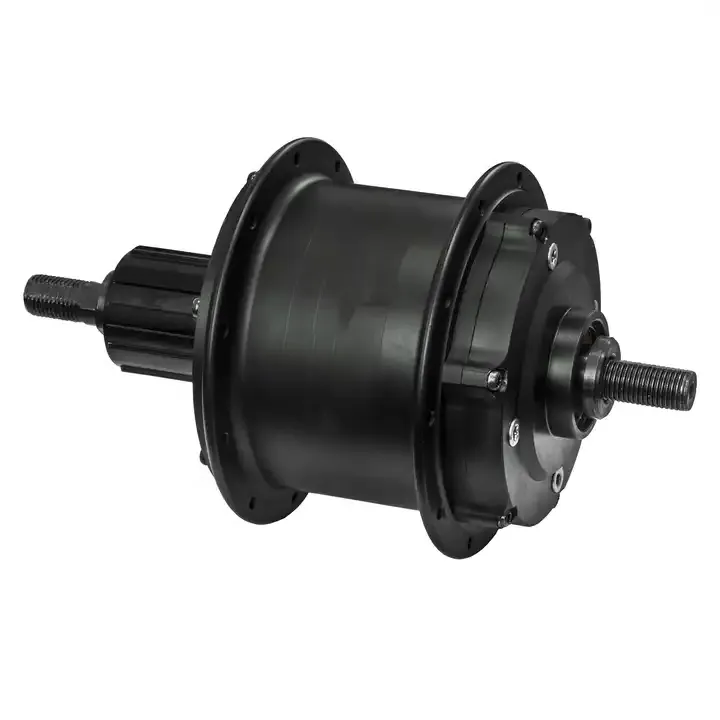

Raydafon S100 Rear Hub Motor: Compact, Efficient, and High-Performing

The Raydafon S100 rear hub motor is a powerful and efficient motor designed for electric bicycles. This compact, lightweight motor features a built-in controller, making it a perfect choice for e-bike systems. It comes in a sleek black or silver design, with key specifications including a diameter of 102??1mm, width of 135??2mm, rated output power of 250W, maximum output power of 300W, and a maximum output torque of 30Nm. The S100 motor operates at a rated voltage of 24/33/36V, with an impressive efficiency of ??88%. The motor weighs just 1.7kg, making it an ideal choice for lightweight e-bikes.

Advantages of the Raydafon S100 Rear Hub Motor

When it comes to performance and convenience, the Raydafon S100 rear hub motor stands out with its distinct advantages:

1. Built-in Controller and Sensor: The built-in controller simplifies the wiring process, reduces the system's overall weight, and enhances its reliability. The integrated sensor ensures smooth and responsive motor operations.
2. Lightweight: Weighing just 1.7kg, the S100 motor reduces the weight of the e-bike, making it easier to handle and maneuver.
3. Compact Size: With its small size, the S100 motor can be easily integrated into the rear wheel hub, maintaining the aesthetics of the bike.
4. Super-silent: The S100 motor operates quietly, ensuring a smooth and peaceful ride.
5. High Efficiency and Long Life: With an efficiency of ??88%, the S100 motor maximizes the use of power from the battery. Its high-quality construction ensures a long lifespan.
6. Optional Wireless Communication: The motor can be optionally equipped with wireless communication, allowing for easy monitoring and control of the bike's performance.

We take pride in our ability to produce this high-quality, efficient, and durable motor, offering a top-notch solution for e-bike systems.

Applications of the Raydafon S100 Rear Hub Motor

The S100 rear hub motor offers versatile applications, making it a popular choice for various types of e-bike systems:

1. Electric Bicycles: The S100 motor enhances the e-bike's performance by providing pedal-assist or full electric propulsion.
2. Commuting: E-bikes equipped with the S100 motor make commuting easier, especially over hilly terrains or long distances.
3. City Riding: Thanks to its torque and power, the S100 motor is ideal for city rides, allowing for easy acceleration and maneuverability through traffic.
4. Cargo Bikes: The high torque output of the S100 motor is beneficial for cargo bikes that need to carry heavy loads.
5. Recreational Riding: For leisurely rides in various terrains, e-bikes with the S100 motor provide the necessary power and assistance.
6. Touring and Long-Distance Riding: For long-distance rides or bikepacking adventures, the S100 motor is a reliable choice, providing constant power assistance.

How Does the S100 Rear Hub Motor for Ebike System Work?

The S100 rear hub motor operates on the principle of a Brushless Direct Current (BLDC) motor. Here's a brief overview of how it works:

1. Motor Construction: Housed within the rear wheel hub, the S100 motor is made up of a stator, rotor, magnets, and coils.
2. Magnetic Field Creation: The stator, connected to the battery and controller, generates a magnetic field when electric current flows through the coils.
3. Electromagnetic Forces: The interaction between the magnetic fields from the stator and rotor creates electromagnetic forces that cause the rotor to rotate, thereby spinning the rear wheel.
4. Power and Control: The controller regulates the power to the motor, controlling the current flowing through the coils based on the rider's input.
5. Pedal-Assist and Throttle Modes: The S100 motor operates in pedal-assist mode or throttle mode, depending on the rider's preference.
6. Regenerative Braking: Some e-bike systems with the S100 motor may feature regenerative braking, which converts kinetic energy back into electrical energy during braking.

Choosing the Right S100 Rear Hub Motor for Your Electric Bicycle

When selecting the S100 rear hub motor for an e-bike, consider the following aspects:

1. Power and Torque: Choose a motor with adequate power and torque output based on your riding requirements.
2. Voltage and Battery Compatibility: Ensure the motor's voltage is compatible with the e-bike's battery.
3. Wheel Size and Compatibility: Ensure the motor size matches your e-bike's rear wheel size and is compatible with the bike's dropout width and axle type.
4. Efficiency and Range: Choose a motor that offers good efficiency to maximize the e-bike's range.
5. Noise and Smoothness: A quieter motor provides a more pleasant riding experience, especially in urban environments.

Maintenance Tips for the S100 Rear Hub Motor

Proper maintenance of the S100 motor can ensure its longevity and optimal performance. Here are some maintenance tips:

1. Regular Cleaning: Keep the motor clean by regularly wiping off dirt and debris.
2. Inspect and Tighten Fasteners: Regularly check and tighten all fasteners to prevent vibrations and potential damage.
3. Check Wiring Connections: Inspect the wiring connections regularly and address any issues promptly.
4. Lubrication: Some motors may require lubrication for smooth operation. Consult the manufacturer's guidelines for appropriate lubrication.
5. Battery Maintenance: Regularly check the battery for signs of damage or deterioration.
6. Wheel Truing: If you notice any wheel wobbling, get the wheel trued by a professional bike mechanic.
7. Regular Inspections: Regularly inspect the motor for signs of wear or damage. If any abnormalities are noticed, consult a professional.

Why Choose Raydafon's S100 Rear Hub Motor for Your Electric Bicycle?

Raydafon Electric Technology Co Ltd. is a leading manufacturer of high-end electric bicycle parts. With our extensive R&D, robust production capabilities, and strict quality management system, we offer reliable and high-performance products, including the S100 rear hub motor. Our products are CE-certified and protected by numerous domestic and international intellectual property rights. We offer customized services, advanced production facilities, and excellent after-sales services. Our products enhance the riding experience while maintaining the original aesthetics of bicycles. If you are seeking high-end electric bicycle components and wish to contribute to environmental protection, Raydafon welcomes you to visit and negotiate.

Author: Yjx
