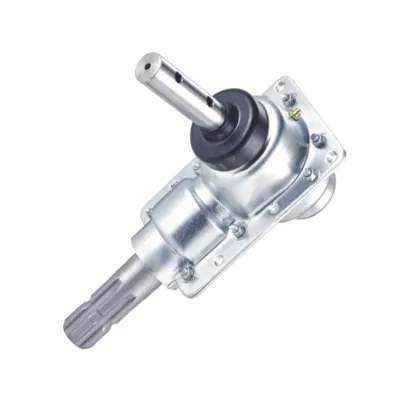

RDF-01-229 Snow Plow Gearbox For Spreader

RDF-01-229 Snow Plow Gearbox For Spreader

If the gearbox on your snow plow has been damaged, replace it with this gearbox. This gearbox replaces #322.002 and will have your snow plow like new again.

Specifications of snow plow gearbox

ITEM	RDF-01-229
Ratio	1:1.35
Teeth	16/16
Module	4.5
Power（HP）	-
Rated Input	540rpm
Input/Output description	1 3/8 Z6 φ25 Optic axis
Weight（N.W）	13Kg

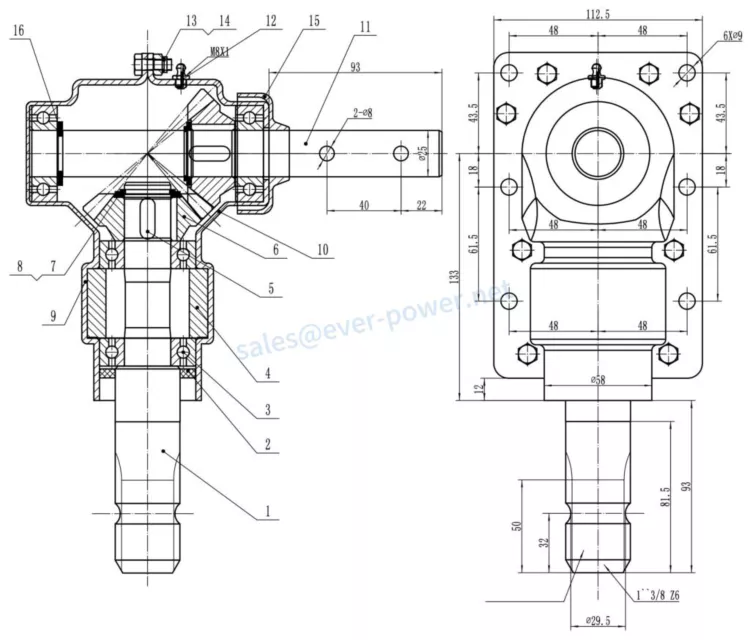

1-3/8" input shaft 6 splineThe shaft is 3-1/2" long1" output shaftShaft length: 3"Holes in output shaft: 1-1/2" center to center6 mounting holesOL: 11"OH: 9"Gear ratio: 1:1Bolt hole spacing: 2-3/8" center to center on the long sideBolt hole spacing 3-3/4" center to center on the widthGearbox has a zirkConfigurations:spiral bevel gears, bearings, housing, oil sealing, input and output shafts, etc.Use Detail:Gear Oil: HD320~680Max Revolutions: 1500 rpmAmbient Temperature: -20ºC~+80ºC, special temperature, consult our engineersNoise Level: less than 80 dBTemperature Level: less than 50ºCTest Equipment: noise meter and infrared thermometer

Customized service of agricultural gearbox

HousingMade in shell-cast aluminum or in high mechanical resistance cast iron.GearsMade in Steel UNI 18 PCR M03.Stub teeth guarantee very high resistance and run very quietly.ShaftsMade in steel UNI 16 CRN4.They are coupled with splined gears and are designed to stand the torque values stated in the catalog.TorquesThe torque figures mentioned in the technical charts of all the PTO Gearboxes refer to continuous duty cycles. Torques under intermittent working conditions can be exceeded by 20%.LubricationSAE 90 gear oil must be put in the PTO gearbox prior to use-please note we do not supply the gear oil and will not accept responsibility for customers not putting oil in. Change the oil after the first 60-80 hours and then every 12 months or 1500 hours whichever falls first.MaintenancePlease check the oil level via the special oil window every 50 hours. Working temperatures should not exceed 120 degrees Celcius under a continuous duty cycle.

We Also Supply PTO Shafts

The agricultural gearbox and PTO shaft are two components of a tractor that work together to transmit power. The PTO shaft rotates at 540 to 1,000 rpm. The agricultural gearbox and PTO shaft are connected by yokes at both ends. Depending on the application, they may have a higher or lower torque rating. As a professional agricultural machinery parts supplier, we also offer a wide range of PTO shafts for sale. Contact us now to get more info!

Other Agricultural Gearboxes

Raydafon provides agricultural solutions to global agricultural machinery manufacturers and dealers through a full range of spiral bevel gearboxes, straight bevel gearboxes, straight gearboxes, and drive shafts. Products such as sheet metal, hydraulic cylinders, motors, tires, worm gearboxes, and worm operators can be customized according to customer requirements. Raydafon machinery has established a perfect quality management system and sales service network to provide customers with high-quality products and satisfactory services. Our agricultural gearboxes are sold to 40 provinces and cities in China and 36 countries and regions in the world. Our main market is the European market.

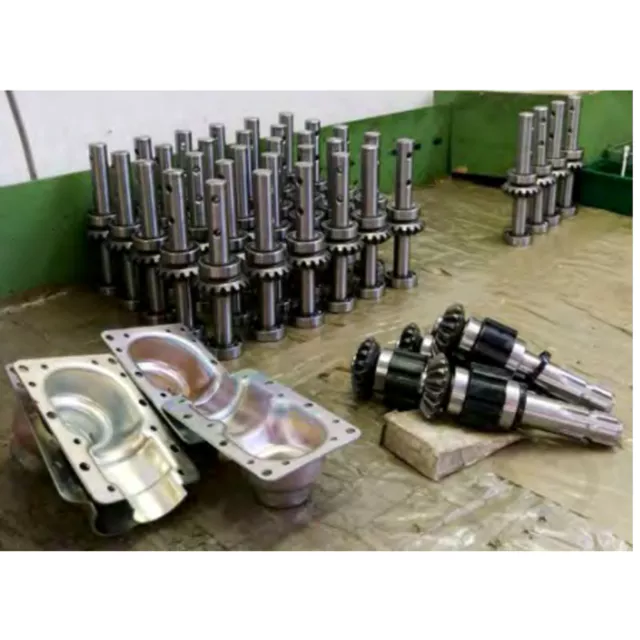

Agricultural Gearbox Production Workshop
