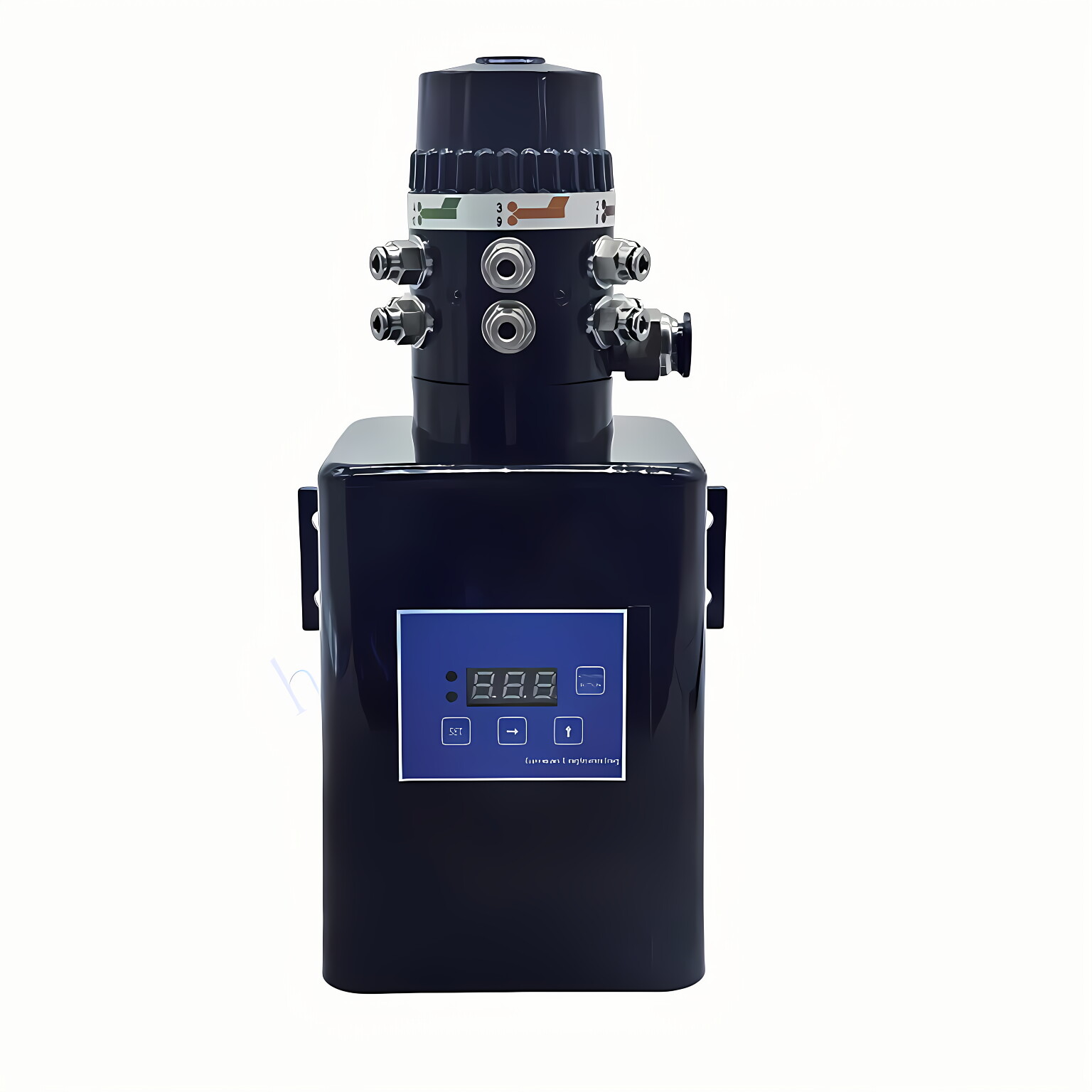

RDF-EALP-O2 Series Electric Drive Piston Pumps Lubrication Pump for CLAAS foldable harvesting platform Replacement of BEKA 10138503/AZU

Technical data

Pump

Output rate	Max. 0.06 cm³ per stroke one outlet
Regulation of Output	1 - 6 individual outlets7 - 12 outlets in pairs
Input speed	Std 22 r.p.m (11/42/80 r.p.m OPT)
Operating pressure	max. 15bar
Suction height	max. 2000 mm
Lubricant	Oil
Viscosity range	25 - 1500 mm² /s
Temperature range	Medium -30 - 70 °CAmbient -35 - 40 °C
No. of outlets	Max. 12
Outlet type	See order key
Sense of rotation	Optional
Weight	2.3kg
Varnish	Black（pump body and housing)
Degree of protection	IP 6K9K

Motor

Drive	DC motor
Operational voltage	12/24V DC
Nominal current	max. 1.5/1.3A
Stall current	max. 4.0/4.5A
Speed (=pump speed)	Std 22 r.p.m (11/42/80 r.p.m OPT).

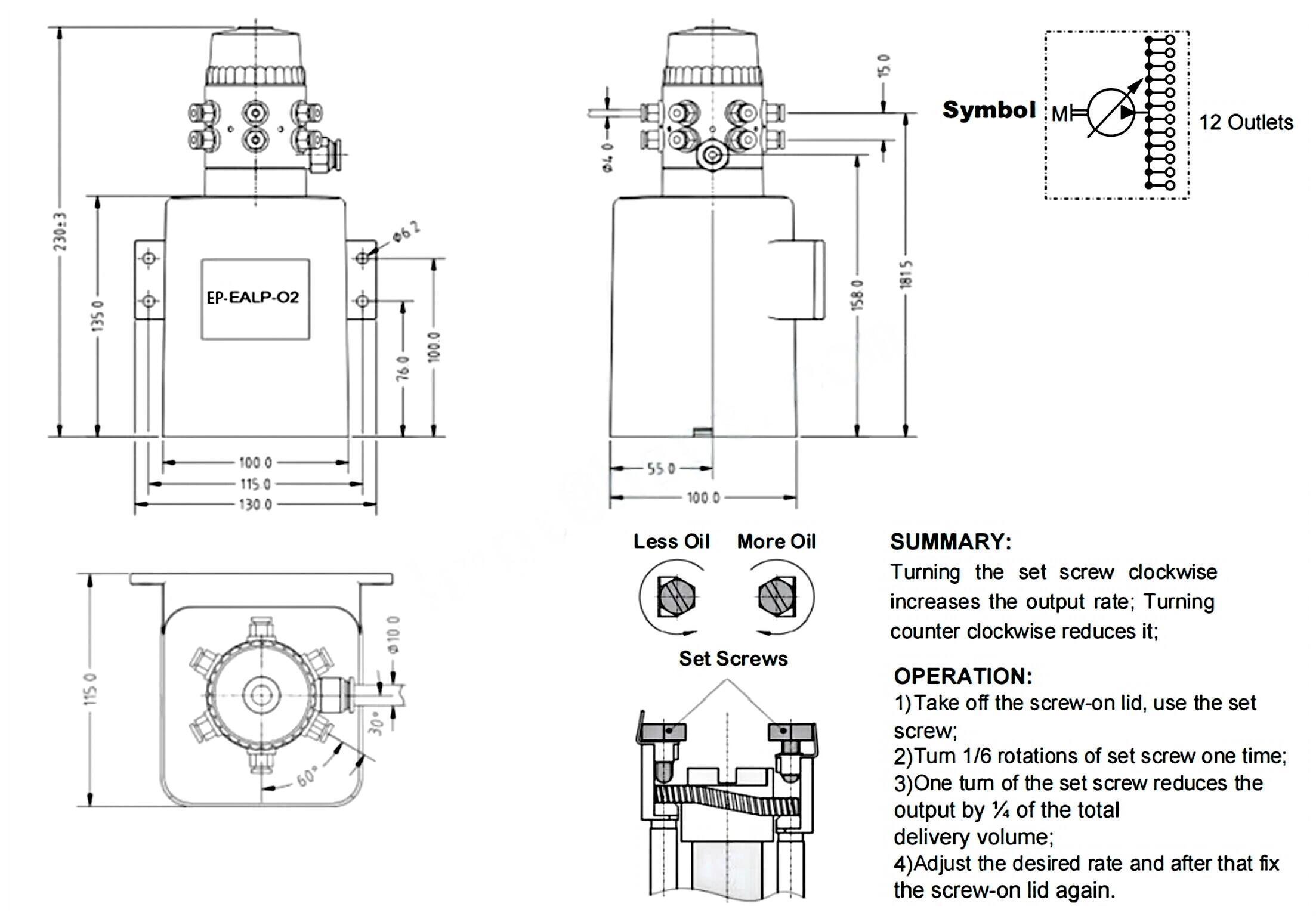

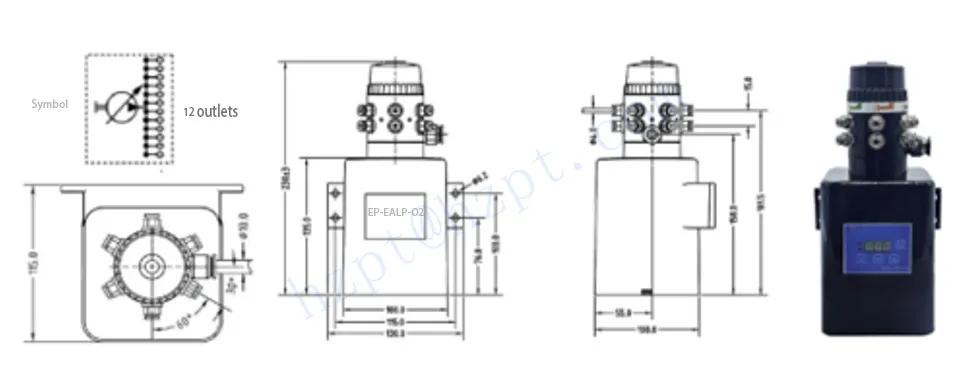

Electrical connection	see dimensional drawing

Control Unit

Lubrication Time	1-29 Min
Cycle Time	0.5-8 Hour

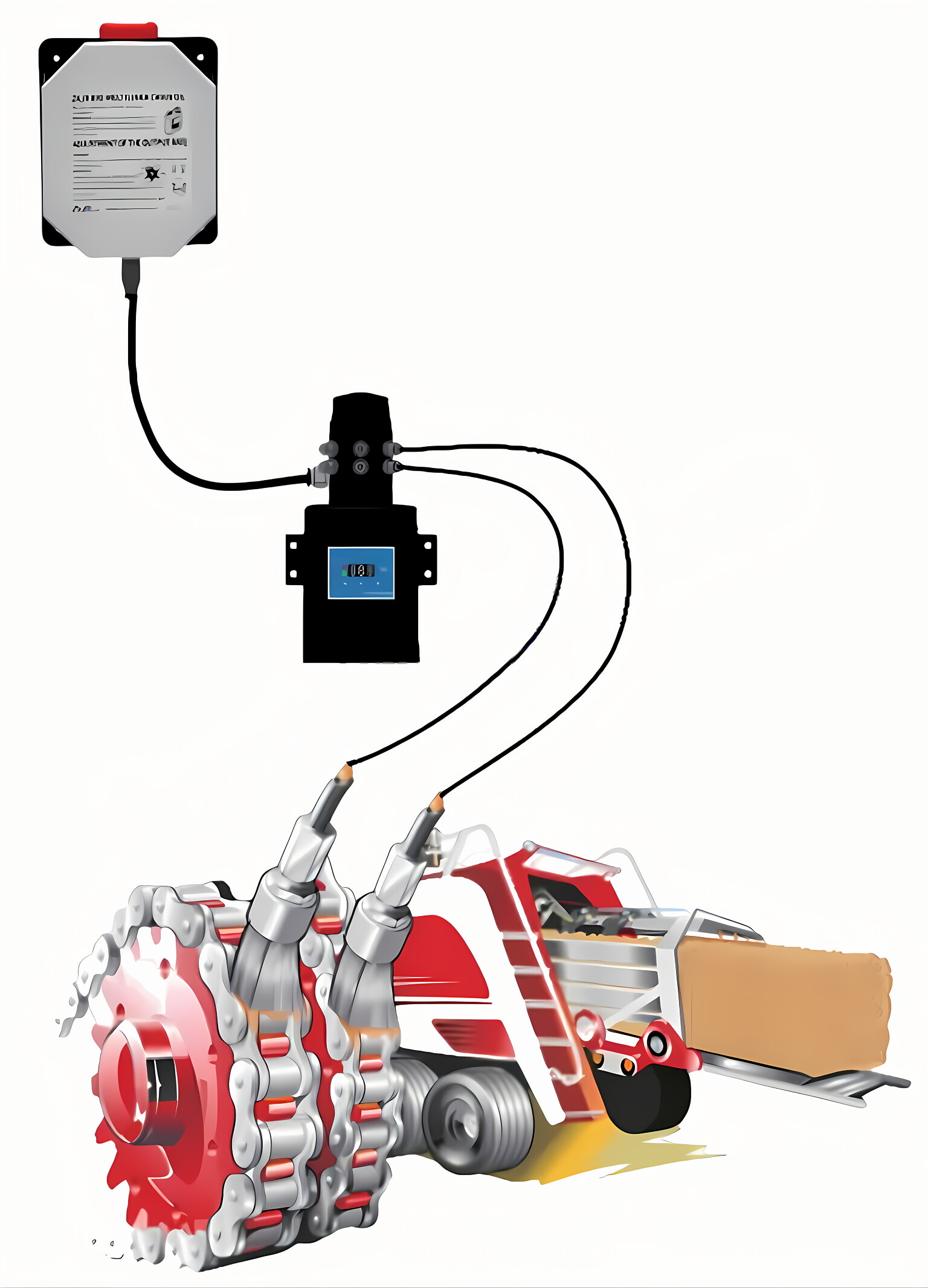

Chain Lubrication System

A complete chain lubrication system is designed to effectively meet the diverse needs of various applications, accommodating different numbers of chains and allowing for customized lubrication amounts. This flexibility is achieved through precise pump settings and the selection of a range of accessories tailored to your specific requirements.

Key Features

1. Customizable Lubrication Amounts: Our system enables you to adjust the lubrication quantity according to the specific demands of your chains. Whether you have a single chain or multiple chains operating in tandem, the system can be configured to deliver the optimal amount of lubricant, ensuring efficient operation and reducing wear.
2. On-Demand Operation: The chain lubrication system operates on demand, allowing for lubrication at predetermined times and in fixed quantities. This feature ensures that your chains receive timely lubrication, which is crucial for maintaining their performance and extending their lifespan.
3. Consistent Performance: By providing a reliable and consistent lubrication service, the system minimizes the risk of chain wear and failure. Consistent lubrication helps maintain the efficiency of your machinery, reducing the likelihood of breakdowns and costly repairs.
4. Enhanced Efficiency: With the ability to customize pump settings, you can optimize the lubrication process for different operational conditions. This adaptability enhances the overall efficiency of your equipment, ensuring smooth operation under various loads and speeds.

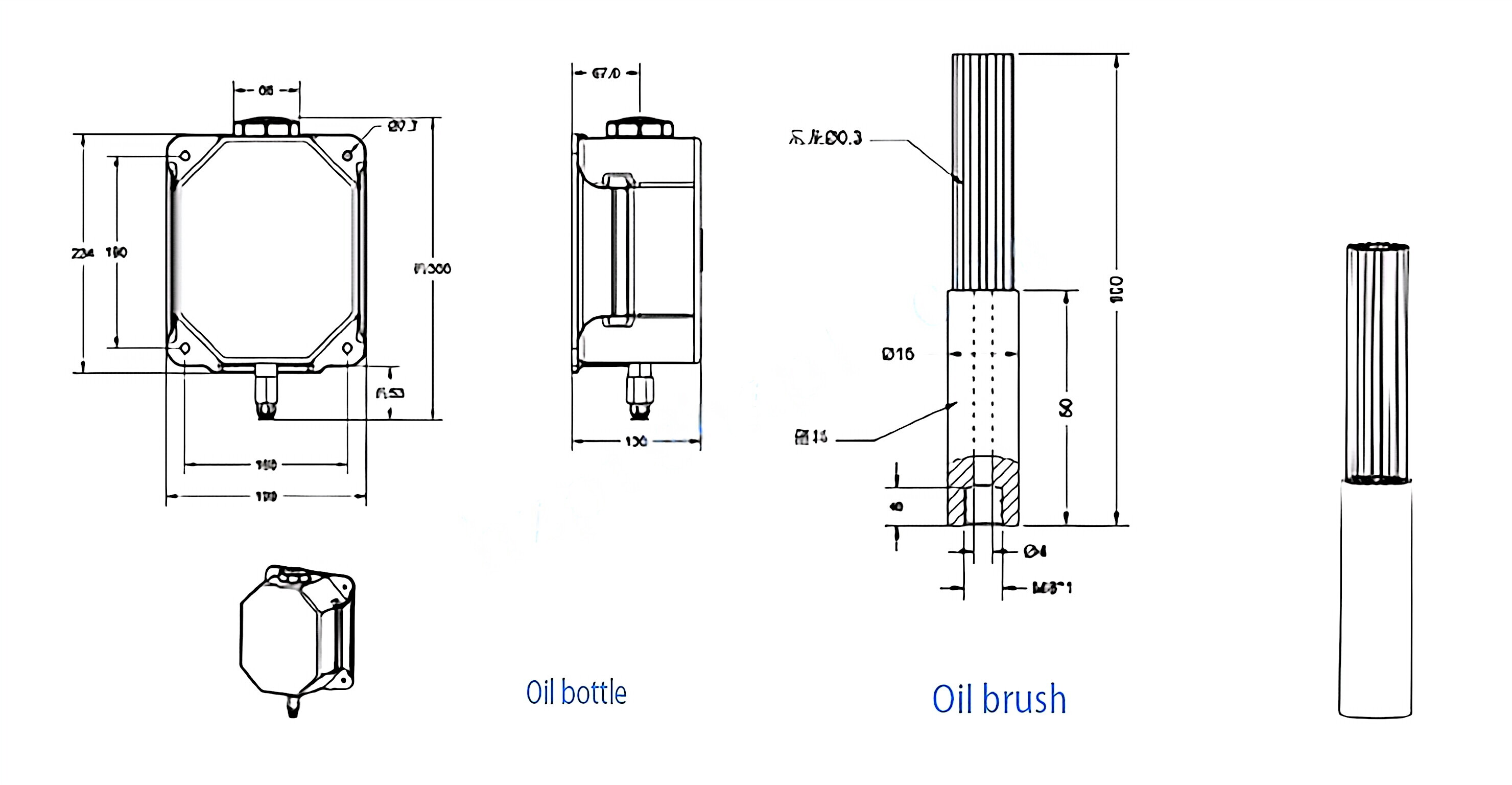

5. Comprehensive Accessory Options: The system can be equipped with a variety of accessories to enhance functionality. These may include filters, hoses, nozzles, and sensors that monitor lubrication levels, all contributing to a comprehensive solution for chain maintenance.
6. Ease of Use: Designed with user-friendly features, our chain lubrication system allows for easy setup and adjustment. Operators can quickly modify settings to adapt to changing operational needs, ensuring that your lubrication processes remain efficient and effective.

Our chain lubrication system offers a complete solution for managing the lubrication needs of your chains. With customizable settings, on-demand operation, and a range of accessories, this system is designed to deliver optimal performance and reliability. By investing in a robust chain lubrication system, you can ensure the longevity and efficiency of your machinery, ultimately leading to improved operational productivity and reduced maintenance costs.

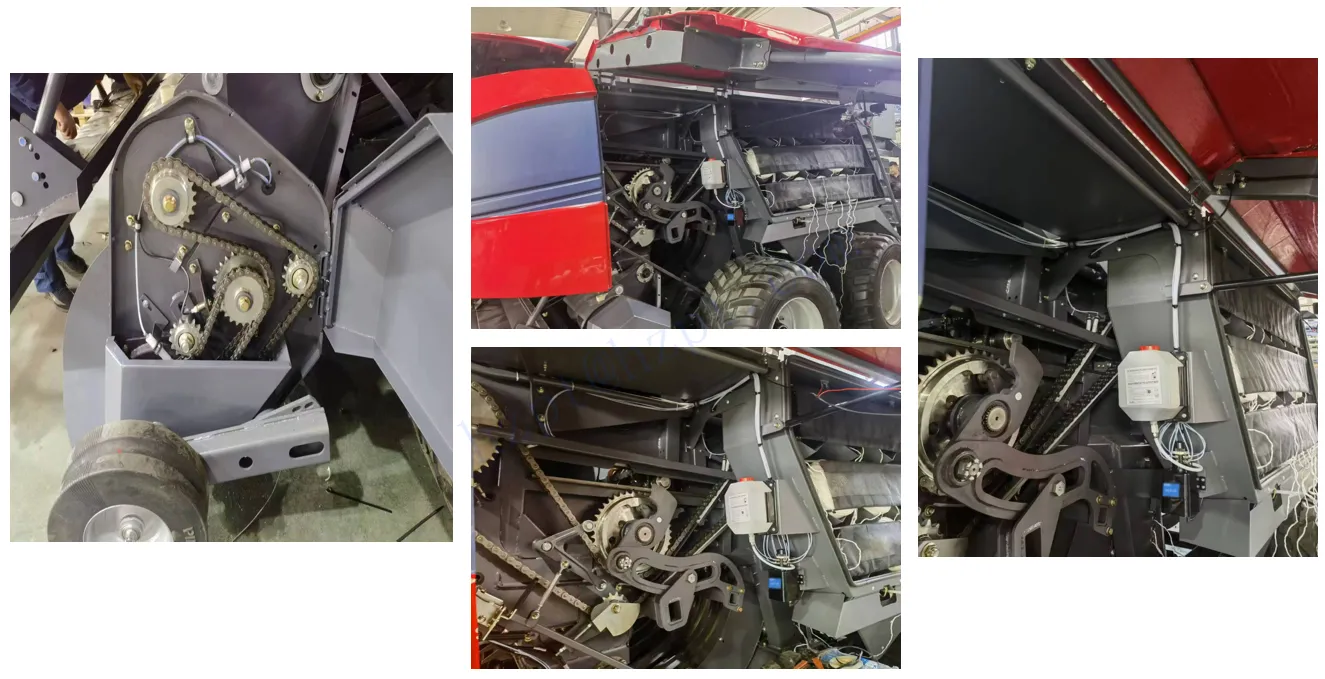

Real shot of app installation

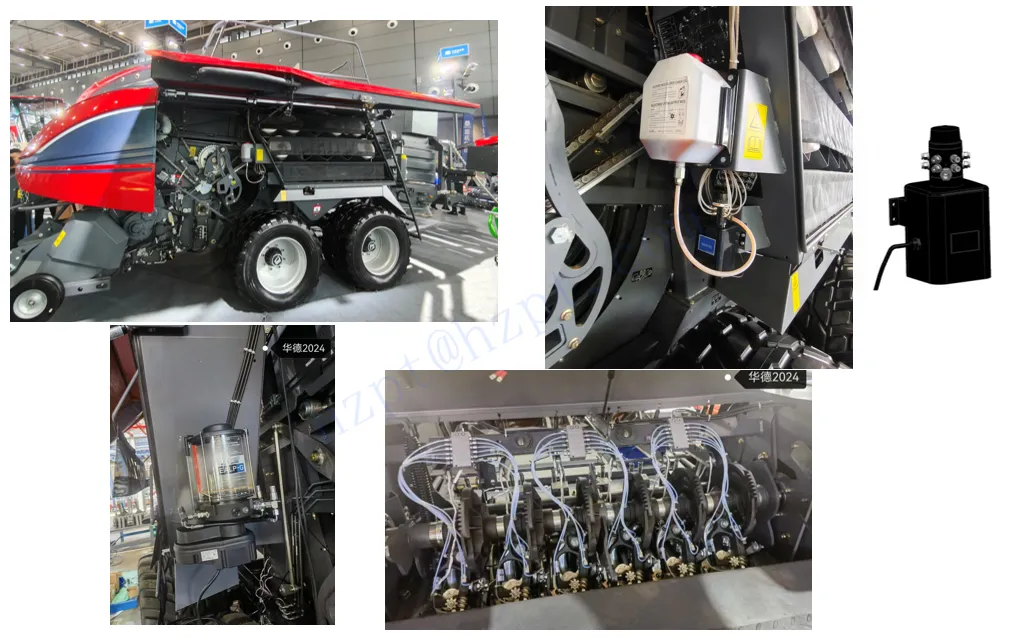

Application Cases
