RDF-MX-F Series Valves Grease&Oil Progressive Distributor Lubrication Distributor for Krone Big M420 Replacement of BEKA MX-F

Progressive lubrication system

The progressive lubrication system is mainly composed of a lubricating oil pump, a progressive working distributor, and various pipes connecting the pump to the distributor, and the distributor to each oil supply part. Its structure is that the lubricant (grease or oil) sprayed by the lubricating oil pump is distributed to each oil supply part in a progressive manner through the progressive working distributor. The driving mode is manual, electric, pneumatic, and hydraulic.

Progressive lubrication system and its working principle

1. The progressive system consists of an electric grease pump unit, a progressive distributor, pipeline components and electrical monitoring.2. Grease is transported by a grease pump, accurately divided by a progressive distributor, and finally delivered to the lubrication point.3. After a certain outlet of the distributor discharges oil, its next outlet can discharge oil, which is easy to monitor.

The role of the safety valve in the progressive lubrication system

The progressive system can provide continuous lubrication when the pump is working. Once the pump stops, the piston of the progressive metering device will stop at its current position. When the pump starts to supply lubricating oil again, the piston will continue to work from the stopped position. Therefore, when only one lubrication point is blocked, the progressive line of one outlet of the pump will stop. However, the pump will continue to work, and the pressure in the pipeline assembly will continue to rise. When the pressure value set by the safety valve is reached, the safety valve will open to release the pressure, so as to protect the pump motor from overloading.

RDF-MX-F Valves

A progressive piston distributor is a sophisticated device used for distributing lubricants in a controlled manner through hydraulic means. This distributor operates by adjusting its piston based on the lubricant supplied to it. The design allows for the continuous discharge of lubricant from multiple outlets via an interconnected pipeline system.During the lubrication process, it is crucial for the lubricating lines and points to remain unobstructed. If either the lubricant pipe or the lubrication point becomes blocked, it can lead to a situation where the distributor itself becomes obstructed. To prevent issues arising from such blockages, a blocking alarm is integrated into the distributor. This alarm serves as an essential safety feature, alerting operators to potential problems.In manual operation scenarios, if a blockage occurs, the pressure can build up to a level that is extremely difficult to overcome. This situation can hinder the lubrication process and create operational inefficiencies. However, in systems utilizing an automatic pump, such as the electric pump model RDF-EALP-G, the situation is managed differently. In the event of a blockage, the lubricant is safely discharged through a safety valve, thus protecting the system from damage and ensuring continuous operation.The progressive distributor features a variable displacement structure, which is one of its significant advantages. This design allows the distributor to dynamically adjust the number of blockages based on the number of lubrication points. As a result, a single block allocator can handle different displacements, facilitating complete progressive distribution.The output variation for each piston stroke is achieved through the use of pistons of different diameters. This innovation ensures that each lubrication point receives the appropriate amount of lubricant, tailored to its specific requirements.To maintain the proper functioning of the progressive distributor, it is essential to have at least three pistons in operation, which translates to a minimum of three distributor blocks. This configuration is critical for ensuring balanced and effective lubricant distribution throughout the system, thereby optimizing performance and extending the lifespan of the machinery involved.

RDF-MX-F progressive distributor at the exit of 4 plunges 8

Application Cases

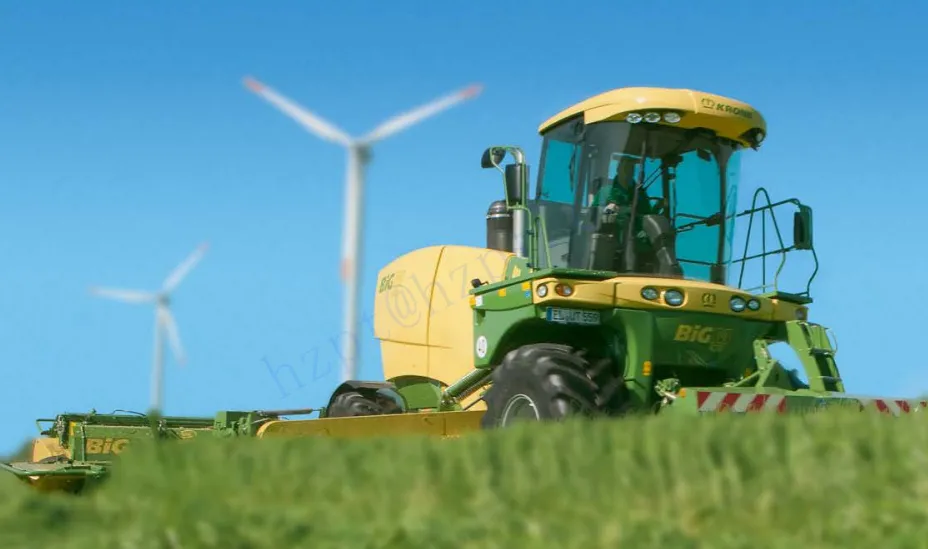

RDF-MX-F Series Valves Grease&Oil Progressive Distributor Lubrication Distributor for Krone Big M420

About Raydafon

Raydafon holds ISO 9001 quality system certification, EU CE certification, and various industry-specific certifications. The company operates an exclusive processing center in Ningbo, equipped with over 70 specialized machine tools. Key components are manufactured in accordance with German technology and process standards, ensuring rigorous quality control from materials selection and surface treatment to processing, manufacturing, assembly, and 100% factory inspection. This meticulous approach guarantees that each product is perfectly suited for its market application.Raydafon’s product range spans multiple industrial sectors, with a primary focus on the following industries:

• Engineering and Mining Machinery: Catering to vehicle chassis, rail rims, and lubrication requirements for various special vehicles.
• Agricultural and Animal Husbandry Machinery: Providing solutions tailored to the specific needs of the agricultural sector.
• High-End CNC Processing Equipment: Supplying components that meet the demands of advanced CNC technology.
• Robotics: Addressing lubrication needs for robot shafts and guide rails.
• Fluid Delivery Solutions: Offering specialized delivery systems for various fluids, including lubricants.
• Aviation Industry Applications: Delivering tailored fluid solutions for unique requirements, such as those involved in special material drawing processes.
• General Lubrication and Fluid Delivery: Supporting a wide array of industries with lubrication and fluid delivery needs, including dry oil (grease) lubrication, thin oil lubrication, oil mist systems, and oil-gas lubrication for specialized applications.

With a commitment to quality and innovation, Raydafon continues to meet the diverse lubrication and fluid delivery demands of various industries.
