RDF-RC61T Rotary Cutter Gearbox for Rotary Cutter

RDF-RC61T Rotary Cutter Gearbox for Rotary Cutter

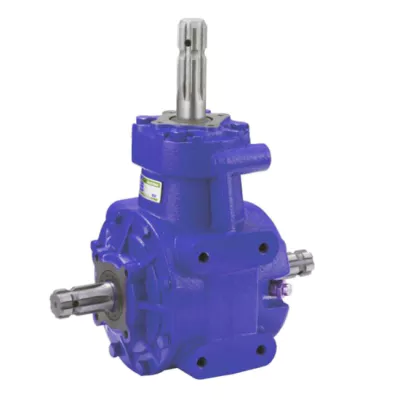

Introduction of RC61T Rotary Cutter Gearbox

(1) Replacements of Omni Gear RC-61T(2) 100 HP 1:1 Ratio, 1 3/8" 6 Spline Shafts, Replacement Splitter Box(3) This is a rotary cutter t gearbox made for rotary cutters and mowers to split the power out to the outer right-angle gearboxes. If you have a 10-foot mower with two mower decks, it is likely that this gearbox will work for you.

Specifications of RC61T Rotary Cutter Gearbox

• Model: RC-61T
• Ratio: 1:1
• Input: 1 3/8" 6 Spline
• Output: 1 3/8" 6 Spline
• Weight: 70.0 lbs.
• Mounting: 4 bolt, 3 1/4" x 5 pattern

ITEM	RC61T Rotary Cutter Gearbox
Ratio	1:1/1:1.21/1:1.46/1:1.93
Teeth	16/16 17/14 19/13 27/14
Module	7.0/7.0/7.0/5.5
Power（HP）	60
Rated Input	540rpm
Input/Output description	1 3/8 Z6 1 3/8 Z6 Spline Shaft
Weight（N.W）	33.5Kg

RC61T Rotary Cutter Gearbox Features

• Standard and various rotary cutter gearbox ratios 1:1/1:1.21/1:1.46/1:1.93, all are exact ratios.
• When the ratio is not 1:1, and the pinion shaft is input, the cross shaft reduces output. When the cross shaft is input, the pinion shaft is increased output.
• The spiral bevel gear has stable transmission, low noise level, slight vibration, and strong loading capacity.
• A double-input shaft is available.
• Multiple output shaft is available.
• Any mounting position is available.

The Main Purpose of RC61T 100 HP Rotary Cutter Gearbox

• Agriculture and Food
• Building Construction
• Forest and paper
• metal processing
• Chemical and Environmental Protection

Rotary Cutter Gearbox Technical Data

Housing material	Cast iron/Ductile iron
Housing hardness	HBS190-240
Gear material	20CrMnTi alloy steel
Surface hardness of gears	HRC58~62
Gear core hardness	HRC33~40
Input / Output shaft material	42CrMo alloy steel
Input / Output shaft hardness	HRC25~30
Machining precision of gears	Accurate grinding, 6~5 Grade
Lubricating oil	GB L-CKC220-460, Shell Omala220-460
Heat treatment	tempering, cementing, quenching, etc.
Efficiency	98%
Noise (MAX)	60~68dB
Vibration	≤20µm
Backlash	≤20Arcmin
Brand of bearings	China top brand bearing, HRB/LYC/ZWZ/C&U. Or other brands requested, SKF, FAG, INA, NSK.
Brand of oil seal	NAK --- Taiwan or other brands requested

Rotary Cutter Gearboxes Cautions

Following are some general cautions. All personnel shall use safe and sound practices and take all necessary precautions to ensure safety.♦ Properly trained technicians should handle transport, installation, plumbing, operation, maintenance, and inspections.♦ The unit should be operated only within its design and performance specifications.♦ Do not remove the nameplate.♦ Any modifications or alterations to the unit will void the warranty and all subsequent claims.♦ Do not operate the unit without all safety covers in place.♦ The gearbox and the lubricant will get very hot during operation. Take safety precautions when handling the Bevel Gear unit and the lubricant.♦ Never approach or touch any rotating parts during operation.♦ Damaged units should be taken offline and kept in operation until adequately serviced.♦ If the unit performs abnormally in any way, stop the unit immediately.

Rotary Cutter Gearbox Repair and Maintenance

Most of the problems on rotary cutter gearbox drive equipment are due to a lack of service and maintenance. An operator can check a few things before using their equipment.Always maintain proper oil levels. If a rotary cutter gearbox is run low, the bearings will not be adequately lubricated. If the rotary cutter gearboxes are overfilled, it will generate heat, cause the box to run hot, and possibly damage the seals.Check for free play in the input and output shafts. If any free space is present, it may be a sign of bearing wear or a change in bearing preload setting. Excessive free play will cause oil seal failure, thus causing a loss of lubricant and bearing and gear damage. In most cases, the bearing preload can be reset, eliminating all radial free play by either re-shimming or tightening the bearing adjustment nut.Most rotary cutter gearboxes require a breather to prevent pressure from building up inside the housing. Periodically check to ensure the breather is functioning correctly. If the pressure builds up in the box, it will cause the oil seal to rupture, and a loss of lubricant will occur.

▍Rotary Cutter Gearbox Manufacturers

You work year-round under various conditions and need equipment to do the same! Having a quality rotary cutter gearbox on your rotary cutter guarantees smooth operation and increased performance. Our mission is to provide you with the durable gearbox needed to optimize your work hours! Each gearbox features high-speed ball bearing units and heat-treated gears and shafts to ensure long life. The specifications on our rotary cutter gearbox are made to match industry standards. All our gearboxes are shipped dry and require lubricating oil on par with manufacturer standards. Also, each gearbox includes a blade carrier mounting nut. We have other series rotary cutter gearboxes for sale, such as 40 hp rotary cutter gearbox, 60 hp rotary cutter gearbox, 75 hp rotary cutter gearbox, rotary cutter gearbox seals 90 hp, 100 hp rotary cutter gearbox, etc.1) Customization: With a strong R&D team, we can develop products as required. It only takes seven days for us to design a set of drawings. The production time for new products is usually 50 days or less.2) Quality: We have our complete inspection and testing equipment, which can ensure the quality of the products.3) Capacity: Our annual production capacity is over 500,000 sets. Also, we accept small quantity orders to meet the needs of different customers' purchase quantities.4) Service: We focus on offering high-quality products. Our products are in line with international standards and are mainly exported to Europe, Australia, and other countries and regions.5) Shipment: We are close to Ningbo and Shanghai ports to provide the fastest shipping service.

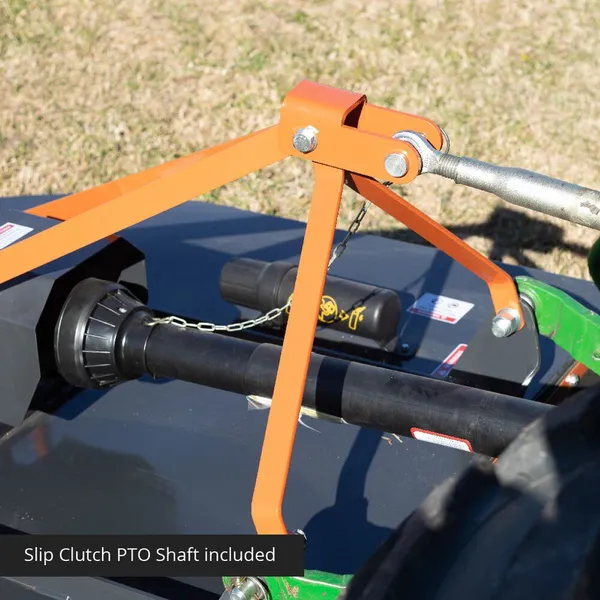

▍We Also Supply PTO Shafts

Agricultural equipment includes a variety of PTO shafts. Each one is connected by yokes at each end and rotates between 540 and 1,000 rpm. The use of internal yokes also provides added safety. A safety shield is commonly installed on both ends of a PTO shaft to protect the operator. These protective shields are also found in tractors and agricultural implements, ensuring maximum efficiency.If you also need the PTO shafts, contact us to get more!

▍Other Agricultural Gearboxes

The agricultural gearbox is designed to change the output speed of a PTO drive shaft. It can be used as a decreasing or increasing ratio gearbox. The decreased ratio gearbox reduces the PTO shaft's speed from 1000 rpm to 540 rpm, allowing you to use equipment designed for 540 rpm. On the other hand, an increasing ratio gearbox increases the speed of the PTO shaft from 540 rpm to 1000 rpm.

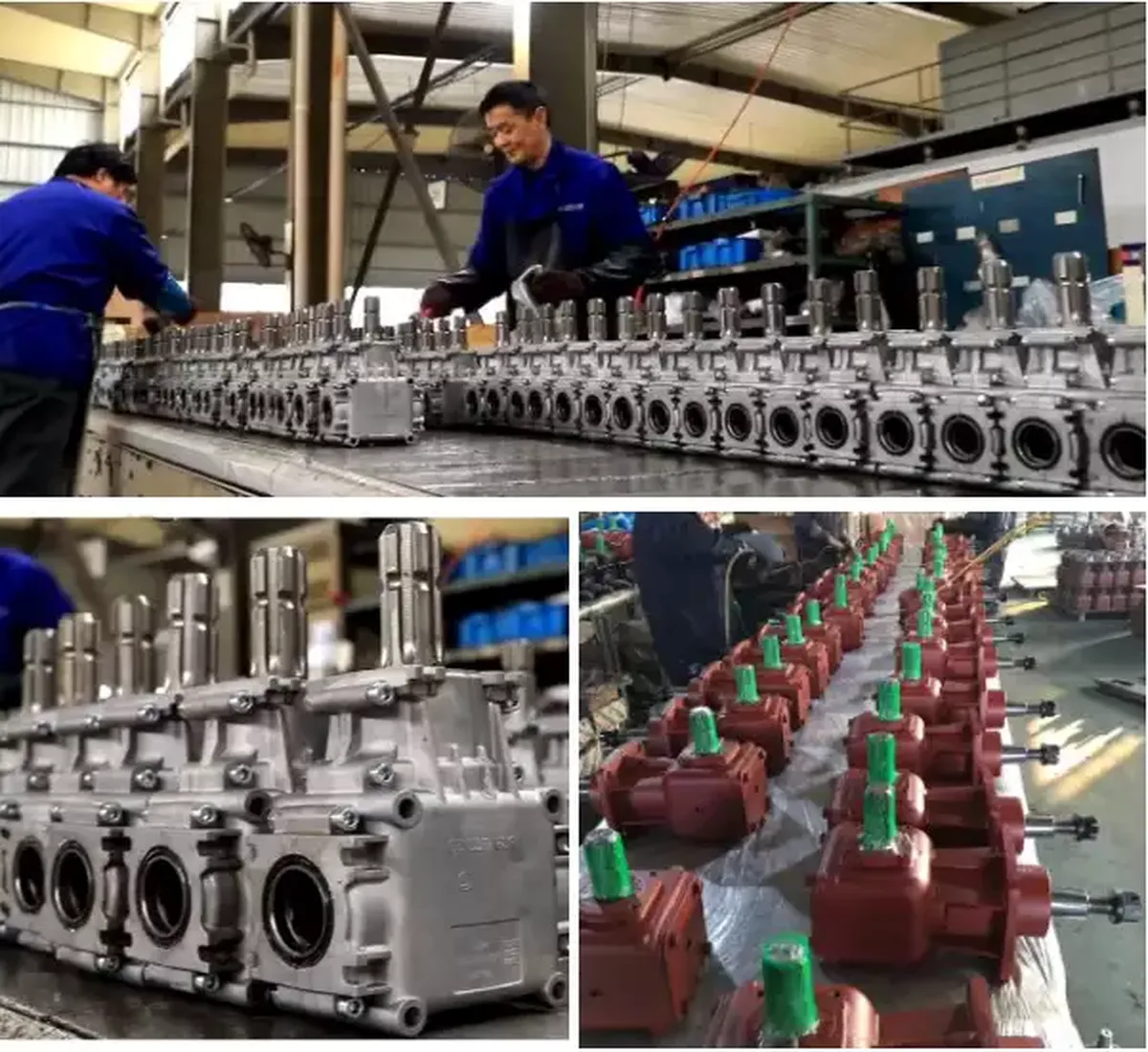

▍Agricultural Gearbox Production Workshop

hzpt is a modern enterprise integrating transmission products' development, production, sales, and service. Specializing in developing and manufacturing gearboxes, with more than 20 years of experience. Production of more than 500 kinds of various gearboxes used in agriculture, industry, and other fields.The company is people-oriented, has a huge technical team and management talents, and has formed significant human resources and solid technical advantages.It has a series of high-precision CNC workshops, high-speed five-axis linkage CNC gear hobbing machines, automatic painting lines, and other equipment, providing good management conditions and reliable detection methods.
