RDF-SSRV050 Stainless Steel Worm Gearbox

Introduction of RDF-SSRV050 Stainless Steel Worm Gearbox

The RDF-SSRV050 Stainless Steel Worm Gearbox is similar to the NMRV gearbox in terms of installation dimensions and selection. However, the housing flange of the RDF-SSRV050 gearbox is made of precision-cast 304 stainless steel, and the worm core is also made of 304 stainless steel. The worm gear is made of 12-2 tin bronze, and the gearbox is filled with fully synthetic worm gear oil. The surface of the gearbox is subjected to electrolytic polishing, making it corrosion-resistant, easy to clean, and suitable for multi-directional installation.

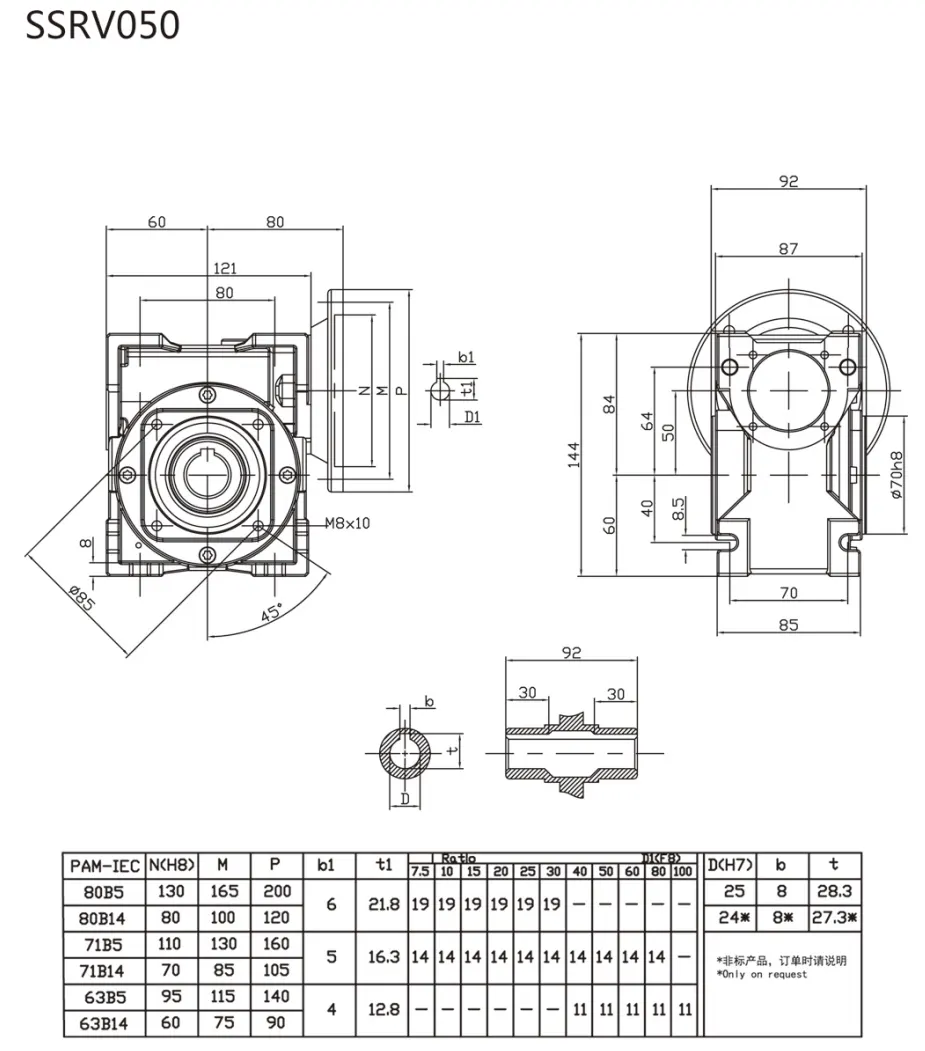

Mounting Dimensions

This section provides the installation dimensions for the RDF-SSRV050 Stainless Steel Worm Gearbox.

SSRV...F Output Flange Dimension

Below is the dimension of the output flange for the RDF-SSRV050 Stainless Steel Worm Gearbox:

SSRV Stainless Steel Worm Gearbox Output Shafts

The output shaft of the RDF-SSRV050 Stainless Steel Worm Gearbox is made of 304 material. Here is an image of the output shaft:

About SSRV Worm Gearbox Torque Arm

The RDF-SSRV050 Stainless Steel Worm Gearbox is equipped with a torque arm designed to improve the stability and reliability of the gearbox. The torque arm provides support and helps to maintain the proper alignment of the gearbox during operation, reducing the risk of failure and prolonging the lifespan of the equipment.

Application: RDF-SSRV050 Stainless Steel Worm Gearbox

This gearbox is suitable for various industries and applications, including but not limited to:

• Food and beverage processing
• Pharmaceutical manufacturing
• Chemical processing
• Marine and offshore
• Water treatment

Stainless Steel Worm Reducer Selection

RDF-SSRV050 Stainless Steel Worm Gearbox is a durable and reliable solution for applications that require resistance to corrosion, rust and harsh environments. Here are some important factors to consider when selecting the appropriate stainless steel worm gearbox:

• Ratio: Determine the required reduction ratio for your application. The reduction ratio is the number of input revolutions required to produce one output revolution.
• Power: Calculate the power requirement for your application. It is important to choose a gearbox that can handle the required power without causing damage or failure.
• Shaft orientation: Consider the orientation of the input and output shafts. Choose a gearbox that has the appropriate orientation for your application.
• Environment: Take into account the environment in which the gearbox will be operating. Stainless steel worm gearboxes are ideal for applications that require resistance to corrosion and rust.

Here are the parameter tables for selecting the appropriate model of the stainless steel reducer:

Motors for RDF-SSRV050 Stainless Steel Worm Gearbox

Our company not only provides stainless steel gearboxes but also offers a wide range of stainless steel motors that are compatible with the RDF-SSRV050 Stainless Steel Worm Gearbox. These motors are designed to meet the highest standards of quality and reliability, ensuring optimal performance of your machinery.

Stainless Steel Worm Reducers Manufacturer

At Raydafon, we take immense pride in being a leading manufacturer of high-quality stainless steel worm reducers. Our RDF-SSRV050 Stainless Steel Worm Gearbox is a testament to our commitment to excellence.Our stainless steel reducers are manufactured with the highest quality materials to ensure that they are highly durable and resistant to wear and tear. We also understand that our customers require not only high-quality products but also exceptional services. Therefore, we have a team of dedicated professionals who are always ready to offer top-notch services to our customers.In addition to stainless steel reducers, we also offer a wide range of other non-standard reducers, including automatic car wash machine reducers, fountain reducers, snow blower reducers, and many more. Our products are specially designed to meet the specific needs of our customers, and we take pride in being able to offer customized solutions to our clients.At Raydafon, we believe that our commitment to quality and service has been the key to our success. We are constantly striving to improve our products and services to ensure that our customers are always satisfied.
