RDF-SSRV090 Stainless Steel Worm Gearbox

Introduction of RDF-SSRV090 Stainless Steel Worm Gearbox

The SSRV series stainless steel worm gearboxes have the same installation dimensions and selection as the NMRV gearbox. However, the flange of the gearbox is made of 304 precision casting, and the worm core is also made of 304 stainless steel. The worm is made of 12-2 tin bronze, and the whole gearbox uses synthetic worm gear oil. The surface of the gearbox is polished by electrolysis, making it corrosion-resistant, easy to clean, and suitable for multi-angle installation. Below is an image of the SSRV series stainless steel worm gearbox:

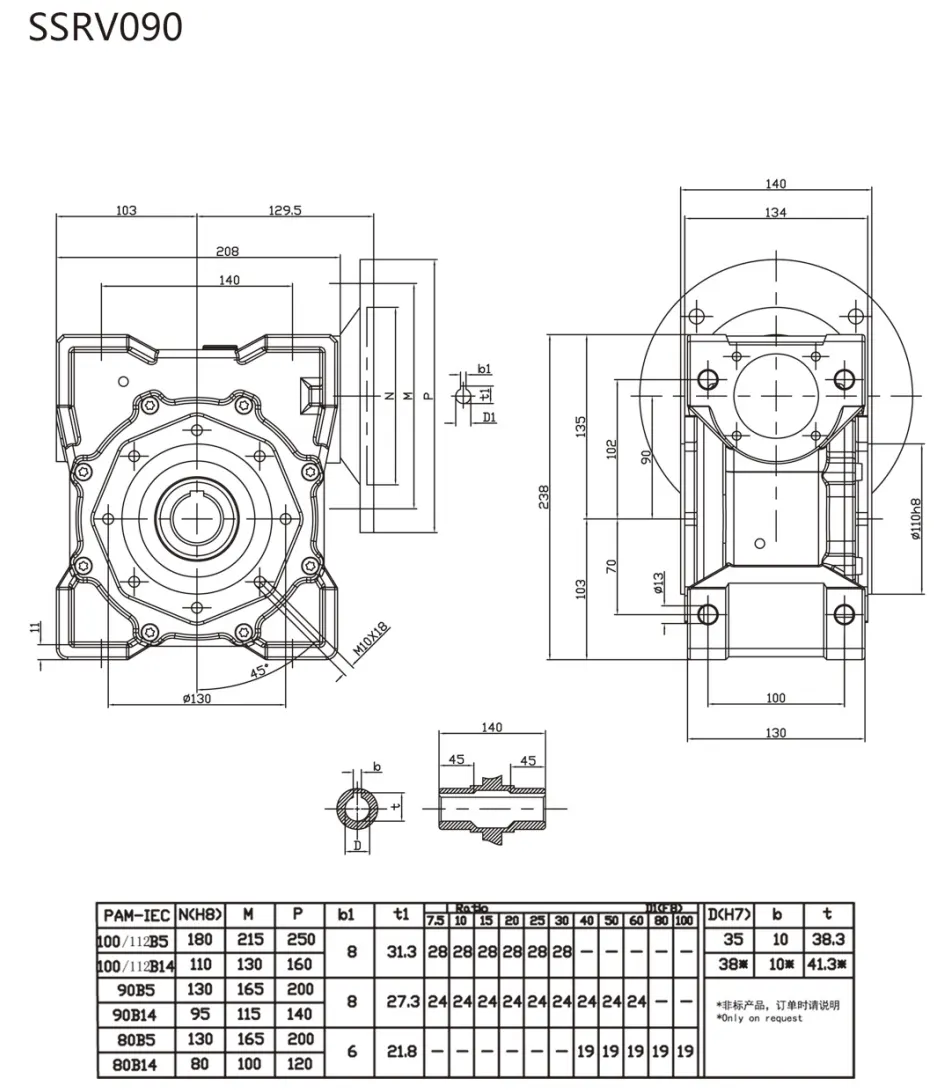

Mounting Dimensions of RDF-SSRV090 Stainless Steel Worm Gearbox

The following image shows the installation dimensions of the RDF-SSRV090 Stainless Steel Worm Gearbox:

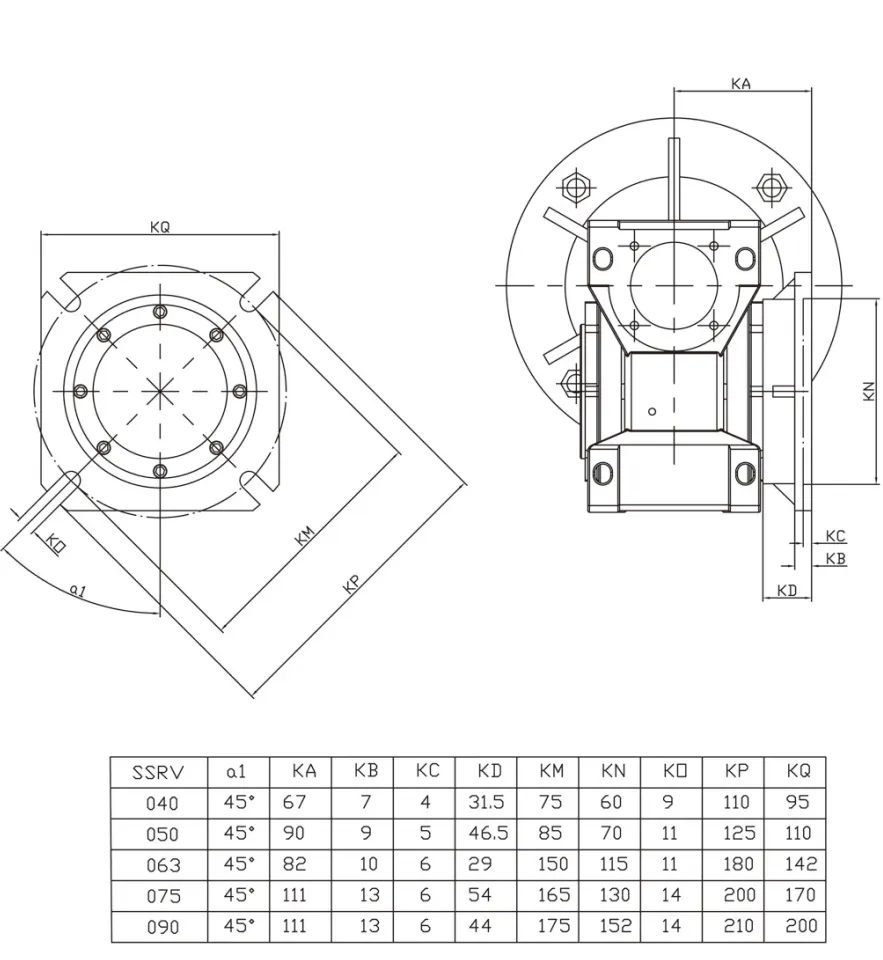

SSRV...F Output Flange Dimension

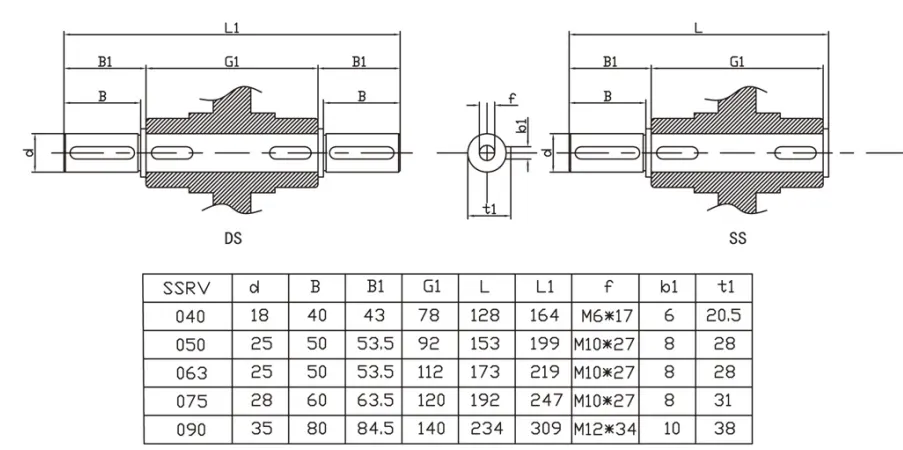

SSRV Stainless Steel Worm Gearbox Output Shafts

The output shaft of the RDF-SSRV090 Stainless Steel Worm Gearbox is made of 304 material. Please refer to the following image for a visual representation:

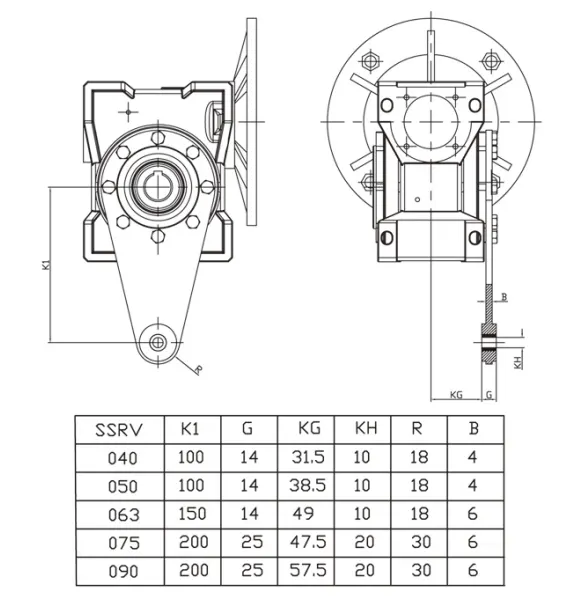

RDF-SSRV090 Stainless Steel Worm Gearbox Torque Arm

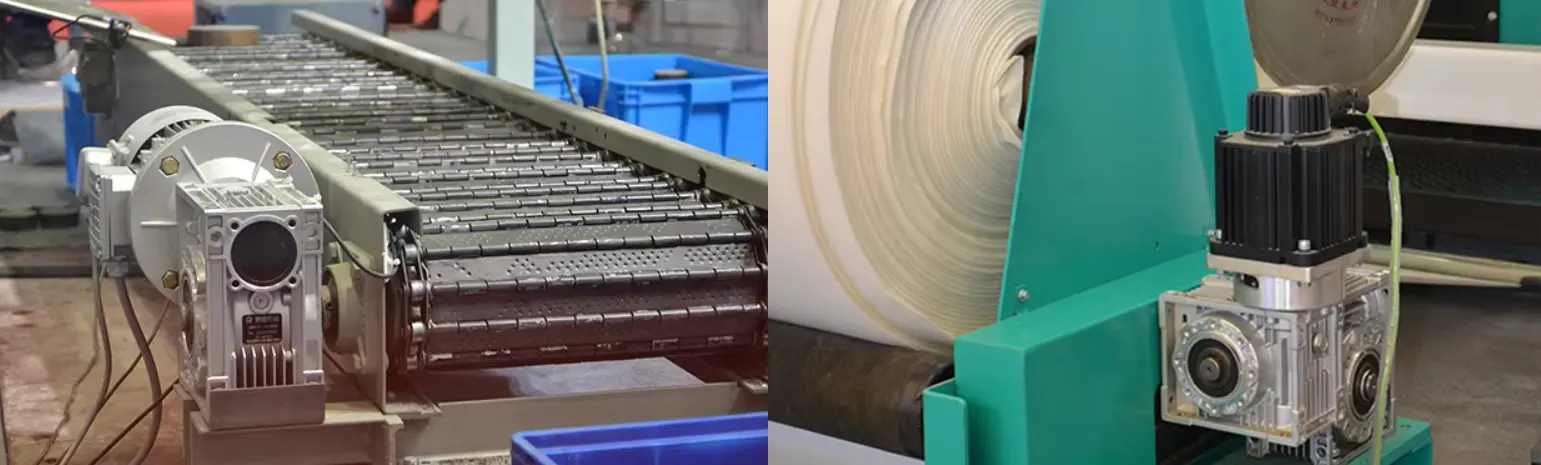

Application of RDF-SSRV090 Stainless Steel Worm Gearbox

The RDF-SSRV090 Stainless Steel Worm Gearbox is widely used in various industries and scenarios due to its excellent performance and durability. It is designed to handle demanding applications and offers reliable power transmission in the following sectors:

• Food and beverage industry
• Chemical industry
• Pharmaceutical industry
• Water treatment
• Agriculture
• Packaging industry

Stainless Steel Worm Reducer Selection

To select a suitable stainless steel worm gearbox for RDF-SSRV090, there are several points to consider:

1. Load requirements: Determine the maximum torque and speed that the gearbox needs to handle.
2. Ratio: Choose the appropriate gear ratio based on the desired output speed and torque.
3. Mounting: Consider the available mounting options and select the one that fits your application.
4. Environment: Take into account the operating environment, including temperature, humidity, and any corrosive or hazardous conditions.
5. Efficiency: Evaluate the gearbox efficiency to ensure optimal performance.
6. Maintenance: Consider the ease of maintenance and availability of spare parts.

Refer to the following parameter tables for more detailed information:

Stainless Steel Motors for RDF-SSRV090 Worm Gearbox

Introducing our range of stainless steel motors designed to complement the RDF-SSRV090 Stainless Steel Worm Gearbox. In addition to our high-quality gearboxes, we offer durable stainless steel motors that are perfect for various industrial applications.

Stainless Steel Worm Reducers Manufacturer

RDF-SSRV090 Stainless Steel Worm Gearbox is a product that highlights our company's unique selling points. We pride ourselves on the superior quality and exceptional service we provide. Our stainless steel reducers are known for their durability, precision, and efficiency, ensuring reliable performance in various applications.

At Raydafon, we offer a wide range of non-standard reducers in addition to stainless steel gearboxes. Our diverse product line includes automatic car wash machine reducers, fountain reducers, snow blower reducers, and more. These specially designed reducers are tailored to meet specific industry requirements, providing reliable solutions for various applications.
