RDF-SSVF63 Stainless Steel Reduction Gearbox

Introduction of RDF-SSVF63 Stainless Steel Reduction Gearbox

The SSVF series stainless steel reduction gearbox is designed based on the VF worm gear reducer. It features a compact structure, with the gearbox body made of precision-casted 304 stainless steel. The wheel core is made of 304 stainless steel, and the worm is made of tin bronze (12-2). The gearbox is filled with fully synthetic worm gear oil and has a surface that is electrolytically polished. It is corrosion-resistant, easy to clean, and offers a variety of speed ratios.

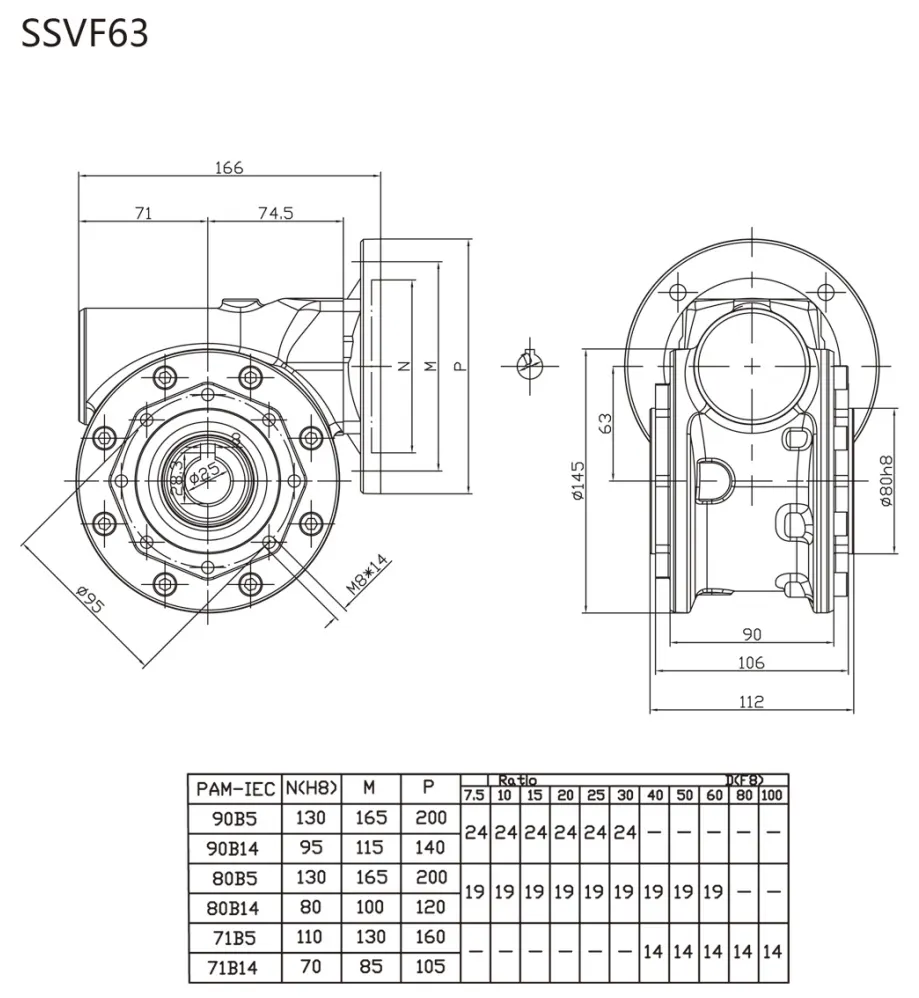

Dimensions of RDF-SSVF63 Stainless Steel Reduction Gearbox

SSVF...F Output Flange Dimension

The output flange of the RDF-SSVF63 Stainless Steel Reduction Gearbox is made of 304 stainless steel. It is designed with precise dimensions to ensure optimal performance. Please refer to the image below for the detailed dimensions of the output flange:

SSFV Stainless Steel Worm Gearbox Output Shafts

The output shaft of the RDF-SSVF63 Stainless Steel Reduction Gearbox is made of 304 material. Please refer to the image below for more details:

SSFV Worm Gearbox Torque Arm

The RDF-SSVF63 Stainless Steel Reduction Gearbox is equipped with a high-quality torque arm specifically designed for the SSFV worm gearbox. The torque arm ensures the stability and proper alignment of the gearbox, allowing for efficient power transmission and torque control. Made from stainless steel, the torque arm is resistant to corrosion and provides excellent durability in various operating conditions.

Application of RDF-SSVF63 Stainless Steel Reduction Gearbox

This stainless steel reduction gearbox, RDF-SSVF63, finds its application in various industries and scenarios. It is suitable for:

• Food processing industry
• Pharmaceutical industry
• Chemical industry
• Beverage industry
• Water treatment industry
• Packaging industry
• Textile industry
• Automotive industry
• And many other industrial applications

Stainless Steel Worm Reducer Selection

• Load capacity: Consider the maximum load that the gearbox will be required to handle. This will help determine the correct size and gear ratio to ensure efficient performance and prevent premature wear and tear.
• Environmental conditions: Stainless steel gearboxes are highly resistant to corrosion and can withstand harsh environmental conditions. However, it is important to consider the specific environmental factors such as temperature, humidity, and exposure to chemicals to ensure that the gearbox can handle these conditions.
• Efficiency: The efficiency of the gearbox is an important factor to consider as it will impact the overall performance and energy consumption. Ensure that the gearbox has a high efficiency rating to save on operating costs.
• Input speed: Consider the input speed required for your application. The gearbox must be capable of handling the required speed to prevent damage and ensure optimal performance.
• Mounting: Consider the mounting options available and select a gearbox that is compatible with your application's mounting requirements.
• Shaft orientation: Determine the required shaft orientation for your application and select a gearbox that meets these requirements.

Stainless Steel Motors for RDF-SSVF63 Stainless Steel Reduction Gearbox

Stainless Steel Worm Reducers Manufacturer

RDF-SSVF63 Stainless Steel Reduction Gearbox is a testament to our company's unique selling points. We pride ourselves on the exceptional quality and reliable service that our products offer. Our stainless steel reducers are built to withstand the toughest conditions, ensuring durability and longevity.

At Raydafon, we go beyond stainless steel reducers and provide a wide range of other non-standard gearboxes for sale. Whether you need a gearbox for a fully automatic car wash machine, a fountain, a snow blower, or any other specific application, we have got you covered.

With over [insert number here] years of experience, we have established ourselves as a trusted manufacturer in the industry. Our commitment to innovation and customer satisfaction sets us apart. We strive to deliver unparalleled products that meet the unique needs of our clients.
