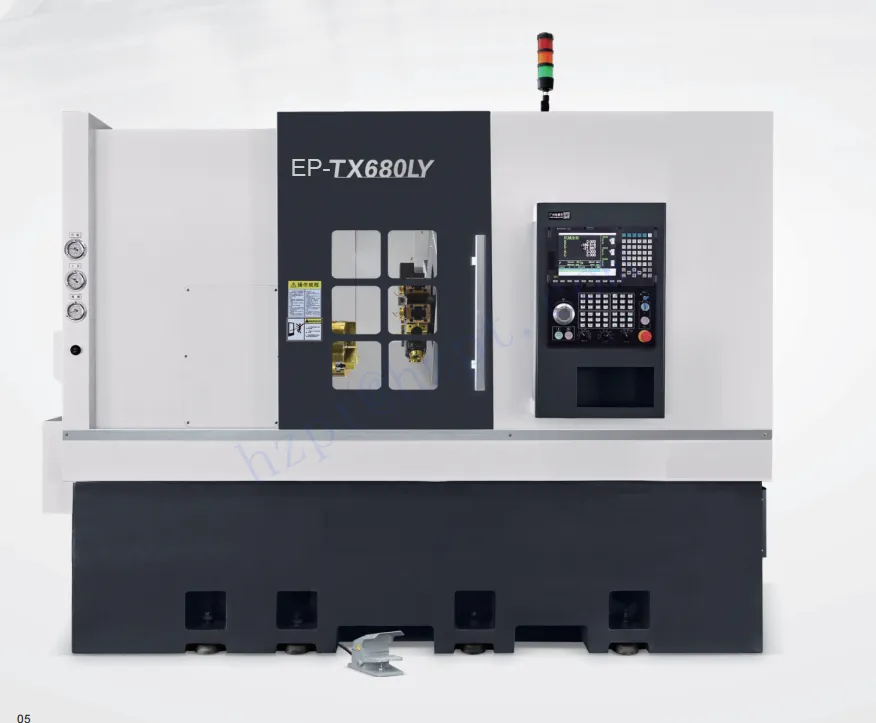

RDF-TX Series Power Turret Turning-milling Compound (with y-axis)

RDF-TX Series (RDF-TX460LY RDF-TX500LY RDF-TX520LY RDF-TX680LY RDF-TX520LIY RDF-TX680LIY)RDF-TX Series Turning and Milling Center RDF-TX680LY integrates a powerful Y-axis power turret, has high-speed performance and a heavy-duty linear rail design, providing excellent efficiency and flexibility for your processing operations. In addition to the functions of CNC lathes, this model can also complete plane milling, drilling, tapping, straight grooves, spiral grooves and milling teeth, etc. It also has compound functions such as turning, milling and boring, and can process multiple processes at one time to improve accuracy. The whole machine adopts a sheet metal frame structure and high-quality cold-rolled steel plates, which is light in weight and high in strength. The product processing parts are widely used in electronic communications, auto parts, machinery manufacturing, medical equipment, lighting equipment, navigation, air conditioning parts, plumbing and sanitary ware and other industries.

Standard Configuration:

SYNTEC CNC system / Taiwanese Y-axis Powered Turret / SYNTEC X, Z, Y-axis Servo Motors / Hydraulic Chuck / Taiwanese PMI, HIWIN Ball Screw, Roller Linear Guide.

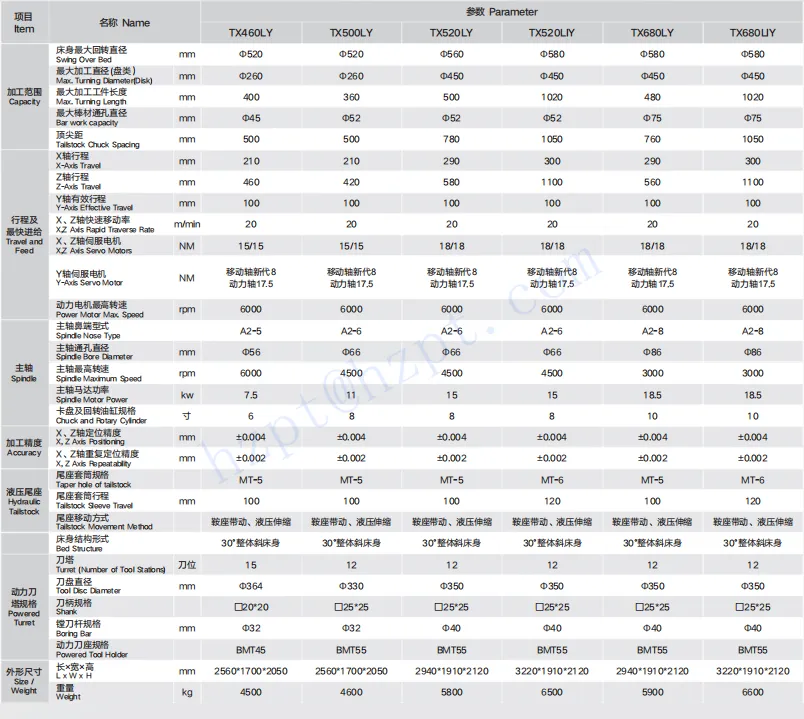

Parameter

Machine Tool Features

• High Rigidity and Low Vibration Design:Our machine tools are engineered with a high rigidity and low vibration design, featuring a 30-degree slant bed structure. This innovative design undergoes comprehensive finite element analysis to optimize the entire machine's performance. The rational arrangement of internal ribs within the bed enhances stability, reducing vibrations during operation. This results in improved machining accuracy and surface quality, making it ideal for precision engineering applications.

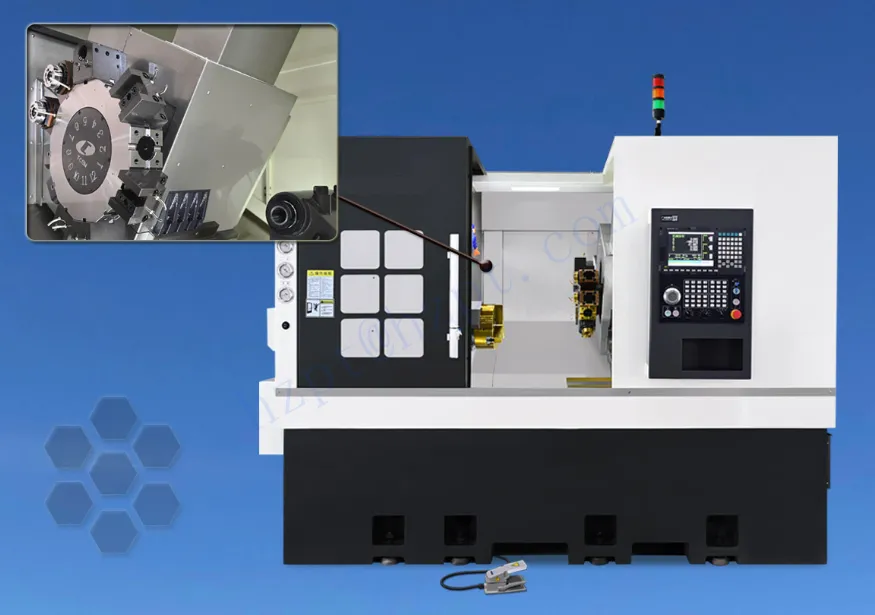

• Integrated Hard Rail Y-Axis Power Turret:The machine is equipped with a hard rail Y-axis power turret that integrates multiple machining functions, including turning, milling, drilling, and tapping. By combining these capabilities with C-axis and Y-axis technologies, our machine tools significantly reduce product processing times and labor requirements. This integration eliminates the need for secondary clamping of workpieces, thereby minimizing the risk of errors and enhancing overall operational efficiency.
• Enhanced P3-Class Ball Screws and Roller Linear Guides:Our machines feature robust P3-class ball screws and roller linear guides that ensure high precision and reliability. The Z-axis is configured with a six-block system, which provides superior stability and enhances load-bearing capacity. This advanced configuration allows for smooth and accurate motion, critical for achieving high-quality machining results.
• Programmable Tailstock Options:To further enhance versatility, our machine tools offer optional programmable hydraulic or servo tailstocks. These programmable tailstocks allow for automated adjustments, improving user convenience and precision during the machining process. Operators can easily set specific parameters for different workpieces, streamlining operations and enhancing productivity.

Overall, our machine tools are designed to deliver exceptional performance, combining advanced technology and user-friendly features to meet the diverse needs of modern manufacturing environments. Whether for high-volume production or intricate machining tasks, our equipment is built to enhance efficiency, accuracy, and reliability.

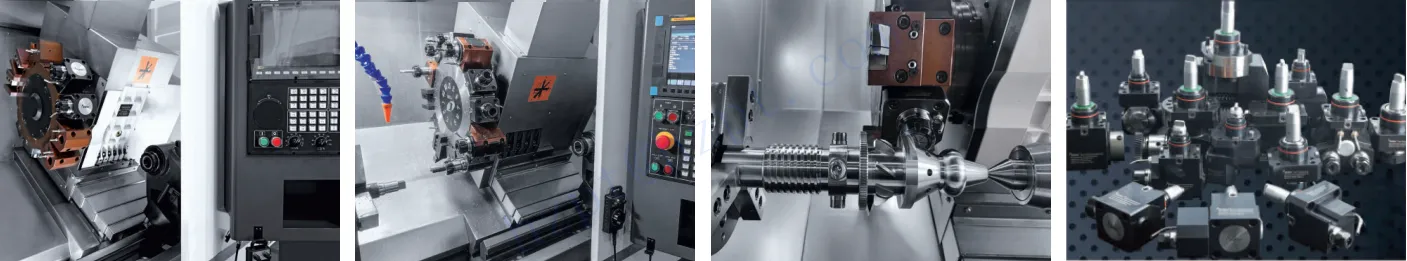

Auxiliary Extension

Workpiece Display

Workshop

We have been pursuing high-end technology and investing in high-precision equipment to make first-class products, which will create a world full of miracles for us. We exist for miracles.
