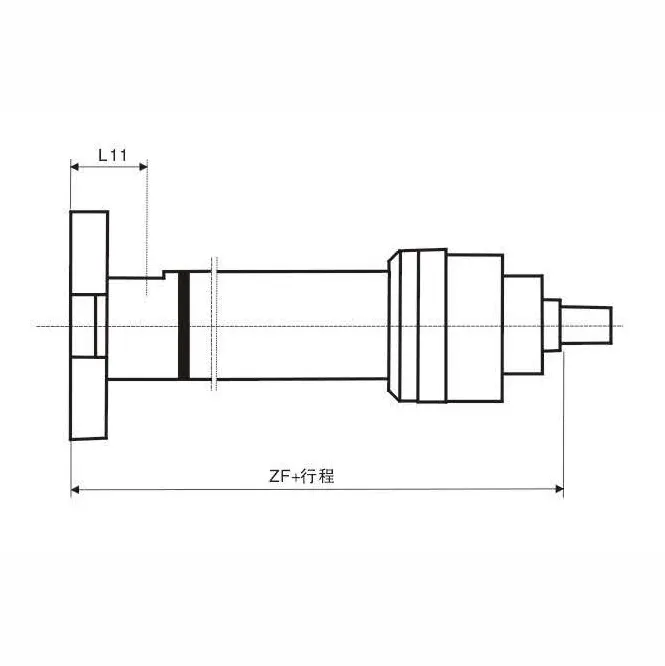

Rear Rectangular Flange Type Metallurgical Hydraulic Cylinder

Rear Rectangular Flange Type Metallurgical Hydraulic Cylinder

The rear rectangular flange type metallurgical hydraulic cylinder is a high-performance hydraulic component specifically designed to meet the demanding requirements of metallurgical applications. With its robust construction, precise control, and reliable operation, this hydraulic cylinder is engineered to excel in the rigorous environments of steel mills, foundries, and other metallurgical processes. The rear rectangular flange type cylinder delivers exceptional performance, efficiency, and durability, making it an ideal choice for the metallurgical industry.Y-HG1 series of metallurgical equipment hydraulic cylinder for the double acting piston cylinder, cylinder diameter is generally in the range of 40~320mm, the working pressure <=16MPA, the hydraulic oil mechanical system can be used to lose emulsion and other working media, the installation of the flange, earrings, pins, trippers (base) and different types.High precision CNC honing machine, automatic welding machine, vertical, horizontal machining center, gantry machining center, CNC lathe, and other processing equipment, product quality is stable and guaranteed.

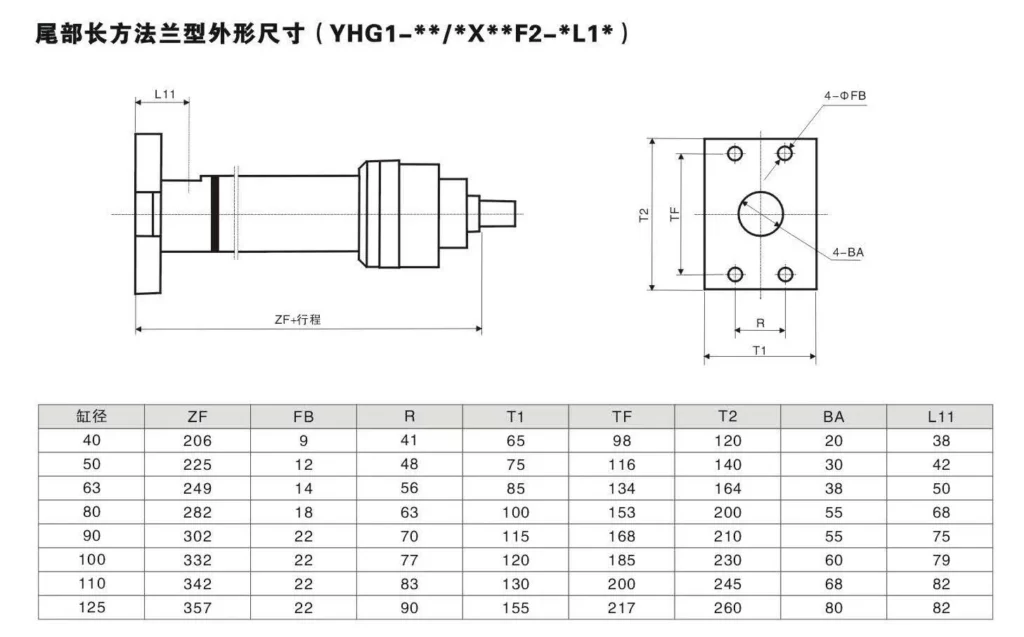

Rear Rectangular Flange Type Metallurgical Hydraulic Cylinder Parameter:

Usage Method Of Rear Rectangular Flange Type Metallurgical Hydraulic Cylinder:

1. Mounting and Installation:
   • Identify the appropriate mounting location for the hydraulic cylinder based on the specific requirements of the metallurgical equipment.
   • Ensure the mounting surface is clean, level, and capable of supporting the cylinder's weight and load.
2. Connection to Hydraulic System:
   • Connect the metallurgical hydraulic cylinder to the hydraulic system using compatible hydraulic hoses or pipes.
   • Ensure proper alignment and secure connections to prevent leaks and guarantee optimal performance.
3. System Integration and Calibration:
   • Integrate the hydraulic cylinder into the metallurgical equipment or system following the manufacturer's guidelines.
   • Calibrate the system to achieve the desired operating parameters and ensure smooth functionality.
4. Operating the Cylinder:
   • Activate the hydraulic system to apply pressure and initiate the movement of the hydraulic cylinder.
   • Utilize the hydraulic control system to precisely control the cylinder's extension, retraction, and positioning for efficient metallurgical operations.

Characteristics Of Rear Rectangular Flange Type Metallurgical Hydraulic Cylinder:

• Rear Rectangular Flange Design: The back rectangular flange design provides secure and reliable connection points, ensuring stability and precise alignment during metallurgical operations.
• Metallurgical Application Focus: This hydraulic cylinder is precisely engineered to meet the rigorous demands of metallurgical applications, offering durability and high performance in extreme conditions.
• Precise Control: The cylinder allows precise control and positioning, enabling operators to achieve accurate and efficient metallurgical operations.
• Robust Construction: Constructed from high-quality materials, the hydraulic cylinder is designed to withstand heavy loads, extreme temperatures, and harsh operating conditions.
• Efficient Energy Conversion: The cylinder utilizes advanced hydraulic technology to convert hydraulic energy into mechanical force with high efficiency, optimizing productivity in metallurgical processes.

How To Rebuild Hydraulic Cylinder?

Rebuilding a hydraulic cylinder can help restore its performance and extend its lifespan. While the process can vary depending on the specific design of the cylinder, here are general steps to guide you through the rebuild process. It's important to note that hydraulic cylinder rebuilding requires technical knowledge and experience, and it's recommended to consult a professional or refer to the manufacturer's guidelines for your specific cylinder model.

1. Safety Precautions:
   • Ensure the hydraulic system is depressurized and the cylinder is isolated from the power source.
   • Wear appropriate safety gear, such as gloves and safety glasses, to protect yourself from potential hazards.
2. Disassembly:
   • Remove the hydraulic cylinder from the equipment or machinery.
   • Carefully disassemble the cylinder, following the manufacturer's guidelines and taking note of the order of the components.
3. Inspection and Cleaning:
   • Thoroughly inspect all cylinder components for wear, damage, or signs of failure.
   • Clean the cylinder components using an appropriate solvent to remove dirt, debris, and old hydraulic fluid.
4. Replacement of Seals and O-Rings:
   • Identify and replace the seals, O-rings, and other worn or damaged sealing elements.
   • Ensure the new seals and O-rings are compatible with the hydraulic fluid and operating conditions.
5. Piston and Rod Maintenance:
   • Inspect the piston and piston rod for wear, scoring, or damage.
   • If necessary, polish or replace the piston rod to ensure smooth operation.
   • Lubricate the piston and rod with a suitable hydraulic fluid or lubricant.
6. Cylinder Barrel Inspection:
   • Inspect the interior surface of the cylinder barrel for scoring, corrosion, or other damage.
   • The cylinder barrel may need to be honed or replaced if significant damage is present.
7. Reassembly:
   • Carefully reassemble the cylinder, following the reverse order of disassembly.
   • Apply a thin layer of hydraulic fluid or lubricant to the seals and O-rings for easy assembly and improved sealing.
8. Testing and Reinstallation:
   • Perform a pressure test to ensure the rebuilt cylinder functions appropriately and does not leak.
   • Reinstall the hydraulic cylinder into the equipment or machinery, ensuring proper alignment and secure connections.
9. Fluid Replacement and System Bleeding:
   • Replace the hydraulic fluid with fresh fluid, following the manufacturer's recommendations.
   • Bleed the hydraulic system to remove trapped air, ensuring proper operation and performance.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of metallurgical hydraulic cylinders. It maintains a leading position in China's market segment of hydraulic cylinders. In 2020, the domestic market share was around 29%. We produce Industrial vehicle metallurgical hydraulic cylinders, Aerial work vehicle metallurgical hydraulic cylinders, agricultural machinery hydraulic cylinders, and sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The metallurgical hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
