Repacement Of John Deere AHC10443 Wing Fold Hydraulic Cylinder

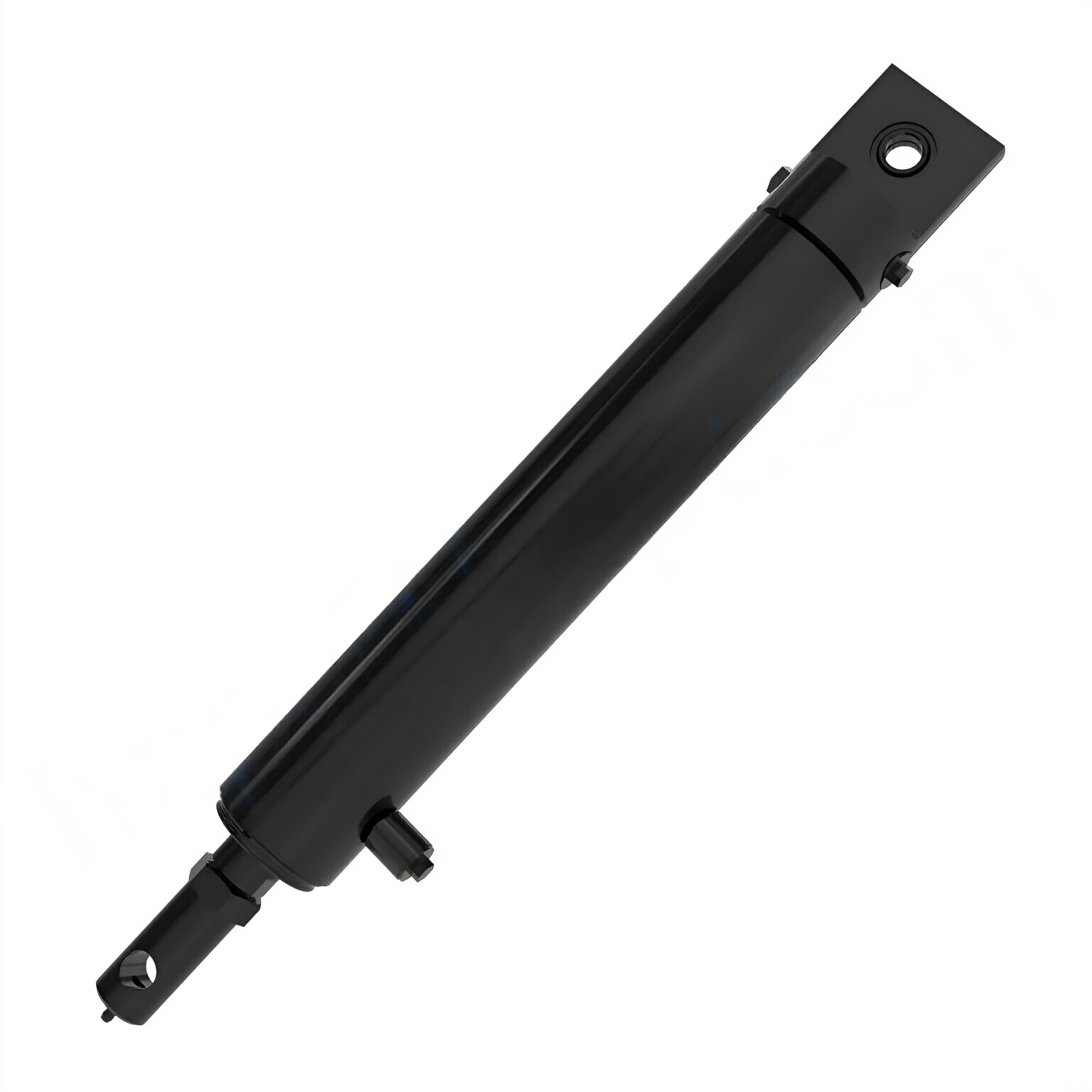

Replacement Of AHC10443 Wing Fold Hydraulic Cylinder

Definition: The Replacement Of AHC10443 Wing Fold Hydraulic Cylinder is a hydraulic cylinder specifically designed to replace the AHC10443 model. It plays a crucial role in various applications that require the folding of wings, providing stability and secure fixation.

Specifications

• Weight: 9.54 lb
• Height: 2.5 in
• Width: 3.5 in
• Length: 17.3 in

Compatible Models

• 344 P
• 344J
• 344K
• 344L

Product Features

• Highly durable and reliable
• Efficient and precise wing folding mechanism
• Exceptional weight-bearing capacity
• Superior sealing properties
• Easy maintenance and repair

We, as a leading manufacturer and wholesaler of hydraulic cylinders, offer a perfect replacement for these hydraulic cylinders. Our high-quality products are designed to match and even surpass the performance of the original models.

Applications

• Construction: Typically used in cranes, hoists, and elevators to securely hold heavy loads.
• Manufacturing: Used in hydraulic presses for forming materials under high pressure, requiring a reliable fixation mechanism.
• Transportation: Utilized in stabilizers and jacks of vehicles, ensuring safety during maintenance or transportation processes.
• Aviation: Integrated into landing gear systems to securely fix landing gear in the appropriate position during takeoff and landing.

Each application showcases the cylinder's versatility and its ability to meet the specific requirements of different industries. With our hydraulic cylinders, customers can achieve optimal performance and safety.

Design Considerations and Selection Criteria

• Bearing capacity: The cylinder is designed to withstand heavy loads and ensure reliable operation even under extreme conditions.
• Sealing: Various sealing components, such as piston seals and rod seals, are carefully selected for their durability and resistance to wear.
• Durability: The cylinder body and threaded ends undergo meticulous surface treatment to enhance wear resistance.
• Safety: Stringent safety standards are followed to guarantee the cylinder's performance and prevent potential hazards.
• Maintenance: Regular lubrication with suitable hydraulic oil is recommended to ensure smooth operation and extend the cylinder's lifespan.

Inspection and Preventive Maintenance

• Regularly inspect the cylinder for any signs of leakage, damage, or wear.
• Proper lubrication is crucial to maintain optimal performance. Follow the recommended lubrication schedule.
• Seals should be periodically checked and replaced if necessary to prevent leakage.
• Perform calibration checks to ensure the cylinder operates within the specified parameters.

Installation Guide

1. Carefully position and align the cylinder according to the equipment's requirements.

2. Use appropriate installation brackets to securely fix the cylinder in place.

3. Follow the recommended installation procedures provided by the manufacturer.

4. Ensure the cylinder is properly aligned and connected to the hydraulic system.

Maintenance Tasks

• Regular inspections to identify any potential issues.
• Proper lubrication to minimize friction and ensure smooth operation.
• Seal replacement when signs of wear or leakage are observed.
• Importance of correct installation, lubrication, and adjustment to maximize cylinder performance.
• Recommendations for inspection, repair, and replacement procedures, including availability of spare parts and rebuild services.
• Techniques to enhance the lifespan of the hydraulic cylinder.

Safety Considerations and Environmental Factors

When using the hydraulic cylinder, it is crucial to prioritize safety measures to prevent accidents or injuries. Following proper procedures, using appropriate protective equipment, and adhering to industry standards are essential for a safe working environment.

Troubleshooting and Common Issues

1. Problem: Leakage from the cylinder.

Solution: Inspect and replace any damaged seals or components causing the leakage.

2. Problem: Abnormal noise during operation.

Solution: Check for loose connections or worn-out parts, and tighten or replace them accordingly.

3. Problem: Inconsistent or jerky movement.

Solution: Check for hydraulic fluid contamination or insufficient lubrication, and address accordingly.

Conclusion

Our company is a renowned manufacturer and wholesaler of replacement hydraulic cylinders. With a wide range of products and certifications, we have established ourselves as a leading provider in both domestic and international markets. We offer customized solutions, state-of-the-art production equipment, and exceptional after-sales service.
