Replacement of Bonfiglioli 305L Series Planetary Gearbox Reducer Replacement 305L1 305L2 305L3 305L4

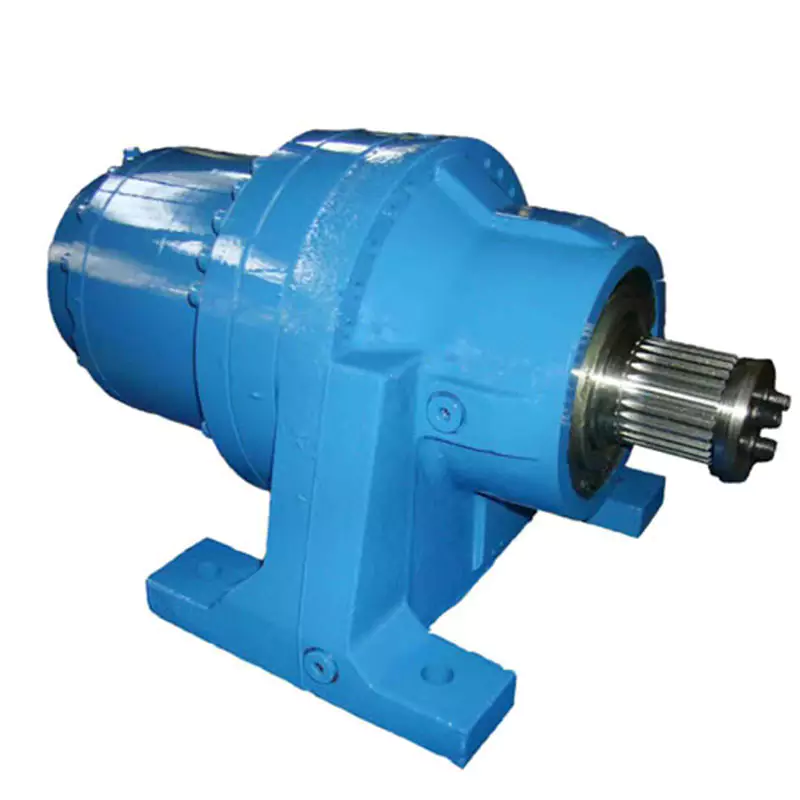

305L Series Planetary Gearbox

This 305L series planetary gearbox can interchangeable with Replacement of Bonfiglioli 305 series planetary gearbox. The installation and overall dimension of planetary gearboxes are strictly designed in accordance with Italy and American manufacturers, so they can be completely interchangeable with Brevini ED, ET, EQ, EM, EC and EL series, Replacement of Bonfiglioli 300 series and Dinamicoil RE, RA series on performance and connection dimensions.They are the ideal product to replace those Italian products.

Torque range	1000-450.000 Nm
Transmissible mechanical power	up to 540 kw
Gear ratios	3.4-9.000
Gear unit versions	inline
Output configurations	1)Foot and flange mounted2)Output shaft: solid with key, splined, splined hollow3)Hollow with shrink disc
Input configurations	1)Flanged axial piston hydraulic motors2)Hydraulic orbit motors3)IEC and Nema motor adaptors4)Solid input shaft
Hydraulic brake	hydraulically released parking brake
Electric brake	DC and AC type
Reduction Lubrication	Internal planetary gear mechanism with trochoidal curved tooth profile.Grease or oil lubricated models available.
Seals	Nitrile material, dual lipped, double output seals available.
Material	Rugged cast iron or ductile housings.
Paint Color	Blue, Munsell color number 6.5PB 3.6/8.2
Installation Location: Ambient Temperature	Indoors (Minimal dust and humidity) 14°~104° F (-10º ~ 40º C)
Ambient Humidity	Under 85%
Elevation	Under 3,281 ft. (1000 meters)
Atmosphere	Well ventilated location, free of corrosive gases, explosive gases, vapors and dust.

Application of Planetary Gearbox

Cement and Mining	Cranes	Marine and Shipbuilding	Oil and Gas	Power Generation
Chemicals and pharmaceuticals	Rubber and Plastic	Pulp and paper	Water and Wastewater	Sugar
Food and Beverage	Railway Vehicles	Passenger Transport	Wind Power	Turbo
