Replacement of Bonfiglioli 306L Series Planetary Gearbox Reducer Replacement 306L1 306L2 306L3 306L4

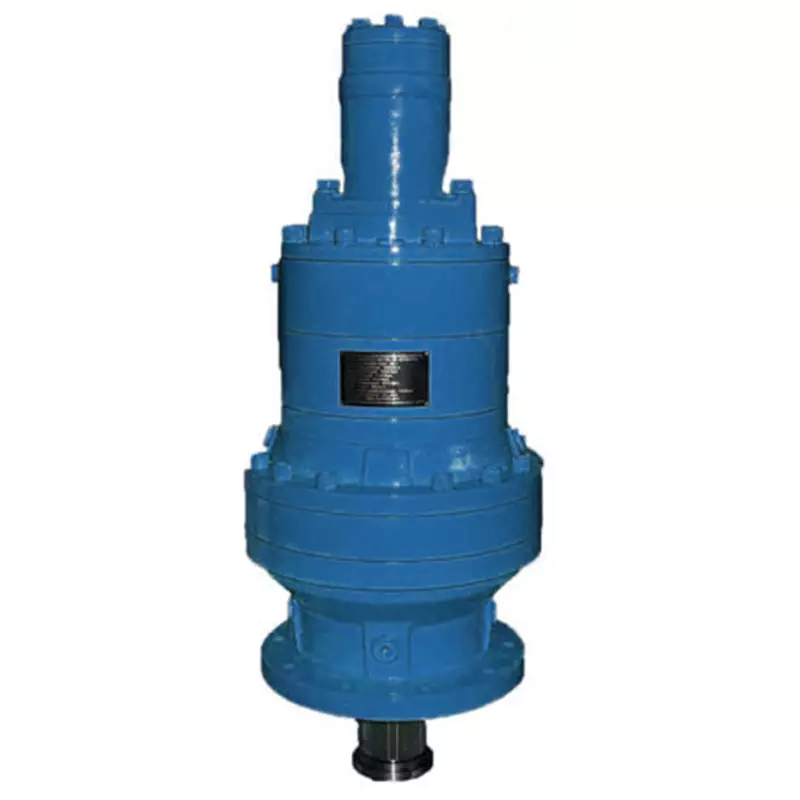

306L Series Planetary Gearbox

The planetary transmission provided by Raydafon is a modular structure, widely available in three categories, namely base, flange, and shaft installation. In addition, the output shaft also has male and female spline types. The end of the prime mover is roughly divided into solid shafts, which can be connected through sprockets, pulleys, or couplings, or through hollow internal threads. Electric or hydraulic motors installed on flanges can be directly inserted as male and female connectors. Planetary reducers are popular in various industries due to their high efficiency, online structure, high reliability, and sturdy structure.The 300 series includes a series of multi-purpose planetary gearboxes that can be operated by hydraulic or electric motors. Basic functions include

• 20 frame sizes of modular design
• output torque up to 1, 286, 700Nm
• transmissible power up to 1050 kw
• Ratios from 3.4:1 to 5234:1
• versions :in-line with 1 to 4 reductionsright angle ( spiral bevel gear set into first stage ) with 2 to 4 reductions
• Cmbinations with:worm gear unitbevel-helical gear units
• flange, foot and shaft mounting arrangements
• slow output shafts: keyed, splined male, splined hollow, shrink disk mounted
• Input adaptors forEc-normalised electric motorsintegral motor for in-line units up to size 307 and for units combined with bevel helical and worm gearshydraulic motors by major manufacturers and according to SAE J744C
• parallel input shafts
• gearmotors with:
   electric motors IEC
   hydraulic orbital motors
