Replacement of Bonfiglioli 315R Series Planetary Gearbox Reducer Replacement 315R3 315R4

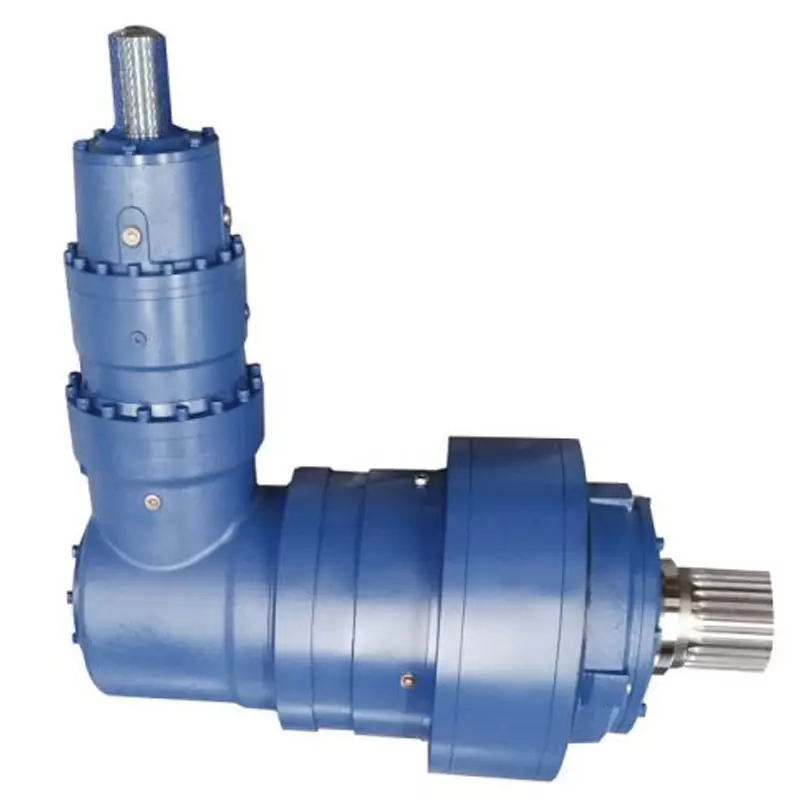

315R Series Planetary Gearbox

the 313R series planetary gearbox is manufactured using advanced techniques to ensure high quality, precision, and reliability. Here are some of the key manufacturing techniques used:

• CNC machining: Computer Numerical Control (CNC) machining is used to produce the gearbox components with high accuracy and precision. This technique involves the use of computer-controlled machines to cut, drill, and shape the parts to exact specifications.
• Heat treatment: The gearbox components are subjected to a heat treatment process to increase their strength and durability. This involves heating the parts to a specific temperature and then cooling them rapidly to create a hard, wear-resistant surface.
• Grinding: The gears and other components are ground to precise tolerances using advanced grinding machines. This ensures that the gears mesh smoothly and accurately, reducing noise and wear.
• Laser marking: The gearbox components are laser marked with part numbers, serial numbers, and other identifying information. This ensures that the components can be easily tracked and identified throughout the manufacturing and assembly process.
• Assembly: The gearbox is assembled using a combination of automated and manual assembly techniques. The components are carefully inspected and tested to ensure that they meet the required specifications and tolerances.

Overall, the manufacturing techniques used to produce the 313R series planetary gearbox are designed to ensure that the gearbox is of high quality and reliability. By using advanced techniques such as CNC machining, heat treatment, and laser marking, Replacement of Bonfiglioli is able to produce gearboxes that meet the high standards required for industrial applications.

Type	Rated torque (Nm)	Rated power (Kw)	Input speed (Max rpm)	Ratio range for Inline gear	Ratio range for Right angle gear	Ratio range for Combined with worm gear	Design
300	1000	20	3000	3.3-2700	7-800	400-9000	A
301	1750	30	3000	3.3-2700	7-800	400-9000	A
303	2500	40	3000	3.6-2900	9-900	400-9000	A
305	5000	60	3000	3.6-2900	9-900	400-9000	A
306	8500	75	2500	3.7-2900	9-900	400-9000	A
307	12500	100	2500	3.4-2500	13-800	400-9000	A
309	18500	130	2500	3.4-2500	13-800	400-9000	B
310	25000	150	2000	3.8-2500	40-900	400-9000	B
311	35000	180	2000	4-2200	18-800	400-9000	B
313	50000	200	2000	4-2200	18-800	400-9000	B
315	80000	250	1500	4-2000	70-900	400-9000	B
316	105000	270	1500	4-2000	50-600	400-9000	B
317	150000	300	1000	4-1900	70-900	400-3000	B
318	200000	340	1000	4-1100	200-700	400-9000	B
319	300000	380	500	4-1400	300-800	1000-9000	B
321	450000	450	500	4-1100	300-800	1000-9000	B
