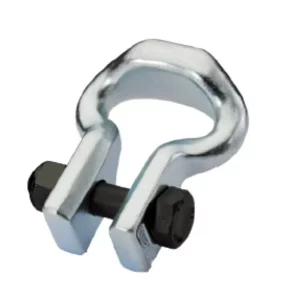

Replacement Of Thiele Double Stand Connecting Link For Mining

Replacement Of Thiele Double Stand Connecting Link For Mining

Welcome to the global home for highly specialized, precision-engineered Double-Strand Connecting Links. We are a trusted international manufacturer dedicated to providing heavy-duty chain conveyor solutions for the world’s most demanding underground applications, including high-production longwall and mechanized mining systems. Our commitment is rooted in ensuring the reliability and safety of your most critical haulage assets.The Double-Strand Connecting Link (often conforming to standards like DIN 22253) is arguably the most critical component in any double-strand scraper or armored face conveyor (AFC). Its function is singular: to securely join chain segments and withstand the full, continuous tensile load of the conveyor system. A failure at this link means immediate, catastrophic conveyor downtime.Our replacement connecting links are manufactured using the same metallurgical expertise and demanding quality control standards applied to our high-strength conveyor systems (such as the K Series Ladder Conveyor Chains and our specialized DF Series Drop Forged components). This expertise ensures:

• Maximum Tensile Integrity: Certified strength exceeding industry standards.
• Superior Fatigue Resistance: Designed to endure constant, cyclical loading typical of longwall operations.
• Dimensional Parity: Guaranteed seamless integration with existing chain links and couplers.

By choosing our specialized components, you gain a partner leveraging decades of manufacturing experience, delivering links proven to provide unmatched component reliability and maximized operational output.

Connecting Link Features & Benefits:

Precision-Forged Couplers: The Backbone of Your Conveyor Integrity

Our replacement Double-Strand Connecting Links are forged and treated to deliver maximum integrity and reliability, applying the expertise essential for any high-load chain system.

Core Engineering & Design

1. Dedicated Drop Forged Construction All our heavy-duty chain couplers are produced using a specialized drop forging process. This is crucial for connecting links, as forging shapes the metal's grain structure to flow along the contour of the link. This process produces components with superior internal structural integrity, high impact tolerance, and exceptional tensile strength. This is a fundamental advantage over non-forged or cast equivalents.2. Engineered for Seamless Double-Strand Coupling The link geometry is precisely engineered to mate perfectly with the dual inner and outer links of a double-strand chain system. This ensures the full load is distributed evenly across both strands, preventing premature wear or failure due to uneven force application.3. Positive Locking Mechanism Our links are designed for a secure, positive engagement using the appropriate locking components (e.g., T-pins, locking bolts, or specialized pins), ensuring that the link cannot separate even under severe shock loading or vibration.

Key Performance Advantages

Technical Specifications & Metallurgical Expertise

Uncompromising Quality: Material and Performance Specifications

Our authority in mining components is built on specialized manufacturing, utilizing the latest techniques in material science, welding, and thermal treatment to ensure our products perform reliably in the world's harshest operating environments.

Advanced Material Science & Forging

We utilize only selected premium qualified steels (often medium carbon alloy steels) in our forging process, applying decades of metallurgical knowledge to maximize component properties, as seen in our DF Series components.

• Forging Advantage: Drop forging produces an optimal grain flow, resulting in an average of $30\%$ more tensile strength than non-forged equivalents, which is vital for connecting links.
• Heat Treatment Focus: Our rigorous process includes controlled quenching and tempering to achieve the necessary balance of hardness (for wear resistance) and toughness (for impact absorption).
• Special Heat-Treated Pins: For systems utilizing separate locking pins, these pins are also manufactured using special heat-treated pins to ensure they match or exceed the wear resistance of the link body itself.

Double-Strand Connecting Link Technical Compatibility

Our replacement connecting links are manufactured to match the dimensional and strength specifications of the most common Double-Strand Conveyor systems (Equivalent to our K Series applications):

Advanced Wear Solutions & System Integration

Combatting Stress: Advanced Customization and Protective Treatments

We offer specialized features and complementary products to enhance the overall performance and life of your double-strand conveyor system.1. Enhanced Corrosion Protection Mining environments often expose links to water, corrosive slurry, and high humidity, which can lead to stress corrosion cracking and premature failure.

• Coatings: Components can be supplied with specialized protective coatings for improved resistance.
• Hot-Dip Galvanizing (TZN): Recommended for long-term storage and severely corrosive working environments, creating a dense, protective zinc-iron alloy layer that significantly increases service life.

2. Comprehensive System Solutions Our core product lines and manufacturing capabilities ensure we can supply a complete, high-quality overhaul:

• Double-Strand Chain: Our K Series Ladder Conveyor Chain is the ideal solution, engineered for high loads and explicitly suited for abrasive, high-capacity material handling.
• Drive Components: We manufacture and supply high-performance replacement Segmental Sprockets (SD Series). These sprockets feature induction hardened teeth ($56-60\text{ HRC}$) for maximum wear resistance, reducing load on the chain joints.
• Flight Bars: Our replacement Double-Strand Flight Bars are designed to integrate perfectly with our connecting links and chain, ensuring system integrity.

Why Choose Our Replacement Connecting Links?

Choosing our replacement Double-Strand Connecting Links means partnering with a manufacturer that has earned its reputation in the heavy-duty sector through certified quality and unmatched technical expertise.1. Unmatched Manufacturing Expertise and Experience

• Industry Focus: We are a global leader dedicated to delivering heavy-duty chain conveyor solutions for underground mining, providing components that align with the high standards of global mining corporations.
• Forging Excellence: Our reliance on the drop forging process for critical components is the foundation of our quality promise, ensuring an average of $30\%$ more tensile strength than standard components.
• Proven Performance: Our components are proven in high-load, continuous-operation applications worldwide, offering real-world expertise in managing chain dynamics and wear.

2. Rigorous Quality Assurance and Trustworthiness

• Non-Destructive Testing (NDT): All critical connecting links undergo stringent quality control procedures, including full crack detection using methods such as Magnetic Particle Inspection (MPI), to ensure they are free from internal or surface defects before delivery.
• Metallurgical Integrity: We guarantee the integrity of our components through continuous testing, focusing on achieving superior properties like strong toughness and resistance to fatigue fracture.
• Direct Interchangeability: Our links are manufactured to precise DIN 22253 (or similar standard) dimensions, guaranteeing easy installation and seamless interchangeability with existing chain systems.

3. Total Value and Support

• Direct Replacement Guarantee: Our components are dimensionally engineered to be a functional replacement for all common Double-Strand OEM connecting links, minimizing installation risk.
• Technical Consultation: We offer full technical support and expertise to assist mining companies with component selection, ensuring the ultimate performance and safety of the entire chain system.

Total Cost of Ownership (TCO) & Value Proposition:

Beyond Price: Long-Term Value in Critical Mining Components

The true value of a connecting link is not its purchase price, but its Total Cost of Ownership (TCO), defined by its reliability, lifespan, and impact on system downtime.1. Reliability is Uptime

• A single point of failure in a chain is often the connecting link. Our rigorous forging and NDT inspection procedures eliminate latent defects, drastically reducing the risk of catastrophic failure and associated unscheduled downtime.
• By focusing on superior fatigue resistance, we ensure the link can endure the cyclical pounding and load fluctuations that degrade standard components over time.

2. Extending Component Lifespan

• Our use of specialized alloy steels and controlled heat treatment ensures our connecting links offer a longer service life than standard commercial links, directly reducing the frequency of replacements.
• The precise calibration and dimensional stability of our links minimize wear on adjacent inner and outer links, contributing to the longevity of the entire chain segment.

3. Strategic Inventory Management

• As a reliable global manufacturer with decades of experience, we provide a consistent and responsive supply chain, mitigating the risks associated with single-source OEM dependence. Our components are guaranteed interchangeable, simplifying your inventory requirements.

The Reliable Choice for High-Capacity Mining

For double-strand conveyor systems—the essential high-tonnage infrastructure of mechanized mining—the integrity of the connecting link is the most critical element. Our forged replacement Double-Strand Connecting Links deliver the ultimate performance characteristics: certified tensile strength, superior fatigue resistance, and guaranteed dimensional fitment.Upgrade your essential haulage systems with the confidence of certified quality and specialized expertise.Contact our technical and sales team today to request a customized quote and consultation.
