Replacement of Walterscheid PTO Shaft P600 810 S5H/S6

Replacement of Walterscheid PTO Shaft P 600 810 S5H/S6

Replacement of Walterscheid Standard PTO shaft

Further information

Universal joint A profile (mm):

42 x 104

Universal joint B profile (mm):

42 x 104

Size:

600

Tractor version:

1 3/821 splines

Implement version:

1 3/4?? 20 splines

(mm):

810

Profile:

With star profile

Locking system:

Clamping taper bolt/push-pull lock

Series:

P 600

Length (mm):

810

Profile pair:

S5H/S6

Guard version:

PG30

Max. speed (1/min.):

540

Lock:

AGCC/ASG

Type:

P

Version:

Implement: quick-disconnect yoke with clamping taper boltTractor: ASG quick-disconnect yoke

A (profile):

1 3/821 splines

B (profile):

1 3/420 teeth

Additional information:

Bedienungsanleitung ist im Lieferumfang enthalten

PS/kW(1000 / 540 U/min.):

122 / 79

Weight:

31.50?kg

Service-Center form:

Click here

To be found in category:

Standard PTO shafts & drive technologySearch filters: Standard PTO shaftsStandard Standard PTO shafts

Part no.: 395154037

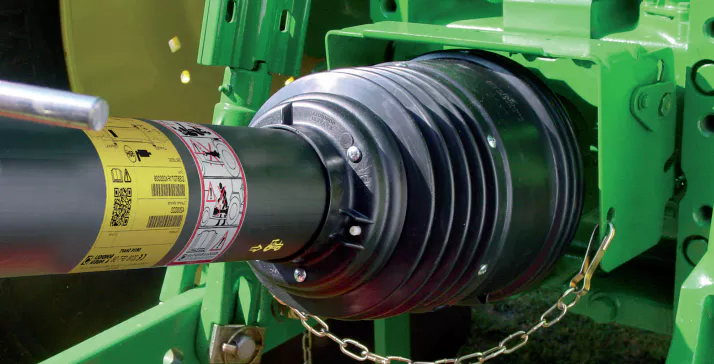

Understanding PTO Shaft

PTO shaft short for Power Take-Off shaft is a crucial component in many agricultural and industrial machinery. It transfers power from the equipment's engine to its implement. Here are five key features of a PTO shaft:

• It can transmit high amounts of power
• It??s designed to be easily connected and disconnected
• It has a splined design for secure fit
• It??s built with safety features such as shear pins and overrunning clutches
• It??s often made of durable materials like steel to withstand heavy workloads

Our PTO Shaft

We manufacture PTO shafts that are identical in and installation method to the Replacement of Walterscheid PTO shaft providing a perfect replacement. Our PTO shafts are designed with utmost precision and attention to detail to ensure optimal performance and long service life.

Choosing the Right PTO Shaft

When selecting a PTO shaft it??s important to consider the following parameters:

• Length: The distance between the power transmitting and receiving devices.
• Rated Power: The maximum power that the shaft can safely transmit.
• Shaft and Connection Method: The of shaft and hoWit connects to the equipment.
• Torque Transmission Capability: The maximum torque the shaft can transmit.
• Environmental Requirements: Factors such as protective covers sealing performance and durability.
• Safety Features: Features such as reliable anti-jamming sleeve devices anti-jamming pins etc.
• Compatibility: The shaft??s compatibility with different types of equipment.
• Certification: Certifications like CE marking which indicates conformity with health safety and environmental protection standards for products sold within the European Economic Area (EEA).

The Importance of CE Certification

CE certification is crucial for PTO shafts for the following reasons:

• It ensures that the PTO shaft complies with the relevant regulations and standards of the European Union providing basic safety guarantees.
• It is a necessary condition for selling PTO shafts in the European market.
• It provides reliable assurance for the safety performance of the PTO shaft.
• A PTO shaft with CE certification conveys confidence in product quality and safety.

Our Certifications

In addition to CE certification our PTO shafts are also certified with TS/16949 and ISO 9001 ensuring their quality and safety. See our certifications here:

PTO Shaft Structure

A PTO shaft consists of the following parts:

• Housing: The outer casing of the PTO shaft.
• Drive Shaft: The main component that transmits power.
• Universal Joint: Allows the drive shaft to rotate at varying angles.
• Protective Cover: Protects the shaft from dust dirt and other contaminants.
• Connectors: Connect the PTO shaft to the equipment.

Each part is made with high-quality materials for optimal performance and durability. We also sell individual parts for your convenience. See the structure of our PTO shaft here:

Applications of PTO Shaft

PTO shafts are used in various industries including:

• • Agriculture: Usually used to connect tractors and agricultural equipment like mowers harvesters straWshredders sprayers mixers etc.
  • Industrial Equipment: Used to drive various rotating equipment like pumps generators centrifuges mixers etc.
  • Transportation Equipment: Used to drive certain transportation equipment like trailers semi-trailers and toWtrucks.
  • Solar Systems: Often used to rotate and adjust tracker photovoltaic panels.

Adjusting PTO Shaft Length

Here are the steps to adjust the length of a PTO shaft:

1. 1. Remove the plastic protective cover.
   2. Shorten the inner and outer tubes according to the required length reducing the same length from both tubes at once.
   3. Use a file to remove burrs.
   4. Shorten the inner and outer plastic tubes according to the required length reducing the same length from both tubes at once.

   1. oil the inner steel tube and then reinstall the drive shaft plastic protective cover.
   see the process here:

   about us

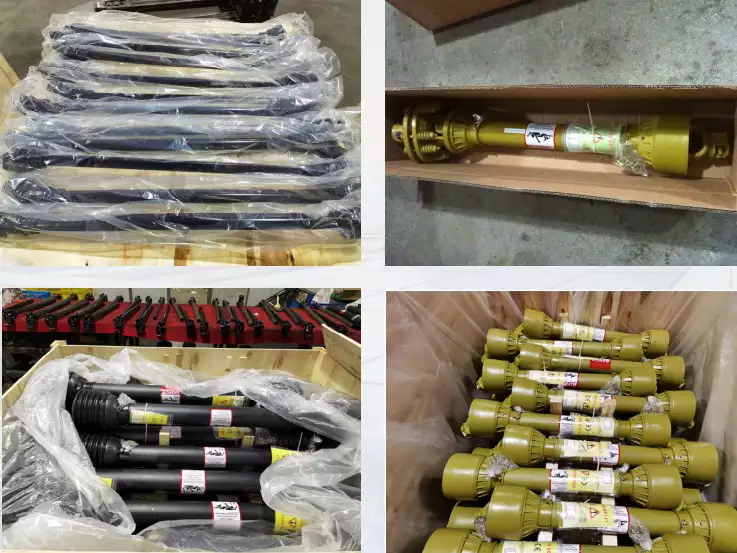

   hzpt group is a leader in the pto shaft market in china. we specialize in the development manufacture and marketing of power output shafts industrial universal joints and automotive drive shafts. our products enjoy a reputation among our customers in europe the united states asia australia and north america. we support custom manufacturing and processing with laser printing for logos. we are among the top three professional oem suppliers for numerous agricultural tool factories with ce ts/16949 and iso 9001 certifications. we offer a comprehensive range of products including agricultural gearboxes chains sprockets pulleys couplings and other transmission components and agricultural machinery parts. we welcome custom orders based on drawings or samples. see our product range here:author: miya src="https://hzpt.com/wp-content/uploads/2023/12/0_pto-shaft-factory-8.webp" />
   1. Oil the inner steel tube and then reinstall the drive shaft plastic protective cover.
   See the process here:

   About Us

   Raydafon Group is a leader in the pto shaft market in China. We specialize in the development manufacture and marketing of power output shafts industrial universal joints and automotive drive shafts. Our products enjoy a reputation among our customers in Europe the United States Asia Australia and North America. We support custom manufacturing and processing with laser printing for logos. We are among the top three professional OEM suppliers for numerous agricultural tool factories with CE TS/16949 and ISO 9001 certifications. We offer a comprehensive range of products including agricultural gearboxes chains sprockets pulleys couplings and other transmission components and agricultural machinery parts. We welcome custom orders based on drawings or samples. See our product range here:
