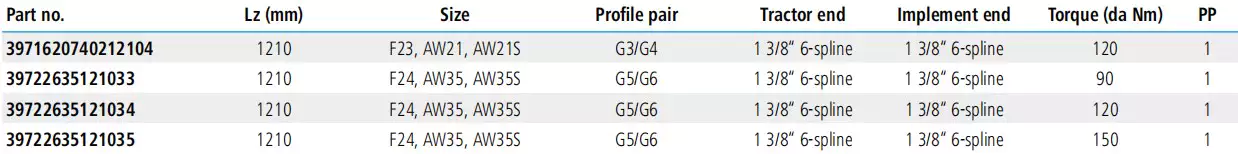

Replacement of Weasler PTO Shaft Replacement With Radial Pin Clutch 90Nm F24 AW35 AW35S 1210mm G5/G6

Replacement of Weasler PTO Shaft Replacement With Radial Pin Clutch 90Nm F24 AW35 AW35S 1210mm G5/G6

Introduction to the PTO Shaft

The PTO Shaft, or Power Take-Off shaft, is a critical component of agricultural and industrial machinery. Here are 5 key features of a PTO Shaft:1. Power Transmission: The main function of a PTO shaft is to transmit power from the tractor to the implement.2. Flexible Connection: It accommodates relative movement between the tractor and implement.3. universal joints: These allow the shaft to work at an angle.4. Shear Bolt: This safety feature prevents damage to the tractor and implement by breaking when the torque exceeds a certain limit.5. Splined Ends: These allow easy connection and disconnection to the tractor and implement.

Our PTO Shaft: A Perfect Replacement for Replacement of Weasler

Our PTO Shaft is designed to perfectly replace the Replacement of Weasler PTO Shaft. It matches the exact dimensions and installation methods of the Replacement of Weasler model. This means you can achieve seamless integration with your existing machinery.

Choosing the Right PTO Shaft

Selecting the right PTO shaft involves understanding several key parameters:1. Length: This is the distance between the transmission and receiving devices.2. Rated Power: The power the shaft can safely transmit.3. Type and Connection of Shaft: This refers to the design and how it connects to the machinery.4. Torque Transmission Capability: The maximum torque the shaft can transmit.5. Environmental Requirements: These include considerations for protective coverings, sealing performance, and durability.6. Safety Features: These include mechanisms to prevent jamming, such as shear bolts.7. Compatibility: This refers to whether the shaft can fit and work with your specific machinery.8. Certifications: These are proofs that the product meets certain industry standards.

The Importance of CE Certification

CE certification is critical for PTO Shafts for the following reasons:1. Compliance with EU Regulations: It ensures the design, manufacturing, and use of the PTO shaft meet EU requirements, providing basic safety guarantees.2. Market Entry Requirement: CE certification is a prerequisite for selling PTO shafts in the European market.3. Reliable Safety Guarantee: CE certification provides a reliable guarantee for the safety performance of the PTO shaft.4. Confidence: A CE-certified PTO shaft transmits confidence in its quality and safety to potential customers.Our PTO shafts are CE certified, and we also hold TS/16949 and ISO 9001 certifications.

Structure of a PTO Shaft

A PTO shaft is composed of several key parts:1. Housing: The outer casing that protects the internal components.2. Drive Shaft: This transmits power from the tractor to the implement.3. Universal Joint: Allows the shaft to operate at an angle.4. Protective Cover: Shields the shaft from environmental factors.5. Connectors: Facilitate the connection between the tractor and implement.We also offer these individual components for sale.

Applications of the PTO Shaft

PTO shafts have wide-ranging applications:1. Agricultural Machinery: Commonly used to connect a tractor to agricultural equipment such as mowers, harvesters, straw crushers, sprayers, mixers, etc.2. Industrial Equipment: Used to drive rotating equipment such as pumps, generators, centrifuges, mixers, etc.3. Transportation Equipment: Used to drive certain transportation equipment such as trailers, semi-trailers, and towing vehicles.4. Solar Systems: Used to rotate and adjust tracker photovoltaic panels.

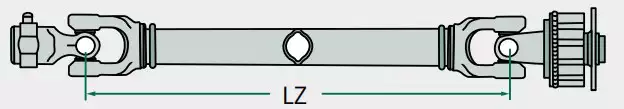

Adjusting the Length of a PTO Shaft

In order to adjust the length of a PTO shaft, follow these steps:1. Remove the plastic protective cover.2. Shorten the inner and outer tubes according to the desired length. Shorten both tubes by the same length at a time.3. Use a file to remove burrs.4. Shorten the inner and outer plastic tubes according to the desired length. Again, both tubes should be shortened by the same length at a time.5. Oil the inner tube of the steel pipe and reassemble the drive shaft plastic protective cover.

About Raydafon Group

Raydafon Group is a leader in the pto shaft market in China. We specialize in the development, manufacturing, and marketing of Power Take-Off shafts, industrial cardan shafts, and automotive drive shafts. Our products are highly respected in Europe, the US, Asia, Australia, and North America. We offer custom manufacturing and processing, and can laser print your logo on our products. We are among the top three professional OEM suppliers for numerous agricultural equipment factories, and hold CE, TS/16949, and ISO 9001 certifications. We have systematic production equipment and a team that guarantees our quality and delivery. In addition, we supply related products such as agricultural gearboxes, chains, sprockets, pulleys, couplings, and agricultural machinery accessories. We welcome customers to customize orders based on drawings or samples.Author: Miya
