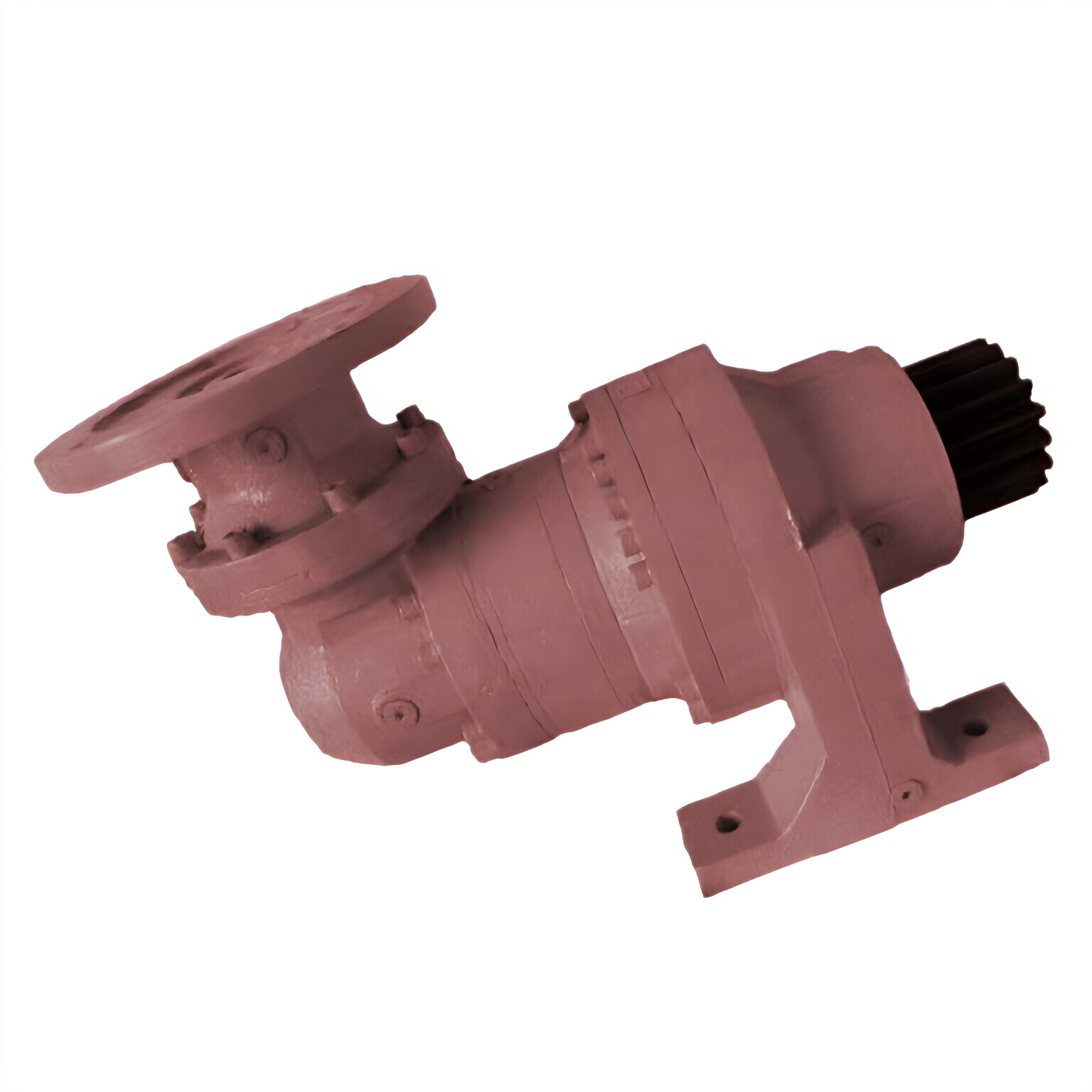

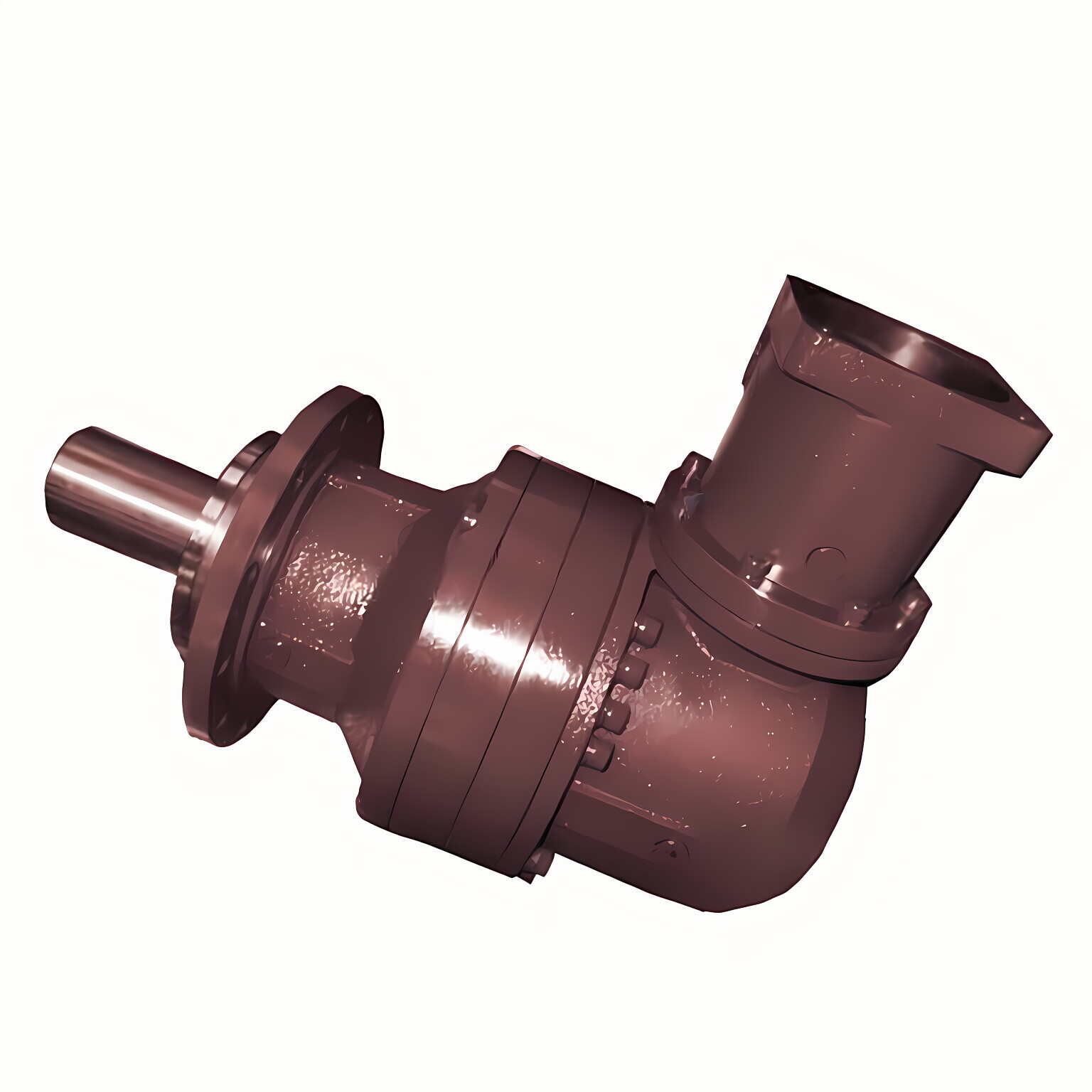

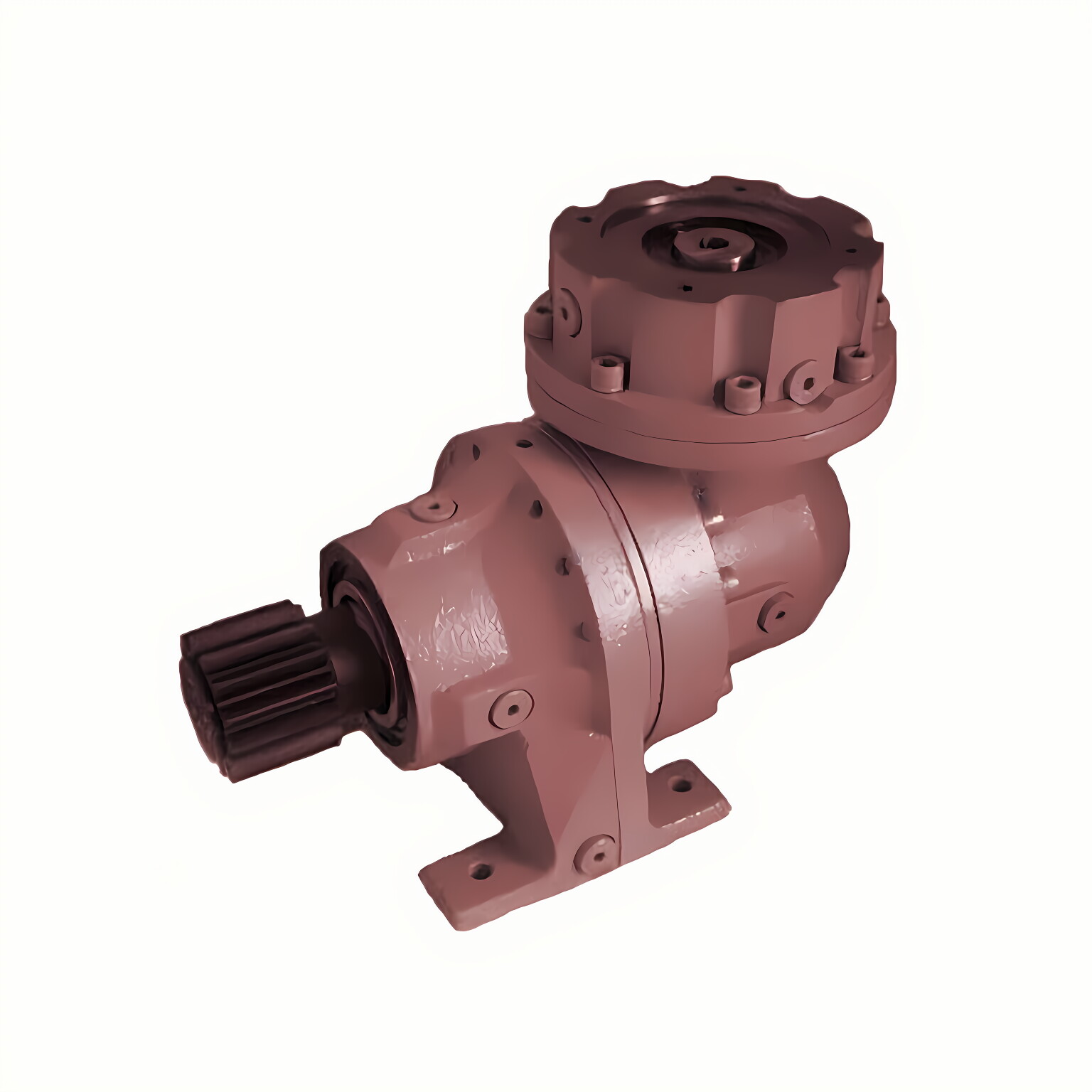

Superior performanceThe EP300R Series gearbox is a right angle gear drive and the best solution for all applications requiring high torque with minimum dimensions for fixed industrial equipment and heavy self-propelled machines. This planetary gearhead offers a substantial improvement over traditional gearboxes in terms of size and weight. The modular design combines high performance with low cost due to its compact size, excellent reliability, simple installation, and reduced maintenance. The EP300R Series planetary gearboxes come in a range of sizes to ensure optimum duration and silent running in all sorts of applications.The EP300R Series is also available in a high power version, linking the performance of EP's planetary technology with the high quality and reliability of gearboxes: a solution that is more efficient, quieter, more compact, and offers a better price/performance ratio compared with traditional gear units.Key FeaturesTorque Range1000-450.000 NmTransmissible Mechanical Powerup to 150 kWGear Ratios6.9-9.000Gear Unit VersionsRight angle (with a spiral bevel gear set)Output ConfigurationFoot and flange mountedOutput shaft: solid with key, splined, splined hollow, hollow with shrink discInput ConfigurationsFlanged axial piston hydraulic motorsHydraulic orbit motorsIEC and Nema motor adaptorsSolid input shaftHydraulic BrakeHydraulically released parking brake on requestElectric BrakeDC and AC type

Tipo		Torque Nm
EP300R	EP300R2, EP300R3, EP300R4	1000
EP301R	EP301R2, EP301R3, EP301R4	1750
EP303R	EP303R2, EP303R3, EP303R4	2500
EP305R	EP305R2, EP305R3, EP305R4	5000
EP306R	EP306R2, EP306R3, EP306R4	8500
EP307R	EP307R2, EP307R3, EP307R4	12500
EP309R	EP309R2, EP309R3, EP309R4	18000
EP310R	EP310R2, EP310R3, EP310R4	25000
EP311R	EP311R2, EP311R3, EP311R4	40000
EP313R	EP313R2, EP313R3, EP313R4	55000
EP315R	EP315R3, EP315R4	100000
EP316R	EP316R3, EP316R4	135000
EP317R	EP317R3, EP317R4	170000
EP318R	EP318R4	250000
EP319R	EP319R4	350000
EP321R	EP321R4	500000

 Alternative Brand/Model InquiryTrasmital Replacement of Bonfiglioli, Replacement of Brevini Riduttori, Replacement of Bosch Rexroth, Replacement of Comer Industries, Replacement of Reggiana Riduttori, Replacement of Rossi, Replacement of Zollern
