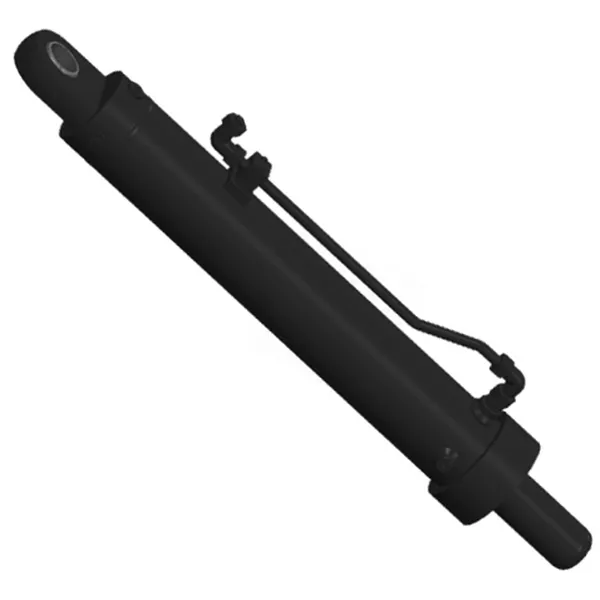

Ro-Ro Platform Jacking Cylinder

Ro-Ro Platform Jacking Cylinder

A Ro-Ro platform jacking cylinder is a type of hydraulic cylinder that is used to raise and lower the loading platforms on roll-on/roll-off (Ro-Ro) ships. Ro-Ro ships are designed to carry wheeled cargo, such as cars, trucks, buses, and trailers, that can be driven on and off the ship on their own wheels. The loading platforms are raised and lowered to allow cargo to be loaded and unloaded efficiently.

Ro-Ro platform jacking cylinders are typically made of high-strength steel and are designed to withstand the heavy loads that they are subjected to. They are also designed to be corrosion resistant, as they are exposed to salt water and other harsh marine environments.

Ro-Ro platform jacking cylinders work by using hydraulic fluid to extend and retract a piston rod. The piston rod is connected to the loading platform, and as it extends, it raises the platform. As it retracts, it lowers the platform.

Ro-Ro platform jacking cylinders are an essential component of Ro-Ro ships, and they play a vital role in the loading and unloading of cargo.

Here are some of the key features of Ro-Ro platform jacking cylinders:

• High strength and durability
• Corrosion resistance
• Ability to withstand heavy loads
• Smooth and precise operation
• Long service life

Ro-Ro platform jacking cylinders are used in a variety of Ro-Ro ships, including car carriers, truck carriers, and ferry boats. They are also used in some other types of ships, such as container ships and bulk carriers.

Ro-Ro platform jacking cylinders are an important part of the maritime transportation industry, and they help to ensure that cargo is loaded and unloaded efficiently and safely.

Ro-Ro Platform Jacking Cylinder Specifications:

Product Name	Ro-Ro Platform Jacking Cylinder
Features:	Retract the springboard and ramp
Bore diameter:	50mm～125mm
Rod diameter:	25mm～75mmStroke≤1000mm
Thrust force:	Maximum 361KN(Bore diameter: 125mm/pressure29.4MPa)
Applications:	Ro-ro Platform

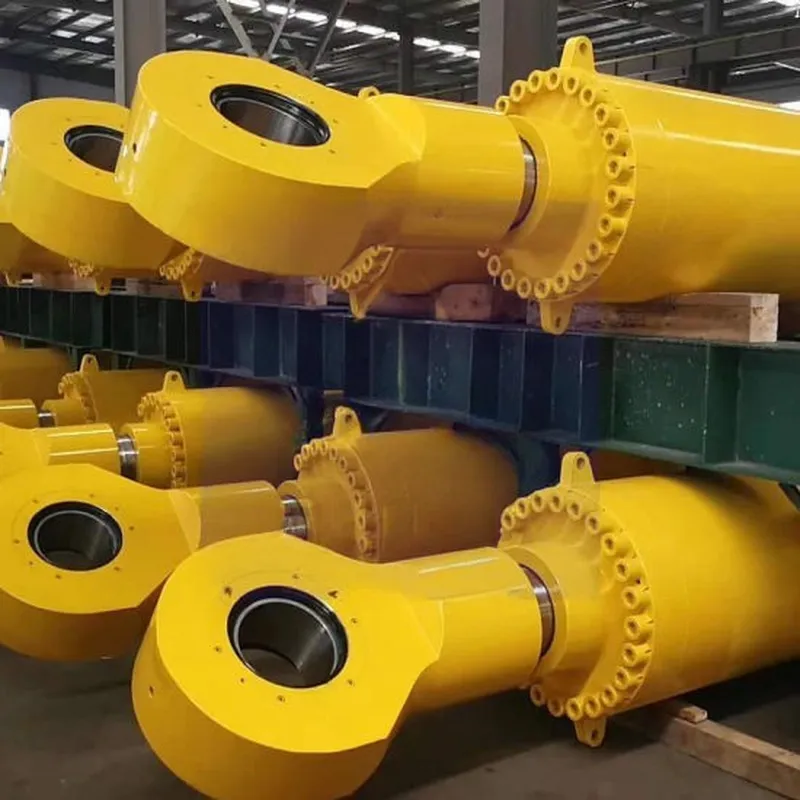

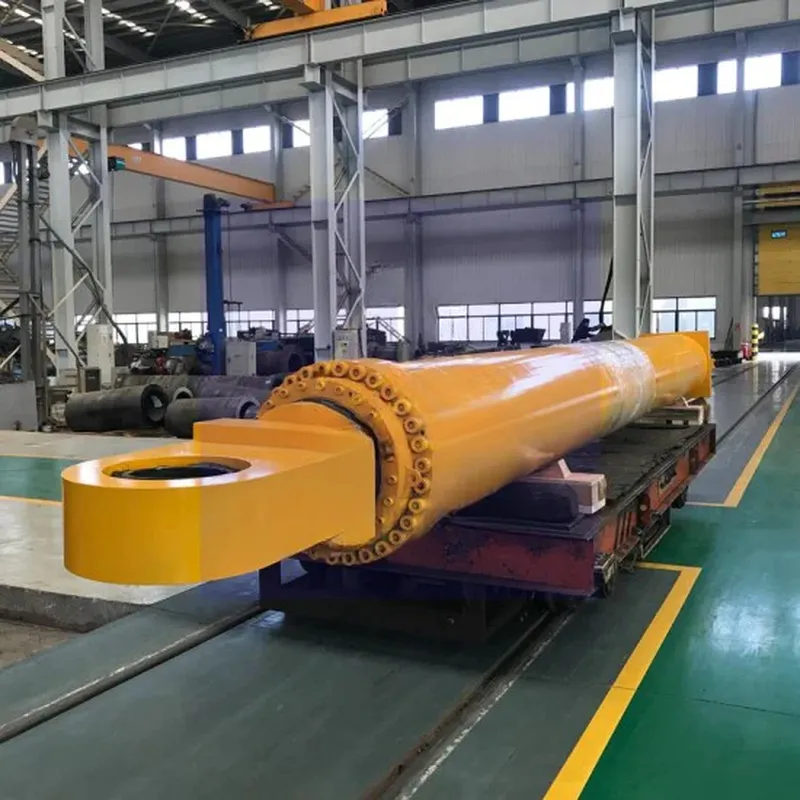

Ro-Ro Platform Jacking Cylinder Advantages:

Ro-Ro platform jacking cylinders have a number of advantages over other types of lifting systems, including:

1. High lifting capacity: Ro-Ro platform jacking cylinders can lift very heavy loads, making them ideal for loading and unloading large vehicles and cargo.2. Fast loading and unloading: Ro-Ro platform jacking cylinders can quickly raise and lower the loading platform, allowing for efficient loading and unloading of vehicles and cargo.3. Precise positioning: Ro-Ro platform jacking cylinders can be precisely positioned to ensure that vehicles and cargo are loaded and unloaded safely and efficiently.4. Reliable operation: Ro-Ro platform jacking cylinders are designed for reliable operation in demanding environments.5. Low maintenance: Ro-Ro platform jacking cylinders require relatively low maintenance, making them a cost-effective solution for loading and unloading Ro-Ro vessels.

In addition to these general advantages, Ro-Ro platform jacking cylinders also offer a number of specific benefits, such as:

(1) Ability to handle uneven surfaces: Ro-Ro platform jacking cylinders can be used to load and unload vehicles and cargo on uneven surfaces, such as those found at many ports.(2) Ability to work in confined spaces: Ro-Ro platform jacking cylinders can be used in confined spaces, such as those found on Ro-Ro vessels.(3) Ability to handle heavy loads over long distances: Ro-Ro platform jacking cylinders can be used to handle heavy loads over long distances, such as when loading and unloading Ro-Ro vessels at sea.

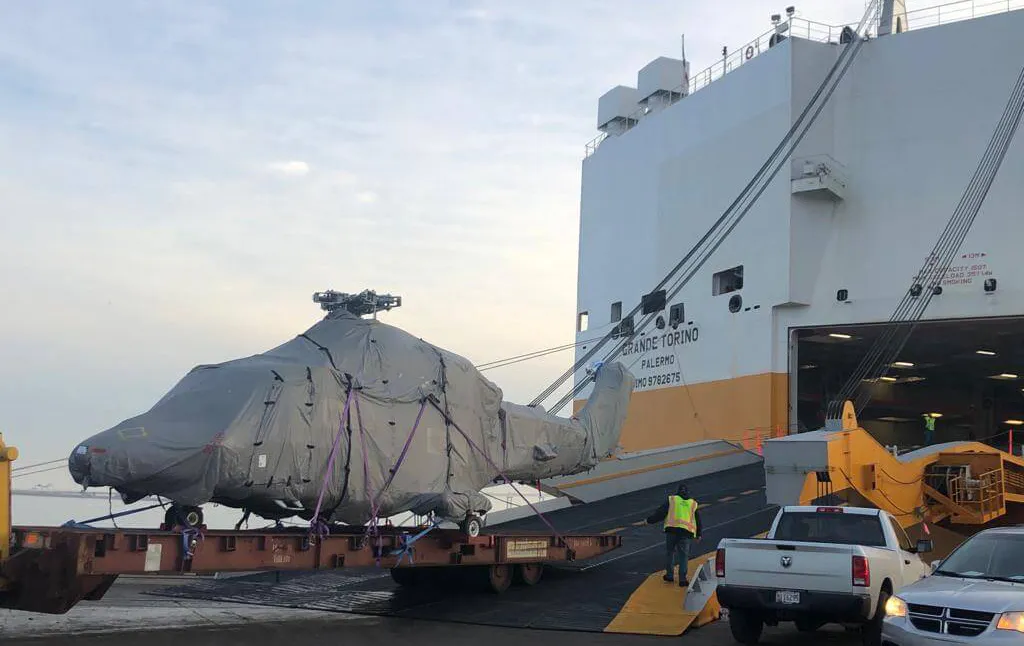

How Does Ro-Ro Platform Jacking Cylinder Work?

A ro-ro platform jacking cylinder is a hydraulic cylinder that is used to raise and lower the loading ramp of a roll-on/roll-off (ro-ro) ferry. The cylinder is typically located at the front of the ferry and is connected to the ramp by a rod. When the cylinder is extended, the ramp is raised; when the cylinder is retracted, the ramp is lowered.

The cylinder works by using hydraulic fluid to push a piston rod. The piston rod is connected to the ramp, so when the piston rod moves, the ramp moves as well. The hydraulic fluid is pumped into the cylinder by a hydraulic pump, which is powered by the ferry's engine.

To raise the ramp, the hydraulic pump pumps hydraulic fluid into the cylinder. This causes the piston rod to extend, which raises the ramp. To lower the ramp, the hydraulic pump pumps hydraulic fluid out of the cylinder. This causes the piston rod to retract, which lowers the ramp.

Ro-ro platform jacking cylinders are typically made of high-strength steel and are designed to withstand the heavy loads that are placed on them. The cylinders are also equipped with safety features to prevent them from overextending or overloading.

Here is a more detailed explanation of the steps involved in raising and lowering a ro-ro platform using a jacking cylinder:

1. Extend the cylinder. The hydraulic pump pumps hydraulic fluid into the cylinder, which causes the piston rod to extend. This raises the ramp.
2. Secure the ramp in the raised position. Once the ramp is at the desired height, it is secured in place using a locking mechanism.
3. Allow vehicles to drive onto or off the ferry. Once the ramp is locked in place, vehicles can drive onto or off the ferry.
4. Retract the cylinder. The hydraulic pump pumps hydraulic fluid out of the cylinder, which causes the piston rod to retract. This lowers the ramp.
5. Secure the ramp in the lowered position. Once the ramp is at the desired height, it is secured in place using a locking mechanism.

Ro-ro platform jacking cylinders are an essential part of ro-ro ferries, allowing them to load and unload vehicles quickly and efficiently.

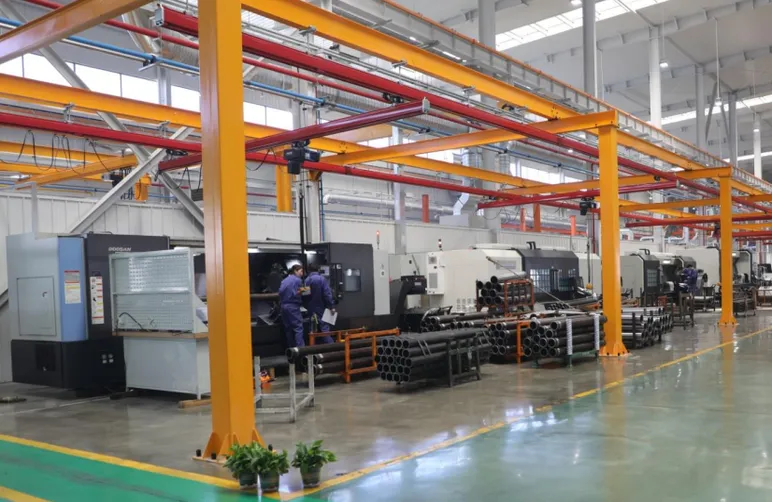

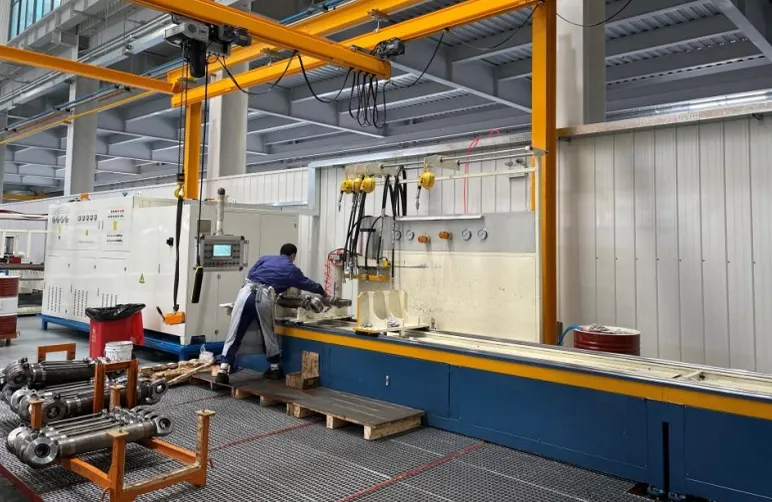

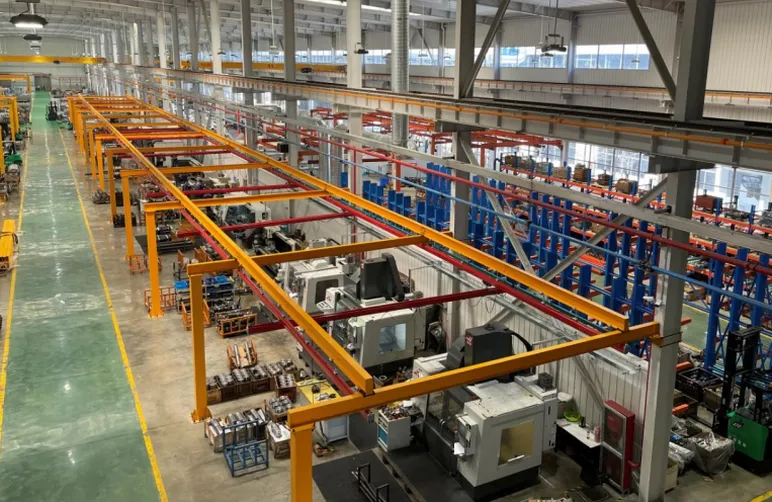

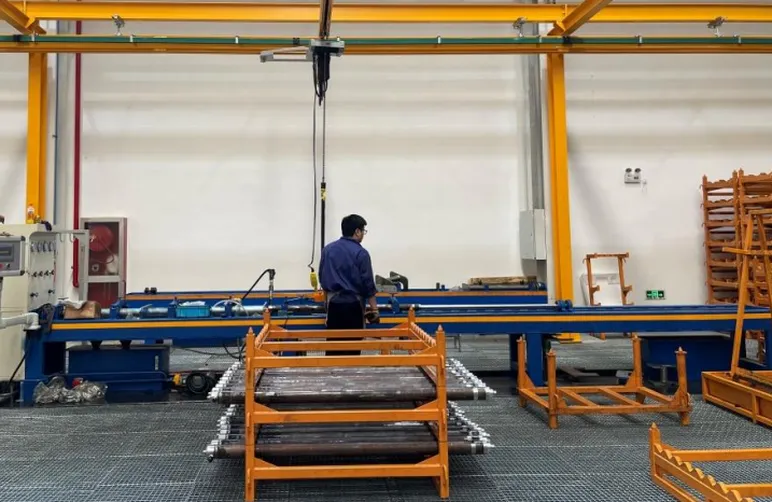

China Ro-ro Platform Cylinder Manufacturers

According to the humid environment with high salt spray corrosion, our hydraulic cylinder adopts advanced plasma spraying and supersonic flame spraying process coating, which is sufficient to resist the strong corrosion of seawater, and the optimized structural design can ensure the cylinder Fatigue life. In the 140-meter piling offshore platforms project, we organized an excellent and professional project team to tailor a hydraulic cylinder solution with superior performance and strictly follow the standards of the China third-party inspection organization.Ro-ro offshore platforms are water "warehouses" that can travel across the ocean. It uses a springboard to load and unload cargo vehicles in a ro-ro way. Its main feature is high loading and unloading efficiency. With the loading and unloading requirements, the springboards, cabin doors, sliding doors, and other mechanisms on the offshore platforms must complete operations such as opening or closing, which requires various hydraulic cylinders of different sizes and strokes to perform the completion. Raydafon can provide a complete set of hydraulic cylinders according to the needs of ro-ro offshore platforms, such as bow cylinders, bow springboard cylinders, ramp cylinders, stern cylinders, lifting platform winch cylinders, etc.Moreover, we go beyond just ro-ro platform cylinders. We also supply a diverse range of hydraulic cylinders, including industrial vehicle hydraulic cylinders, aerial work vehicle cylinders, mobile machinery cylinders, industrial engineering cylinders, construction machinery cylinders, forklift hydraulic cylinders, agricultural machinery cylinders, crane hydraulic cylinders, sanitation machinery cylinders, excavator hydraulic cylinders, offshore hydraulic cylinders, energy technology cylinders, tunnel boring machine cylinders, and more. Our extensive product lineup caters to various industries and applications, providing solutions for your hydraulic needs.
