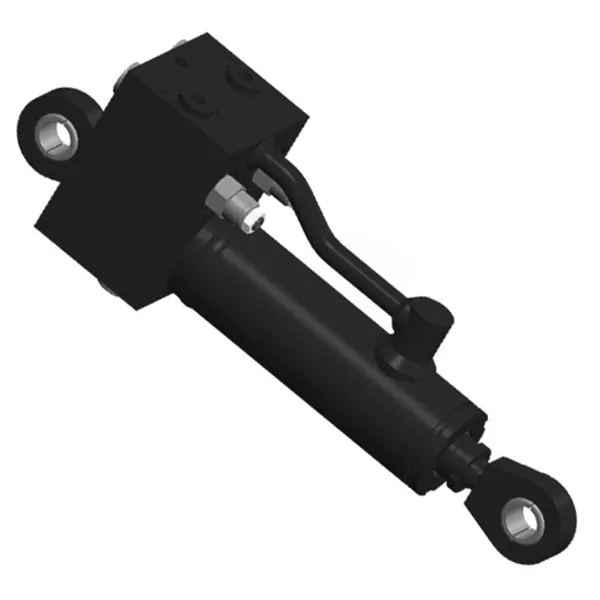

Ro-Ro Platform Latch Cylinder (Hydraulic Self-Locking)

Ro-Ro Platform Latch Cylinder (Hydraulic Self-Locking)

A ro-ro platform latch cylinder (hydraulic self-locking) is a type of hydraulic cylinder that is used to lock and unlock the ramps of roll-on/roll-off (Ro-Ro) vessels. It is a self-locking cylinder, which means that it does not require any external power to remain locked in position. This makes it ideal for use on Ro-Ro vessels, which are often exposed to harsh environmental conditions and may not have reliable power supplies.

The hydraulic self-locking latch cylinder works by using a combination of hydraulic pressure and spring force to lock the ramp in place. When hydraulic pressure is applied to the cylinder, the piston extends and pushes against the ramp, locking it in place. When the hydraulic pressure is released, the spring force returns the piston to its original position, re-locking the ramp.

Ro-ro platform latch cylinders are typically made of high-strength steel and are designed to withstand heavy loads. They are also equipped with a number of safety features, such as overpressure relief valves and pressure indicators, to protect the cylinder and the vessel from damage.

Ro-ro platform latch cylinders are an essential component of Ro-Ro vessels, providing a safe and secure way to load and unload vehicles. They are also used in a variety of other applications, such as loading docks, aircraft ramps, and construction sites.

Here are some of the key benefits of using a Ro-ro platform latch cylinder (hydraulic self-locking):

• Self-locking: The latch cylinder does not require any external power to remain locked in position. This makes it ideal for use in harsh environmental conditions and where reliable power supplies are not available.
• Strong and durable: Ro-ro platform latch cylinders are typically made of high-strength steel and are designed to withstand heavy loads.
• Safe and reliable: Ro-ro platform latch cylinders are equipped with a number of safety features to protect the cylinder and the vessel from damage.
• Versatile: Ro-ro platform latch cylinders can be used in a variety of applications, including loading docks, aircraft ramps, and construction sites.

Ro-Ro Platform Latch Cylinder Specifications:

Product Name	Ro-ro Platform Latch Cylinder
Features:	Lock the bolt after the springboard or ramp is recovered in place
Specification:	Specifications: 80/50*S, 63/40*S, 40/28*S,front and rearHaving DNVGL type approvalWith standard size series selection
Pressure	25MPa(stainless steel piston rod)
Applications:	Ro-ro Platform

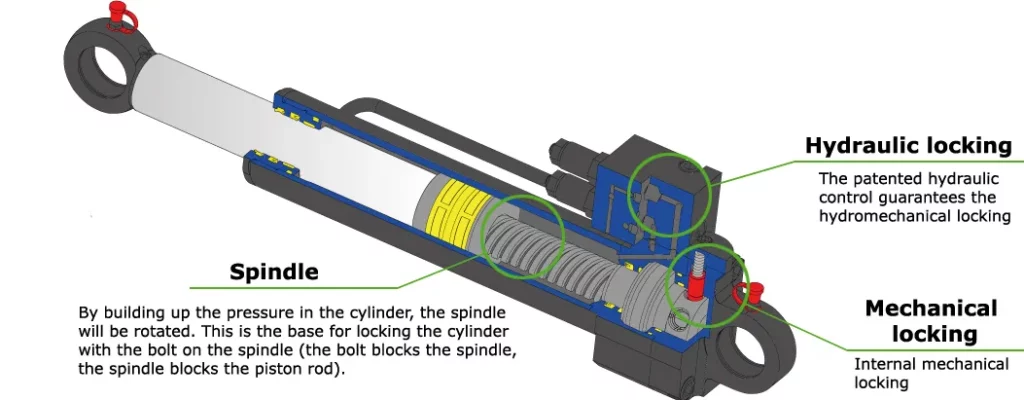

Hydraulic Self-Locking Latch Cylinder for Ro-Ro Platform:

A hydraulic self-locking latch cylinder is a type of latching device that uses hydraulic pressure to lock and unlock. It is a popular choice for ro-ro platforms because it offers a number of advantages over other types of latching devices, including:

1. High holding force: Hydraulic self-locking latch cylinders can generate a very high holding force, which is essential for keeping ro-ro doors and ramps securely closed in even the most challenging conditions.2. Self-locking: Hydraulic self-locking latch cylinders are self-locking, meaning that they do not require any external power to remain locked. This makes them very reliable and low-maintenance.3. Remote operation: Hydraulic self-locking latch cylinders can be operated remotely, which can improve safety and efficiency.4. Securing ro-ro doors: Hydraulic self-locking latch cylinders can be used to secure ro-ro doors in the closed position, preventing them from accidentally opening during loading and unloading operations.5. Securing ro-ro ramps: Hydraulic self-locking latch cylinders can also be used to secure ro-ro ramps in the closed position, preventing them from accidentally opening while vehicles are driving on or off the platform.6. Securing cargo: Hydraulic self-locking latch cylinders can also be used to secure cargo on ro-ro platforms, preventing it from shifting or falling during transport.

In addition to these advantages, hydraulic self-locking latch cylinders are also relatively easy to install and maintain. They are also available in a variety of sizes and configurations to meet the specific needs of different ro-ro platforms.

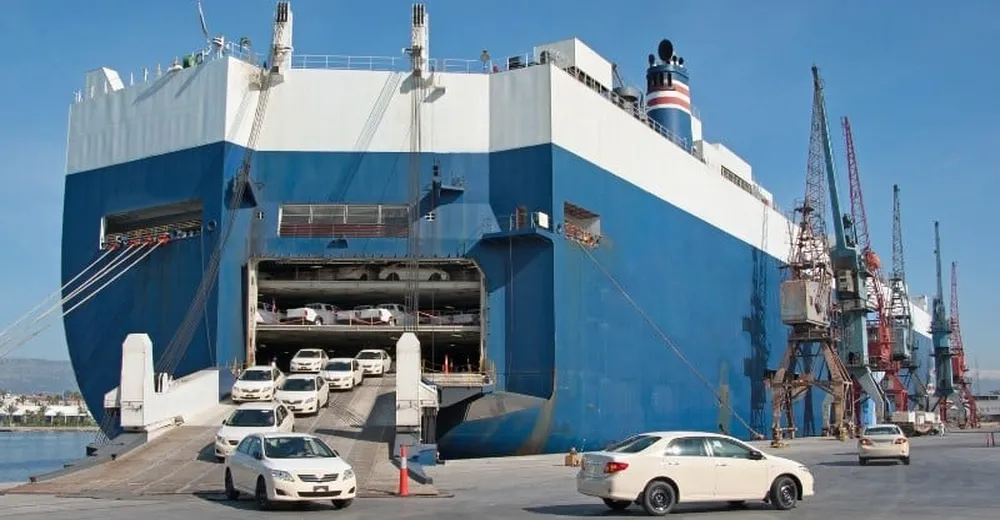

Ro-Ro Platform Latch Cylinder Application Scenarios:

Ro-Ro platform latch cylinders are used in a variety of applications, including:

(1) Automotive carrier ships: Ro-Ro automotive carrier ships use latch cylinders to secure the vehicle ramps and doors, as well as the movable decks that allow vehicles to be loaded and unloaded at different levels.(2) Railroad car ferries: Ro-Ro railroad car ferries use latch cylinders to secure the vehicle ramps and doors, as well as the movable decks that allow railroad cars to be loaded and unloaded at different levels.(3) Military landing ships: Ro-Ro military landing ships use latch cylinders to secure the vehicle ramps and doors, as well as the movable decks that allow vehicles and equipment to be loaded and unloaded at different levels.(4) Offshore oil and gas platforms: Ro-Ro offshore oil and gas platforms use latch cylinders to secure the vehicle ramps and doors, as well as the movable decks that allow vehicles and equipment to be loaded and unloaded at different levels.(5) Heavy lift vessels: Ro-Ro heavy lift vessels use latch cylinders to secure the vehicle ramps and doors, as well as the movable decks that allow heavy cargo to be loaded and unloaded.

Ro-Ro platform latch cylinders are essential components for ensuring the safe and efficient operation of Ro-Ro platforms. They are used in a wide variety of applications, from automotive carrier ships to offshore oil and gas platforms.

China Ro-ro Platform Cylinder Manufacturers

According to the humid environment with high salt spray corrosion, our hydraulic cylinder adopts advanced plasma spraying and supersonic flame spraying process coating, which is sufficient to resist the strong corrosion of seawater, and the optimized structural design can ensure the cylinder Fatigue life. In the 140-meter piling offshore platforms project, we organized an excellent and professional project team to tailor a hydraulic cylinder solution with superior performance and strictly follow the standards of the China third-party inspection organization.Ro-ro offshore platforms are water "warehouses" that can travel across the ocean. It uses a springboard to load and unload cargo vehicles in a ro-ro way. Its main feature is high loading and unloading efficiency. With the loading and unloading requirements, the springboards, cabin doors, sliding doors, and other mechanisms on the offshore platforms must complete operations such as opening or closing, which requires various hydraulic cylinders of different sizes and strokes to perform the completion. Raydafon can provide a complete set of hydraulic cylinders according to the needs of ro-ro offshore platforms, such as bow cylinders, bow springboard cylinders, ramp cylinders, stern cylinders, lifting platform winch cylinders, etc.Moreover, we go beyond just ro-ro platform cylinders. We also supply a diverse range of hydraulic cylinders, including industrial vehicle hydraulic cylinders, aerial work vehicle cylinders, mobile machinery cylinders, industrial engineering cylinders, construction machinery cylinders, forklift hydraulic cylinders, agricultural machinery cylinders, crane hydraulic cylinders, sanitation machinery cylinders, excavator hydraulic cylinders, offshore hydraulic cylinders, energy technology cylinders, tunnel boring machine cylinders, and more. Our extensive product lineup caters to various industries and applications, providing solutions for your hydraulic needs.
