Rotary Cutter Gearboxes - Replacement of Omni Code RC-100 Gearbox

Rotary Cutter Gearboxes - Replacement of Omni Code RC-100 Gearbox

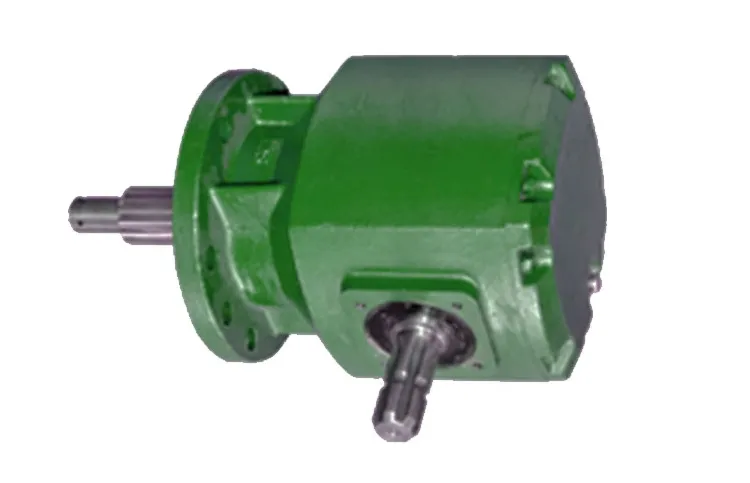

The RC100 rotary cutter gearbox is a heavy-duty gearbox designed for use in agricultural applications. It is specifically designed for use in rotary cutters and is able to withstand heavy loads and rough operating conditions. The RC100 rotary cutter gearbox is constructed using high-quality materials to ensure strength and durability. The housing is made from cast iron, which provides robustness and resistance to various environmental factors. The gears within the rotary cutter gearbox are made from high-strength steel, which allows for smooth and efficient adjustment of the output speed of the gearbox.One of the main features of the RC100 rotary cutter gearbox is its oil bath lubrication system. The oil bath lubrication ensures that the gearbox is always properly lubricated, which can significantly reduce wear and tear on the gears and extend the life of the rotary cutter gearbox. Another feature is the wide-angle input yoke, which allows for easy installation of the PTO shaft, making it easier to connect the rotary cutter to the tractor.Like other rotary cutter gearboxes, the RC100 rotary cutter gearbox is responsible for reducing the high input speed of the PTO shaft to a lower output speed that is appropriate for cutting tasks. It also provides additional torque to the cutting blade where required. Overall, the RC100 rotary cutter gearbox is a high-quality, heavy-duty gearbox designed to provide reliable and efficient operation in agricultural applications. It is built to withstand the demands of rough operating conditions and is designed to function within a range of output speeds and torque requirements.

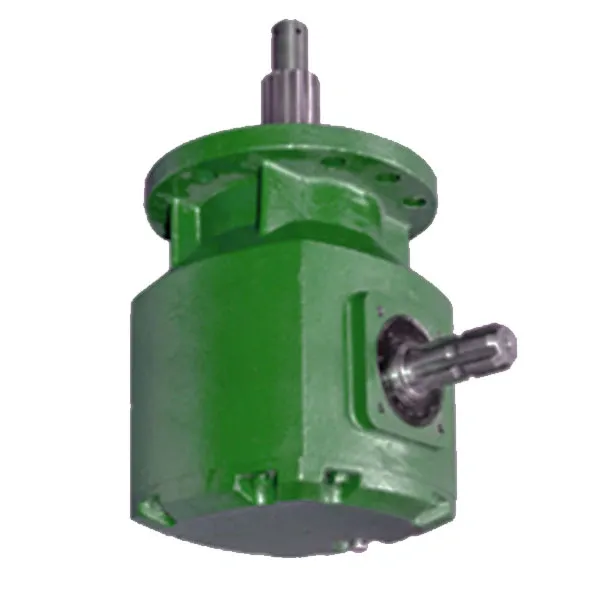

▍Specifications of RC100 Rotary Cutter Gearbox

Model:	EPT-RC100 Rotary Cutter Gearbox
Horsepower:	50-150 HP
Input Shaft:	1 3/8 in 6 A Spline
Output Shaft:	15 Spline
Ratio:	1:1.46
Rotation:	Reverse
Applications	Finishing MowersRotary CuttersRotary Slashers

▍Features of RC100 Rotary Cutter Gearbox

The RC100 rotary cutter gearbox has a number of features that make it a reliable and efficient component of a rotary cutter. Some of its main features are:1. Heavy-duty construction: The RC100 rotary cutter gearbox is made from high-quality materials, such as cast iron and high-strength steel, to ensure that it can withstand the demands of heavy loads and rough operating conditions.2. Oil bath lubrication system: The RC100 rotary cutter gearbox features an oil bath lubrication system that ensures that the gears are properly lubricated at all times, which can significantly reduce wear and tear on the gears and extend the life of the gearbox.3. Wide-angle input yoke: The RC100 rotary cutter gearbox has a wide-angle input yoke that allows for easy installation of the PTO shaft, making it easier to connect the rotary cutter to the tractor and reducing the risk of damage to the gearbox during installation.4. High torque capacity: The RC100 rotary cutter gearbox is able to provide high levels of torque to the cutting blade, which can be crucial when cutting through tough vegetation and other materials.5. Multiple output speeds: Some models of the RC100 rotary cutter gearbox have multiple output speeds, allowing the operator to adjust the speed of the cutting blade to suit different cutting conditions and improve the efficiency of the rotary cutter.Overall, the RC100 rotary cutter gearbox is a high-quality, reliable, and efficient component that is built to withstand heavy loads and rough operating conditions. Its advanced features, such as the oil bath lubrication system and wide-angle input yoke, make it an essential component of a rotary cutter used in agriculture and other outdoor applications.

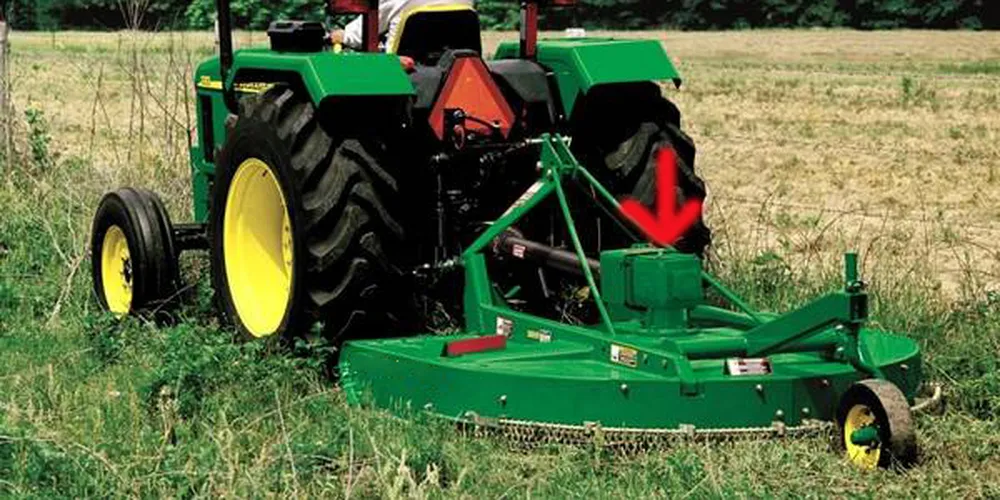

▍Applications of RC100 Rotary Cutter Gearbox

The RC100 rotary cutter gearbox is used in agricultural and other outdoor settings to cut different types of vegetation, including grass, weeds, and light brush. Its rugged design and high-performance capabilities make it ideal for commercial and heavy-duty applications. The rotary cutter gearbox is specifically designed for use with rotary cutters that require a right-angle drive and a specific torque ability.The RC100 rotary cutter gearbox is compatible with a wide variety of farming implements and is capable of operating in various environments and conditions. Some of the typical applications of the RC100 rotary cutter gearbox include:Mowing fields and pastures: The RC100 rotary cutter gearbox is ideal for large-scale farming operations, as it can work efficiently on vast acres of fields and pastures.Clearing roadsides: The RC100 rotary cutter gearbox's rugged design makes it well-suited for clearing roadsides of weeds and brush, often done to improve visibility and prevent hazards.Landscaping: It is also used in landscaping applications to trim grass, bushes, and other vegetation to create aesthetically pleasing landscapes.Brush cutting: The RC100 rotary cutter gearbox is capable of cutting thick brush and small trees, making it ideal for rugged terrain commonly found in forestry and other outdoor industries.In summary, the RC100 rotary cutter gearbox is a versatile and high-performance gearbox used in various applications requiring the cutting of vegetation in agricultural and outdoor settings. Its ability to adapt to different types of machinery makes it an ideal choice for heavy-duty applications.

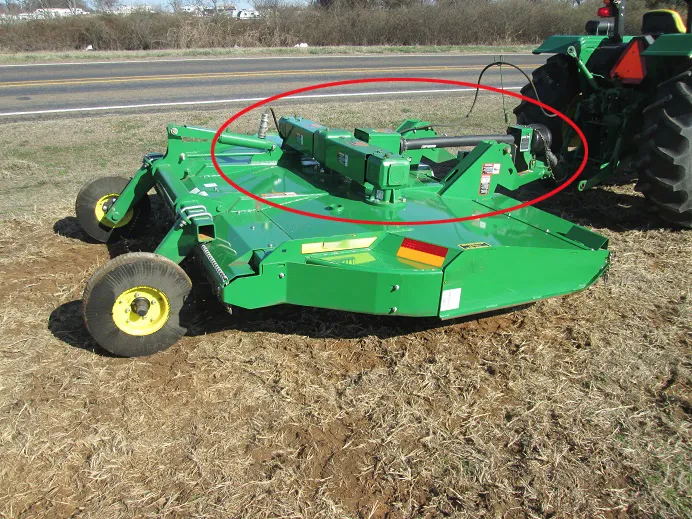

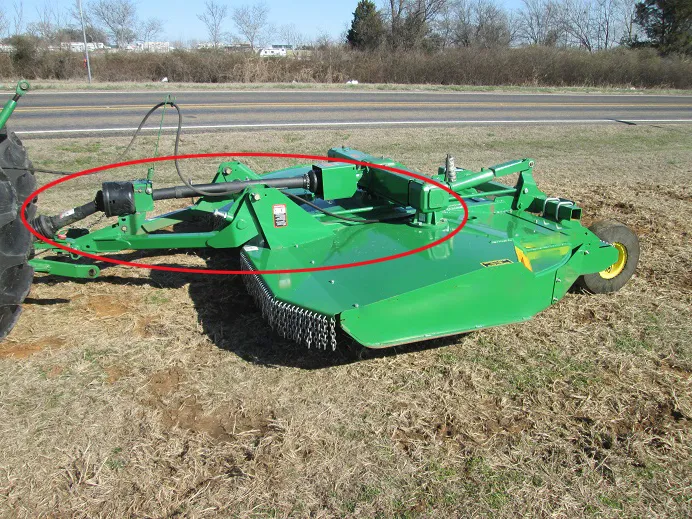

▍Rotary Cutter Gearboxes and PTO Shafts

Rotary cutter gearboxes and PTO shafts are integral components of rotary cutters used in agricultural and outdoor settings. The rotary cutter gearbox serves to transfer power from the tractor PTO shaft to the rotary cutter blade, converting the high PTO rotations into the lower and required blade rotations. On the other hand, the PTO shaft is responsible for transferring power from the tractor's engine to the rotary cutter gearbox.Rotary cutter gearboxes must be durable, reliable, and capable of running at high speeds to handle the rigors of the typical outdoor work environment. Therefore, they are typically constructed of high-strength materials that can handle tough applications. Similarly, PTO shafts must be manufactured to handle high torque loads and withstand heavy operation in varying weather conditions. PTO shafts consist of a series of driveshafts that are telescopic and provide flexibility, which is crucial to allow the rotary cutter to operate with the terrain's different slopes and angles.Due to their substantial contributions to the farming and agricultural industries' productivity, rotary cutter gearboxes and PTO shafts are engineered to offer high performance and efficiency while complying with strict regulations and standards across the industry. With the continued advancements in technology, we can expect further improvements in the durability, performance, and efficiency of these key components.

▍How to Choose the Right Rotary Cutter Gearbox Seals?

When choosing the right rotary cutter gearbox seals, you must consider several critical factors. The following tips can guide you in selecting the right rotary cutter gearbox seals:1. Know the gearbox model number: The first step in choosing the right seal is to identify the gearbox model number. This information is found on the rotary cutter gearbox itself and in the gearbox manual.2. Determine the seal location: The second step is to establish the seal's location in the rotary cutter gearbox. This can be found in the gearbox manual; each seal has a unique location and function.3. Consider the seal's temperature and pressure ratings: The seal must be rated to handle the rotary cutter gearbox's operating pressure and temperature. High temperatures and pressure can cause some seals to wear out quickly or fail.4. Choose the proper seal material: The rotary cutter gearbox seal material you choose is critical in ensuring the seal is durable and resistant to wear and tear. The materials used for seals vary from elastomers, and polytetrafluoroethylene (PTFE), to high-temperature composites.5. Choose the right seal design: Rotary cutter gearbox seals have different design options, including lip, face, and rotary seals. Choosing the right design for your application will ensure the seal performs optimally.In summary, when choosing rotary cutter gearbox seals, you must have a clear understanding of the gearbox model number, seal's location, temperature and pressure ratings, material, and design options. This will help you choose a seal that is durable, reliable, and able to withstand the specific operating conditions of your rotary cutter.
