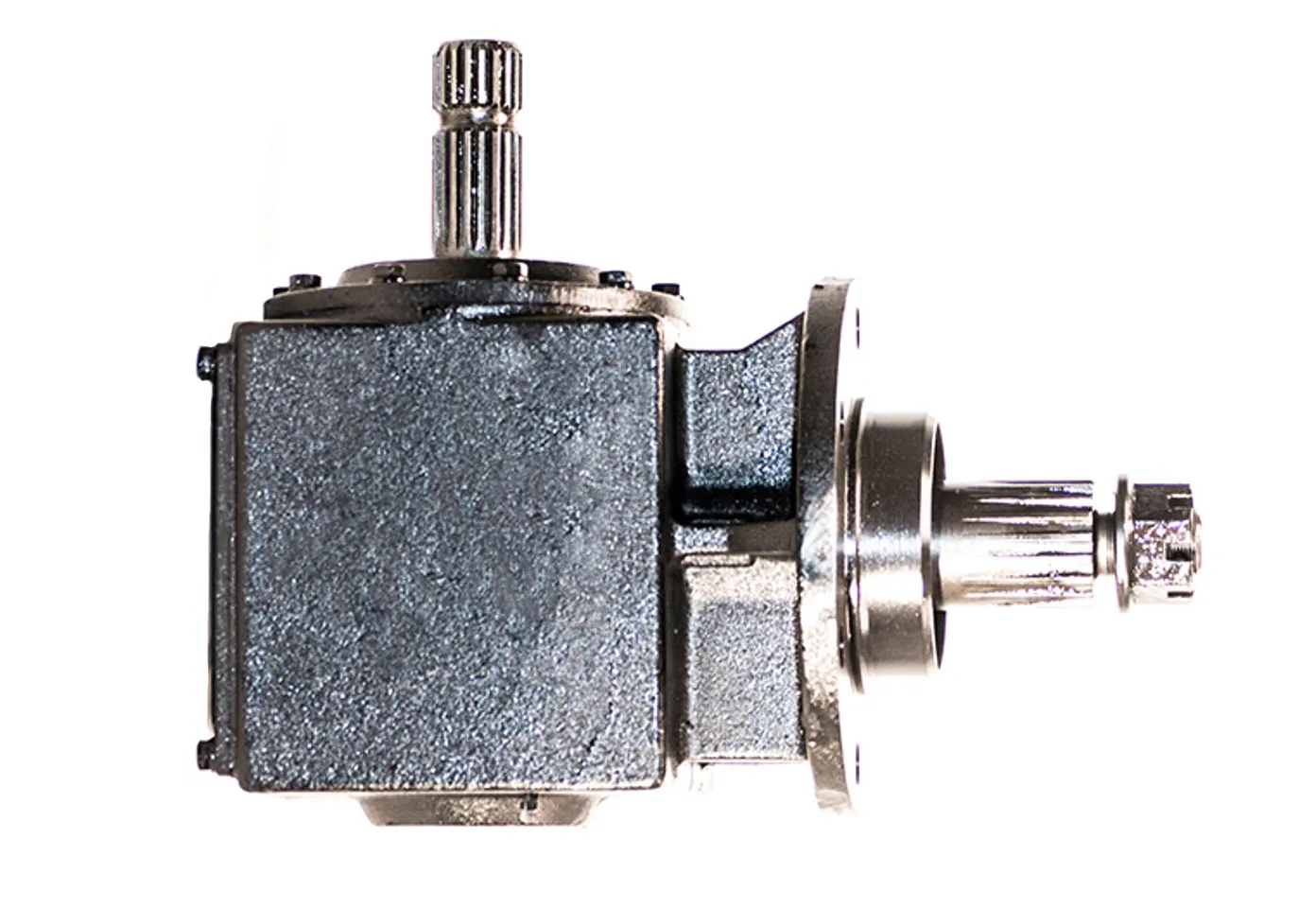

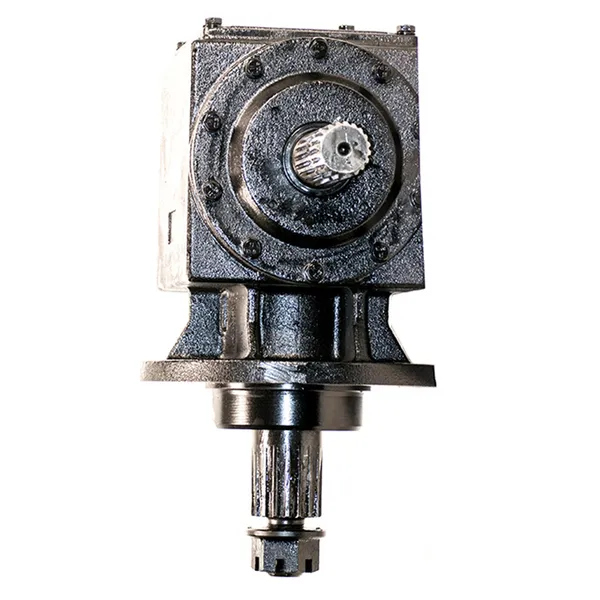

The RC130 rotary cutter gearbox is a type of gearbox used in rotary cutters to power the cutting blade. It is a heavy-duty gearbox that is designed to withstand the harsh conditions of rotary cutting in agricultural and rural settings. The rotary cutter gearbox RC130 is made from durable materials, such as cast iron or aluminum, and features hardened steel gears that can handle high torque and heavy loads.The RC130 rotary cutter gearbox has a number of features that make it well-suited for the demands of rotary cutting. These include a high torque capacity, multiple input and output shaft options, and a rugged exterior design that can withstand harsh environmental conditions.The RC130 rotary cutter gearbox also features a sealing system that helps to prevent rotary cutter gearbox oil leaks and an oil level gauge that makes it easy to check the oil level and ensure proper lubrication. Regular maintenance, including frequent oil changes and inspections, is important to keep the gearbox operating smoothly and extend its lifespan.Overall, the RC130 rotary cutter gearbox is a robust and reliable gearbox that provides the power and durability needed for heavy-duty rotary cutting applications. Its rugged design and high torque capacity make it a popular choice for farmers and ranchers who need to maintain their land and keep it clear of weeds, tall grasses, and other vegetation.

Specifications of RC130 Rotary Cutter Gearbox

Model:	EPT-RC130 Rotary Cutter Gearbox
Power:	47 - 104 hp35 - 78 kW
Applications:	Finishing MowersRotary CuttersRotary Slashers
Torque:	7,117 - 19,950 lb.-in.(803 - 2,252 Nm.)
Ratios:	1.21:1, 1:1, 1:1.21, 1:1.46, 1:1.92
Gear Type:	Bevel
Seal Type:	Triple Lip Spring Loaded
Bearing Type:	Tapered Roller
Oil Capacity:	60 oz.(1.8 L)
Weight:	109 lbs.(49.9 kg.)

Characteristics of RC130 Rotary Cutter Gearbox

The RC130 rotary cutter gearbox is a heavy-duty gearbox designed for use in rotary cutters. It features a 6-inch diameter, 3.175 DP (pitch) gear train for maximum tooth shock loads, a wide diameter shaft extension tube for higher side loading and impact resistance, and oil channels cored into the casting to feed oil to the lower output bearings. The RC130 rotary cutter gearbox also features an easy-access drain plug and dipstick for quick maintenance, a top inspection cover for easy access to internal parts, and a hidden blade hub nut that is protected from impact and breakage. The output oil seal labyrinth design with 4 barriers protects from wrappage failures.The RC130 rotary cutter gearbox is available in a variety of configurations to meet the needs of different applications. It is typically used in rotary cutters for agricultural, construction, and landscaping applications.Here are some of the benefits of using the RC130 rotary cutter gearbox:

• Heavy-duty construction
• Maximum tooth shock loads
• Higher side loading and impact resistance
• Easy maintenance
• Easy access to internal parts
• Protected blade hub nut
• Output oil seal labyrinth design with 4 barriers

If you are looking for a heavy-duty rotary cutter gearbox for your rotary cutter, the RC130 rotary cutter gearbox is a great option. It is built to withstand the rigors of everyday use and will provide years of reliable service.

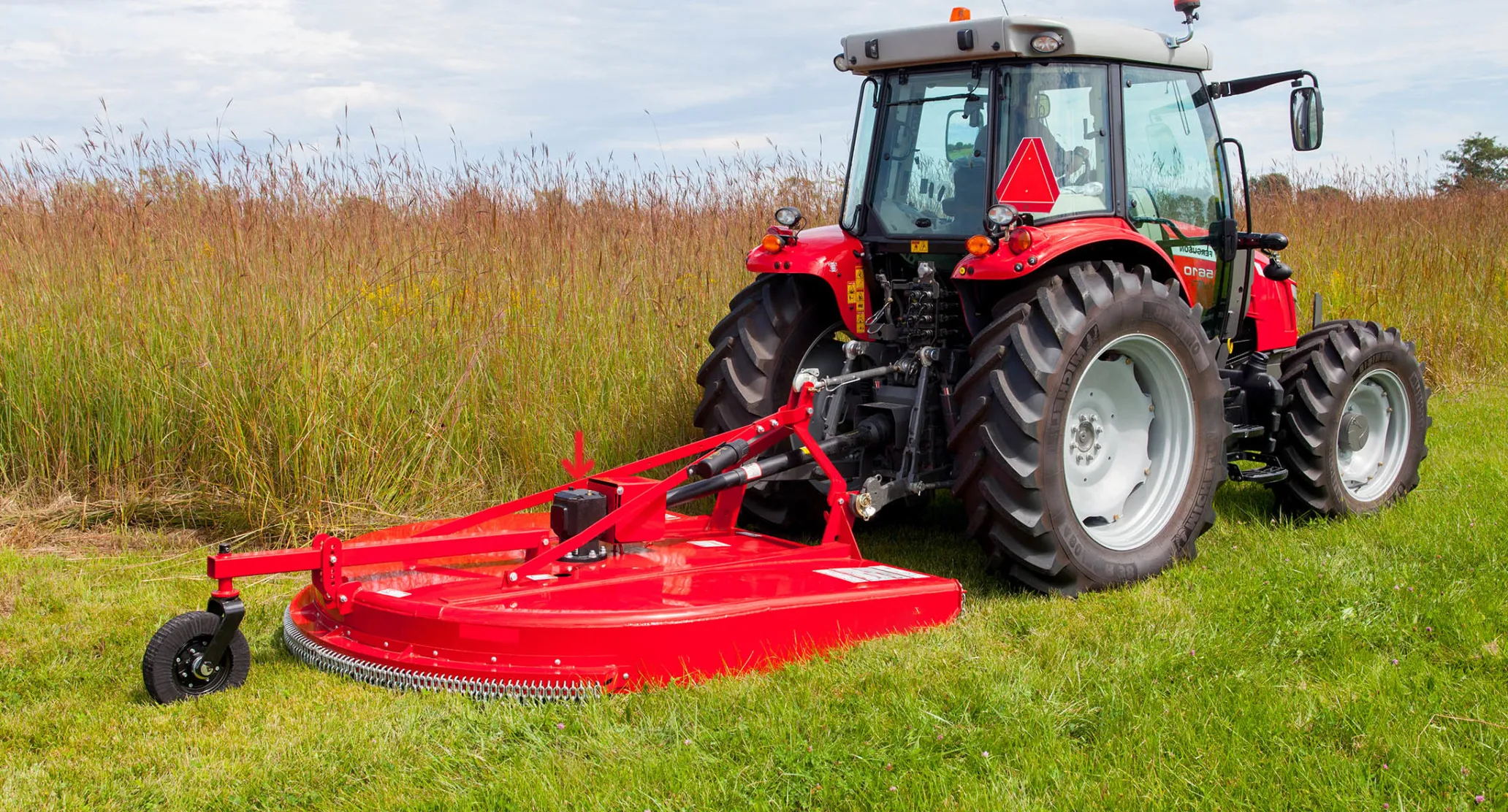

How to Attach a Rotary Cutter Gearbox to a Rotary Cutter?

Attaching a rotary cutter gearbox to a rotary cutter requires a few basic steps:1. Match the gearbox to the rotary cutter: Ensure that the rotary cutter gearbox is compatible with the size and type of rotary cutter you are using. Check the gearbox model number and specifications to confirm that it matches the rotary cutter.2. Position the gearbox: Place the rotary cutter gearbox in the correct position for attachment to the rotary cutter. Make sure that the rotary cutter gearbox input shaft aligns with the output shaft on the tractor's power take-off (PTO).3. Install the input shaft: Slide the rotary cutter gearbox input shaft onto the tractor PTO output shaft and secure it with a locking collar or set screws. Make sure the collar or screws are tightened securely.4. Attach the gearbox mounting plate: Place the rotary cutter gearbox mounting plate onto the rotary cutter deck and line up the mounting holes with those on the gearbox. Insert bolts or pins through the holes and tighten them.5. Install the output shaft: Slide the rotary cutter output shaft onto the rotary cutter gearbox input shaft and secure it with a locking collar or set screws. Make sure the collar or screws are tightened securely.6. Adjust and test: Check the alignment of the rotary cutter blades to make sure they are level and at the proper height. Adjust blade height as necessary. Start the tractor and engage the PTO to ensure the rotary cutter gearbox and rotary cutter are running properly.Remember to always follow proper safety procedures when attaching or working with a rotary cutter gearbox, including wearing eye protection and working with the gearbox and tractor turned off.

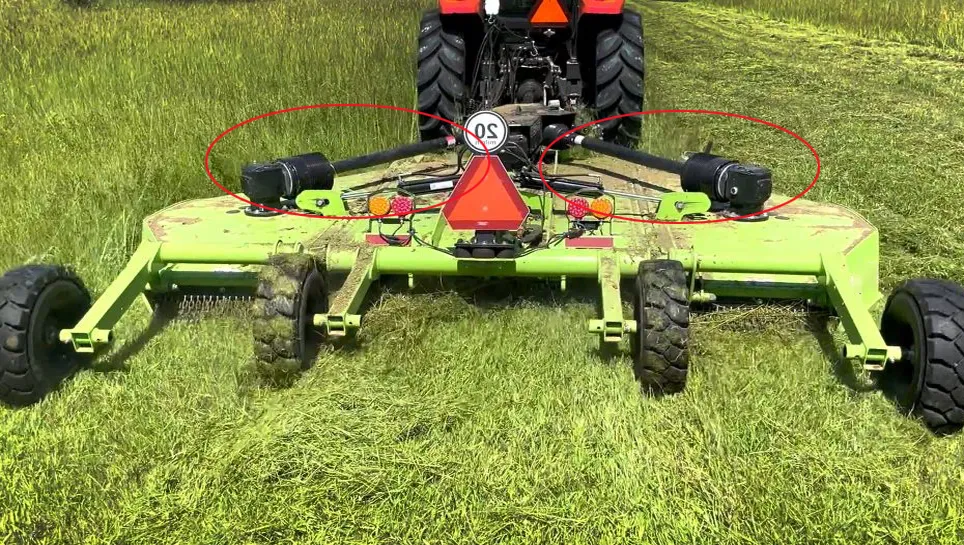

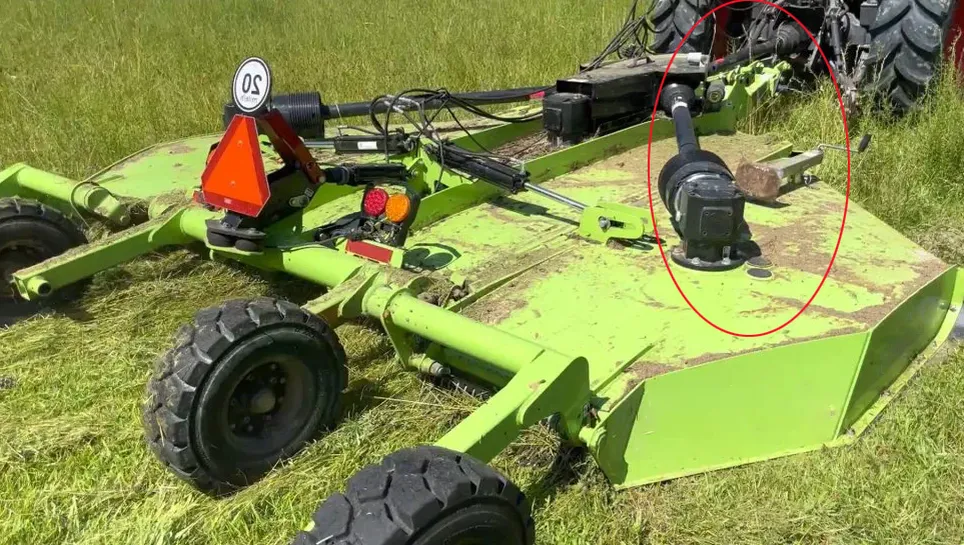

Agricultural PTO Shafts for Rotary Cutter Gearboxes

Agricultural PTO (power take-off) shafts are used to transfer power from the tractor to a rotary cutter gearbox. The PTO shaft connects the tractor to the rotary cutter gearbox input shaft, which in turn powers the rotary cutter blade.In rotary cutter gearboxes, the PTO shaft is an important component that determines the gearbox input speed and torque capacity. It is important to select a tractor PTO shaft that is compatible with the tractor and rotary cutter gearbox and that can handle the horsepower and torque requirements of the cutting application.Agricultural PTO shafts come in different sizes and types, including standard and metric. They are also available in different lengths and with different types of yokes and couplings, which are used to connect the shaft to the tractor and rotary cutter gearbox.When selecting a PTO shaft for a rotary cutter gearbox, it is important to consider the horsepower and torque requirements of the cutting application, as well as the tractor and rotary cutter gearbox specifications. It is also important to follow proper safety procedures when installing and using the PTO shaft, including proper shielding to prevent entanglement injuries.Overall, agricultural PTO shafts play a crucial role in powering rotary cutter gearboxes and ensuring optimal performance and efficiency in agricultural and rural settings.

Rotary Cutter Gearbox Seal Replacement Precautions

When replacing the rotary cutter gearbox seals, it is important to take the following precautions:(1) Use the correct seal: Before removing the old rotary cutter gearbox seal, make sure to obtain the correct replacement seal for your specific rotary cutter gearbox. Consult the manufacturer's specifications or an authorized dealer to ensure you have the correct part.(2) Thoroughly clean the area: Clean the area around the seal thoroughly to ensure there is no dirt, debris, or oil that could contaminate the new seal. Use a clean rag and solvent if necessary.(3) Avoid damaging the seal: When removing the old rotary cutter gearbox seal, be careful not to scratch or damage the seal seat or the surrounding area. Use a seal puller or carefully pry the seal out with a screwdriver or similar tool.(4) Apply a suitable lubricant: Apply a suitable lubricant to the new rotary cutter gearbox seal before installing it. This will help the seal slide smoothly into place and prevent damage.(5) Use the correct installation tool: Use the correct installation tool to ensure the rotary cutter gearbox seal is installed to the correct depth and in a straight line. Do not use excessive force or hammer the seal into place.(6) Test for leaks: After installing the new rotary cutter gearbox seal, check for leaks by running the rotary cutter gearbox and inspecting the area around the seal. If there is any leaking, recheck the seal and installation to ensure it is properly seated.By taking these precautions, you can ensure that your rotary cutter gearbox seal replacement is successful and your machine is operating smoothly and without leaks.

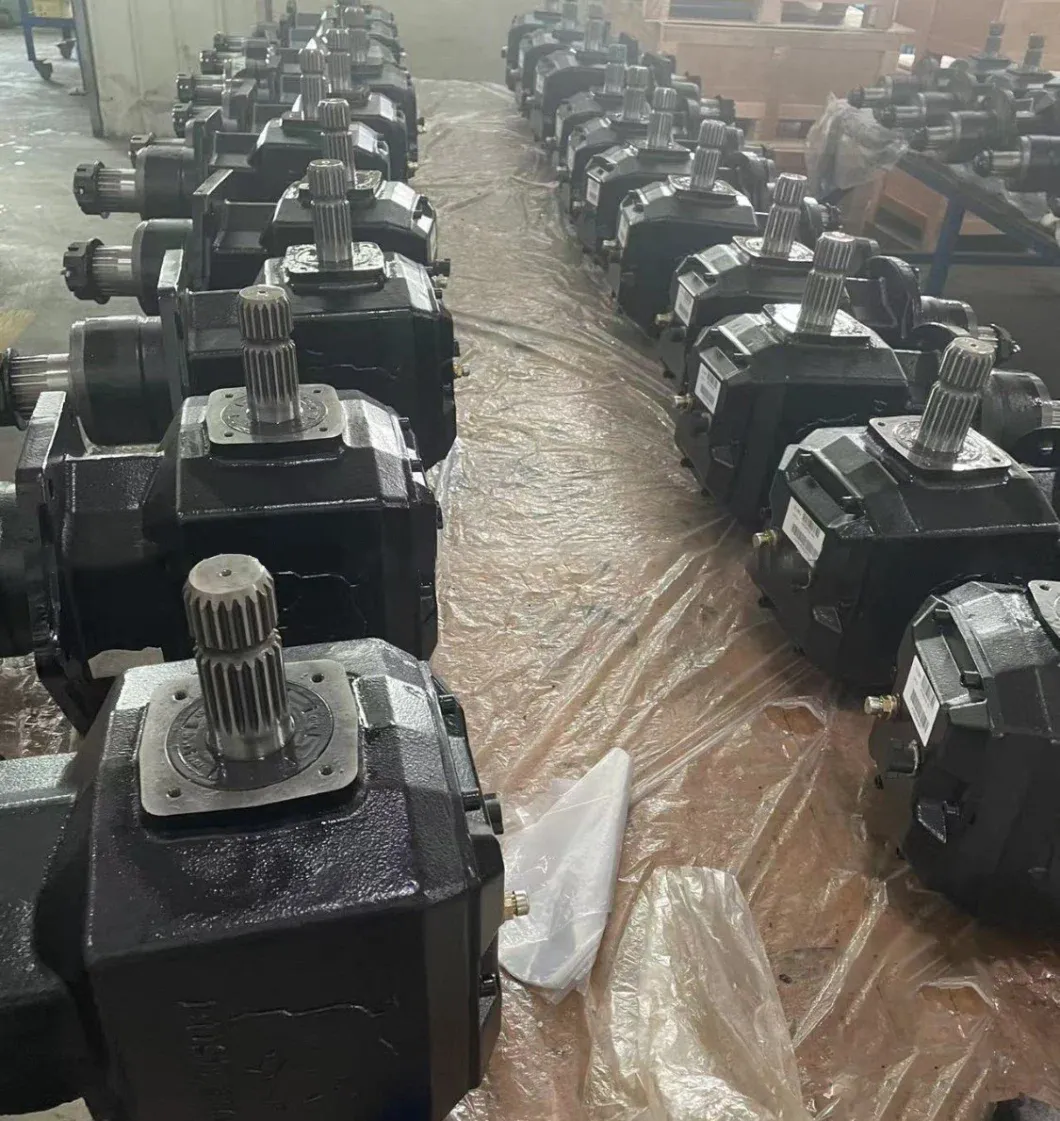

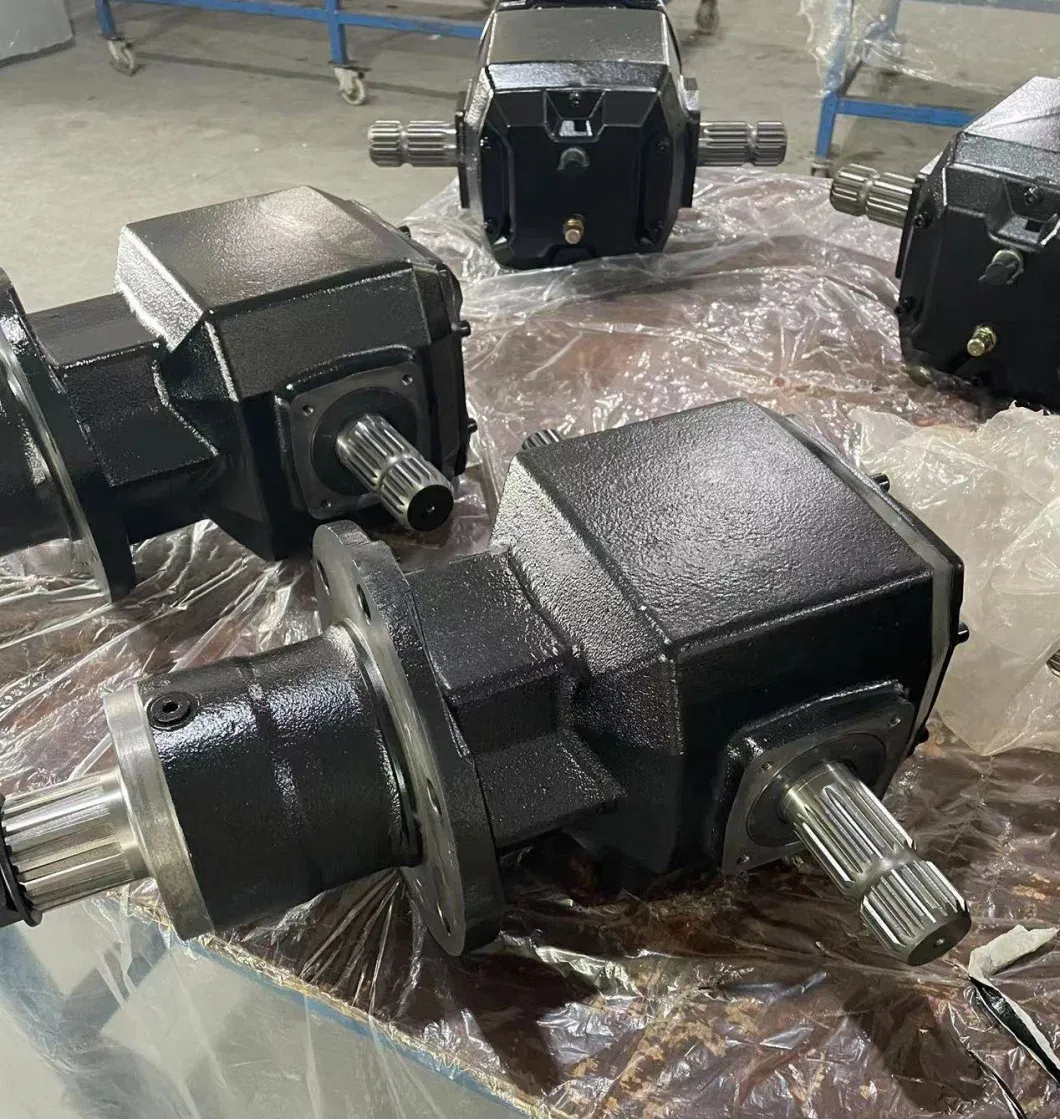

Professional Rotary Cutter Gearbox Manufacturers
