Rotary Cutter Gearboxes - Replacement of Omni Code RC-145 Gearbox

Rotary Cutter Gearboxes - Replacement of Omni Code RC-145 Gearbox

The RC-145 rotary cutter gearbox is a mechanical device that is commonly used in agricultural and landscaping applications for cutting and shredding vegetation. It is designed to convert the rotational motion from a tractor's PTO (Power Take-Off) shaft into the linear motion needed to drive the cutting blades of a rotary cutter. The RC-145 rotary cutter gearbox comes in a variety of sizes and specifications. However, most RC-145 rotary cutter gearboxes have similar features, such as:1. High-Strength Housing: The RC-145 rotary cutter gearbox is typically made of heavy-duty cast iron or steel to withstand the high torque and rotational forces generated by the rotary cutter.2. Multiple Gear Ratios: The RC145 rotary cutter gearbox contains multiple gear ratios to allow for efficient cutting and shredding of different types of vegetation.3. Sealed Bearings: The RC-145 rotary cutter gearbox contains sealed bearings to protect the internal components from dirt and debris and to help extend the life of the gearbox.4. Input and Output Shafts: The RC145 rotary cutter gearbox has an input shaft that connects to the tractor's PTO shaft and an output shaft that connects to the rotary cutter.The RC-145 rotary cutter gearbox is a versatile and reliable tool that can be used in a range of applications, from mowing fields and pastures to clearing overgrown areas and trimming hedges. When selecting an RC145 rotary cutter gearbox, it is important to choose a model that is rated for the appropriate horsepower and torque requirements of the rotary cutter, as well as the operating conditions and cutting needs of the specific application.

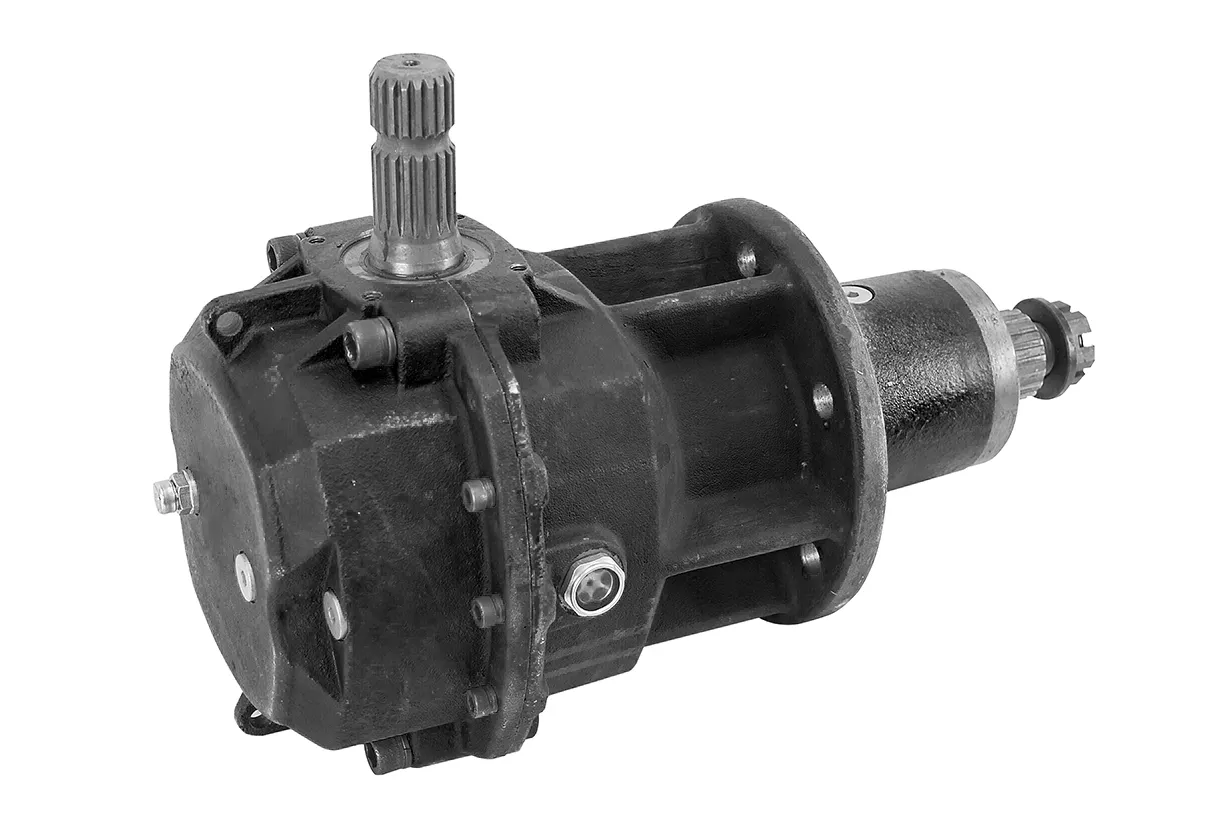

Specifications of RC-145 Rotary Cutter Gearbox

Model:	EPT-RC-145 Rotary Cutter Gearbox
Rotation:	CW input gives CW output
Gear Ratio:	1:1.833
Input RPM:	540/1000 rmp
Output RPM:	989/1833 rmp
Input HP:	61-171 hp
Max Torque:	7117-19950 in.lbs.
Input Shaft:	1-3/4" dia. x 3-7/8" long 20T spline
Output Shaft:	2-1/4" dia. 18 tooth tapered spline w/threaded end.  3-1/4" total length
Mount:	6 holes on 8" dia. B.C.
Pilot:	5-5/8" dia.
Centerline Distance:	8.9" (input shaft to the mounting surface)
Size:	14-1/2" x 11" x 11"
Actual Weight:	120 lbs.

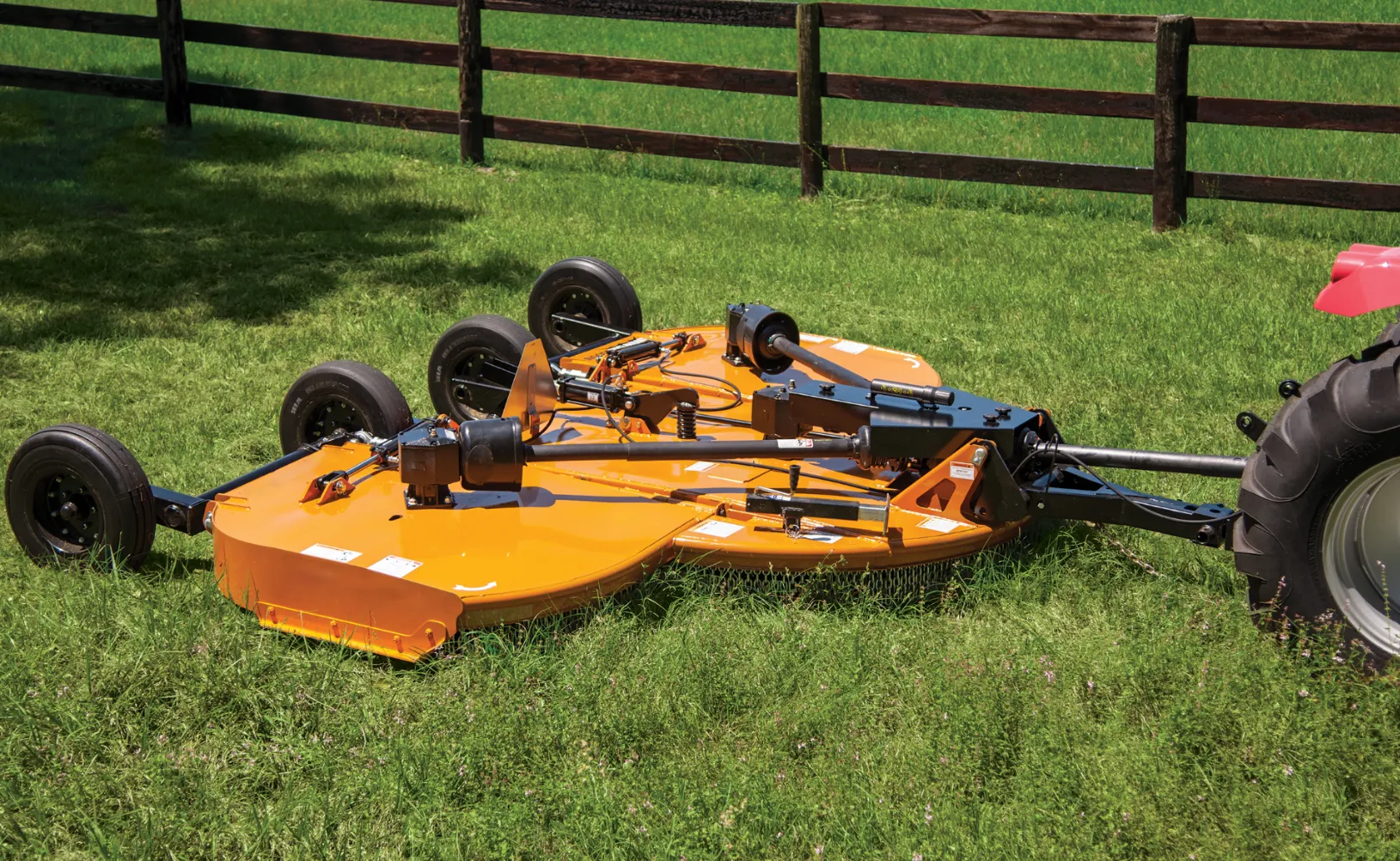

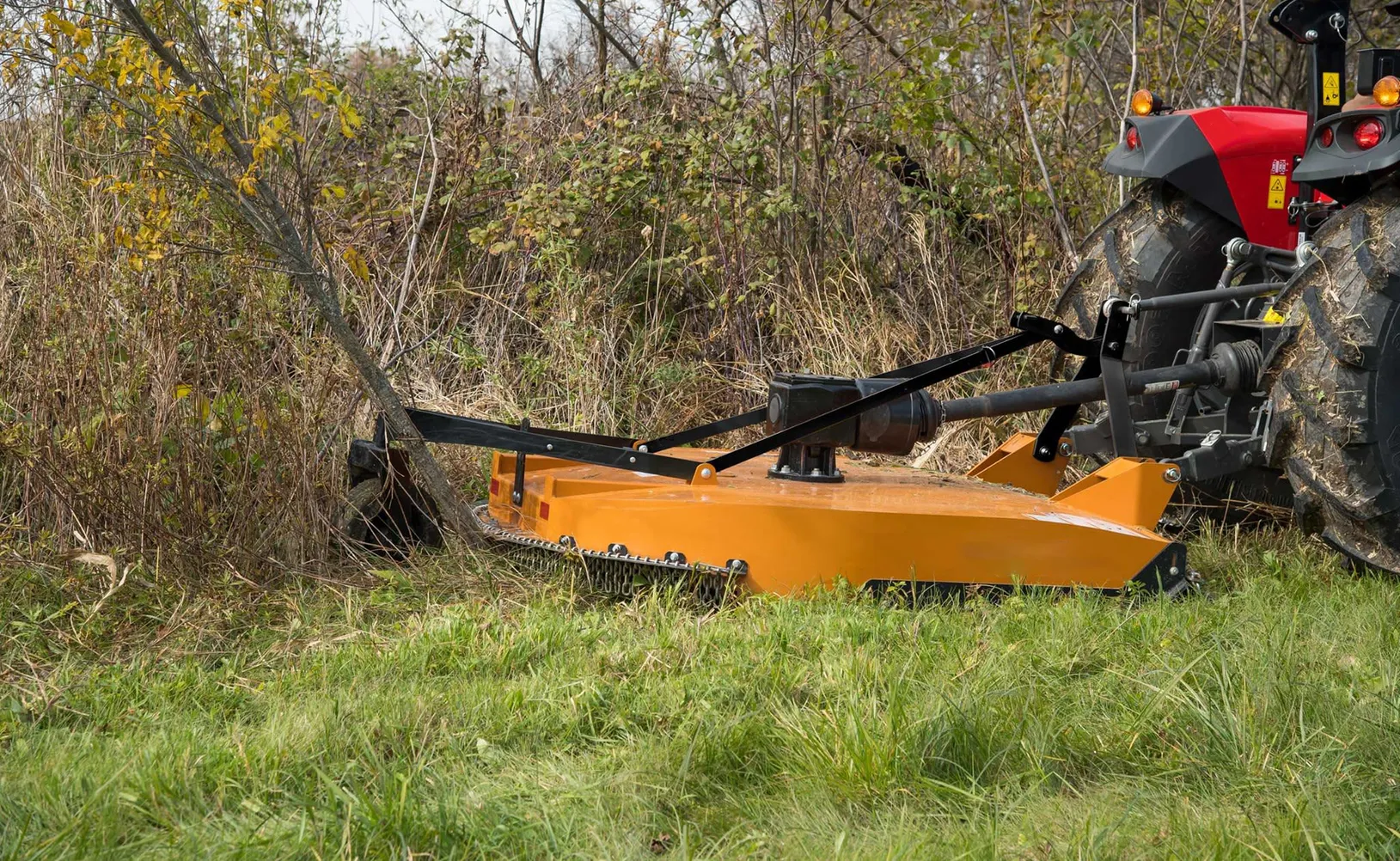

Advantages of Using RC-145 Rotary Cutter Gearboxes

There are several advantages to using RC-145 rotary cutter gearboxes in agricultural and landscaping applications:(1) High Durability: The RC-145 rotary cutter gearbox is typically made of heavy-duty cast iron or steel, making it durable and able to withstand the high torque and rotational forces generated by the rotary cutter. This means that the RC145 rotary cutter gearbox can withstand the harsh conditions of agricultural and landscaping applications and provide reliable performance over an extended period.(2) High Efficiency: The RC145 rotary cutter gearbox contains multiple gear ratios that allow for efficient cutting and shredding of various types of vegetation. By adjusting the gear ratios to match the specific cutting requirements of the application, the RC-145 rotary cutter gearbox can provide optimal performance and efficiency.(3) Smooth Operation: The rotary cutter gearbox contains sealed bearings that protect the internal components from dirt and debris, ensuring that the gearbox operates smoothly and quietly. This provides a more comfortable and efficient cutting experience for the operator, as well as reduces maintenance requirements.(4) Reliable Power Transfer: The RC-145 rotary cutter gearbox features input and output shafts that provide a strong and reliable connection between the tractor and the rotary cutter. This allows for efficient transfer of power, ensuring that the rotary cutter operates at optimal performance.(5) Versatility: The rotary cutter gearbox is a versatile tool that can be used in a range of applications, from mowing fields and pastures to clearing overgrown areas and trimming hedges. This versatility makes it a popular choice for many agricultural and landscaping operations.

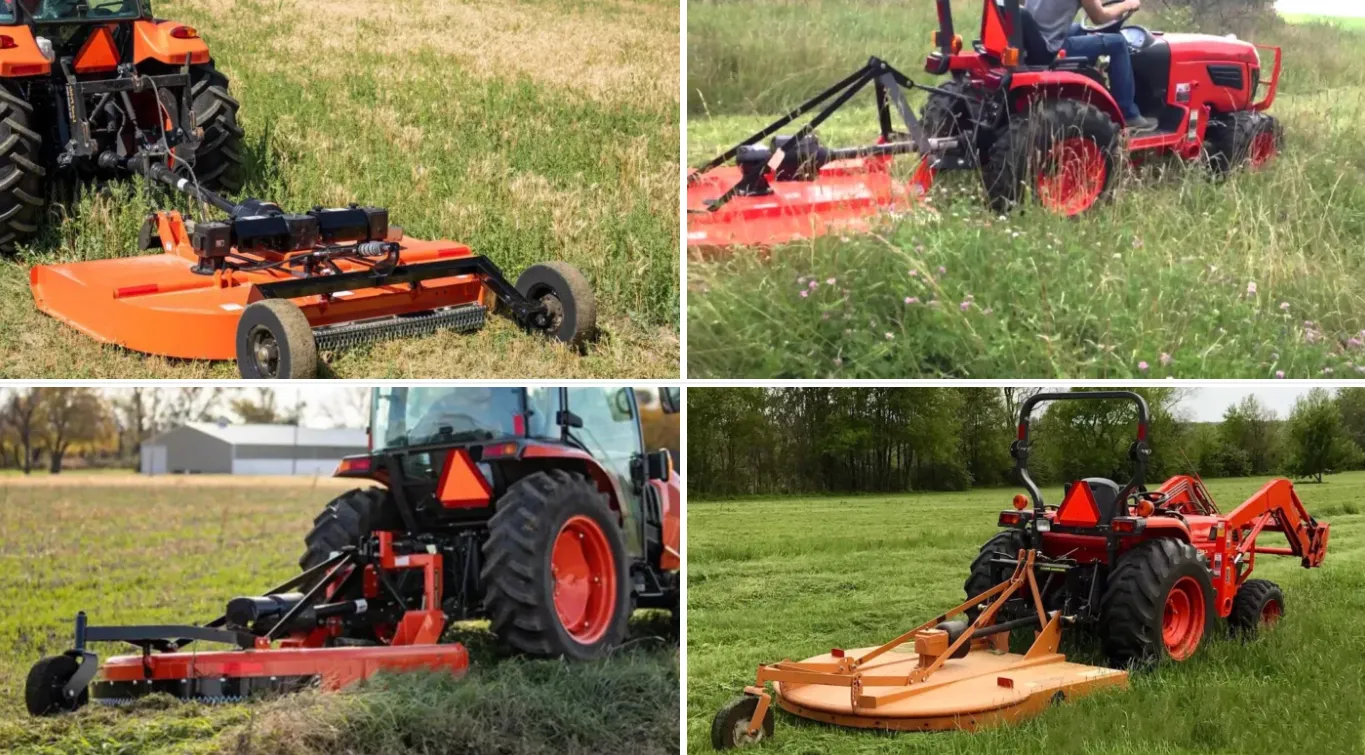

Typical Applications of RC-145 Rotary Cutter Gearbox

The RC-145 Rotary Cutter Gearbox is a component used in rotary cutters, which are agricultural implements designed for cutting vegetation, such as grass, weeds, and small brush. The gearbox is an essential part of the rotary cutter, transmitting power from the tractor's power take-off (PTO) to the cutting blades. Here are some common applications of the RC-145 Rotary Cutter Gearbox:

• Agriculture and Farming: The RC-145 gearbox is widely used in agricultural settings, particularly in farming and ranching operations. It is used with rotary cutters to maintain pastures, clear fields, and trim vegetation along fence lines. The gearbox efficiently transfers power from the tractor to the cutting blades, enabling effective and efficient cutting of various types of vegetation.
• Landscaping and Grounds Maintenance: Rotary cutters equipped with the RC-145 gearbox find applications in landscaping and grounds maintenance activities. They are used to mow large areas of grass, clear overgrown sections, and trim vegetation in parks, golf courses, sports fields, and other outdoor spaces.
• Right-of-Way Maintenance: Maintaining rights-of-way along roads, highways, and railways is essential for safety and accessibility. The RC-145 gearbox is used in rotary cutters employed for clearing vegetation along these corridors. It helps keep sightlines clear, prevents overgrowth from obstructing paths, and ensures the safe movement of vehicles and pedestrians.
• Brush Clearing and Forestry: In forestry and brush clearing operations, the RC-145 gearbox is utilized to power rotary cutters that can tackle small brush, shrubs, and saplings. These cutters are employed to clear areas for firebreaks, create access paths, and maintain forested areas.

How to Choose the Right Rotary Cutter Gearbox for Rotary Cutter?

Choosing the right rotary cutter gearbox for the rotary cutter is important to ensure the reliable and efficient operation of the equipment. Here are some factors to consider when selecting a rotary cutter gearbox for rotary cutter:Horsepower and Torque: The rotary cutter gearbox should be rated for the appropriate horsepower and torque requirements of the rotary cutter. Check the manual's specifications for the horsepower and torque requirements of the rotary cutter and choose a gearbox that is rated for at least those requirements.Cutting Conditions: Consider the type of vegetation and the terrain in which the rotary cutter will be used. For example, if the rotary cutter will be used in rough terrain or cutting thick brush, a rotary cutter gearbox with a higher torque rating may be necessary.Gear Ratio: The rotary cutter gearbox should have a gear ratio that matches the cutting requirements of the rotary cutter. The gear ratio determines the speed and power at which the rotary cutter blades rotate, and different gear ratios are suitable for different types of vegetation and cutting situations.Input Shaft Size: The input shaft of the rotary cutter gearbox should match the size and type of the PTO output shaft on the tractor. Most tractors have either a 1-3/8 inch 6-spline or a 1-3/4 inch 20-spline PTO output shaft.Output Shaft Size: The output shaft of the rotary cutter gearbox should match the size and type of the rotary cutter's driveline. The most common output shaft sizes for rotary cutters are 1-3/8 inch 6-spline and 1-3/4 inch 20-spline.Durability: The rotary cutter gearbox should be made of high-quality materials to ensure durability and longevity. Look for gearboxes that are made of heavy-duty cast iron or steel and contain sealed bearings to protect the internal components from dirt and debris.

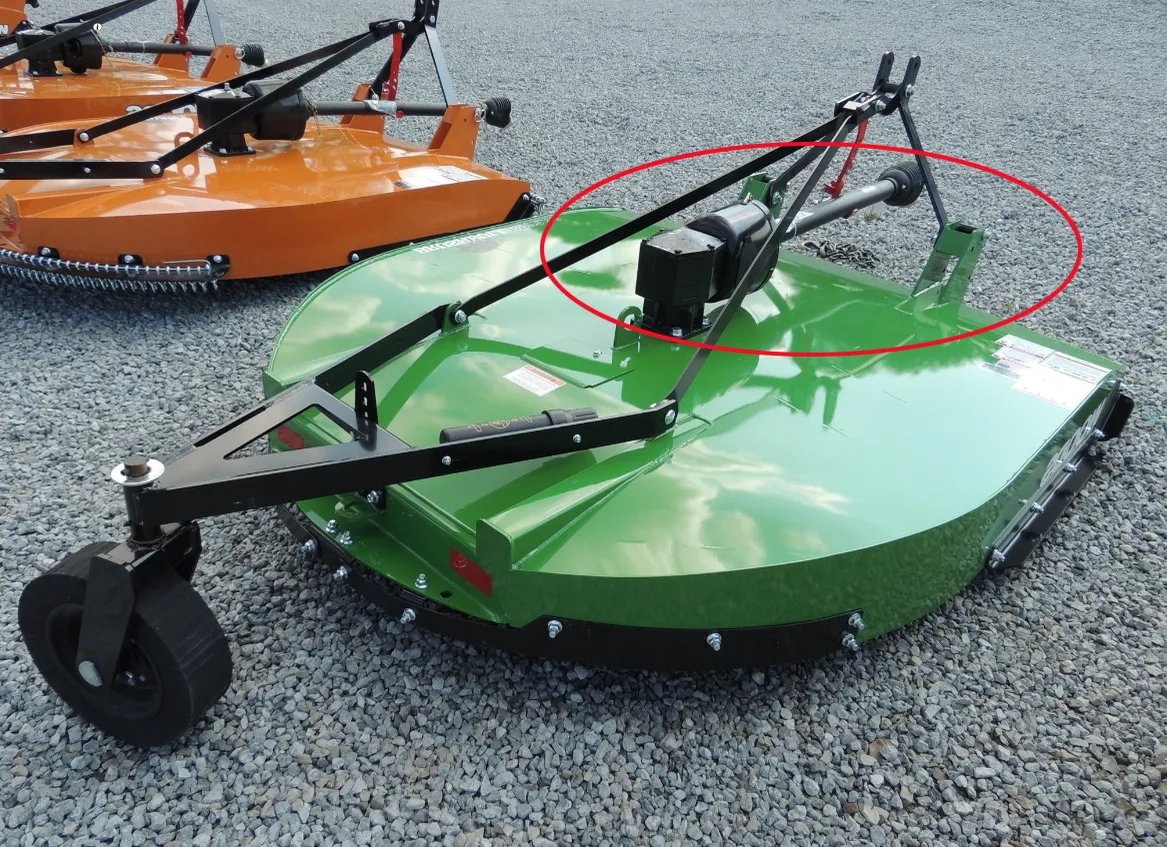

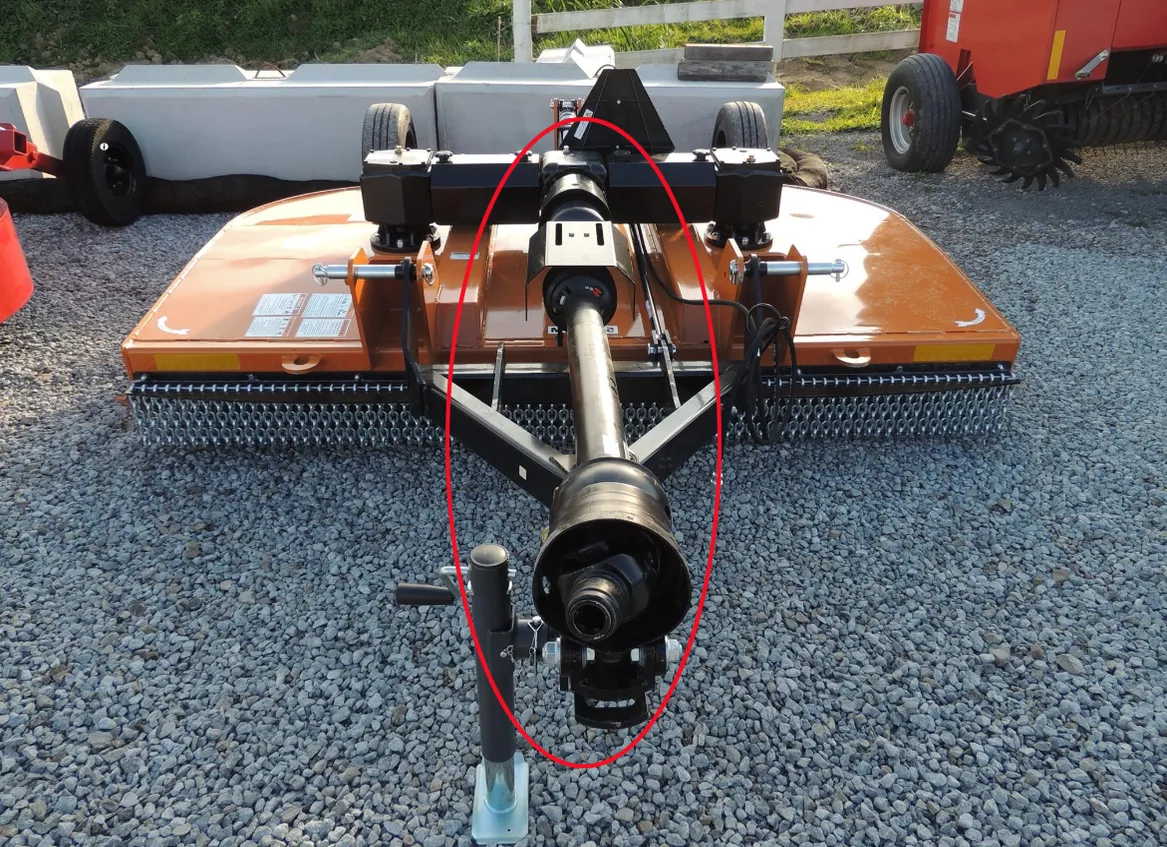

PTO Shafts for the RC-145 Rotary Cutter Gearbox

Choosing the right PTO (Power Take-Off) shaft for the RC-145 Rotary Cutter Gearbox is crucial for optimal performance and safety. Here are six detailed points to consider when selecting a PTO shaft:1. Compatibility with Tractor and Gearbox: Ensure that the PTO shaft is compatible with both your tractor’s PTO output and the input specifications of the RC-145 gearbox. Check the required spline configuration (the number and shape of grooves on the shaft ends), size, and length. Incompatibility can lead to improper fit and operational failures, damaging the gearbox or tractor.2. Length of the Shaft: The length of the PTO shaft is critical for safe and efficient operation. It must be long enough to accommodate the distance between the tractor and the gearbox without being overstretched or compressed during use. An overly short shaft can disconnect or exert excessive pressure on the gearbox and tractor bearings, while a shaft that is too long can buckle.3. Torque Capacity: The PTO shaft should be capable of transmitting the maximum torque output of the tractor that the RC-145 gearbox can handle. This prevents the shaft from breaking under load, which could lead to accidents or damage. Always check the torque ratings in the shaft specifications against your tractor’s output and the gearbox’s maximum input.4. Safety Features: Choose a PTO shaft that includes essential safety features such as a shear bolt or a slip clutch. These features are designed to protect the gearbox and the tractor from damage caused by torque overloads when the mower blades hit an obstruction. Additionally, ensure that the shaft is equipped with proper shielding to protect operators and bystanders from rotating parts.5. Ease of Maintenance: Opt for a PTO shaft that is easy to maintain. Features like grease fittings for regular lubrication and replaceable parts are important for long-term maintenance and care. Regular maintenance helps ensure longevity and reliability, reducing the likelihood of failure during operation.

Rotary Cutter Gearbox Oil Change and Maintenance

Rotary cutter gearbox oil change and maintenance are important to ensure the reliable and efficient operation of the equipment. Here are some steps to follow for gearbox oil change and maintenance:1. Check the Oil Level: Before starting any maintenance, check the rotary cutter gearbox oil level to ensure that it is at the appropriate level. Overfilling or underfilling the gearbox can cause damage to the internal components.2. Drain the Oil: To change the rotary cutter gearbox oil, first, drain the old oil from the gearbox. Locate the drain plug on the bottom of the rotary cutter gearbox and remove it, allowing the old oil to drain out. Be sure to catch the old oil in a suitable container and dispose of it properly.3. Clean the Gearbox: Once the old oil has drained out, clean the gearbox with a suitable cleaner to remove any dirt or debris that may have accumulated in the rotary cutter gearbox.4. Replace the Oil Filter: If the rotary cutter gearbox has an oil filter, replace it with a new one. The oil filter helps to remove contaminants from the oil, ensuring that the gearbox operates smoothly and efficiently.5. Refill with New Oil: Once the rotary cutter gearbox is clean and the oil filter has been replaced, refill the gearbox with new oil. Check the manual's specifications for the appropriate type and amount of oil to use.6. Inspect the Gearbox: While performing the oil change, inspect the rotary cutter gearbox for any signs of damage or wear. Look for cracks, leaks, or other signs of damage that may require repair or replacement.7. Lubricate Moving Parts: After the oil change, lubricate any moving parts in the rotary cutter gearbox, such as bearings or gears. Use a suitable lubricant to ensure that the parts operate smoothly and efficiently.8. Regular Maintenance: Regular maintenance of the rotary cutter gearbox is important to ensure reliable and efficient operation of the equipment. Follow the manual's recommended maintenance schedule, which may include oil changes, lubrication, and inspections.Proper gearbox oil change and maintenance are important for the reliable and efficient operation of rotary cutter equipment. Follow these steps to perform an oil change and ensure that the gearbox is in good condition. Regular maintenance and inspection of the gearbox will help to extend its service life and ensure the safe and efficient operation of the equipment.
