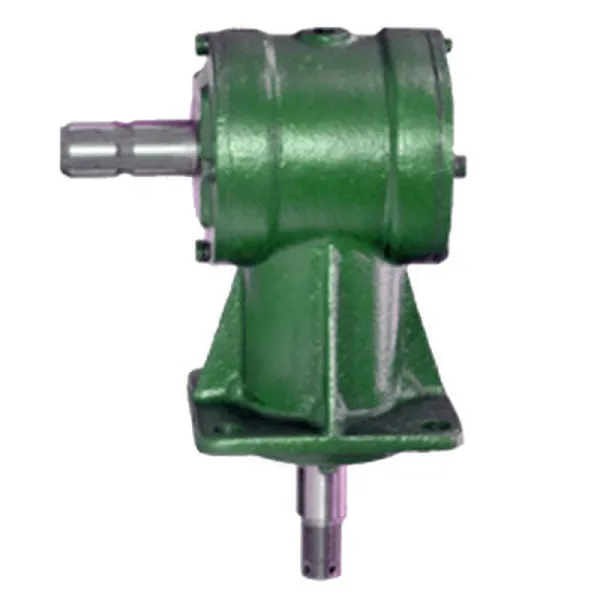

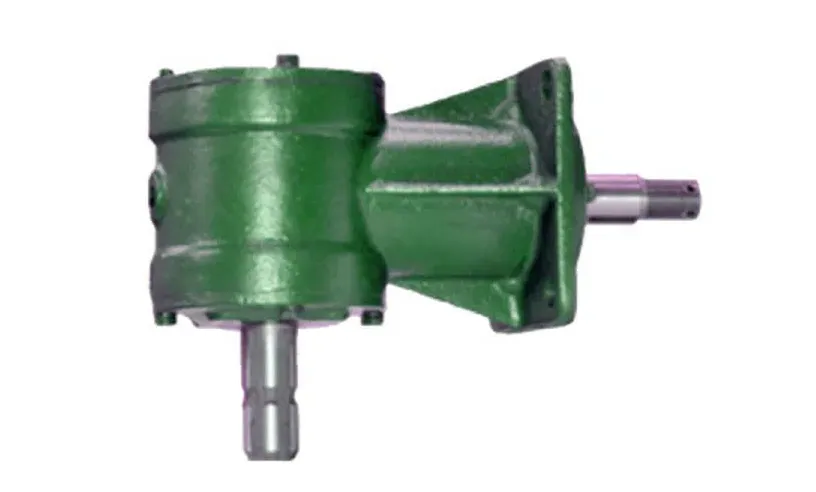

The RC20 rotary cutter gearbox is a heavy-duty gearbox used for powering rotary cutters in agricultural applications. It is designed to transfer power from the tractor to the rotary cutter, allowing the cutter to rotate at high speeds with precision and consistent torque. The RC20 rotary cutter gearbox is an essential component of the rotary cutter, and its robust construction ensures the cutter operates efficiently and reliably.Some of the notable features of the RC20 rotary cutter gearbox include the following:(1) Rugged construction: The RC20 rotary cutter gearbox is built with high-strength cast iron, which ensures it can withstand the high stress, vibration, and impact associated with tough and challenging agricultural applications.(2) Large-scale cutting: The RC20 rotary cutter gearbox is well-suited to large-scale mowing of fields, pastures, roadsides, and other outdoor areas, thanks to its high torque and speed capabilities.(3) Wide range of compatible implements: The RC20 rotary cutter gearbox can power a range of rotary cutter implements, making it highly versatile and able to adapt to various agricultural applications.(4) Easy maintenance: The RC20 rotary cutter gearbox is designed for easy maintenance, with easy access to oil and grease points for servicing and maintenance.(5) Efficient power transfer: The RC20 rotary cutter gearbox features a large output shaft to ensure efficient power transfer to the rotary cutter, minimizing energy loss and maximizing performance.In summary, the RC20 rotary cutter gearbox is a reliable and durable gearbox that is perfect for use in rotary cutters. It is a great choice for farmers, landscapers, and other professionals who need a gearbox that can withstand the rigors of use. If you are looking for a reliable and durable gearbox for your rotary cutter, the RC20 rotary cutter gearbox is a great option.

▍RC20 Rotary Cutter Gearbox Specifications

Model:	EPT-RC20 Rotary Cutter Gearbox
Power:	15 - 18 hp11 - 21 kW
Torque:	1,750 - 3,267 lb.-in.(198 - 369 Nm.)
Ratios:	1:1.25, 1:2.83
Gear Type:	Bevel
Seal Type:	Triple Lip Spring Loaded
Bearing Type:	Deep Groove Ball
Oil Capacity:	16 oz.(0.47 L)
Weight:	34 lbs.(15.4 kg.)
Applications:	Finishing MowersRotary CuttersRotary Slashers

▍RC20 Rotary Cutter Gearbox Ratio Design

The RC20 rotary cutter gearbox is available in multiple ratios to match different horsepower and cutting requirements. The rotary cutter gearbox ratio determines the rotational speed of the blade, which means a higher ratio will provide greater blade speed but less torque, while a lower ratio will provide higher torque but less blade speed.The RC20 rotary cutter gearbox is available in different ratios, including 1:1.25 and 1:2.83. The rotary cutter gearbox ratio you choose will depend on your needs for your specific application.Higher ratios are generally better suited for light-duty work, while lower ratios are more suitable for heavy-duty tasks, such as rough ground or thick brush. For example, a higher rotary cutter gearbox ratio is ideal for mowing the lawn, while a lower rotary cutter gearbox ratio is better for clearing land or cutting thick brush.It is important to note that when selecting a ratio, you should consider the horsepower of the tractor and the density of the material being cut, as well as the blade speed required to maintain the quality of the cut. Choosing the correct ratio for your RC20 rotary cutter gearbox will ensure that it delivers optimal performance and a longer lifespan.

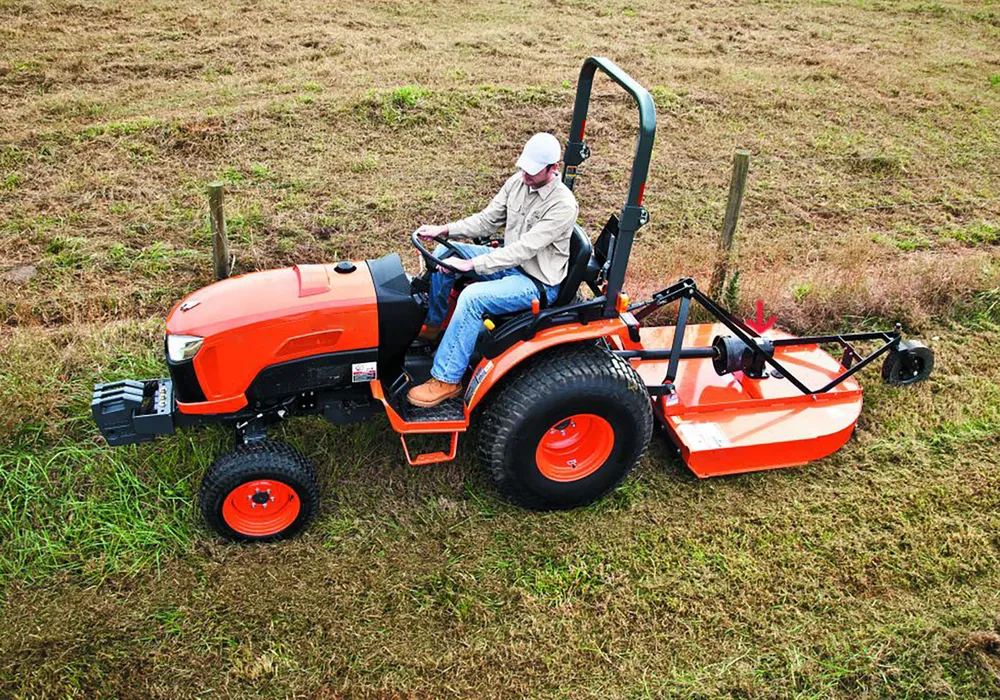

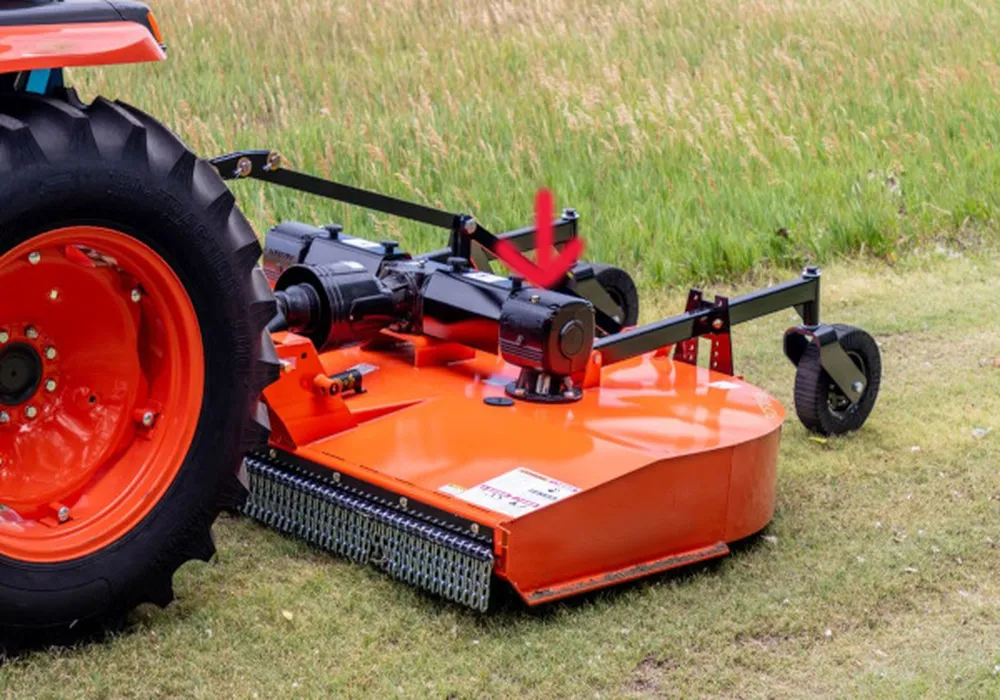

▍Precautions to Take When Using the RC20 Rotary Mower Gearbox

To ensure the safe operation of the RC20 rotary cutter gearbox for rotary cutter, there are several precautions that users should take when using the equipment. Here are some of the key precautions to keep in mind:(1) Read the manual carefully: Before using the rotary cutter gearbox, read the instruction manual carefully to understand the specifications, features, and safety measures.(2) Use appropriate PPE: Always wear appropriate personal protective equipment (PPE), such as eye and ear protection, gloves, and sturdy footwear, to prevent injury.(3) Inspect equipment before use: Inspect the equipment and rotary cutter gearbox before use, and ensure that there are no cracks, deformations, or other damage that may affect the performance.(4) Ensure proper lubrication: Proper lubrication is critical to the rotary cutter gearbox's performance, so make sure to lubricate the gearbox regularly and correctly.(5) Avoid overworking the gearbox: Overworking the rotary cutter gearbox can result in damage or failure, so always follow the manufacturer's recommended operating guidelines and avoid pushing the equipment beyond its capacity.(6) Keep clear of the cutting area: Keep your hands, feet, and other body parts clear of the cutting area, and ensure that other people and animals are at a safe distance when the rotary cutter gearbox is in use.(7) Turn off the engine when not in use: Always turn off the engine and rotary cutter gearbox when taking a break or stopping operation, and never leave the equipment unattended in this state.

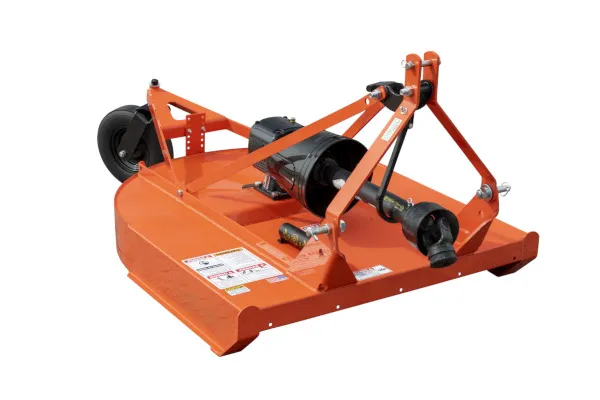

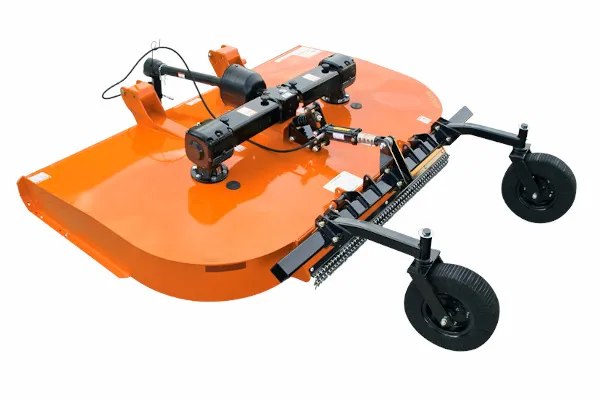

▍We Also Offer PTO Shaft for Rotary Cutter Gearbox

The PTO shaft is an essential component in the transmission of power from the tractor to the rotary cutter gearbox. The PTO ( Power Take-Off) shaft is responsible for transmitting power from the tractor's engine to the rotary cutter gearbox, enabling the cutter to rotate and perform the mowing or cutting task.When selecting the PTO shaft for a rotary cutter gearbox, there are several factors to consider, such as:1. Length: The PTO shaft should be the correct length to fit between the tractor's PTO output and the rotary cutter gearbox input. Check the length requirement in the owner's manual of the specific rotary cutter gearbox and cutter to ensure you select the right size.2. Safety features: PTO shafts can be dangerous and cause accidents if not handled correctly. Therefore, it is essential to select a shaft with adequate safety features like a guard, which helps prevent entanglement with the PTO shaft.3. Strength: PTO shafts must be strong enough to handle the transmitted power without breaking or twisting. Ensure that the shaft's strength rating meets or exceeds the power requirements of your rotary cutter gearbox.4. Type of connection: PTO shafts can use various connection types, such as slip clutch or shear pins. Consider the nature of the work you intend to perform with the rotary cutter gearbox to determine which connection type is more suitable.In summary, when selecting a PTO shaft for a rotary cutter gearbox, consider factors such as length, safety features, strength rating, and connection type. Ensuring that the PTO shaft is the correct size and built to handle the required power transfer will help in a more efficient and safe operation.

▍Rotary Cutter Gearbox Oil Level Check

Checking the rotary cutter gearbox oil level is a crucial maintenance activity that should be done regularly to ensure that the rotary cutter gearbox is running smoothly and preventing damage or malfunctions. Here are the steps to follow when checking the rotary cutter gearbox oil level:1. Position the rotary cutter safely: Before checking the oil level, make sure the rotary cutter is in a stable and level position with the side of the rotary cutter gearbox facing upwards.2. Locate the oil fill plug and drain plug: The oil fill plug is located on top of the gearbox, while the drain plug is usually located at the bottom of the rotary cutter gearbox.3. Clean the plugs and surrounding areas: Use a clean rag or towel to wipe away any dirt or debris from around the fill and drain plugs to prevent contamination of the oil.4. Remove the oil fill plug: Unscrew the oil fill plug to check the oil level. The oil should be visible at the fill hole.5. Check the oil level: If the rotary cutter gearbox oil is at the correct level, it will be visible at the fill hole. If it is not visible, this indicates that there is not enough oil in the rotary cutter gearbox.6. Add oil if necessary: If the rotary cutter gearbox oil level is low, add oil gradually until the oil reaches the correct level. Be sure to use the type of oil recommended by the manufacturer.7. Replace the oil fill plug: Once the oil level is correct, replace the oil fill plug and tighten it.In summary, checking the oil level in the rotary cutter gearbox is a straightforward process that should be done on a regular basis to ensure the gearbox is running smoothly. It is essential to use the recommended type of oil and follow the manufacturer's instructions for changing the oil and filter.
