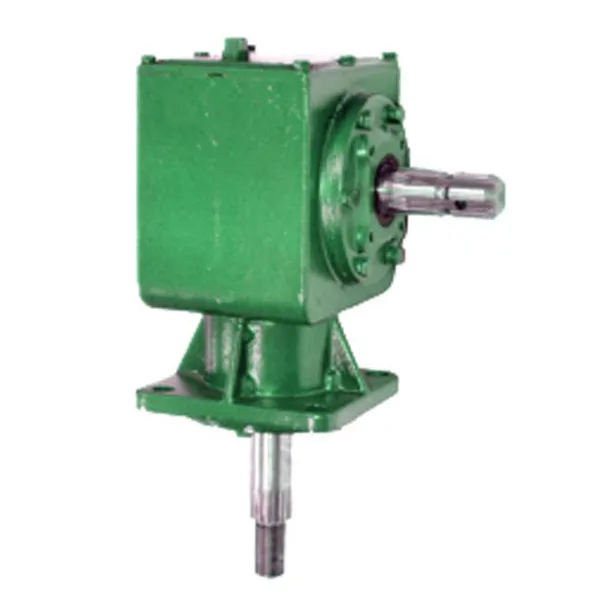

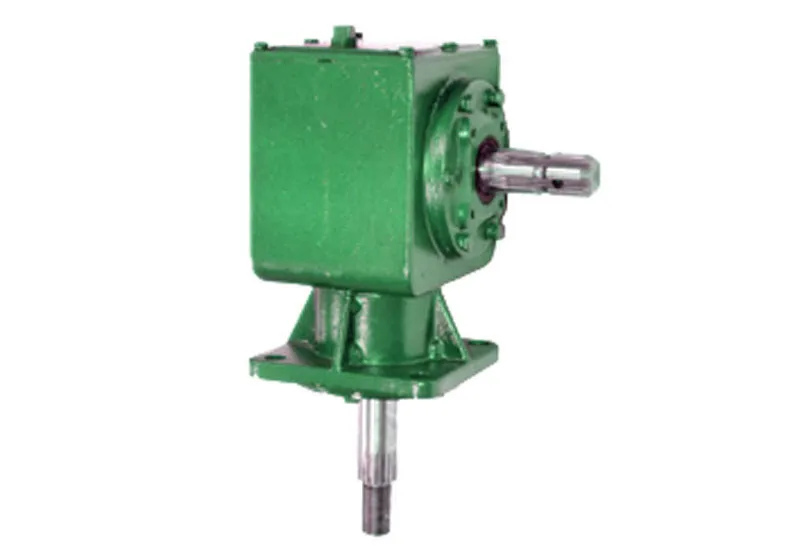

The RC27 rotary cutter gearbox is a type of gearbox used in rotary cutters or rotary mowers. It is designed to transfer power from a tractor's PTO (power take-off) to the blades of the mower, enabling it to cut grass, brush, and other vegetation efficiently.The RC27 rotary cutter gearbox is made up of several key components, including an input shaft, output shaft, gears, bearings, and housing. When the tractor's PTO drives the input shaft, it rotates a series of gears, which in turn rotates the output shaft. The output shaft is connected to the blades of the mower and rotates at a speed suitable for cutting vegetation.The RC27 rotary cutter gearbox has a heavy-duty housing made of cast iron or steel for durability and protection. It also contains oil, which helps to lubricate the gears and bearings inside, absorb heat, and prevent damage.Regular maintenance, such as checking the oil level and changing it when necessary, inspecting the gears and bearings for signs of wear, and replacing damaged or worn parts, can help ensure the optimal performance and longevity of the RC27 rotary cutter gearbox.

▍RC27 Rotary Cutter Gearbox Specifications

Model:	EPT-RC27 Rotary Cutter Gearbox
Power:	23 - 53 hp17 - 40 kW
Torque	2,683 - 6,183 lb.-in.(303 - 698 Nm.)
Ratios	1:2.5, 1:2.83
Gear Type	Bevel
Seal Type	Double Lip Spring Loaded
Oil Capacity	20 oz.(0.59 L)
Weight	47 lbs.(21.3 kg.)
Applications:	Finishing MowersRotary CuttersRotary Slashers

▍Features of RC27 Rotary Cutter Gearbox

The RC27 rotary cutter gearbox has several features that make it a reliable and efficient device for powering rotary cutters. Here are some of its features:1. High Strength: The RC27 rotary cutter gearbox is constructed of high-strength materials, including cast iron and steel, which makes it durable and able to withstand the rigors of cutting dense vegetation.2. Lubrication System: The RC27 rotary cutter gearbox has a full oil lubrication system that helps to reduce friction, extend the life of the gears, and protect against wear and tear.3. Maximum Output Torque: The RC27 rotary cutter gearbox is capable of producing a maximum output torque of 6,183 lb-in, which makes it suitable for use with a variety of rotary cutter models.4. Efficient Power Transmission: The RC27 rotary cutter gearbox has a 1:2.5 or 1:2.83 ratio that provides efficient power transmission from the tractor PTO shaft to the rotary cutter blades.5. Versatility: The RC27 rotary cutter gearbox is designed for use with 23 to 53 horsepower tractors and can handle a maximum input speed of 540 rpm, making it a versatile gearbox suitable for a wide range of agricultural and landscaping applications.Overall, the RC27 rotary cutter gearbox is a reliable and efficient gearbox that provides excellent power transmission and high torque output for use in a variety of applications.

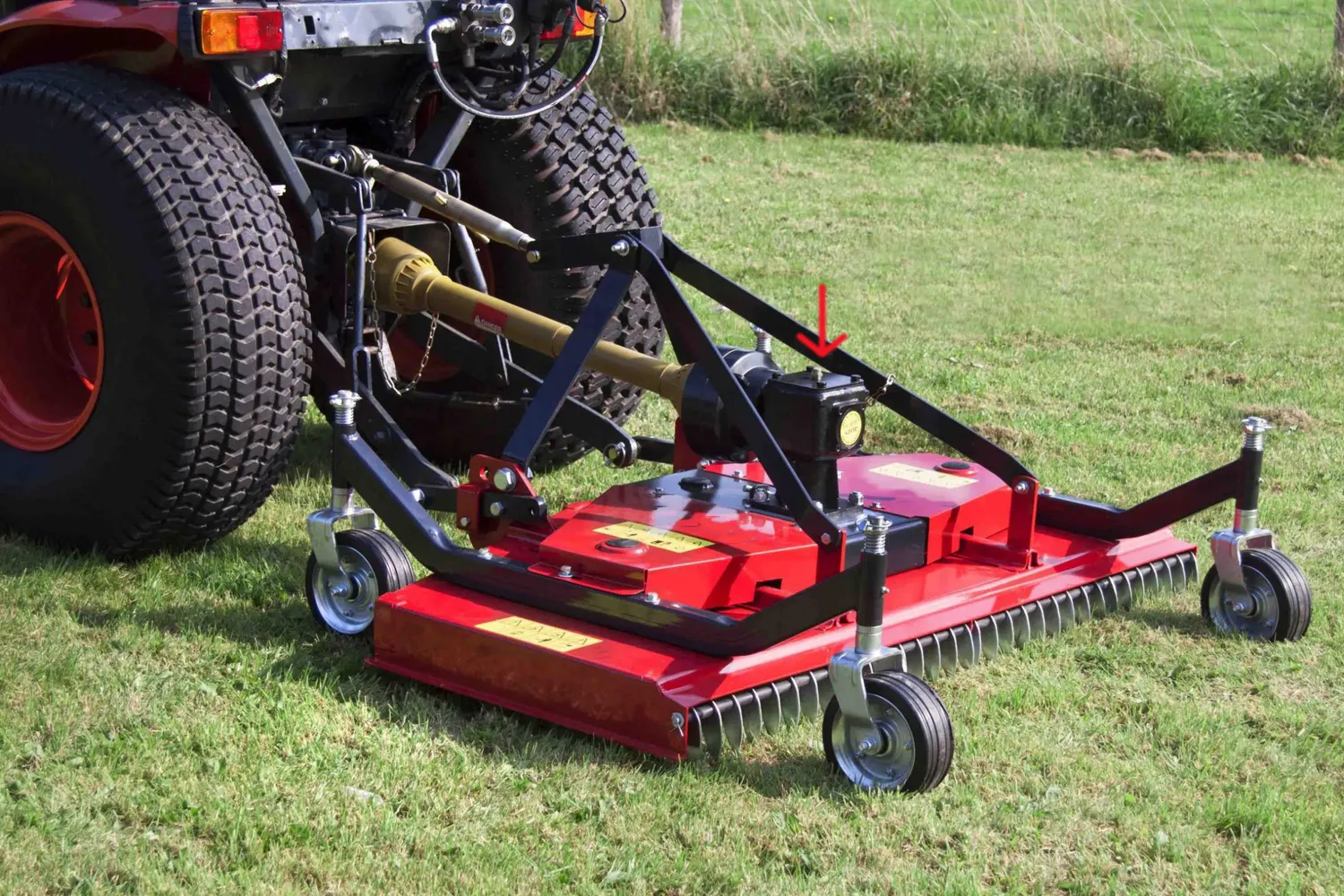

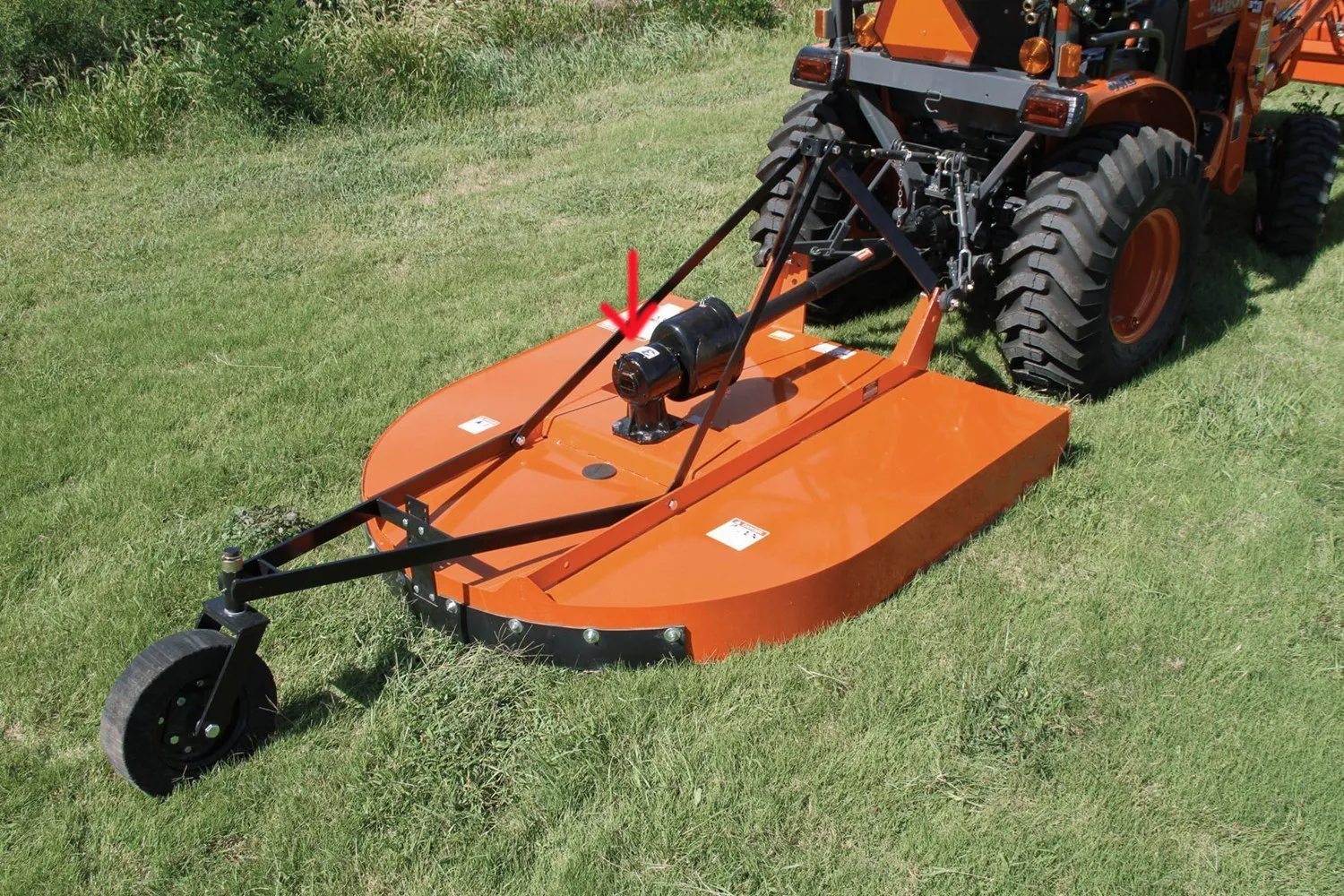

▍Rotary Cutter Gearbox Vs Rotary Mower Gearbox

Rotary cutter gearboxes and rotary mower gearboxes are both types of gearboxes that are used to transmit power from a tractor or other power source to a rotary cutter or rotary mower. However, there are some key differences between the two types of gearboxes.Rotary cutter gearboxes are typically designed for use with heavier-duty rotary cutters that are used for tasks such as clearing brush and mowing overgrown vegetation. Rotary mower gearboxes, on the other hand, are typically designed for use with lighter-duty rotary mowers that are used for tasks such as mowing lawns.As a result of these differences, rotary cutter gearboxes are typically larger and heavier than rotary mower gearboxes. They also typically have a higher gear ratio, which allows them to transmit more power to the rotary cutter.In addition, rotary cutter gearboxes are typically equipped with a slip clutch, which helps to protect the gearbox from damage if the rotary cutter is overloaded. Rotary mower gearboxes, on the other hand, do not typically have a slip clutch.Overall, rotary cutter gearboxes are designed for use with heavier-duty rotary cutters that are used for more demanding tasks. Rotary mower gearboxes, on the other hand, are designed for use with lighter-duty rotary mowers that are used for less demanding tasks.Here is a table that summarizes the key differences between rotary cutter gearboxes and rotary mower gearboxes:

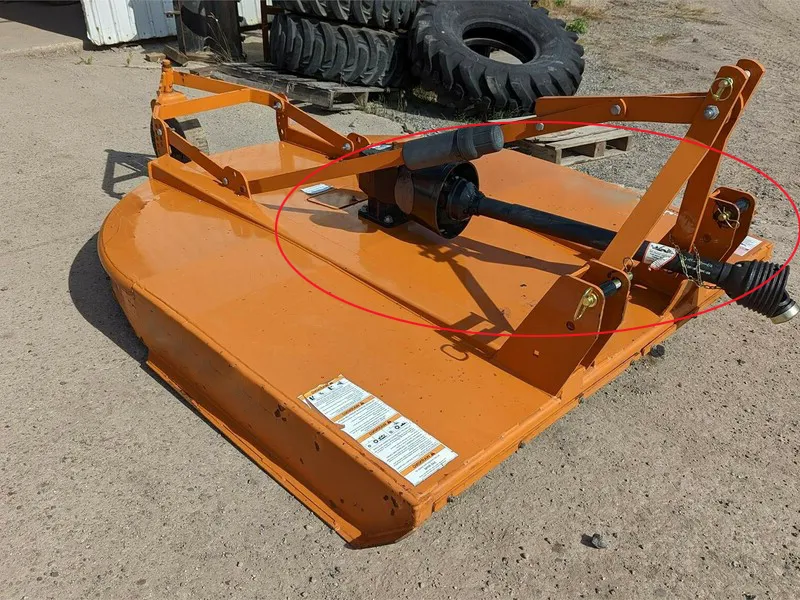

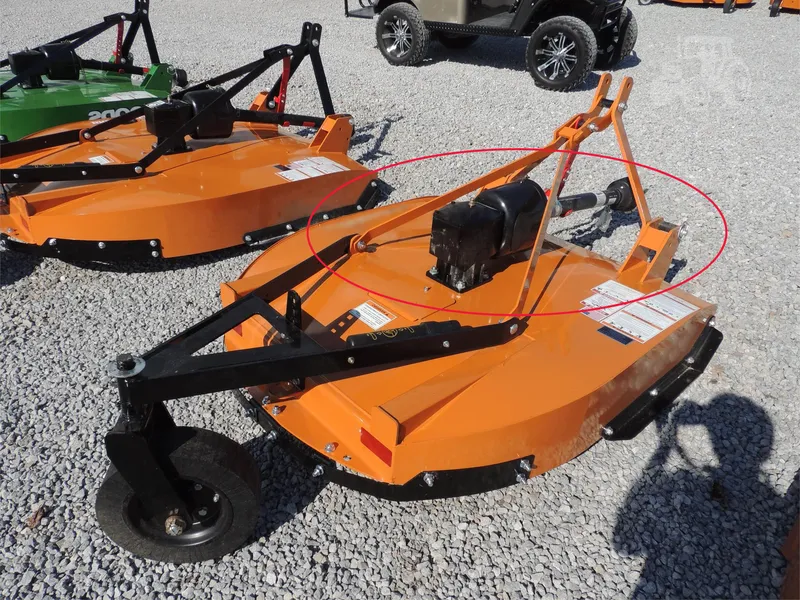

▍PTO Shafts for Rotary Cutter Gearboxes

PTO (Power Take-Off) shafts are an essential component of rotary cutter gearboxes, as they provide the power required for tractor-driven equipment to function. PTO shafts are typically attached to the tractor's PTO, which transfers the rotational energy generated by the tractor engine to the gearbox and rotary cutter blade. When selecting a PTO shaft for a rotary cutter gearbox, there are several important factors to consider:1. Length: The PTO shaft should be the correct length to ensure proper alignment between the tractor and the rotary cutter gearbox.2. Size: The size of the PTO shaft and its components, such as the yokes, must be compatible with the tractor PTO shaft and the rotary cutter gearbox.3. Safety Features: The PTO shaft should have safety features such as a guard, a shear bolt, or a slip clutch to prevent injury if the shaft becomes jammed or if the rotary cutter blades hit a hard object.4. Maximum Torque Capacity: The PTO shaft should have a maximum torque capacity greater than the maximum torque output of the tractor's engine to handle the workload of the rotary cutter.5. Maintenance: Regular maintenance of the PTO shaft, such as greasing and inspection of the safety features, should be included in the maintenance schedule for the rotary cutter.Overall, choosing the right PTO shaft is crucial in ensuring the safety and proper operation of the rotary cutter gearbox. It is important to properly maintain and inspect the PTO shaft and its components to prevent potential accidents and prolong its lifespan.

▍How to Properly Maintain a Rotary Cutter Gearbox?

Proper maintenance of a rotary cutter gearbox is essential for optimal performance and longevity. The following are some key steps to maintain a rotary cutter gearbox:(1) Lubrication: Proper lubrication is critical to reduce wear and tear and prevent overheating. The rotary cutter gearbox should be checked periodically to ensure that the oil level is adequate and that the oil is clean and free from contaminants. The rotary cutter gearbox oil should be replaced according to the manufacturer's specifications.(2)Inspection: Regular inspection of the rotary cutter gearbox can help identify any wear and damage. The gearbox should be inspected periodically for signs of oil leaks, cracks, or wear on gears, bearings, and seals. Any damaged components should be replaced immediately.(3)Cleaning: Keeping the rotary cutter gearbox clean and free from debris can help extend its life. After each use, the gearbox should be cleaned with a soft-bristled brush, being careful not to damage any of the components. Debris, such as twigs or grass, can cause damage to gears and bearings.(4) Proper use: Proper use of the rotary cutter can help prevent damage to the rotary cutter gearbox. Always follow the manufacturer's recommendations for use, which include avoiding engaging the blades at too high of a speed, avoiding stopping the blades abruptly, and avoiding engaging in heavy or contact activities.(5) Storage: Proper storage of the rotary cutter can also help extend the life of the gearbox. Store the cutter in a dry, covered area, and remove debris from the blades and rotary cutter gearbox before storing it for long periods.
