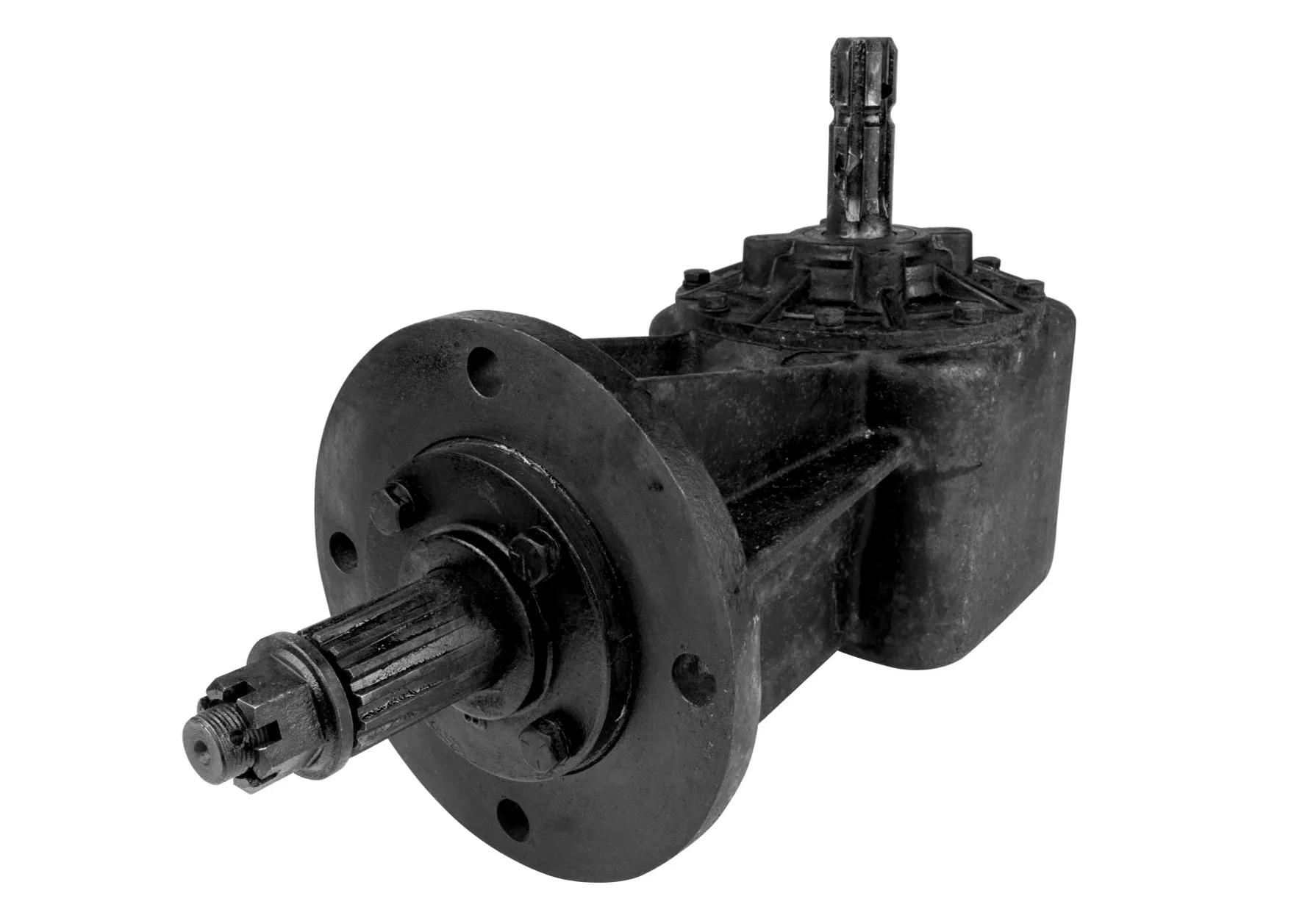

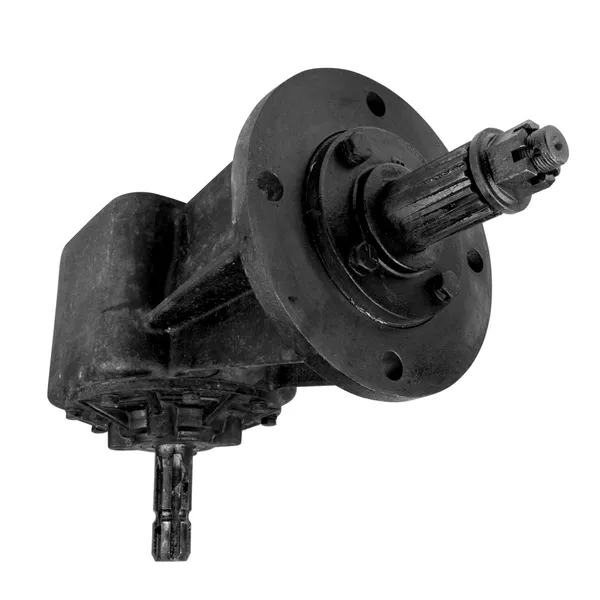

Rotary Cutter Gearboxes - Replacement of Omni Code RC-81 Gearbox

Rotary Cutter Gearboxes - Replacement of Omni Code RC-81 Gearbox

The RC81 rotary cutter gearbox is a gearbox designed to be used with rotary cutters, including mowers and other agricultural equipment. It is a high-precision gearbox that is built for heavy-duty use and can withstand large amounts of torque and shear forces. The RC81 rotary cutter gearbox is made from high-quality materials such as cast iron, steel, and precision gears and bearings to ensure long-lasting and reliable performance. It is designed to fit a range of rotary mowers and other agricultural applications, and it can be easily installed and maintained.The RC81 rotary cutter gearbox is known for its strength, durability, and reliability, and it is commonly used in agricultural and industrial settings. If you are looking for a reliable and durable gearbox for your rotary cutter, the RC81 rotary cutter gearbox is a great option.

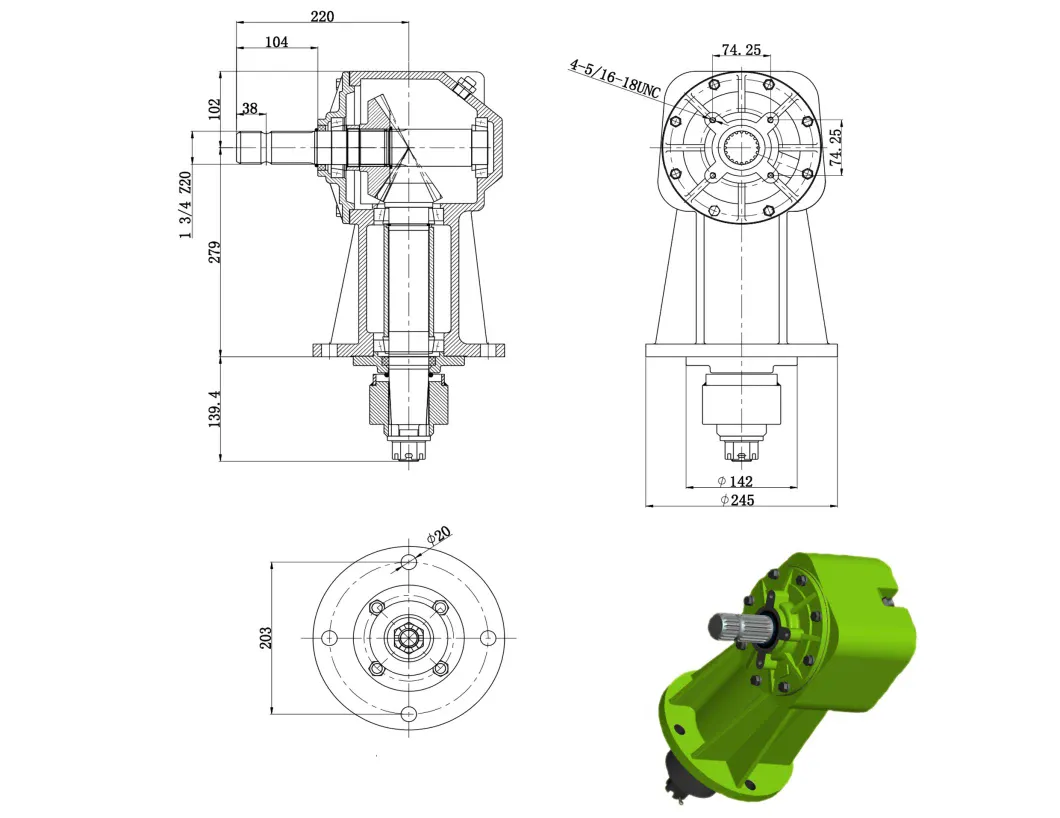

RC81 Rotary Cutter Gearbox Specifications

Use	Part Number	Input Parameters					Output Parameters
		Ratio	Rotational Speed	Power	Horse Power	Torque	Torque	Rotational Speed
			R.P.M	KW	HP-CV	N.M	N.M	R.P.M
Rotary Cutter	RC81-01	1:1.92	540	74	100	1308	680	1038
	RC81-02	1:1.46	540	74	100	1308	680	788

Model	EPT-RC-81 Rotary Cutter Gearbox
Torque	5,483 - 12,133 lb.-in.(619 - 1,370 Nm.)
Ratios	1.21:1, 1:1, 1:1.21, 1:1.46, 1:1.92
Gear Type	Bevel
Seal Type	Triple Lip Spring Loaded
Bearing Type	Tapered Roller
Oil Capacity	62 oz.(1.8 L)
Weight	98 lbs.(44.5 kg.)

RC81 Rotary Cutter Gearbox Parts Structure

The RC81 rotary cutter gearbox is a complex piece of machinery with many different parts. Here is a brief overview of the major parts:

• Input Shaft: The input shaft is the part of the rotary cutter gearbox that receives power from the tractor or motor.
• Bearings: The bearings support the input shaft and allow it to rotate smoothly.
• Gears: The gears inside the rotary cutter gearbox transfer power from the input shaft to the output shaft.
• Output Shaft: The output shaft is the part of the rotary cutter gearbox that delivers power to the rotary cutter blade.
• Seals: The seals prevent oil and grease from leaking out of the rotary cutter gearbox.
• Housing: The housing protects the internal parts of the rotary cutter gearbox from damage.

The RC81 rotary cutter gearbox is a precision-engineered product that requires all of its parts to work together perfectly in order to function properly. If any of the parts are damaged or worn, it can cause the gearbox to fail. It is important to inspect the rotary cutter gearbox regularly for signs of damage and to replace any worn or damaged parts immediately.

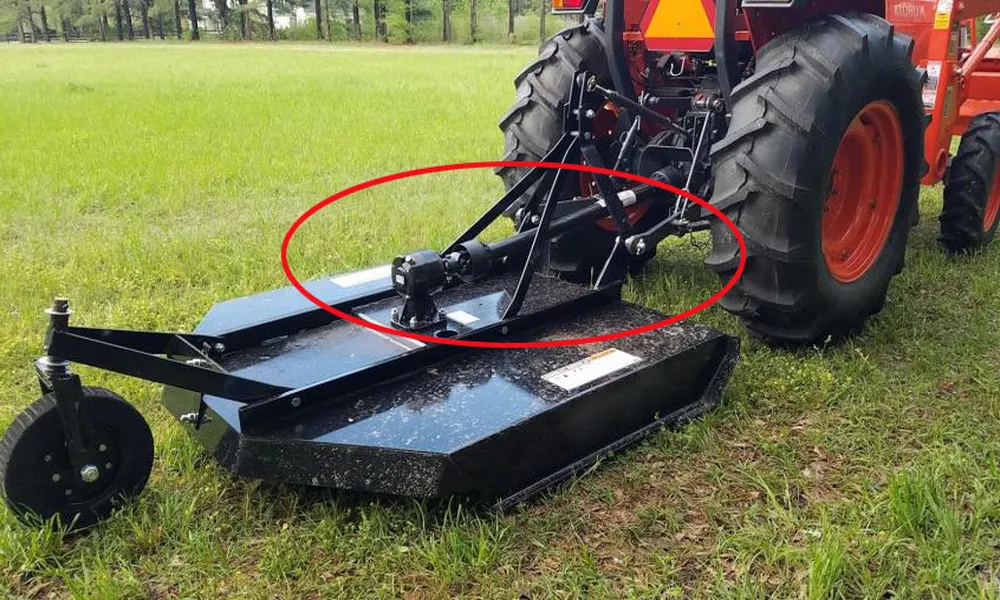

How Does the Rotary Cutter Gearbox Work?

The rotary cutter gearbox is an essential component of the cutting mechanism of a rotary cutter. Its primary function is to convert the high-speed rotation of the PTO shaft that powers the rotary cutter into the slower rotation needed for cutting tasks.The rotary cutter gearbox works by taking the power from the PTO shaft and transmitting it to the cutting blade. Inside the rotary cutter gearbox, the input shaft from the PTO turns a gear, which then turns a series of other gears that are arranged in a precise pattern to provide the correct output speed to the blade. The gear ratio between the input and output shafts determines the speed of the output. The rotary cutter gearbox also helps to provide additional torque to the cutting blade when needed, for example, when cutting through thick grass or weeds. The torque is generated by the rotary cutter gearbox through the design and arrangement of the gears, which can provide additional power to the cutting blade.Some rotary cutter gearboxes with multiple speeds or gears. This allows the operator to adjust the output speed and power of the cutter to suit different cutting conditions, making the cutter more versatile and efficient. Overall, the rotary cutter gearbox plays a vital role in ensuring the efficient and effective operation of a rotary cutter, helping to provide the power and torque needed to cut through tough vegetation in agricultural and other outdoor applications.

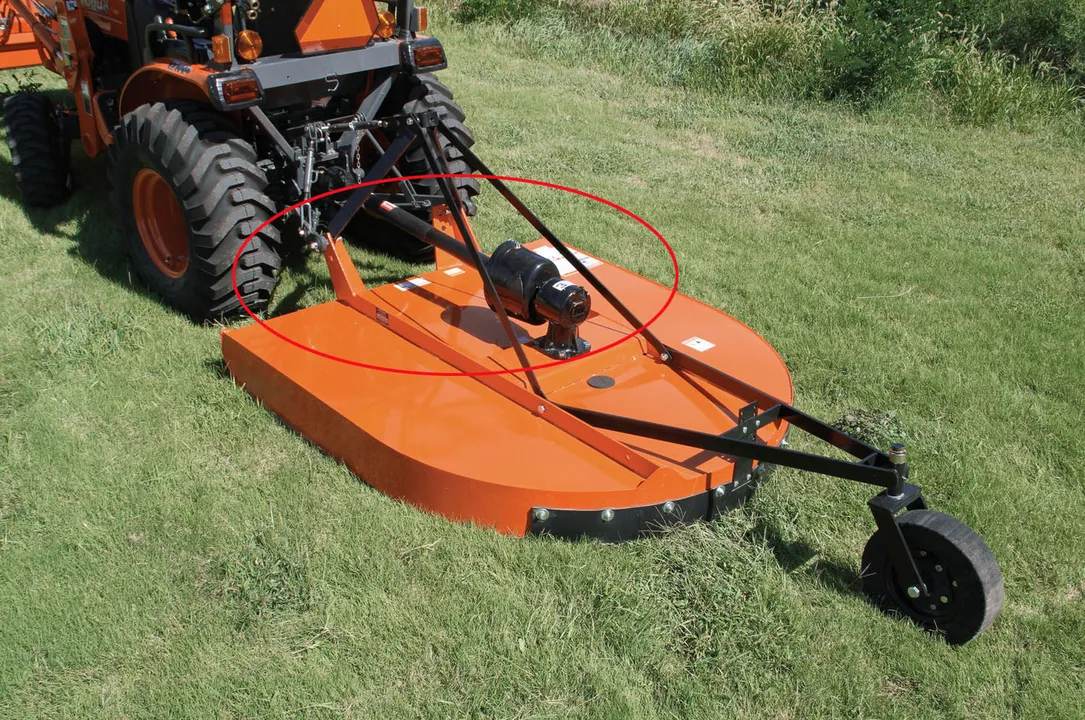

PTO Shaft and Rotary Cutter Gearbox for Rotary Cutter

The PTO shaft and rotary cutter gearbox are two important components of a rotary cutter. The PTO shaft is responsible for transferring power from the tractor's engine to the rotary cutter gearbox. The rotary cutter gearbox then converts the power from the PTO shaft into rotational motion that is used to drive the rotary cutter blades.The PTO shaft is typically made of steel and is connected to the tractor's engine by a universal joint. The rotary cutter gearbox is typically made of cast iron or aluminum and is mounted on the tractor's three-point hitch. The PTO shaft and rotary cutter gearbox are both important components of a rotary cutter and should be regularly inspected for wear and tear. If either component is damaged, it should be replaced immediately.Here are some of the things to consider when choosing a PTO shaft and rotary cutter gearbox for your rotary cutter:(1) The size of the tractor: The PTO shaft and rotary cutter gearbox should be the correct size for your tractor. The PTO shaft should be the same size as the tractor's PTO port, and the rotary cutter gearbox should be the correct size for the rotary cutter blades.(2) The power output of the tractor: The PTO shaft and rotary cutter gearbox should be able to handle the power output of your tractor. The PTO shaft should be able to transmit the power from the tractor's engine to the rotary cutter gearbox, and the rotary cutter gearbox should be able to convert the power into rotational motion that is used to drive the rotary cutter blades.(3) The type of rotary cutter: The PTO shaft and rotary cutter gearbox should be compatible with the type of rotary cutter you have. The PTO shaft should be able to connect to the tractor  PTO shaft port, and the rotary cutter gearbox should be able to drive the rotary cutter blades.It is important to choose the right PTO shaft and rotary cutter gearbox for your rotary cutter. By doing so, you can ensure that your rotary cutter will operate safely and efficiently.

RC81 Rotary Cutter Gearbox Common Problems

The RC81 rotary cutter gearbox is a heavy-duty gearbox that is designed to withstand the rigors of use in a rotary cutter. However, like any piece of machinery, it is not immune to problems. Here are some of the most common problems that can occur with the RC81 rotary cutter gearbox:1. Leaking oil: Leaks can occur due to damaged or worn seals or gaskets. It's important to replace these components as soon as possible to prevent further damage to the rotary cutter gearbox.2. Overheating: Overheating can be caused by a lack of proper lubrication, excessive load, or worn bearings. Regular maintenance, including changing the rotary cutter gearbox oil and checking the bearings, can help prevent overheating.3. Gear wear: Gears can become worn or damaged over time, resulting in noise, vibration, and reduced performance. Replacing worn or damaged gears can help restore proper function to the rotary cutter gearbox.4. Splines and shafts wear: Splines, shafts, and other components can become worn or damaged, resulting in a loss of power transfer or increased noise and vibration. Replacement of these components may be required.5. Bearing failure: Bearings can wear out or fail due to excess load, lack of proper lubrication, or other factors. Regular maintenance, including checking and replacing worn bearings, can help prevent bearing failure.6. Damage to housing or flange: The housing or mounting flange can become damaged due to impact or other factors, which can compromise the structural integrity of the rotary cutter gearbox. Repair or replacement of damaged components may be required to restore proper function to the rotary cutter gearbox.If you experience any of these problems with your RC81 rotary cutter gearbox, it is important to have it repaired or replaced immediately. Continuing to use a damaged rotary cutter gearbox can cause further damage and could lead to a catastrophic failure.
