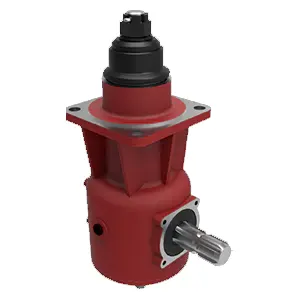

Rotary Mower Gearbox - Replacement of Comer Code LF-32J

Rotary Mower Gearbox - Replacement of Comer Code LF-32J

The rotary mower gearbox is an essential component in a rotary mower. It is responsible for transmitting power from the mower's engine to the blades that cut the grass. The gearbox contains a series of gears that convert the rotational energy from the engine to the rotary motion of the blades. A high-quality gearbox can significantly improve the performance and efficiency of a rotary mower. When selecting a rotary mower gearbox, factors to consider include its durability, strength, and compatibility with the mower's engine. Routine maintenance, such as lubrication and cleaning, can extend the life of a rotary mower gearbox and ensure optimal performance.

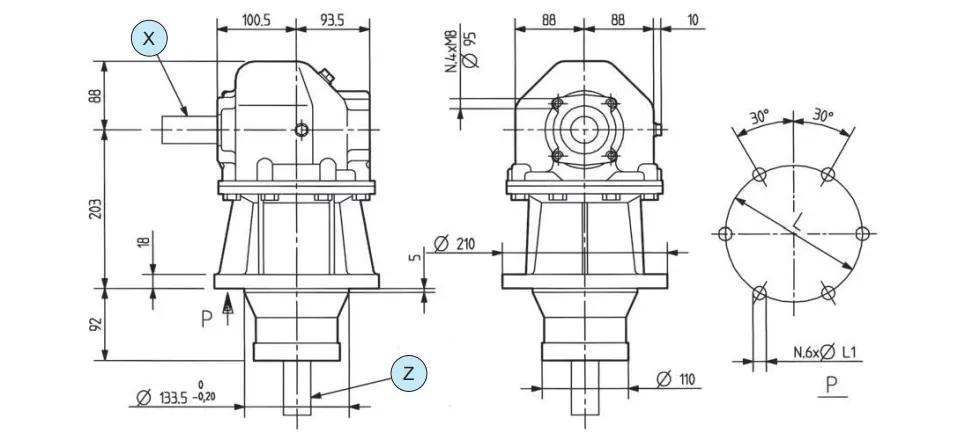

Specifications of Rotary Mower Gearbox LF-32J

i	1.93
N1[rpm]	540
P1[kW]	44.1
M2[Nm]	393
Shaft Type X	1'' 3/8 Z6
Shaft Type Z	Hub connection
Input	X



PTO Shafts for Rotary Mower Gearboxes

When selecting a PTO shaft for a rotary mower gearbox, it is important to ensure that the shaft is the correct length and diameter for your specific application. The shaft length should be measured from the center of the PTO spline on the tractor to the center of the input spline on the gearbox. The diameter of the shaft will depend on the horsepower of the tractor and the size of the gearbox.It is also essential to choose a PTO shaft that is rated for the correct horsepower and torque requirements of your rotary mower gearbox. This information can typically be found in the manufacturer's specifications for the gearbox.In addition to selecting the correct PTO shaft, it is important to inspect and maintain it regularly to ensure safe and efficient operation. This includes checking for any signs of wear or damage, and lubricating the shaft and fittings as needed.We also provide PTO Shafts for sale. Click and contact us!

Detailed Features of Rotary Mower Gearbox

Rotary mowers are commonly used for cutting grass, weeds, and other vegetation on lawns, gardens, and other outdoor areas. Some features of a rotary mower gearbox include:

• Durability: The rotary mower gearbox produced by us is made of high-quality materials that can withstand the stress and strain of the cutting process. It is designed to last for a long time without requiring frequent repairs or replacement.
• Lubrication: The rotary mower gearbox has a proper lubrication system to reduce friction and prevent wear and tear. This ensures that the gearbox remains functional and efficient over time.
• Gear Ratio: The gear ratio of the gearbox should be carefully selected to match the engine or motor's output, providing the right amount of torque to the blade for efficient cutting.
• Sealed Housing: The gearbox is housed in a sealed unit to prevent dirt, debris, and moisture from entering and causing damage to the internal components.
• Easy Maintenance: The gearbox is designed to be easily accessible for routine maintenance and repairs. This helps to extend the life of the gearbox and ensure it operates at peak performance.
• Noise Reduction: The rotary mower gearbox is designed to reduce noise levels during operation, making the mower more comfortable to use for extended periods.

Overall, a high-quality gearbox is essential for the efficient operation and long-term durability of a rotary mower.Besides LF-32J, various rotary mower gearboxes are offered by us. Click to check more information!
