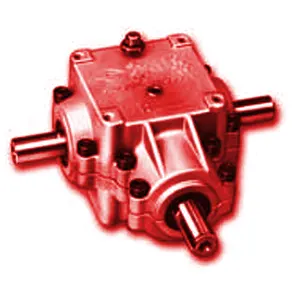

Rotary Mower Gearbox – Replacement of Comer Code TF-26A

Rotary Mower Gearbox – Replacement of Comer Code TF-26A

The rotary mower gearbox TF-26A is an element of a rotary lawn mower that assists in transferring force from the motor to its blades. The gearbox is typically made up of bearings and gears, which help reduce the engine's speed while increasing the amount of torque that is delivered onto the cutting blades. This lets the mower effectively slice through the grass as well as other plants.The gearbox could also include other features, like an automatic clutch that can be turned off or on to turn off or start the blades. It also has the gear reduction system that allows the mower to run at different speeds in order to meet the needs of different terrains as well as grass thicknesses.

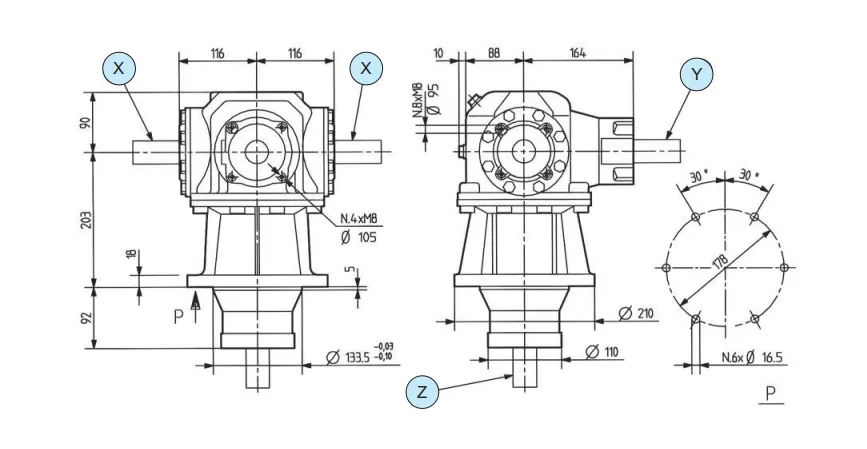

Rotary Mower Gearbox TF-26A Specifications

i	N1[rpm]	P1[kW]	M2[Nm]	Shaft Type			Input
				X	Y	Z
1.84	540	66.0	615	1'' 3/8 Z6	1'' 3/8 Z6	Hub connection	Y
1.47	540	66.0	770	1'' 3/8 Z6	1'' 3/8 Z6	Hub connection	Y



Features of Rotary Mower Gearbox

Rotary mowers are popular among gardeners and landscapers for their ability to effectively trim and cut grass. The gearbox of a rotary mower plays a crucial role in ensuring that the mower performs optimally. The features of a rotary mower gearbox may include a durable housing that protects the internal components from damage, bearings that support the rotating shaft, and seals that prevent debris from entering the gearbox. Additionally, some gearboxes may include gears that allow for the adjustment of cutting height, as well as a clutch that disengages the blades when the mower is not in use. Overall, a high-quality rotary mower gearbox is essential for ensuring that the mower operates smoothly and efficiently while also minimizing the risk of damage or wear and tear. Besides TF-26A, we also offer other types of agricultural gearboxes for sale.

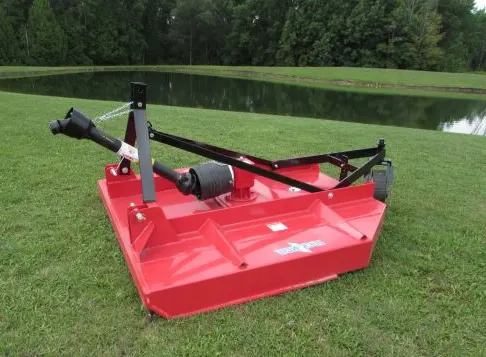

PTO Shafts for Sale

The agricultural gearbox and PTO shaft are two components of a tractor that work together to transmit power. The PTO shaft rotates at 540 to 1,000 rpm. The agricultural gearbox and PTO shaft are connected by yokes at both ends. Depending on the application, they may have a higher or lower torque rating. As a professional agricultural machinery parts supplier, we also offer a wide range of PTO drive shafts for sale. Contact us now to get more information if you are interested!
