Rotary Mower Gearboxes - Replacement of Comer Code LF-151A 1:3

Rotary Mower Gearboxes - Replacement of Comer Code LF-151A 1:3

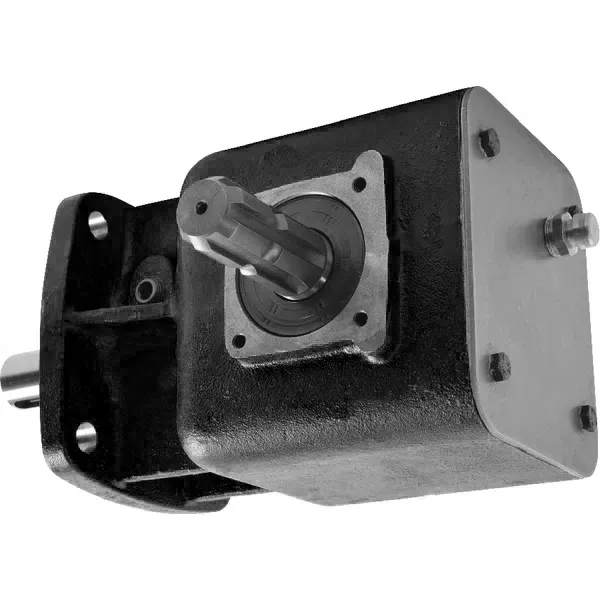

The rotary mower gearbox LF-151A is a type of gearbox that is specifically designed for use with rotary mowers. It is a custom-made gearbox that is engineered for high-power transmission at low speed. It is a high-performance gearbox that can withstand heavy loads and tough working conditions.The rotary mower gearbox LF-151A features a durable cast iron housing that is designed to protect the internal components from dust, debris, and other environmental factors. The gearbox has a 1:3 gear ratio that enables high torque output for the blades. It also has a heavy-duty input shaft that fits most standard PTO shafts and a large output shaft that connects directly to the rotary mower's blades. It is known for its durability, ease of maintenance, and high performance, making it a popular choice among professionals and homeowners alike.

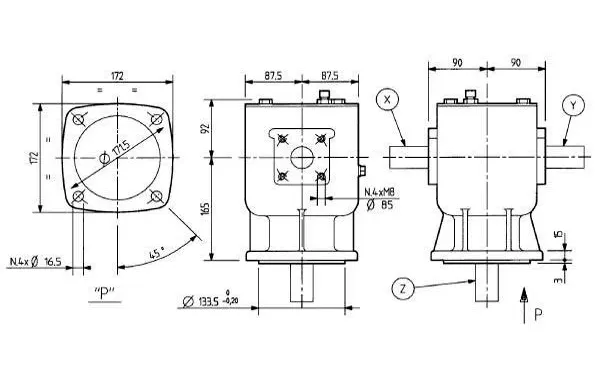

▍Specifications of Rotary Mower Gearbox LF-151A (1:3)

Product Description	Rotary Mower Gearboxes - Replacement of Comer Gearbox LF-151A 1:3
Product details	All gearboxes are supplied without oil. First, the oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year. Contact us for power at a different RPM.
Application range	Mowers
Consists of	Gearbox Without oil
Contains oil	No
Max. oil capacity	1.3 l
Max. oil change interval	500 h
Oil SAE viscosity grade	80W-90
Housing material	Cast iron GG25
Weight	21.5 kg
Gear arrangement Increasing	21 - 22
Input power kW / HP Increasing	33.1 / 45 kW/HP
Input shaft Increasing	Y
Output Torque DaNm Increasing	18.9 daNm
Ratio Increasing	1: 3
Ratio Reducing	3: 1

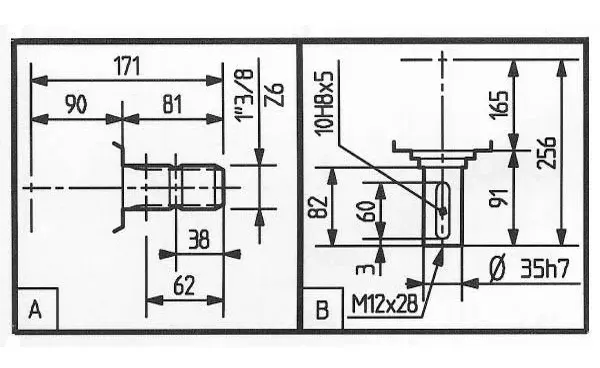

Shaft Y	1 3/8" (6) (A)
Shaft Z	35 (B)

▍Advantages of Rotary Mower Gearbox LF-151A (1:3)

The rotary mower gearbox LF-151A has several advantages, which make it a preferred option for use in rotary mowers. Some of these advantages include:High Efficiency: Rotary mower gearbox LF-151A is efficient in transmitting power from the tractor to the mower. This results in a high performance, reducing the time required to mow large fields.Smooth Operation: With rotary mower gearbox LF-151A, the mower operates smoothly, with minimal vibration. This results in a comfortable working experience for the operator.Enhanced Durability: Rotary mower gearbox LF-151A is designed to be durable, with high-quality components that can withstand rigorous use. This ensures that the gearbox lasts longer and requires less maintenance.Easy to Maintain: Rotary mower gearbox LF-151A is easy to maintain since they require minimal lubrication and are designed for easy access.Reduced Noise: Rotary mower gearbox LF-151A produce less noise during operation, making them ideal for use in residential areas, schools, and hospitals.Versatile: Rotary mower gearbox LF-151A is versatile and can be used on different types of mowers, depending on the size of the field and the type of terrain.Reduced Wear and Tear: Rotary mower gearbox LF-151A reduces wear and tear on the mower, resulting in less damage to the blades and cutting edge.Overall, the rotary mower gearbox LF-151A is the essential component that improves the performance, reliability, and longevity of a mower.

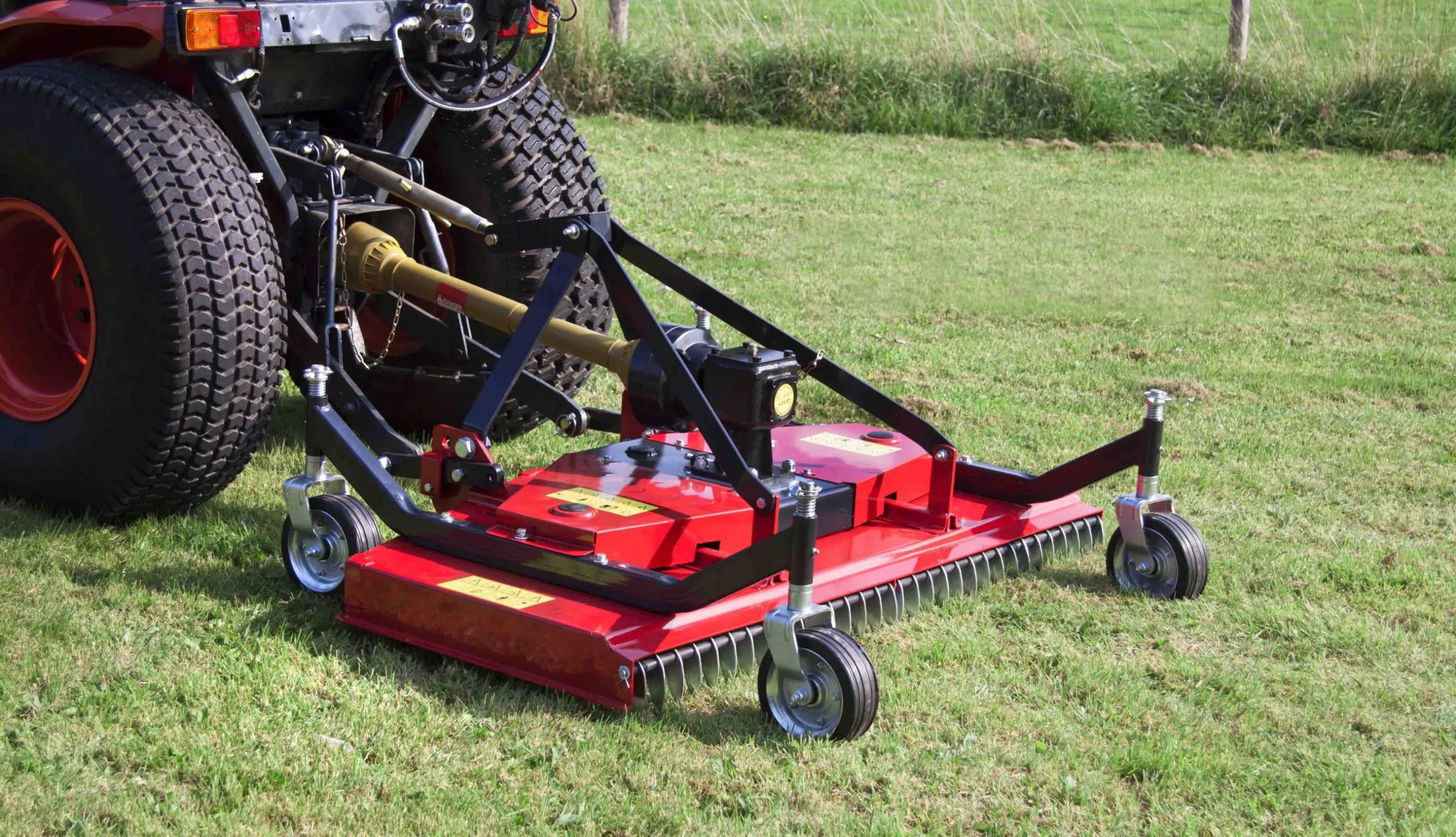

▍Applications of Rotary Mower Gearbox LF-151A (1:3)

The rotary mower gearbox LF-151A is suitable for use in a wide range of applications, including:Lawn mowers: This rotary mower gearbox LF-151A can be used in lawn mowers for residential or commercial use. It is ideal for mowing large fields with precision and efficiency.Tractor-mounted mowers: The rotary mower gearbox LF-151A can be mounted on tractors and used for mowing large fields, orchards, and vineyards.Agricultural fields: The rotary mower gearbox LF-151A can be used with rough-cut mowers and rotary cutters to maintain agricultural fields and pastures.Public spaces: This rotary mower gearbox LF-151A is suitable for use in public spaces such as schools, hospitals, and parks due to its noise reduction features.Landscaping: The rotary mower gearbox LF-151A can be used for landscaping needs such as hedge trimming, bush clearing, and brush cutting.Overall, the rotary mower gearbox LF-151A can be used in a variety of applications and is an excellent choice for those looking to increase the efficiency, reliability, and longevity of their mowers.

▍Rotary Mower Gearbox Replacement Operation Steps

Here are the general steps for replacing a rotary mower gearbox:Disconnect the power: Ensure power to the mower is shut off, and detach the spark plug to prevent accidents during the replacement process.Remove the blades and guards: Loosen the bolts and nuts holding the blade and guards, remove them from the rotary mower gearbox, and set them aside.Remove the old gearbox: locate the rotary mower gearbox and remove the bolts or screws holding it in place. Some rotary mower gearboxes might have nuts holding them in place instead of bolts. Carefully remove the old rotary mower gearbox.Install the new gearbox: Align the new rotary mower gearbox with the mounting bolts and attach it to the deck of the mower, tightening the bolts or nuts accordingly.Reinstall the blades and guards: Reinstall the removed blades and guards and ensure they are adequately tightened.Check the oil level: Check the rotary mower gearbox's oil level and add lubricant where necessary to ensure smooth operation.Test the mower: After replacement, start up the mower and test it on different terrains to check for proper operation.Note: these are general steps. Consult your specific rotary mower gearbox manual for detailed and precise instructions for the proper installation and replacement of your gearbox.

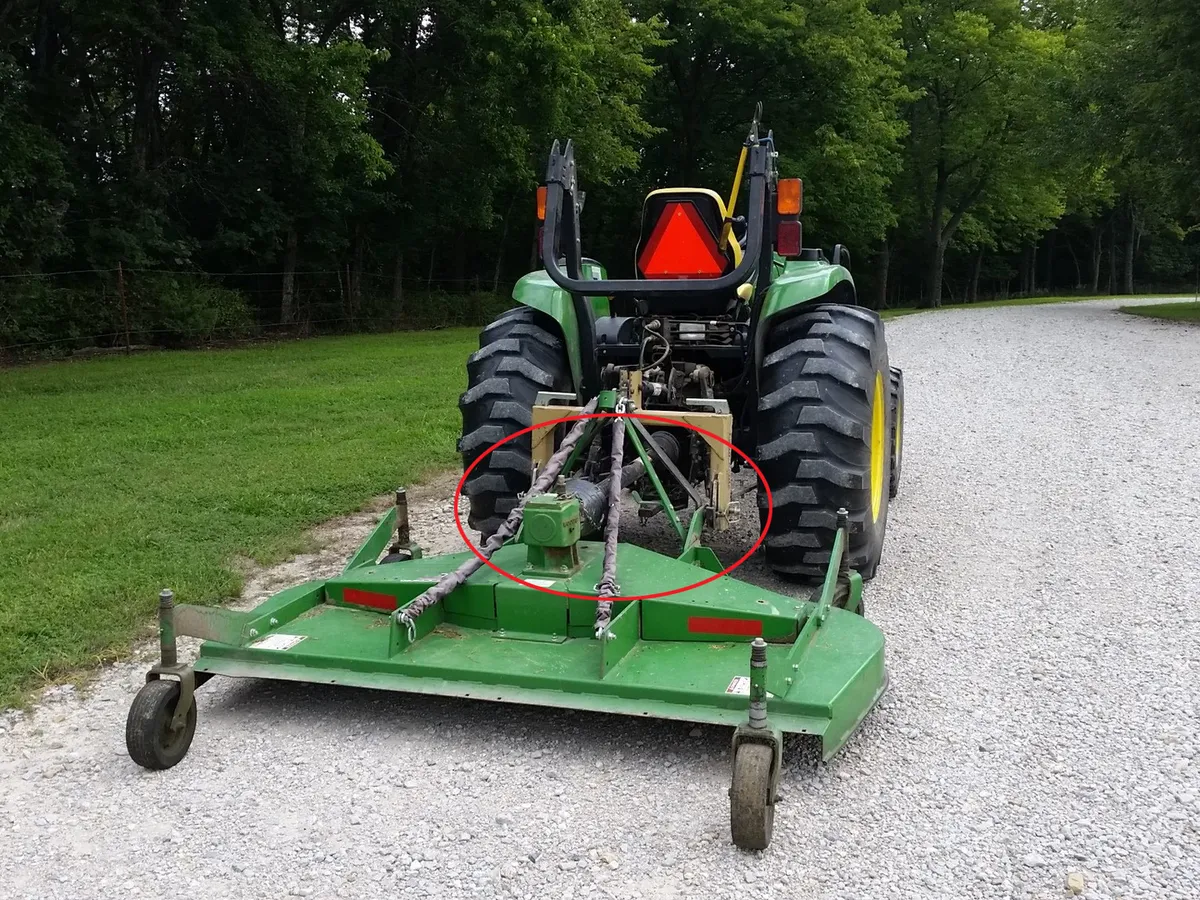

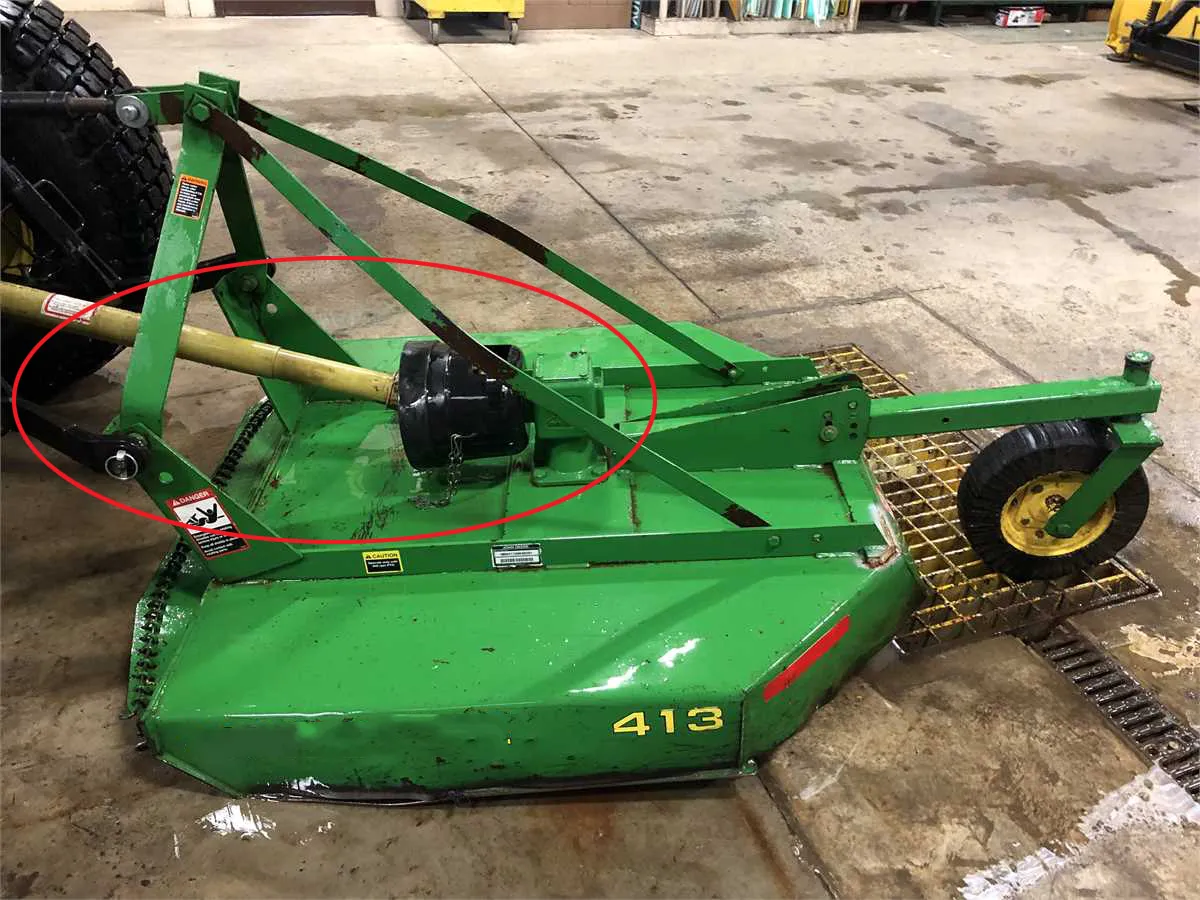

▍Agricultural PTO Shaft for Rotary Mower Gearbox

An agricultural PTO (Power Take Off) shaft is a vital component of a rotary mower gearbox. It is used to provide the power needed to turn the gearbox and drive the rotary mower. The shaft transmits power from the tractor to the rotary mower gearbox and is commonly used in agricultural settings.The PTO shaft is designed to withstand the rigors of use in tough agricultural environments. It is built to handle high torque loads and to resist wear and tear due to constant use. This makes it ideal for use in conjunction with a rotary mower gearbox.When selecting a PTO shaft for use with a rotary mower gearbox, it is important to choose a shaft that is the correct length for your application. It should be long enough to connect the tractor to the rotary mower gearbox but not so long as to create excessive wear on the shaft.In addition to length, it is important to consider the design of the PTO shaft. Some designs feature a telescoping shaft that can be adjusted to fit a wider range of applications. Others feature a sliding yoke that allows for greater flexibility and easier connection to the rotary mower gearbox.Overall, an agricultural PTO shaft is an essential component of a rotary mower gearbox in agricultural applications. By providing the power needed to turn the gearbox and drive the mower, it helps to ensure reliable operation and optimal performance.

▍We Also Provide Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearbox, fertilizer spreader gearboxes, lawn mower gearboxes, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, feed mixer gearboxes, flail mower gearboxes, round baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, micro tiller gearboxes, gearbox for rotary rakes, gearbox for hay tedders, etc. If you want to buy flail mower gearboxes, please get in touch with us.
