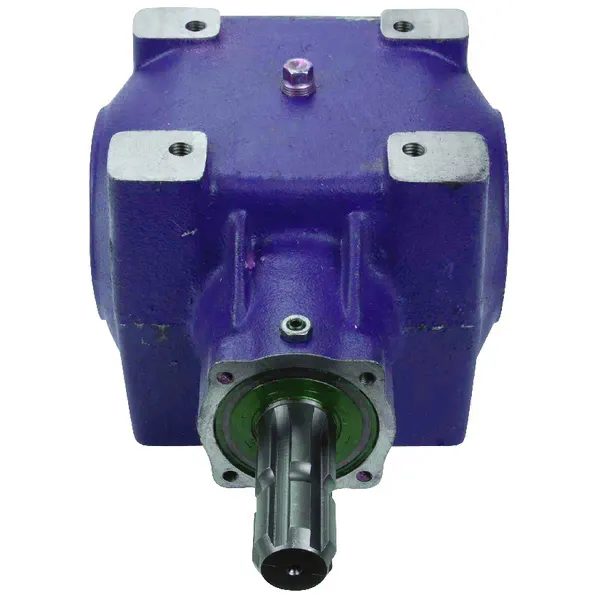

Rotary Tiller Gearbox - Replacement of Comer Code TB-27C

Rotary Tiller Gearbox - Replacement of Comer Code TB-27C

The TB-27C gearbox is a type of rotary tiller gearbox that is designed to be used with rotary tillers that have a power output of up to 15 horsepower. The rotary tiller gearbox is made of high-quality materials and is designed to be durable and long-lasting. It is also easy to install and maintain.. It is a high-performance gearbox that is designed to provide reliable and efficient power transmission for rotary tillers.The rotary tiller gearbox is designed to be easy to install and maintain, with a simple and robust design that minimizes the risk of failure. It is also designed to operate quietly, which can be important in applications where noise levels need to be kept to a minimum. The rotary tiller gearbox TB-27C is a popular choice for rotary tillers because it is a reliable and efficient agricultural gearbox. It is also a good value for the price. If you are looking for a reliable and efficient gearbox for your rotary tiller, the rotary tiller gearbox TB-27C is a good option to consider.

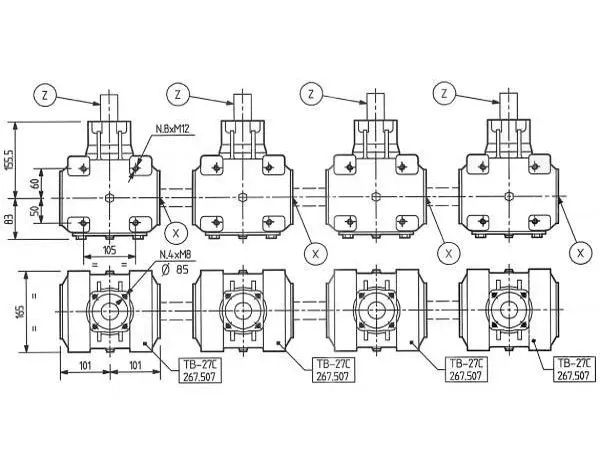

▍Specifications of Rotary Tiller Gearbox TB-27C

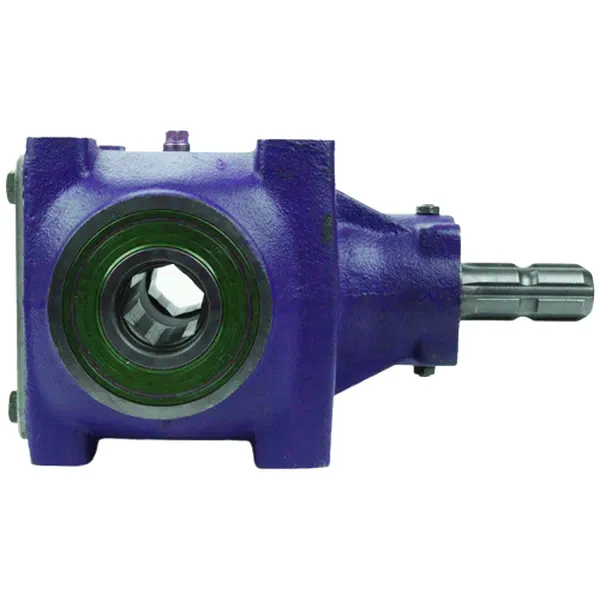

Description	Rotary Tiller Gearbox - Replacement of Comer Gearbox TB-27C
Application	Various (agricultural) applications Manure Spreaders Rotary Tillers
Consists of	Gearbox Without oil
Technical information	If you have any questions regarding performance at different speeds, please do not hesitate to contact us. When using it for the first time, replace the oil after 50 operating hours.
Max. input power	40.5 kW
Max. output torque	693 nm
Contains oil	No
Max. oil capacity	1.1 l
Max. oil change interval	500 h
Oil SAE viscosity grade	80W-90
Housing material	Cast iron GG25
Weight	39.5 kg

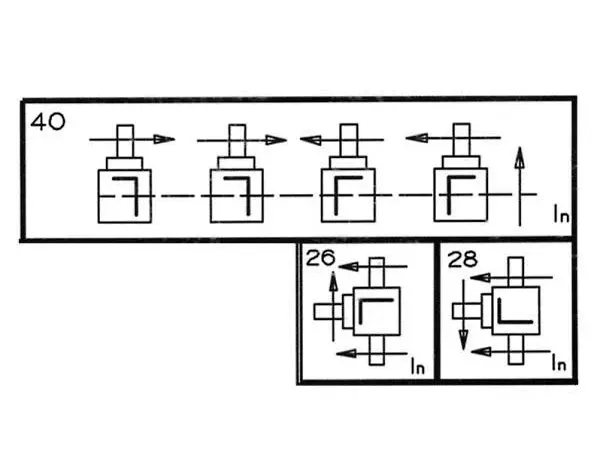

Gear arrangement	26
Ratio	1:1
Input shaft	Z
Shaft X	1 3/8" (6) (C)
Shaft Z	1 3/8" (6) (A)

▍Parts of Rotary Tiller Gearbox TB-27C

The TB-27C rotary tiller gearbox is made up of several parts that work together to provide reliable and efficient power transmission. Here are some of the main parts of the rotary tiller gearbox:1. Housing: The housing is the main body of the rotary tiller gearbox. It is made of metal and is designed to protect the internal components of the gearbox.2. Input shaft: The input shaft is the shaft that transfers power from the engine to the rotary tiller gearbox. It is made of metal and is connected to the engine by a clutch.3. Output shaft: The output shaft is the shaft that transfers power from the gearbox to the rotary tiller. It is made of metal and is connected to the rotary tiller by a drive belt.4. Gears: The gears are the parts of the rotary tiller gearbox that transmit power from the input shaft to the output shaft. They are made of metal and are designed to mesh together to create a smooth transmission of power.5. Bearings: The bearings are the parts of the rotary tiller gearbox that support the shafts and gears. They are made of metal and are designed to reduce friction and wear.6. Seals: The seals are the parts of the rotary tiller gearbox that prevent oil from leaking out. They are made of rubber or plastic and are designed to create a watertight seal.The rotary tiller gearbox TB-27C is a complex piece of machinery with many different parts. Each part plays an important role in the operation of the gearbox. If one part fails, it can cause the entire rotary tiller gearbox to fail. It is important to keep all of the parts of the gearbox clean and lubricated to ensure that it operates properly.

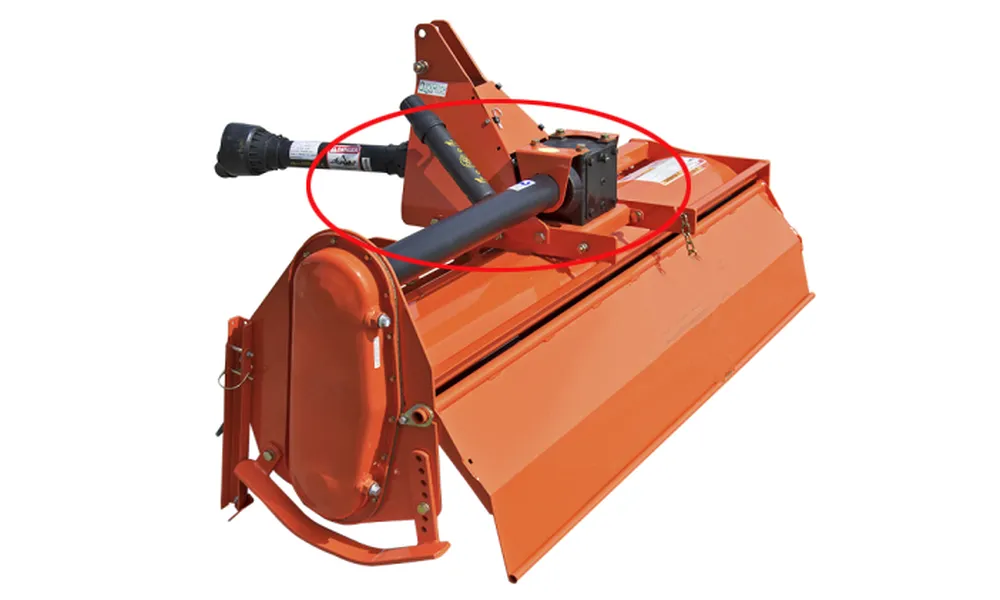

▍Benefits of Using the Rotary Tiller Gearbox

Using a rotary tiller gearbox offers several benefits, including:Efficient power transmission: The rotary tiller gearbox efficiently transmits power from the power source to the rotary tiller, allowing for efficient operation and reduced energy consumption.High torque capacity: The rotary tiller gearbox is designed to handle high torque loads, making it ideal for use in rotary tillers.Customizable: The rotary tiller gearbox can be customized to meet the specific needs of a particular rotary tiller application. This includes options such as different gear ratios, output shaft configurations, and motor mounting options.Low noise: The rotary tiller gearbox is designed to operate quietly, which can be important in applications where noise levels need to be kept to a minimum.Durability: Rotary tiller gearboxes are designed to be durable and long-lasting, even in harsh environments.Improved performance: A rotary tiller gearbox can improve the performance of a rotary tiller, allowing for more efficient and effective tilling.Versatility: Rotary tiller gearboxes can be used in a variety of applications, including agriculture, landscaping, and construction.

▍How to Install the Rotary Tiller Gearbox to the Rotary Tiller?

Here are the general steps to install the rotary tiller gearbox to the rotary tiller:Prepare the rotary tiller: Before installing the rotary tiller gearbox, make sure the rotary tiller is properly prepared. This may include attaching the tines and adjusting the height of the tiller.Position the gearbox: Position the rotary tiller gearbox in the desired location on the rotary tiller. Make sure the input shaft of the gearbox is aligned with the power source, such as a tractor’s PTO shaft.Attach the gearbox mounting flange: Attach the gearbox mounting flange to the rotary tiller using the appropriate bolts and hardware. Make sure the flange is securely attached to the tiller.Connect the input shaft: Connect the input shaft of the rotary tiller gearbox to the power source, such as a tractor’s PTO shaft. This may require attaching a PTO shaft to the rotary tiller gearbox.Connect the output shaft: Connect the output shaft of the gearbox to the rotary tiller’s drive system. This may require attaching a chain or belt to the gearbox.Test the gearbox: Once the rotary tiller gearbox is installed, test it to make sure it is operating properly. This may include running the tiller and checking for any unusual noises or vibrations.Adjust as necessary: If the rotary tiller gearbox is not operating properly, make any necessary adjustments to the installation or configuration of the gearbox.Overall, installing a rotary tiller gearbox requires careful attention to detail and following the manufacturer’s instructions. It is important to take the necessary safety precautions and to test the gearbox to ensure it is operating properly.

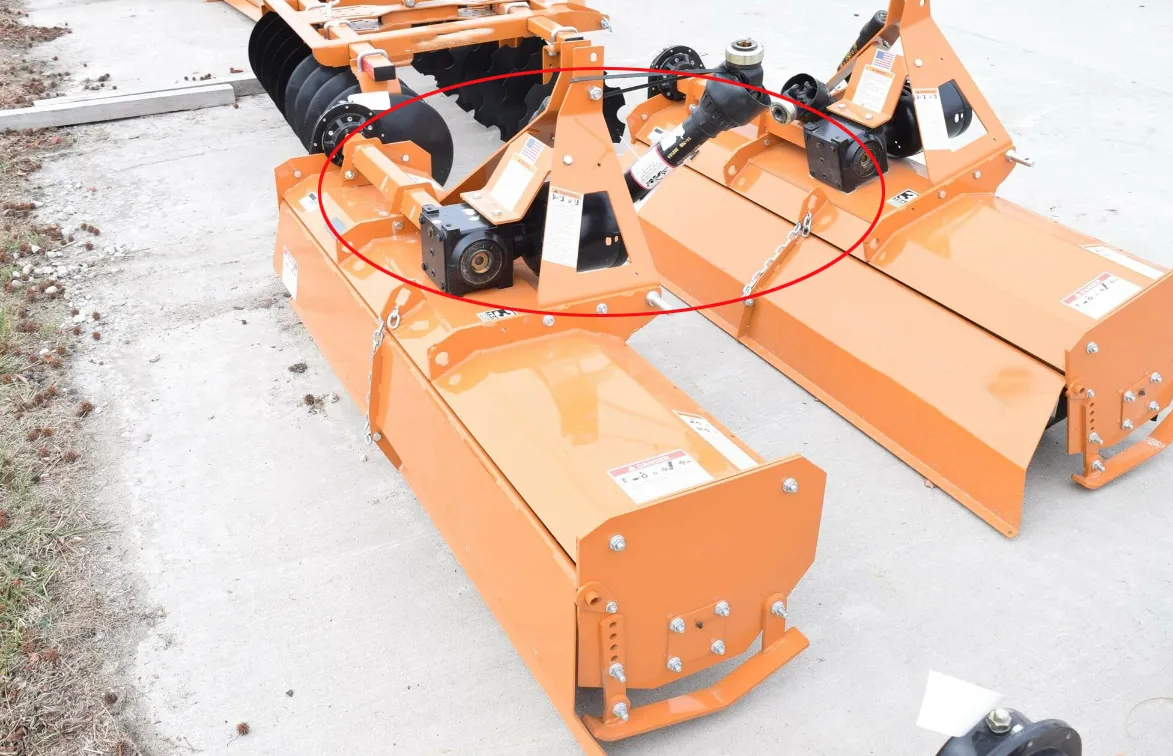

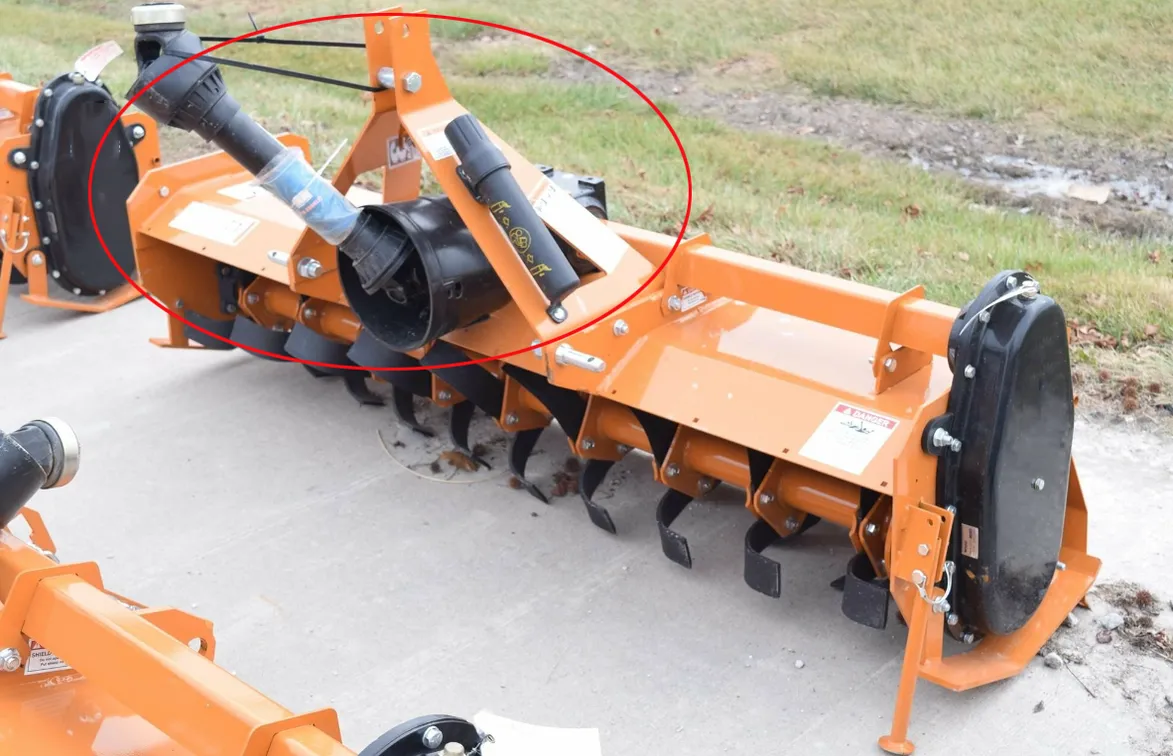

▍PTO Shaft for Rotary Tiller Gearbox

A PTO shaft is a shaft that transfers power from the tractor's power take-off (PTO) to the rotary tiller gearbox. The PTO shaft is typically made of steel and has two splined ends that mate with the splined shafts on the tractor and the rotary tiller gearbox. The PTO shaft is usually equipped with a slip clutch that helps to protect the tractor and the rotary tiller from damage if the tiller gets overloaded.To install a PTO shaft, first make sure that the tractor and the rotary tiller are turned off and the PTO is disengaged. Then, connect the splined end of the PTO shaft to the splined shaft on the tractor. Next, connect the other splined end of the PTO shaft to the splined shaft on the rotary tiller gearbox. Finally, engage the PTO and start the tractor. The PTO shaft will now be transferring power from the tractor to the rotary tiller gearbox.To remove a PTO shaft, first make sure that the tractor and the rotary tiller are turned off and the PTO is disengaged. Then, disconnect the splined end of the PTO shaft from the splined shaft on the tractor. Next, disconnect the other splined end of the PTO shaft from the splined shaft on the rotary tiller gearbox. Finally, store the PTO shaft in a safe place.Here are some tips for choosing the right PTO shaft for your rotary tiller:(1) Make sure that the PTO shaft is the correct length for your tractor and rotary tiller.(2) Make sure that the PTO shaft has the correct spline count for your tractor and rotary tiller.(3) Make sure that the PTO shaft is equipped with a slip clutch.(4) Make sure that the PTO shaft is made of high-quality materials.(5) Make sure that the PTO shaft is from a reputable manufacturer.Here are some troubleshooting tips for PTO shafts:(1) If the PTO shaft is not turning, check to make sure that the tractor's PTO is engaged.(2) If the PTO shaft is making noise, check to make sure that the slip clutch is working properly.(3) If the PTO shaft is vibrating, check to make sure that the shaft is properly aligned.(4) If the PTO shaft is leaking, check to make sure that the seals are in good condition.

▍We also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearboxes, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, feed mixer gearboxes, flail mower gearboxes, round baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, gearbox for rotary rakes, gearbox for hay tedders, etc. If you want to buy rotary mower gearboxes, please get in touch with us.
