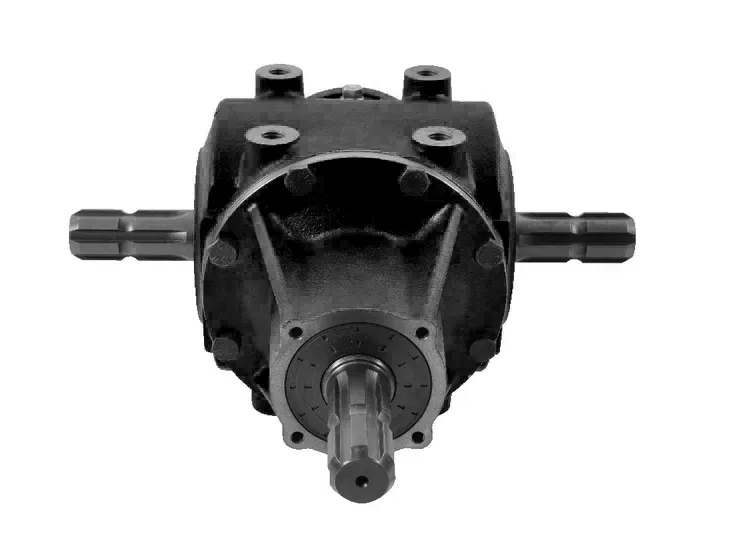

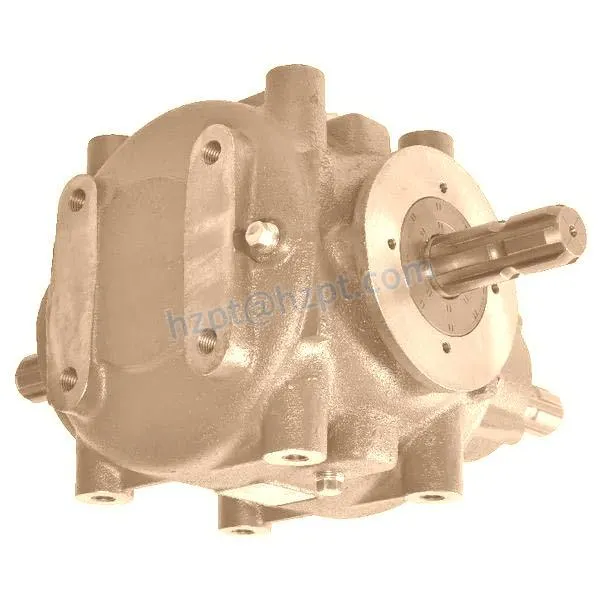

Rotary Tiller Gearboxes - Replacement of Comer Code T-292B 1.86:1

Rotary Tiller Gearboxes - Replacement of Comer Code T-292B 1.86:1

Rotary tiller gearbox T-292B is a type of gearbox that is used in rotary tillers. It is designed to transfer power from the driveshaft of the tractor to the tines of the rotary tiller. The rotary tiller gearbox T-292B is a compact gearbox that is typically mounted directly onto the rotary tiller, and it consists of a housing, a set of gears, and bearings. The rotary tiller gearbox helps to convert the high-speed, low-torque rotational power of the tractor's driveshaft into the slower-speed, higher-torque rotational power that is required to turn the tines of the rotary tiller. This allows the rotary tiller to break up soil and prepare seedbeds efficiently. The rotary tiller gearbox T-292B is known for its durability and reliability, and it is widely used in a variety of agricultural applications around the world.

▍Specifications of Rotary Tiller Gearbox T-292B (1.86:1)

Description	Rotary Tiller Gearboxes - Replacement of Comer Gearbox T-292B (1.86:1)
Application	Various (agricultural) applications Mowers Rotary tillers
Consists of	Gearbox Without oil
Technical information	If you have any questions regarding performance at different speeds, please do not hesitate to contact us. When using it for the first time, replace the oil after 50 operating hours.
Contains oil	No
Max. oil capacity	2.5 l
Max. oil change interval	500 h
Oil SAE viscosity grade	80W-90
Housing material	Cast iron GGG40
Weight	33 kg
Gear arrangement Increasing	33 - 34
Input power kW / HP Increasing	58.9 / 80 kW/HP
Input shaft Increasing	Z
Output Torque DaNm Increasing	54.2 daNm
Ratio Increasing	1: 1.86
Ratio Reducing	1.86: 1
Shaft X	1 3/8" (6) (B)
Shaft Y	1 3/8" (6) (B)
Shaft Z	1 3/8" (6) (A)

▍Why Choose Our Rotary Tiller Gearbox T-292B (1.86:1)?

The advantages of our rotary tiller gearboxes include the following:1. Efficient: Rotary tiller gearboxes are highly efficient in tilling and cultivating the soil. Their strong rotating blades can break down tough soils with ease.2. Durable: Rotary tiller gearboxes are sturdy in construction and built to last. They can withstand harsh and demanding conditions, ensuring their longevity.3. Versatile: Rotary tiller gearboxes have many different uses, which include tilling, mixing, and cultivating the soil. They can be used in different fields, such as agriculture, horticulture, and landscaping.4. Compact size: The compact design of the rotary tiller gearbox makes it easy to install in tight spaces. It is also easier to transport and store when it is not in use.5. Low maintenance: Rotary tiller gearboxes require minimal maintenance, which makes them a cost-effective option for farmers and gardeners. They need little to no lubrication or inspections, saving time and money.6. Affordable: Rotary tiller gearboxes are generally reasonably priced, making them an economical option for buyers. Their efficiency, durability, and versatility make them a sound investment for farmers and gardeners.

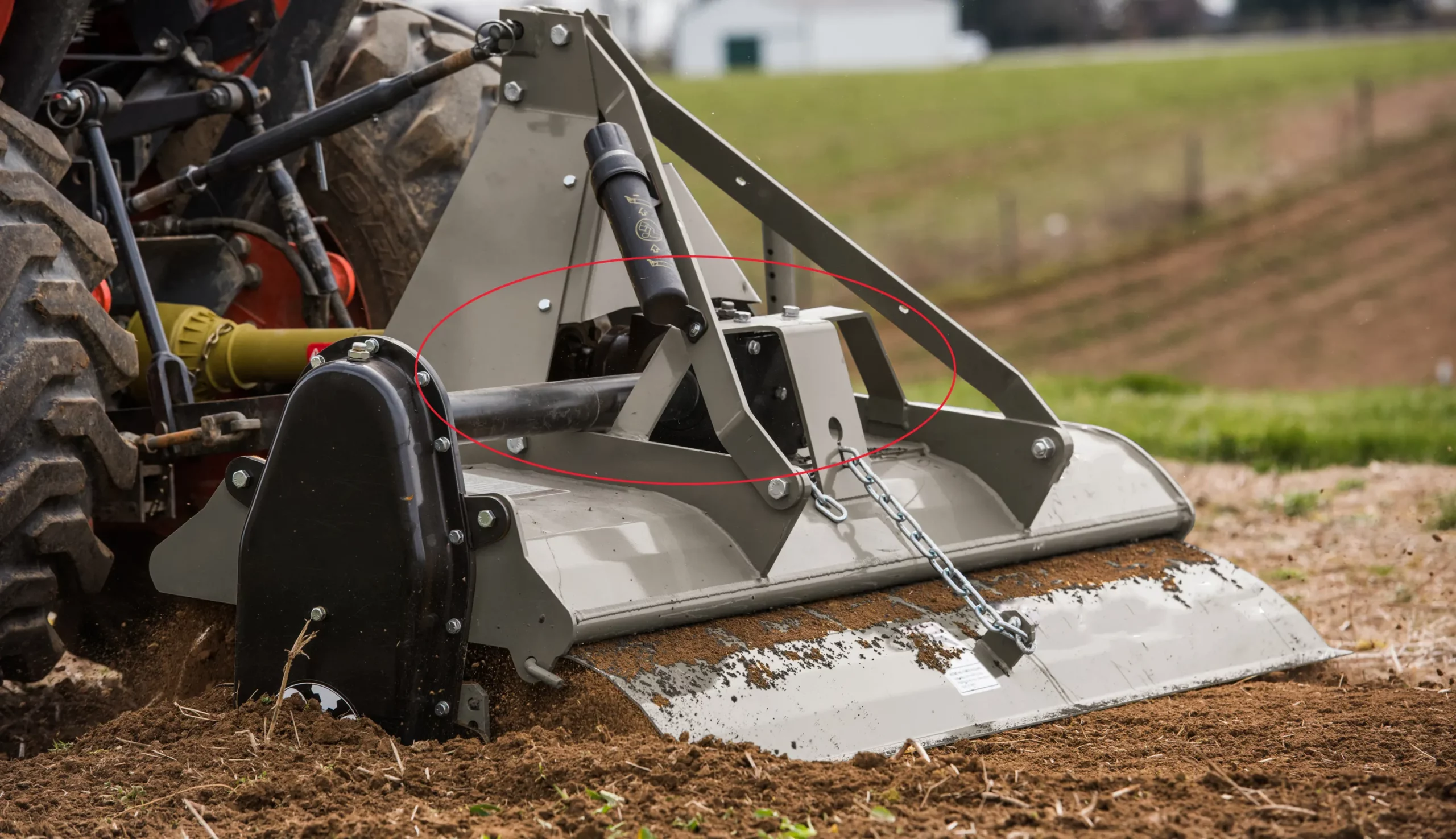

▍How to Attach the Rotary Tiller Gearbox to Rotary Tiller?

Attaching the rotary tiller gearbox to the rotary tiller is a crucial step to ensure that the tiller operates correctly. Here are the steps for attaching the rotary tiller gearbox to the rotary tiller:1. Position the rotary tiller gearbox in line with the tractor PTO shaft. The rotary tiller gearbox should be on the same side as the tiller attachment.2. Slide the rotary tiller gearbox input shaft onto the tiller attachment shaft. Make sure that the gearbox input shaft and the tiller attachment shaft are aligned.3. Secure the rotary tiller gearbox input shaft to the tiller attachment shaft using the necessary hardware. Check the manufacturer's instructions regarding the torque settings for the bolts.4. Connect the PTO shaft to the tractor PTO output shaft, sliding it carefully into place. Make sure that the PTO shaft is fully engaged and locked into place.5. Connect the other end of the PTO shaft to the gearbox PTO input shaft. Make sure that the connector pins match correctly.6. Secure the PTO shaft to the rotary tiller gearbox PTO input shaft using the necessary hardware.7. Adjust the tiller's depth and other settings as needed, based on the working conditions and soil type.8. Turn on the engine and operate the tiller at a low speed to make sure that it's running correctly.

▍Rotary Tiller Gearbox Oil Level Check

It's essential to check the oil level of your rotary tiller gearbox regularly to ensure that it stays in good working condition. Here are the steps to check the rotary tiller gearbox oil level:1. Park the tiller on a flat surface and turn off the engine.2. Locate the oil level plug. It's usually located near the bottom of the rotary tiller gearbox.3. Remove the oil level plug and wipe the dipstick that's attached to it with a clean rag or paper towel.4. Reinsert the dipstick, but don't screw it in. Instead, let it rest on top of the rotary tiller gearbox oil level plug.5. Remove the dipstick again and check the oil level. The oil should be between the "MIN" and "MAX" marks on the dipstick.6. If the oil level is low, add the appropriate type of oil, based on the manufacturer's recommendations, until it reaches the correct level.7. Once you have filled the rotary tiller gearbox to the correct level, replace the oil level plug and tighten it securely.It's recommended to check the oil level of the rotary tiller gearbox every 25 operating hours or at the beginning of each season to ensure reliable performance.

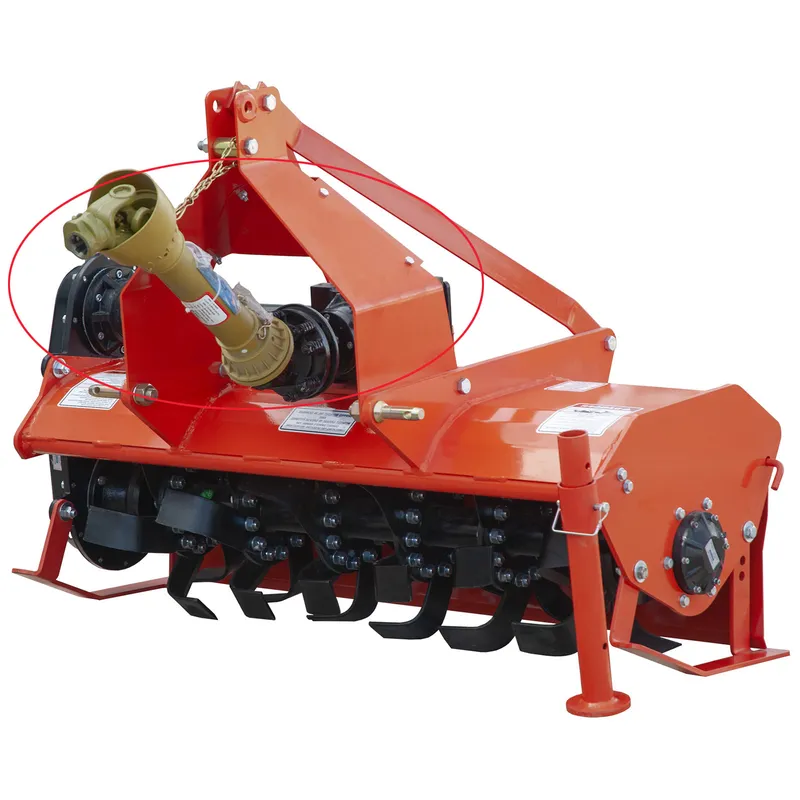

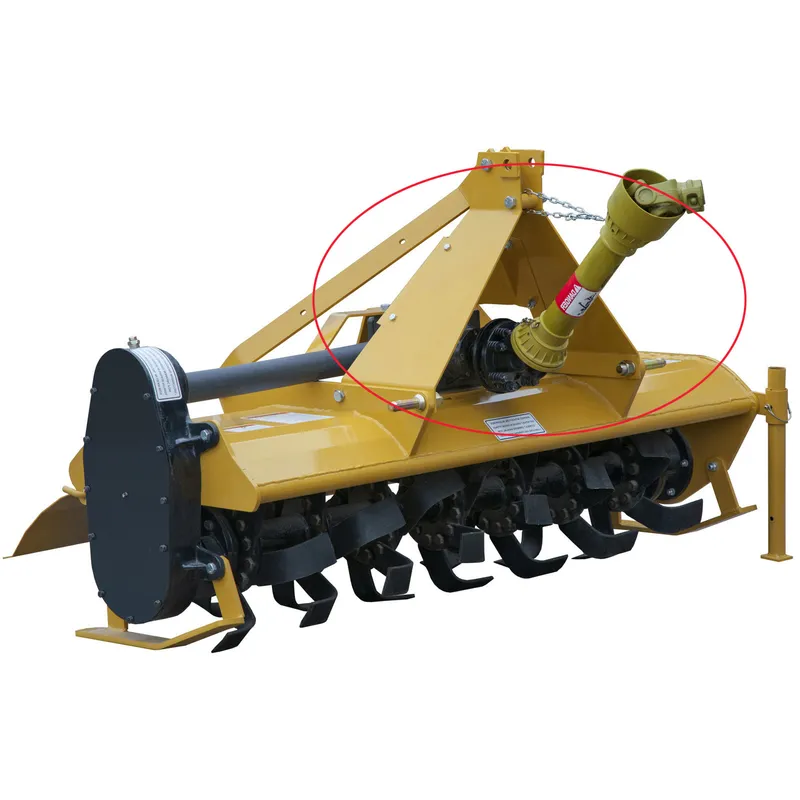

▍Agricultural PTO Shaft for Rotary Tiller Gearbox

The agricultural PTO shaft is a critical component of a rotary tiller gearbox system, which has many different uses in agriculture. The PTO shaft transfers the power from the tractor engine to the rotary tiller gearbox, allowing the blades to rotate and till the soil.The agricultural PTO shaft typically consists of a driveline, clutch, and gear system. The driveline transmits the power from the tractor to the rotary tiller gearbox, while the clutch allows the operator to engage and disengage the tiller as needed. The gear system changes the rotational speed to provide the appropriate torque to the tiller blades.When choosing an agricultural PTO shaft for your rotary tiller gearbox, it's essential to consider the following factors:1. Size: The PTO shaft must fit the tractor and rotary tiller gearbox properly. Make sure to measure the distance from the tractor PTO output shaft to the tiller gearbox input shaft carefully.2. Speed: The PTO shaft's rotational speed must match the rotary tiller gearbox's input speed. Check the manufacturer's specifications for the required speed and select a PTO shaft that can deliver the required power.3. Durability: Choose a PTO shaft made of high-quality materials that can withstand the harsh conditions of agricultural work.4. Safety: Make sure the PTO shaft is equipped with safety guards to prevent accidents.5. Compatibility: Ensure that the PTO shaft is compatible with the other components of the rotary tiller gearbox system.Overall, choosing the right agricultural PTO shaft for your rotary tiller gearbox is crucial for proper operation and safety. Consider carefully the specific needs of your farm and equipment before making a purchase.

▍We Also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearboxes, post hole digger gearbox, rotary tiller gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, feed mixer gearboxes, flail mower gearboxes, round baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearbox, gearbox for hay tedders, etc. If you want to buy rotary mower gearboxes, please get in touch with us.
