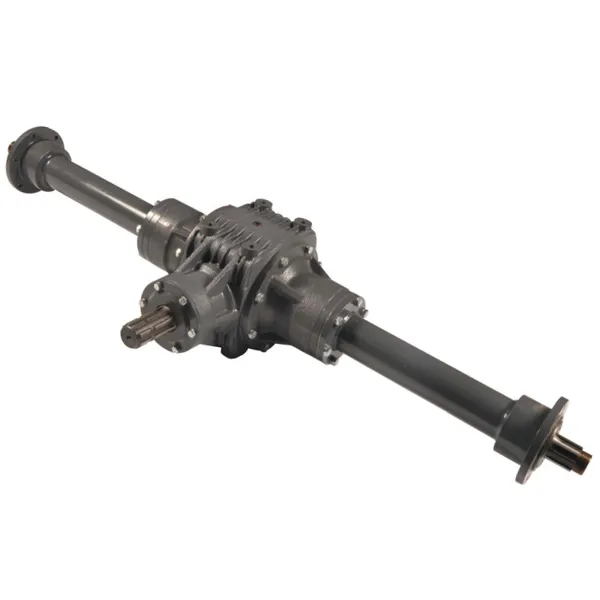

Round Baler Gearbox EP250-YJ for Round Baler and Harvester

Round Baler Gearbox EP250-YJ for Round Baler and Harvester

The Round Baler Gearbox EP250-YJ is an essential component designed for integration into round balers and harvesters, machinery widely used in agricultural operations for compressing and packaging various types of crop materials into cylindrical bales. This gearbox model is engineered to meet the demands of these machines, ensuring efficient and reliable operation.The EP250-YJ Round Baler Gearbox is responsible for transmitting mechanical power from the tractor's Power Take-Off (PTO) or harvester engine to the baler's or harvester's operational components. This includes driving mechanisms such as the rollers that form the round bales or the cutting and threshing components in harvesters. The gearbox regulates the operational speed and torque, ensuring that the machinery's components operate at optimal speeds for efficient and consistent baling or harvesting.

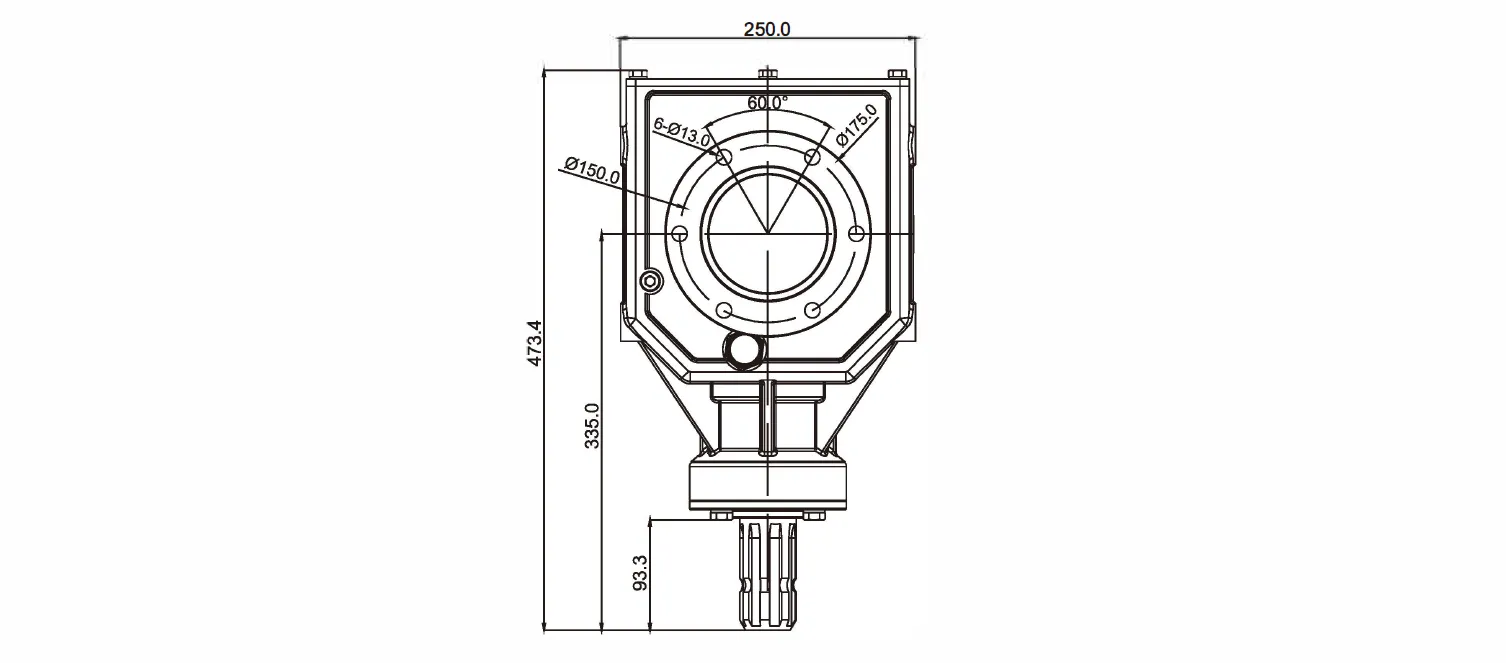

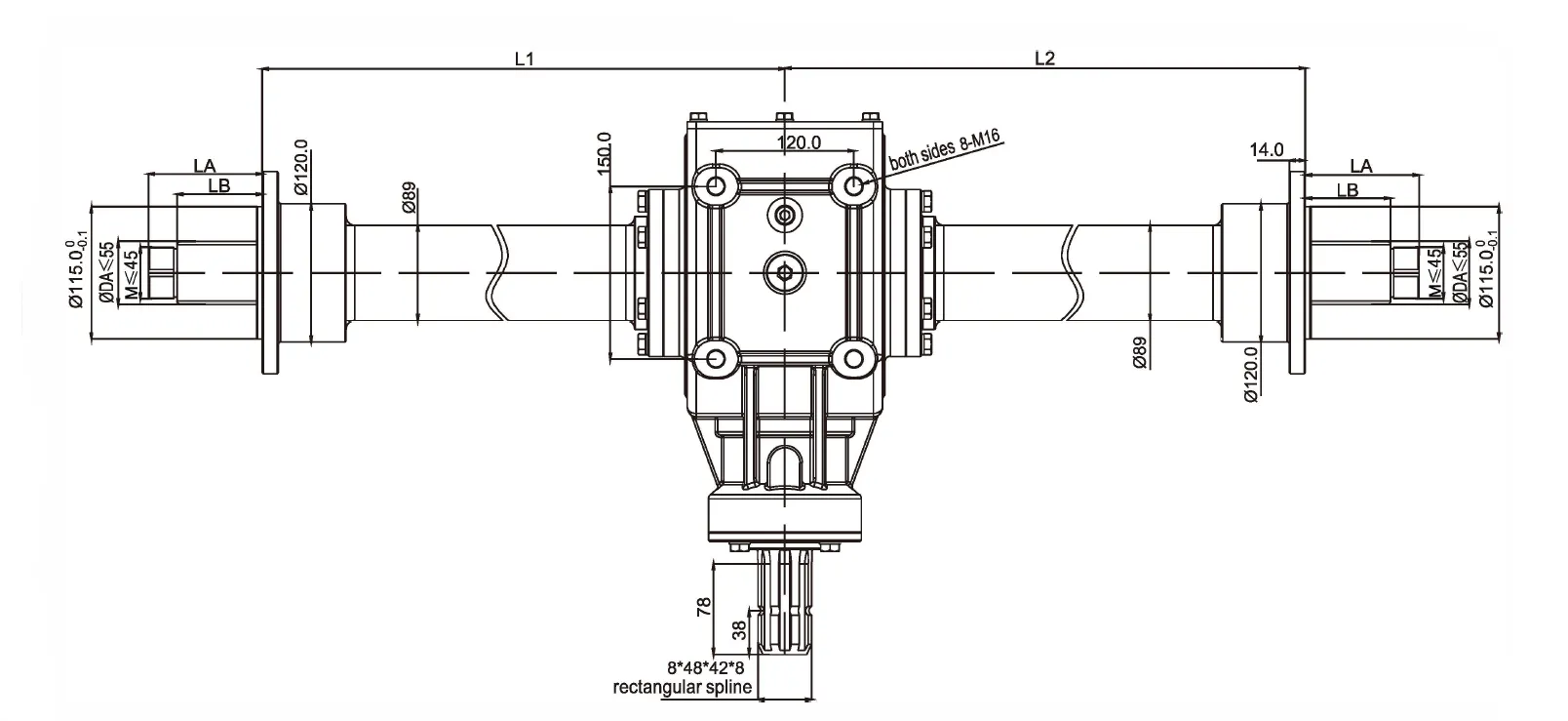

Round Baler Gearbox EP250-YJ Dimensions

Round Baler Gearbox EP250-YJ Technical Data

i		Suitable	Rpm input	Rpm output	KW(Nom)	KW(Max)	Toothing
			r/min	r/min	hp	hp
Decelerate	1.92:1	Round baler,harvester, etc	540	282	80	1800	Gleason HelicalTeeth
Remark: If you have any special require feel free let me know, we also accept custom.

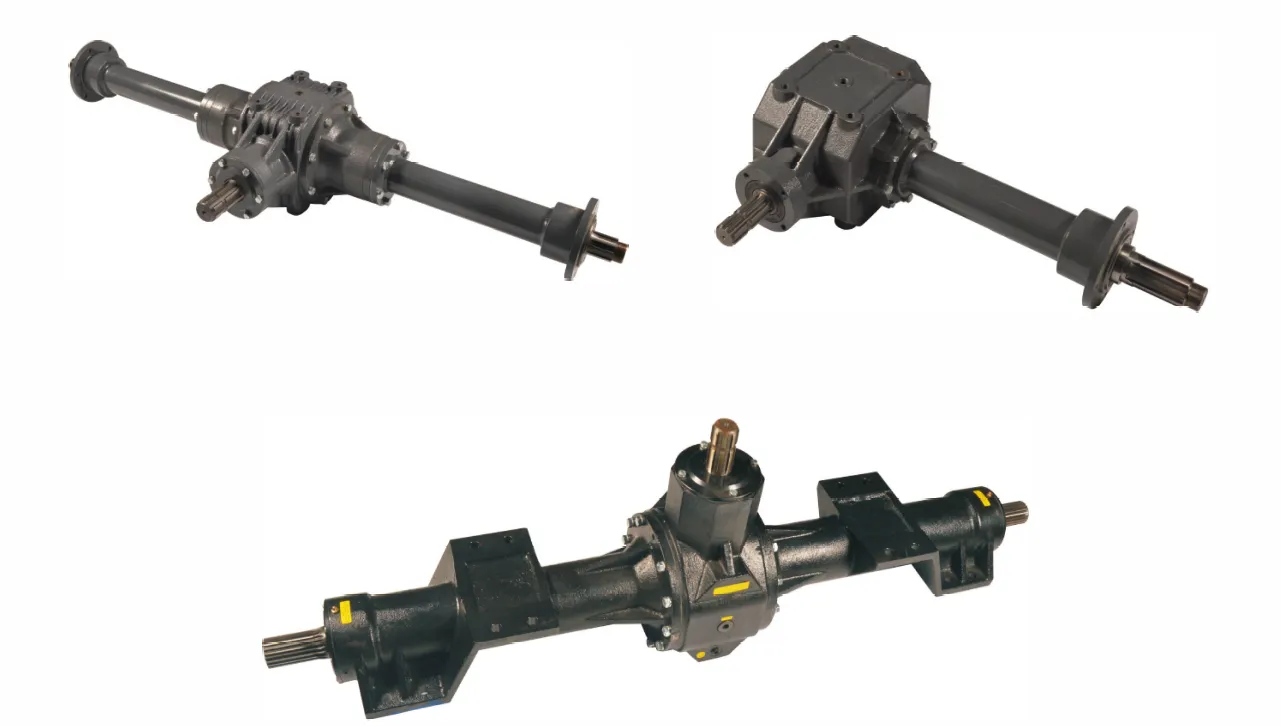

Round Baler Gearbox EP250-YJ Part Structure

The Round Baler Gearbox EP250-YJ, specifically designed for round balers and harvesters, comprises various components that work together to ensure the efficient operation and durability of the machinery. Understanding the structure of the gearbox is crucial for maintenance, troubleshooting, and ensuring optimal performance. Here's the primary components and their roles within the Round Baler Gearbox EP250-YJ:1. Housing: Encases and protects the internal components of the gearbox from external elements, dust, and debris.Typically constructed from high-strength materials like cast iron or heavy-duty steel for durability and to withstand the operational stresses.2. Gears: May include different types of gears such as spur gears, helical gears, or bevel gears, depending on the design and operational needs. Engage with each other to transmit and modify the power received from the tractor's PTO or harvester engine to the required speed and torque for the baler or harvester.3. Bearings: Positioned at pivotal points where components rotate or move. Facilitate smooth operation by reducing friction between the moving parts, thereby minimizing wear and extending the lifespan of the gearbox.4. Shafts: Input Shaft: Connects to the PTO of the tractor or the driving component of the harvester, receiving power. Output Shaft: Transfers the modified power from the gears to the operational components of the round baler or harvester, such as the rollers in balers or cutting mechanisms in harvesters.5. Seals: Prevent lubricant leakage and protect the internal components from contamination and external elements. Includes various types of seals and gaskets located at crucial points like shaft entries and housing joins.6. Lubrication System: Delivers lubricant to the gearbox's internal components, reducing friction, wear, and the risk of overheating. Typically includes an oil reservoir, channels or tubes for oil distribution, and filters to ensure the lubricant remains clean and effective.

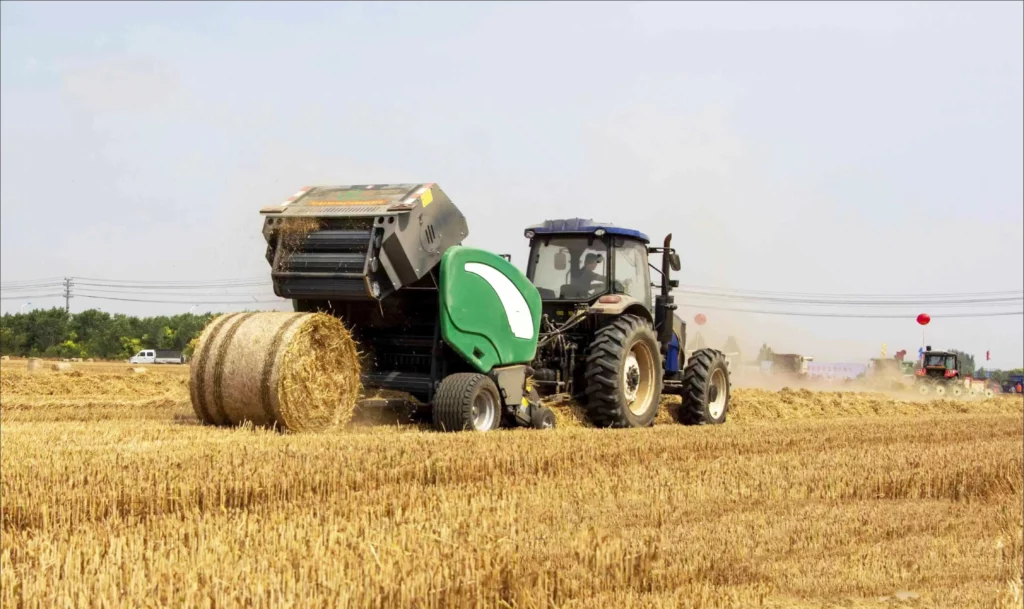

Round Baler Gearbox EP250-YJ Common Applications

The EP250-YJ round baler gearbox is commonly used in round balers and harvesters for various agricultural applications. Some of the common applications of this gearbox include:1. Round Baler: The EP250-YJ gearbox is a crucial component in round balers, which are used to collect and compress crops such as hay, straw, or silage into round bales. It facilitates the rotation and movement of components such as the pickup reel, feeding augers, bale chamber, and bale ejection system.2. Harvester: The gearbox is also utilized in harvesters, which are agricultural machines used for cutting, gathering, and processing crops in the field. In this context, the EP250-YJ round baler gearbox is involved in the operation of different parts of the harvester, including the cutting mechanism, crop conveyors, and bale formation systems.3. Crop Cutting Mechanism: The EP250-YJ round baler gearbox assists in driving the cutting mechanism, typically consisting of rotating blades or sickle bars, in both round balers and harvesters. It ensures smooth and efficient cutting of the crops, facilitating their subsequent processing and baling.4. Crop Feeding and Conveying: The gearbox helps drive the feeding augers or conveyor systems that transport the harvested crops from the cutting mechanism to the baling or processing components. It ensures a steady and controlled flow of crops, aiding in the bale formation or processing operation.5. Bale Formation and Ejection: The round baler gearbox EP250-YJ plays a vital role in the bale formation process. It powers the mechanisms responsible for compacting and shaping the crops into round bales within the bale chamber. Additionally, it assists in the ejection of the formed bales from the baler, allowing for continuous operation.6. Bale Wrapping or Processing: In certain balers or harvesters, the gearbox may also be involved in driving additional components for bale wrapping with plastic film or other processing activities, such as applying preservatives or additives to the bales.

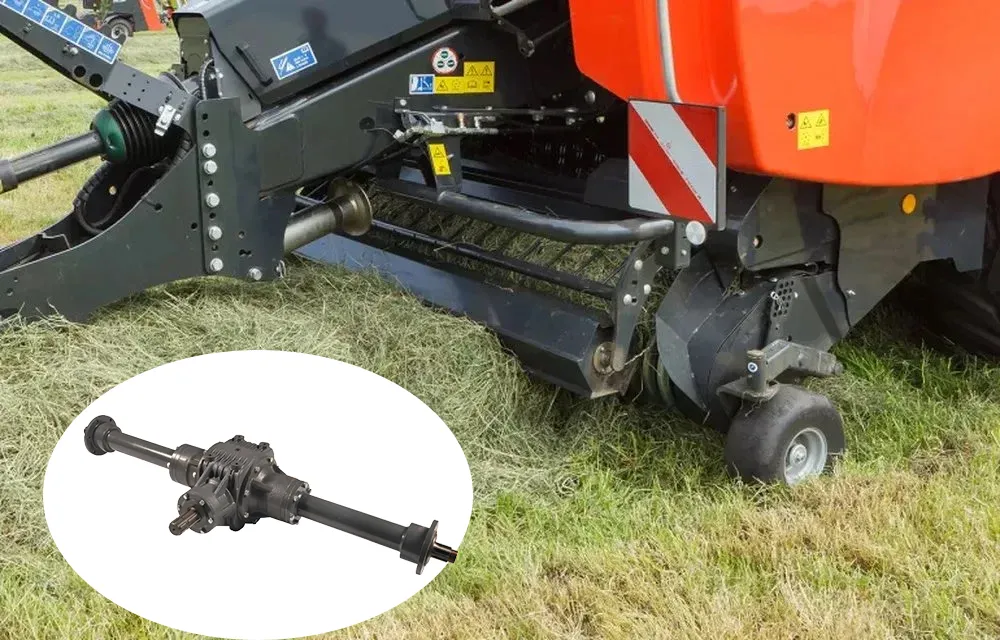

Round Baler Gearbox EP250-YJ Installation Operation

Installing and operating the Round Baler Gearbox EP250-YJ correctly is crucial for ensuring optimal performance and longevity of the equipment. Here are general guidelines for the installation and operation of the EP250-YJ gearbox in a round baler or harvester:Installation Steps:1. Read the Manuals: Before beginning, thoroughly read the manuals of the baler/harvester and the gearbox. Understand any specific instructions or safety warnings related to the EP250-YJ.2. Inspect the Gearbox: Check the gearbox for any signs of damage or wear that may have occurred during shipping. Confirm that all necessary parts and tools for the installation are available.3. Align the Gearbox: Position the gearbox so that its input shaft aligns properly with the Power Take-Off (PTO) shaft of the tractor or the driving shaft of the harvester.4. Securely Mount the Gearbox: Fasten the gearbox onto the baler or harvester using the appropriate bolts and brackets as specified by the manufacturer. Ensure all fastenings are tightened to the correct torque to prevent any movement or vibration during operation.5. Connect the PTO or Drive Shaft: Carefully connect the PTO shaft or the primary drive shaft of the harvester to the input shaft of the gearbox. Ensure the connection is secure and that any locking pins or collars are properly engaged.6. Safety Check: Verify that all safety guards and shields, especially those around the PTO shaft or moving parts, are in place and securely fastened. This is crucial to prevent accidents or injuries during operation.Operation Guidelines:(1) Pre-Operational Check: Before starting the baler or harvester, perform a comprehensive check to ensure that the gearbox and all connected components are secure and properly aligned.(2) Slow Engagement: Engage the PTO or drive slowly at first, and gradually increase to the operating speed. This gradual approach helps prevent sudden shocks or stresses on the gearbox.(3) Monitor Performance: During operation, keep an eye (and ear) on the gearbox's performance. Listen for any unusual noises or vibrations that might indicate an issue.(4) Operate Within Limits: Ensure that the operation stays within the specified limits for speed and torque as stated by the gearbox manufacturer. Exceeding these limits can cause excessive wear or damage.(5) Post-Operation Inspection: After operation, inspect the gearbox for any signs of overheating, leakage, or other issues. Address any problems before the next use.

Common Troubleshooting of the Round Baler Gearbox

Troubleshooting a round baler gearbox involves careful examination and maintenance practices to ensure smooth operation. Here's a detailed troubleshooting guide for common issues associated with a round baler gearbox:

1. Gearbox Produces Unusual Noises

Symptoms: Loud grinding, screeching, or clicking noises during operation. Troubleshooting:

• Begin by checking the gearbox oil level, as low levels can cause inadequate lubrication, leading to metal-on-metal contact that produces noise. Top up with the correct grade of oil if needed.
• Inspect the internal gears for wear or damage. Access the gearbox internals to look for any obvious signs of wear on the teeth or bearings, and replace any parts that appear worn out or damaged.
• Ensure all mounting bolts are securely tightened. Loose components can vibrate or move, creating additional noise.

2. Gearbox Overheats

Symptoms: Excessive heat from the gearbox, sometimes accompanied by smoke. Troubleshooting:

• Check the oil condition and level. Dirty or burnt oil can increase friction inside the gearbox, leading to overheating. Change the oil if it looks dirty or smells burnt.
• Ensure there is adequate airflow around the gearbox. Remove any debris blocking the vents or cooling fins to improve heat dissipation.
• Confirm that the baler is not being overloaded beyond its capacity, which can strain the gearbox and cause overheating.

3. Oil Leakage

Symptoms: Oil stains underneath the gearbox or on its exterior. Troubleshooting:

• Inspect the gearbox for any loose bolts or seals and tighten or replace them as needed. Often, vibrations can loosen parts over time, leading to leaks.
• Check all gaskets and seals for signs of wear or damage. Replace any that are deteriorated to prevent further leakage.
• Examine the gearbox housing for cracks or damage. Minor cracks can sometimes be welded, but severe damage may require replacing the gearbox housing.

4. Difficulty Engaging Gear

Symptoms: The gearbox is hard to engage, or the gears do not shift smoothly. Troubleshooting:

• Lubricate all linkage points and check for binding or corrosion in the shifting mechanism. Corrosion can impede the movement of the gear lever.
• Adjust the clutch or linkage if the baler is equipped with a manual clutch system. Incorrect adjustment can prevent gears from engaging properly.
• Inspect the internal clutch or synchronizers for wear. These components can wear out over time, making it difficult to engage gears smoothly.

5. Excessive Vibration

Symptoms: The baler shakes or vibrates more than usual during operation. Troubleshooting:

• Check the alignment and balance of the driveline and PTO shaft. Misalignment or an unbalanced shaft can transmit vibrations to the gearbox.
• Inspect the gearbox mountings and foundation for integrity. Repair or reinforce any weak or broken mounting points.
• Evaluate the condition of the gearbox's internal components. Worn bearings or a misaligned gear train can cause abnormal vibrations.

6. Reduced Operational Efficiency

Symptoms: The baler is less efficient, requiring more power to operate or failing to produce well-formed bales. Troubleshooting:

• Check for mechanical binding in the baler's drivetrain, which can place extra load on the gearbox. Make sure all moving parts are free from obstruction and well-lubricated.
• Inspect the baler's pickup and feeding mechanism for wear or maladjustment, which can affect the load on the gearbox.
• Regularly maintain and inspect all hydraulic systems if applicable, as hydraulic problems can also manifest as mechanical inefficiencies in the gearbox operation.

We Also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc.Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.
