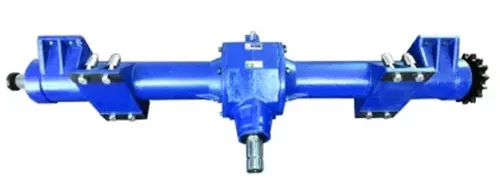

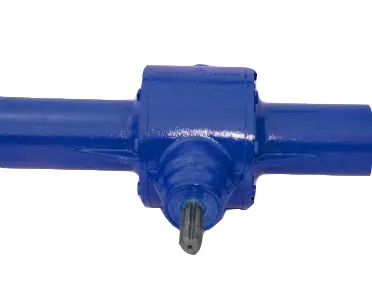

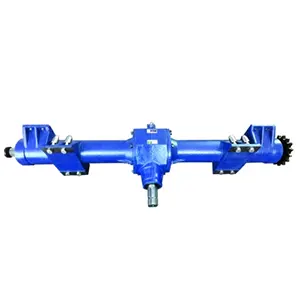

Round Baler Gearbox – Replacement of Comer Code T-292E

Round Baler Gearbox – Replacement of Comer Code T-292E

A round baler gearbox is a mechanical component that powers the baling process of compacting hay or straw into round bales. It connects to the tractor's power take-off (PTO) and uses gears to transfer the power to the baling system, which compresses and forms the hay into a bale. The gearbox controls the speed and torque required to efficiently form and tie the bales. It is a crucial component of the round baler, allowing farmers to efficiently harvest and store large quantities of hay or straw for livestock feed.

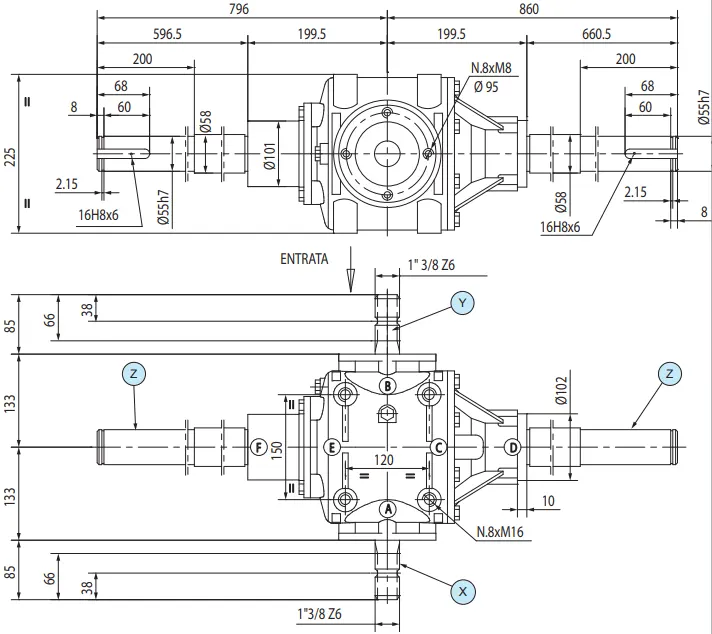

Round Baler Gearbox T292E Details

i	1.86
N1[rpm]	540
P1[kW]	47.7
M2[Nm]	-
Shaft X	1'' 3/8 Z6
Shaft Y	1'' 3/8 Z6
Shaft Z	L200 Φ55
Input	X



Round Baler Gearbox Features

A round baler gearbox is a mechanical component used in round balers, which are agricultural machines used to compress and shape crops into round bales for storage or transportation. The gearbox is responsible for transferring power from the tractor to the baler's baling chamber, which rotates to compress and shape the crop. The gearbox is characterized by its heavy-duty construction, high torque capacity, and ability to handle a wide range of crop types and conditions. It also features a variety of gears and ratios to optimize the baler's performance for different crops and operating conditions. The round baler gearbox plays a critical role in the efficient and reliable operation of the round baler.

Agricultural Gearbox Production Workshop

Raydafon Technology Group Co.,Limited was established in 2006. As a professional mechanical transmission parts manufacturer, we are committed to the research & development, manufacturing, and personnel training of various gearboxes, reducers, and construction machinery. The products are used in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and engineering hydraulic components. More than 95% of its products are exported to Europe, the United States, Australia, Asia and Canada. We have strong technology and R & D capabilities, produce reliable and high-quality products, pursue a unique business philosophy, and enjoy a high reputation in the manufacturing industry.

PTO Shafts In Stock

The agricultural gearbox and PTO shaft are two components of a tractor that work together to transmit power. The PTO shaft rotates at 540 to 1,000 rpm. The agricultural gearbox and PTO shaft are connected by yokes at both ends. Depending on the application, they may have a higher or lower torque rating. As a professional agricultural machinery parts supplier, we also offer a wide range of PTO drive shafts for sale. Contact us now to get more info!
