Round Straw Bale Wrapping Machine for Hay

[embed]https://youtu.be/UUpEze-IUo0[/embed]

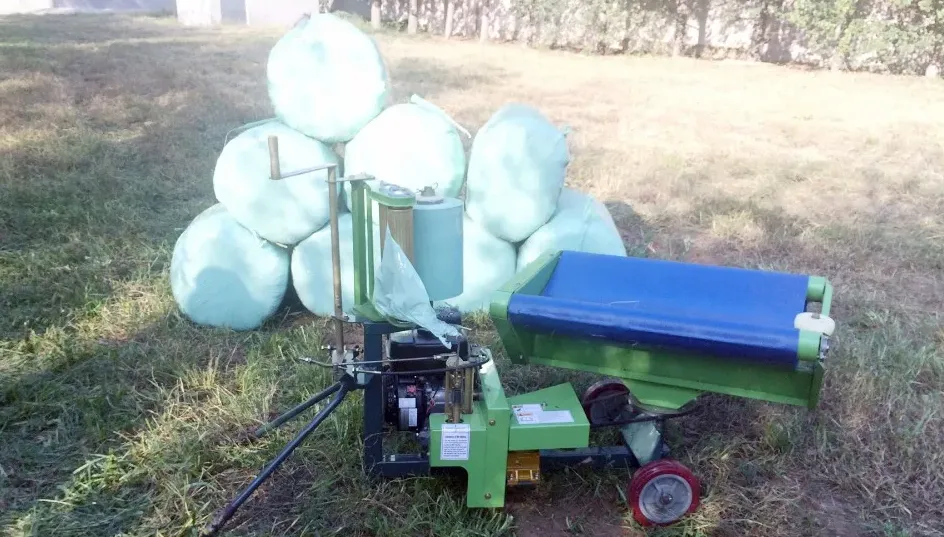

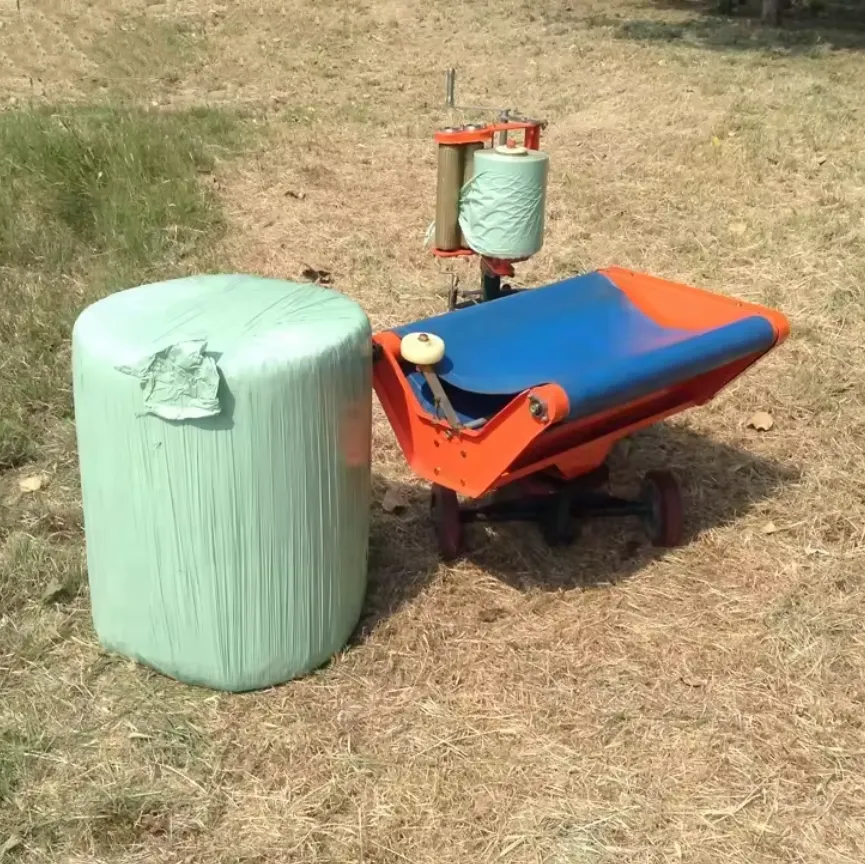

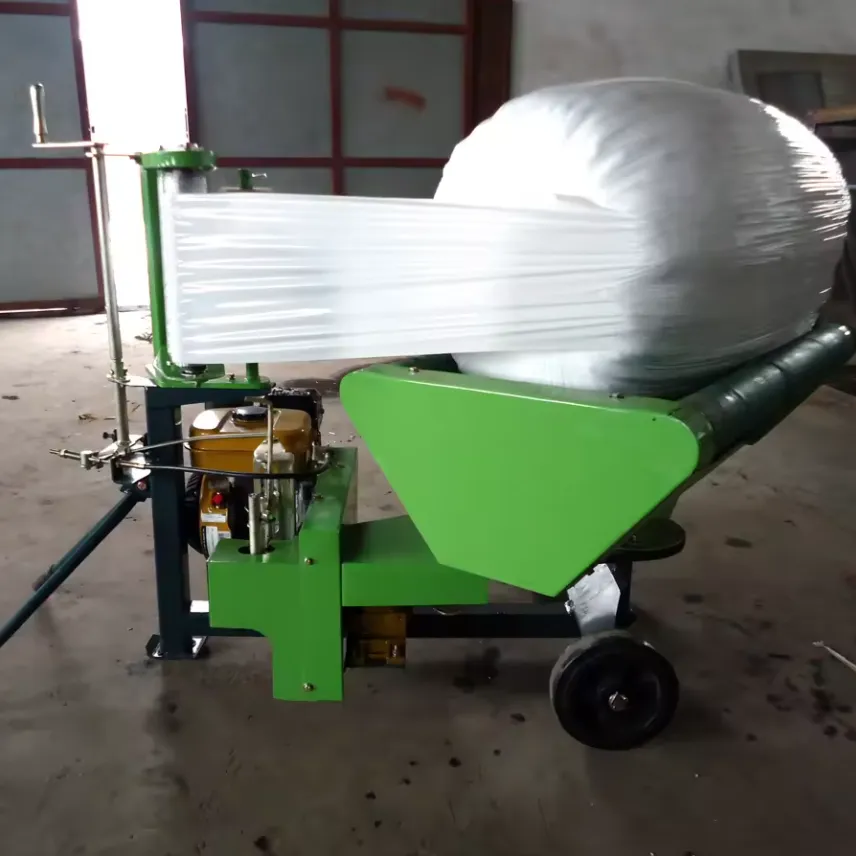

Round Straw Bale Wrapping Machine for Hay

A round straw bale wrapping machine is a specialized agricultural equipment used to wrap round bales of straw or hay with plastic film. The machine automates the process of wrapping bales, making it faster, more efficient, and less labor-intensive compared to manual wrapping methods. The primary purpose of using a round straw bale wrapping machine is to protect the bales from weather elements such as rain, snow, and UV rays. By tightly wrapping the bales with plastic film, the machine creates a protective barrier that helps preserve the quality and nutritional value of the stored forage. This is particularly important for livestock farmers who rely on high-quality feed for their animals. The machine consists of various components that work together to wrap the bales. These typically include a loading mechanism to position the bale, a turntable that rotates the bale during the wrapping process, a film dispensing system, and a control panel to set the desired parameters. Some advanced models may also feature automatic film cutting and attachment systems for increased efficiency. Round straw bale wrapping machines offer several advantages over manual wrapping methods. They save time and labor, ensuring quicker bale wrapping and increased productivity. The consistent and uniform application of the plastic film also improves the longevity and quality of the bales, reducing spoilage and waste. Additionally, the tight wrapping helps create an airtight seal, which can enhance fermentation and preserve the nutritional content of the forage.

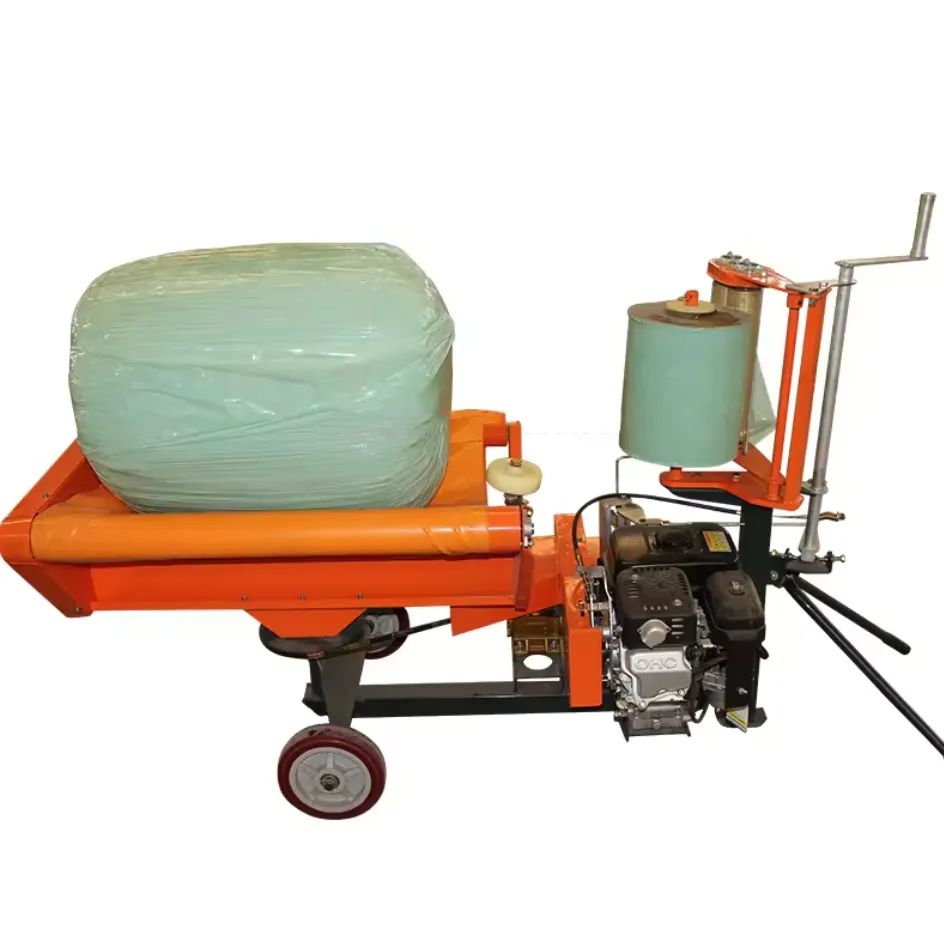

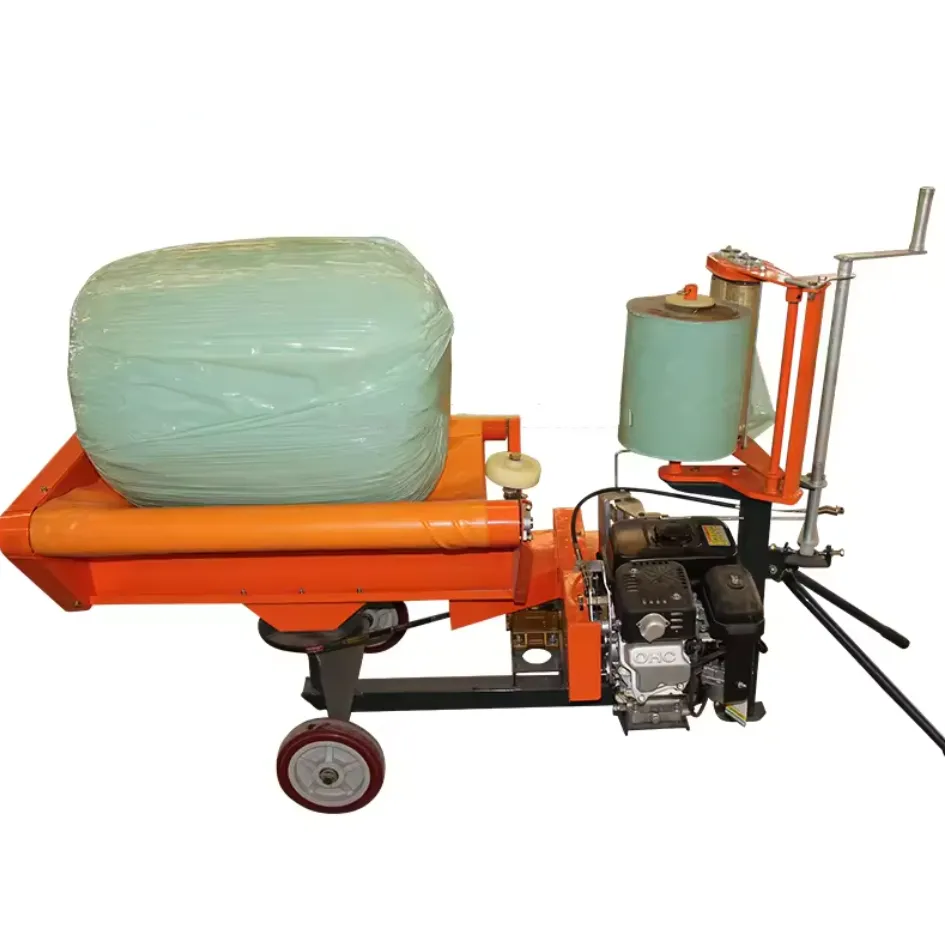

Round Straw Bale Wrapping Machine RXHW0810 Specifications

Specifications for Bale Wrapper RXHW0810
Dia and Width for Bale		500 x 700 mm; 610 x 700mm
Dimension(L*W*H)		150 x 87 x 103 mm
Weight		85kg
Matched Power		6.5hp Gasoline Engine
Operating Speed		40seconds/bale
Application		Wrap the bales made by plasstic films or packe
Logo		Customized
Color		red, yellow, black, whine, Customized
Wrapping bale material		white plastic film rolls
Film layer		2/4/6
Application		Silage,Grass,Alfalfa,Hay,Straw

Advantages of Using the Round Straw Bale Wrapping Machine

Using a round straw bale wrapping machine offers several advantages for farmers and agricultural professionals. Here are some key benefits: 1. Time and Labor Savings: The machine automates the bale wrapping process, reducing the need for manual labor. It can wrap bales much faster than manual methods, saving valuable time and allowing workers to focus on other tasks. 2. Increased Efficiency: The machine ensures consistent and uniform wrapping of bales, resulting in a tightly sealed package. This improves the preservation of the forage inside the bales and reduces spoilage, leading to higher feed quality and reduced waste. 3. Improved Weather Protection: The plastic film used in the wrapping process creates a protective barrier around the bales, shielding them from weather elements such as rain, snow, and UV rays. This helps maintain the nutritional value and quality of the stored forage, ensuring better feed for livestock. 4. Enhanced Fermentation: The airtight seal created by the machine's wrapping process can promote anaerobic fermentation within the bales. This fermentation process can improve the digestibility and palatability of the forage, making it more beneficial for animal consumption. 5. Easy Handling and Storage: Wrapped bales are easier to handle and stack compared to unwrapped bales. The tight wrapping holds the bale together, reducing the risk of bale collapse and making storage and transportation more efficient. 6. Versatility: Round straw bale wrapping machines can handle different bale sizes and types, accommodating various farming needs. They can wrap both straw and hay bales, allowing farmers to preserve different types of forage for different purposes. 7. Cost Savings: While the initial investment in a bale wrapping machine may be significant, the long-term cost savings can outweigh the upfront expense. Reduced labor requirements, decreased spoilage, and improved feed quality can contribute to overall cost savings in the feed production process.

Working Principle of Round Straw Bale Wrapping Machine for Hay

The working principle of a round straw bale wrapping machine for hay involves several steps that ensure the efficient and effective wrapping of the bales. Here is a general overview of the working principle:

• Loading the bale: The machine is prepared by positioning a round bale of hay onto the turntable. This can be done manually or using a loading mechanism, depending on the design of the machine.
• Setting parameters: The operator sets the desired parameters on the control panel, which may include the number of film layers, the overlap, and the wrapping speed. These parameters can be adjusted based on the specific requirements of the hay and the desired level of protection.
• Film dispensing: The machine starts the wrapping process by dispensing plastic film from a roll. The film is typically a stretchable material that can be stretched tightly around the bale. The film is fed through a film dispensing system, which ensures smooth and controlled release of the film.
• Wrapping process: As the film is dispensed, the turntable of the machine begins to rotate, slowly spinning the bale. The rotation of the turntable allows for the even distribution of the film around the bale. Simultaneously, the film is stretched and wrapped tightly around the bale, securing it and creating a protective barrier.
• Multiple layers: To enhance the protection and stability of the bale, multiple layers of film are applied. The machine continues to wrap the bale with additional layers, ensuring a consistent and uniform wrapping.
• Film cutting and attachment: Once the desired number of film layers is reached, the machine automatically cuts the film. Some machines may also have an automatic film attachment system that securely seals the film to the wrapped bale, preventing it from unraveling.
• Bale ejection: After the wrapping process is complete, the machine ejects the wrapped bale, making it ready for storage or transportation. The operator can then remove the wrapped bale from the machine and place it in the desired location.

Throughout the process, the machine's control panel monitors and regulates the wrapping parameters, ensuring accuracy and consistency. Some advanced machines may also feature additional functionalities such as film tension control and sensors to detect any issues or malfunctions during the wrapping process.

Operation Precautions of Round Straw Bale Wrapping Machine

When operating a round straw bale wrapping machine for hay, it is important to follow certain precautions to ensure safe and efficient operation. Here are some operation precautions to consider: (1) Ensure proper machine maintenance: Regularly inspect and maintain the machine according to the manufacturer's recommendations. Check for any loose or damaged parts, and make necessary repairs or replacements before operating the machine. Lubricate moving parts as instructed to ensure smooth operation. (2) Clear the work area: Before starting the machine, ensure that the work area is clear of any debris, obstacles, or loose objects that may interfere with the machine's operation. This includes removing any potential hazards such as rocks, branches, or other materials that could damage the machine or pose a safety risk. (3) Position the bale correctly: When loading the bale onto the machine, ensure that it is positioned securely and centered on the turntable. Improperly positioned bales can cause imbalance, leading to machine malfunctions or accidents during the wrapping process. (4) Set appropriate wrapping parameters: Adjust the machine's parameters, such as the number of film layers, overlap, and wrapping speed, according to the specific requirements of the hay and the desired level of protection. Ensure that the settings are appropriate for the size and density of the bales. (5) Stay clear of moving parts: During operation, keep a safe distance from the machine's moving parts, especially the turntable and the film dispensing system. Avoid reaching into the machine while it is in operation to prevent injury. (6) Monitor the wrapping process: Continuously monitor the wrapping process to ensure that it is progressing smoothly and without any issues. Pay attention to any unusual noises, vibrations, or irregularities that may indicate a problem with the machine. If any issues arise, stop the machine and address the problem before continuing. (7) Disconnect power when not in use: When the wrapping process is complete or when taking a break, disconnect the power supply to the machine. This prevents accidental activation and reduces the risk of injuries or damage.

Why Choose Raydafon's Hay Bale Wrapper?

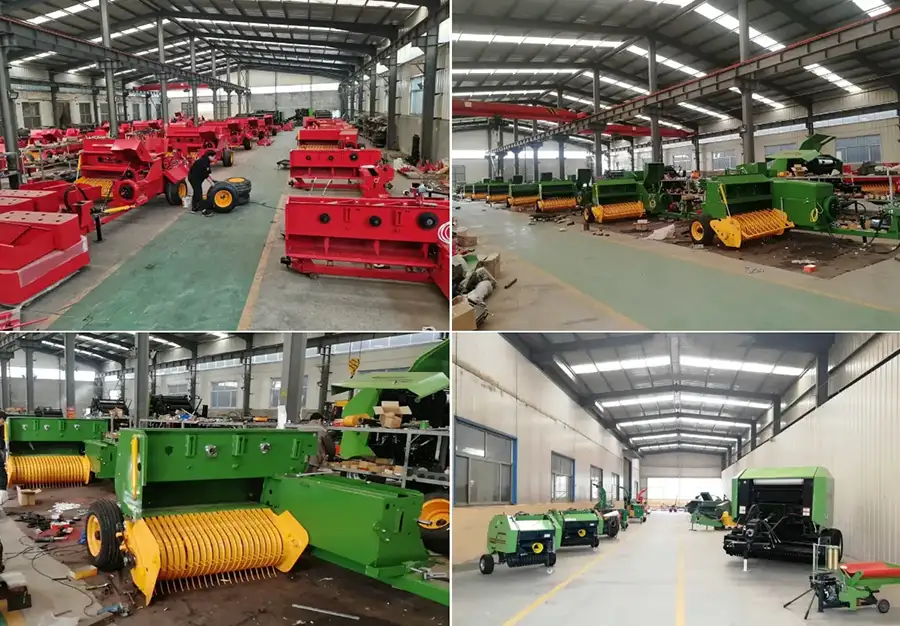

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, corn seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.
