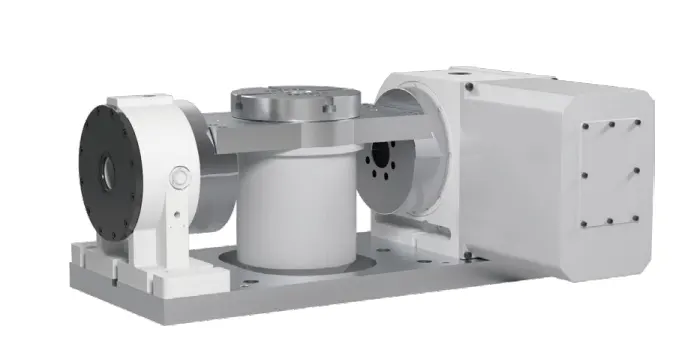

RTS-255 Rotary Table High Quality Indexing Table CNC Machine 5 Axis 255mm Rotary Table

Introduction to CNC Rotary Table

The CNC rotary table is an essential component of CNC machine tools. It plays a crucial role in handling the workpieces and enabling the machine tools to perform various machining operations with high precision and efficiency. The RTS-255 is an exemplary model of a CNC rotary table designed by Raydafon (Ningbo Raydafon). It comes with an indexing feature and capable of five-axis operations, making it highly versatile and effective for a range of machining applications.

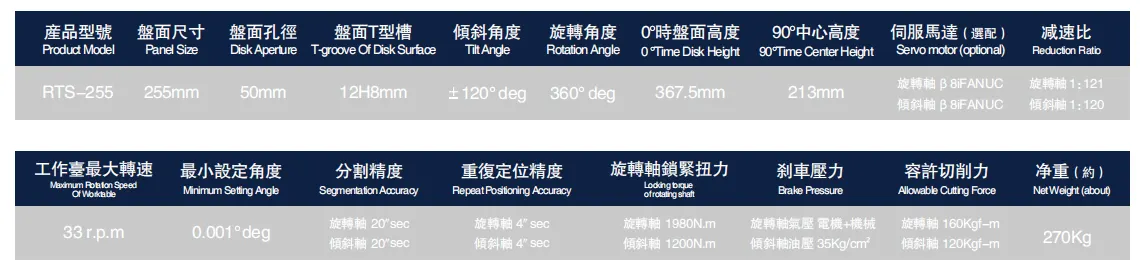

Product Specifications and Features

Certification:	ISO9001:2015
Application:	Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine
Structure:	Vertical And Horizontal
Material:	Stainless Steel
Type:	Precision Rotary Table
N.W.:	270 Kg
Customization:	Available|Customized Request

Key features of the RTS-255 CNC rotary table include:

• High precision
• High performance
• High efficiency
• Five-axis machining
• Modular design

Working Principle of CNC Rotary Table

A CNC rotary table consists of three main components: the spindle, the drive mechanism, and the control system. The spindle rotates the workpiece or the tool; the drive mechanism provides power to the spindle; the control system controls the spindle's speed and direction.

Application Fields

The RTS-255 CNC rotary table finds wide application in Punching Machines, Grinding Machines, Slotting Machines, Milling Machines, Drilling Machines, Boring Machines, etc.

Advantages of CNC Rotary Table

The CNC rotary table offers several benefits:

• It improves production efficiency by automatically rotating the workpiece or tool.
• It ensures the workpiece or tool remains in an exact position during rotation, thereby enhancing product quality.
• It reduces labor costs by minimizing the need for manual intervention.

worm gear System in CNC Rotary Tables

The worm gear is a helical structure, similar to a propeller, and the worm wheel is a gear that cooperates with it. This design provides a high transmission ratio, allowing for greater torque output in a smaller space. CNC machines often use rotary worktables with worm gear transmission systems because they provide precise positioning and stable rotational motion, making them ideal for machining tasks that require precise control and stability.

Why Choose Raydafon's CNC Rotary Table?

Raydafon is a premier supplier of CNC rotary tables. The company actively develops R&D innovation and production technology, fully meeting the rapidly changing needs of customers. Raydafon's CNC rotary tables, including the RTS-255 model, demonstrate the company's R&D innovation and self-made capabilities. The company has cooperated with domestic and foreign machine tool manufacturers to develop four-axis and five-axis high-precision rotary tables to meet different processing fields. With support from all walks of life, Raydafon will continue to advance in R&D and service, striving to become a reliable professional service provider and leading brand in China's machine tool industry. The company's products, including the 4-axis and 5-axis CNC turntables and horizontal 4-axis turntables for tool machine tools, are widely used in various processing equipment, such as non-standard automatic special machine, metal cutting machine, etc., in 3C, automotive, energy, military, aerospace, and other fields.

Frequently Asked Questions

1. Q: Are you a manufacturer or a trading company?A: We are a manufacturer with more than 15 years of experience. We welcome you to visit our factory.
2. Q: Can the products and the package be customized?A: Yes, we accept OEM. We can make your trademark on your machine body and customize the package according to your needs.
3. Q: How long is the quality guarantee?A: We offer a one-year quality guarantee.
