RTS-320 Rotary Table Hydraulic Brake 320mm 5th Axis Rotary Table Index Table

Product Introduction

The CNC rotary table, also known as a precision rotary table, is an essential component of many CNC machine tools, including punching machines, grinding machines, slotting machines, milling machines, drilling machines, and boring machines. The RTS-320 model from Raydafon (Ningbo Raydafon) is an example of a high-performance 5th axis rotary table that incorporates a hydraulic brake system and a 320mm diameter table.

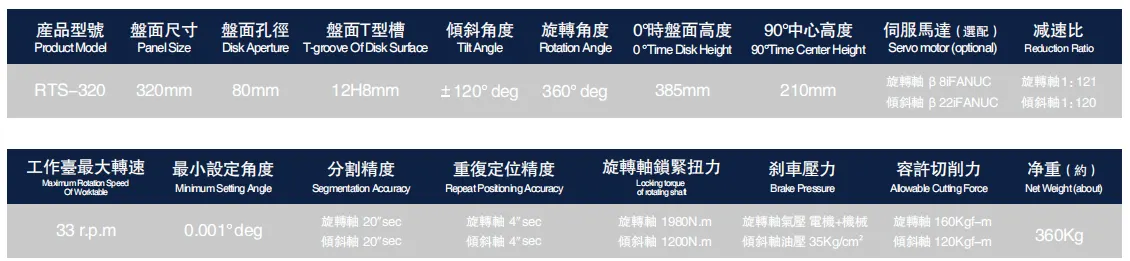

Product Specifications

Certification:	ISO9001:2015
Application:	Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine
Structure:	Vertical And Horizontal
Material:	Stainless Steel
Type:	Precision Rotary Table
N.W.:	360 Kg
Customization:	Available|Customized Request

Product Features

• High precision: The RTS-320 rotary table ensures accurate positioning and movement, which is essential for high-quality machining.
• High performance: This model uses a hydraulic brake system to provide reliable and consistent performance in a variety of machining applications.
• High efficiency: The RTS-320 rotary table is designed to enhance productivity by reducing setup and machining time.
• Five axis machining: The 5th axis capability of the RTS-320 allows complex parts to be machined in a single setup, reducing time and cost.
• Modular design: This feature makes the RTS-320 easily adaptable to a wide range of machining requirements.

How CNC Rotary Tables Work

CNC rotary tables comprise three key components: a spindle, a drive system, and a control system. The spindle rotates the workpiece or tool, the drive system provides power to the spindle, and the control system manages the speed and direction of the spindle. The RTS-320 rotary table uses a worm and worm gear system for its drive mechanism, providing precise and stable rotational movement.

Advantages of CNC Rotary Tables

CNC rotary tables offer several key benefits, including improved productivity, enhanced product quality, and reduced labor costs. By automating the rotation of the workpiece or tool, the RTS-320 rotary table maximizes these benefits, contributing to cost-effective and efficient machining processes.

Worm Gear System in CNC Rotary Tables

The worm gear system found in CNC rotary tables, such as the RTS-320, is a key feature for achieving precise and stable rotation. The worm, a screw-like structure, meshes with a gear, or worm wheel, to create a high gear ratio. This design allows the system to deliver high torque outputs within a smaller space, making it ideal for precision machining tasks.worm gear System">

Why Choose Raydafon (Ningbo Raydafon) CNC Rotary Tables

As a leading supplier of CNC rotary tables, Raydafon (Ningbo Raydafon) is committed to innovation and quality. We offer a wide range of 4-axis and 5-axis CNC rotary tables, as well as horizontal 4-axis tables, to meet diverse machining needs. Our products, including the RTS-320 model, are widely used in various processing equipment across industries such as 3C, automotive, energy, military, and aerospace. With our commitment to honesty, harmony, and technological advancement, we strive to become a reliable professional service provider and leading brand in China's machine tool industry.

Frequently Asked Questions

Q: Can the RTS-320 be customized?A: Yes, we offer customization options to meet specific customer requirements.Q: What is the weight of the RTS-320?A: The net weight of the RTS-320 is 360 kg.Q: What are the applications of the RTS-320?A: The RTS-320 is suitable for a variety of machine tools, including punching machines, grinding machines, slotting machines, milling machines, drilling machines, and boring machines.Explore our range of CNC rotary tables today and experience the difference of Raydafon (Ningbo Raydafon) products. Contact us now for your machining needs!Edited by Zqq.
