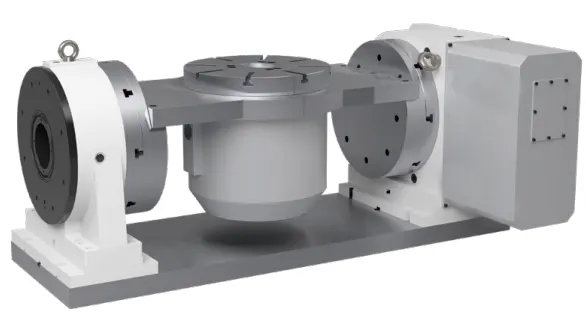

RTS-400 Rotary Table 400mm Water-Resistance 5 Axis Indexing Table for CNC Milling Machine Rotary Table

Introduction to CNC Rotary Table

The CNC rotary table, also known as the computer numerical control rotary table, is an essential component of modern industrial machinery. Its primary function is to rotate the workpiece or tool while maintaining a precise position, which is crucial in a variety of machining processes. The RTS-400 model from Raydafon (Ningbo Raydafon) is a robust, water-resistant 5-axis indexing table designed for CNC milling machines. It is precision-engineered to deliver superior performance in various applications.

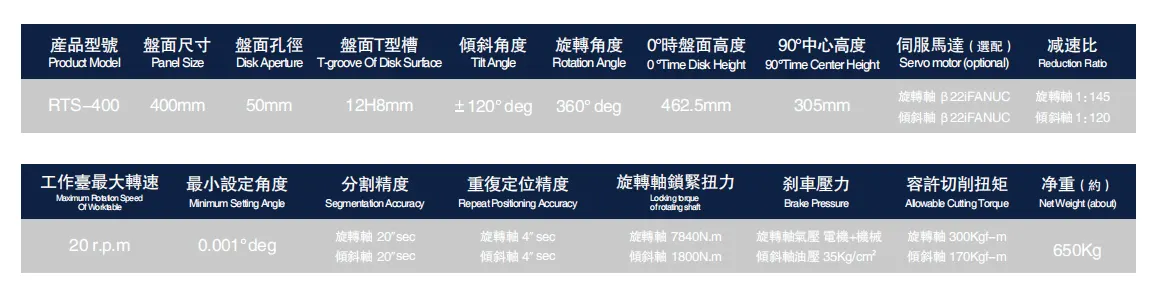

Product Specifications

Certification:	ISO9001:2015
Application:	Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine
Structure:	Vertical And Horizontal
Material:	Stainless Steel
Type:	Precision Rotary Table
N.W.:	650 Kg



Key Features of the Product

• High precision: The RTS-400 model ensures accurate positioning, resulting in high-quality outputs.
• High performance: Despite its compact size, the RTS-400 delivers exceptional performance in terms of power and responsiveness.
• High efficiency: With its advanced technology, this model significantly improves production efficiency.
• Five-axis machining: This feature allows for complex machining tasks with ease.
• Modular design: The RTS-400's design facilitates easy assembly and maintenance.

How Does a CNC Rotary Table Work?

The CNC rotary table consists of three main components: the spindle, the drive unit, and the control system. The spindle is the axis around which the workpiece or tool rotates. The drive unit provides power to the spindle, while the control system regulates the spindle's speed and direction.

Applications of CNC Rotary Table

The RTS-400 is versatile and can be used in various machines like the Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine, and more. It is ideal for industries that require high precision and efficiency.

Advantages of Using CNC Rotary Table

• Increased production efficiency: The RTS-400 can automatically rotate the workpiece or tool, thereby improving production efficiency.
• Improved product quality: The RTS-400 ensures the workpiece or tool maintains an accurate position throughout the rotation process, leading to superior product quality.
• Reduced labor costs: By automating the rotation process, the RTS-400 reduces the need for manual labor, consequently lowering labor costs.

worm gear System in CNC Rotary Tables

The worm gear system, consisting of a worm (a screw-like structure) and a worm gear (a gear with more teeth than the worm), offers high transmission ratios, facilitating greater torque output in a compact space. This system is often utilized in CNC machines, including the RTS-400, as it provides precise positioning and steady rotational motion, making it ideal for machining tasks requiring exact control and stability.

Why Choose Raydafon's CNC Rotary Table?

Raydafon is a leading supplier of CNC rotary tables. We are committed to research and development, constantly innovating our production techniques to meet the rapidly evolving needs of our customers. Our CNC rotary tables, including the RTS-400 model, embody our innovative spirit and manufacturing capabilities. We are dedicated to providing top-quality products at competitive prices, with excellent customer service. Explore our product range and get in touch with us for your CNC rotary table needs.

Commonly Asked Questions

What is the quality guarantee for the RTS-400?

We offer a one-year guarantee for our RTS-400 model.

Is there an inspection before shipment?

Yes, we conduct a 100% self-inspection before shipment to ensure the quality of our products.

What are the payment terms?

For small orders, we require 100% T/T in advance. For larger orders, the payment terms can be negotiated.Edited by Zqq.
