RTS-500 Rotary Table CNC Machine Tools Accessories Rotary Table with Worm and Worm Gear Index Table

Raydafon Group presents the RTS-500 Rotary Table CNC Machine Tools Accessories Rotary Table with Worm and Worm Gear Index Table, a precision-engineered accessory designed for CNC machining. Its robust worm-and-worm-gear mechanism ensures smooth, accurate indexing, making it ideal for manufacturers and hobbyists seeking reliable performance in milling, drilling, and complex part production. This table enhances productivity by reducing setup time and improving repeatability, solving alignment challenges with durable construction. Unique for its seamless integration and superior durability, it delivers a sense of confidence and efficiency in every operation. Elevate your machining capabilities with this trusted tool from Raydafon Group.

Send Inquiry

Product Description

Introduction of CNC Rotary Tables

The CNC rotary table is a crucial accessory in CNC machine tools. It serves as a mechanical device that enables a workpiece to be rotated and indexed on its axis, providing a stable and precise platform for machining. The RTS-500 model, in particular, epitomizes the exceptional attributes of CNC rotary tables. It is a precision rotary table that boasts a vertical and horizontal structure, making it adaptable for a wide range of applications.

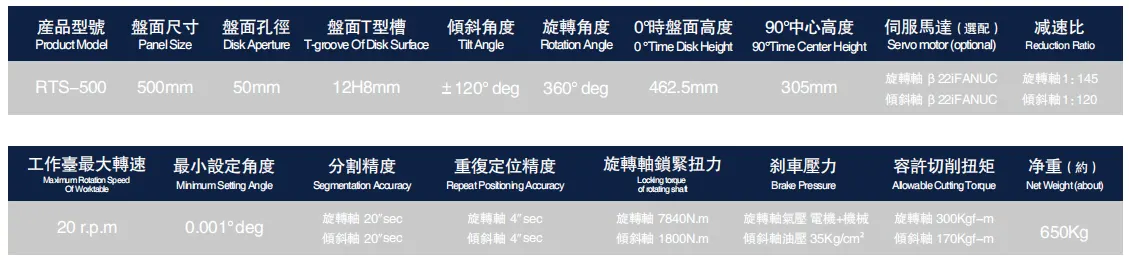

Product Features and Specifications

Certification:	ISO9001:2015
Application:	Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine
Structure:	Vertical And Horizontal
Material:	Stainless Steel
Type:	Precision Rotary Table
N.W.:	650 Kg

Key Features of RTS-500

High precision: This device delivers excellent accuracy in machining, ensuring high-quality outcomes.
High performance: It is designed to work effectively under rigorous conditions, making it ideal for heavy-duty operations.
High efficiency: Its design ensures quick and smooth operation, reducing production time.
Five-axis machining: It provides a stable platform for complex machining processes.
Modular design: Its structure enables easy integration with different types of machine tools.

Working Principle of CNC Rotary Tables

The CNC rotary table consists of three basic parts: the spindle, the drive device, and the control system. The spindle rotates the workpiece or tool, the drive device provides power to the spindle, and the control system manages the speed and direction of the spindle. RTS-500 Rotary Table CNC Machine Tools Accessories Rotary Table with Worm and Worm Gear Index Table

Application of CNC Rotary Tables

The RTS-500 CNC rotary table is widely used in punching machines, grinding machines, slotting machines, milling machines, drilling machines, and boring machines. These versatile applications make it an invaluable accessory in CNC machining.

Advantages of CNC Rotary Tables

There are several benefits to using CNC rotary tables:

Improved Production Efficiency: The automatic rotation of workpieces or tools increases the production speed.
Enhanced Product Quality: The precise positioning of workpieces or tools during rotation ensures high product quality.
Reduced Labor Costs: By reducing the need for manual labor, CNC rotary tables can help lower labor costs.

worm gear System in CNC Rotary Tables

The worm gear system is integral in the operation of CNC rotary tables. The worm, a spiral structure similar to a propeller, works in conjunction with the worm gear, a gear with more teeth than the worm. This design provides a high transmission ratio, enabling greater torque output in a compact space. In CNC machines, rotary tables often employ worm gear systems because they offer precise positioning and stable rotary motion, making them ideal for tasks requiring accurate control and stability. RTS-500 Rotary Table CNC Machine Tools Accessories Rotary Table with Worm and Worm Gear Index Table

About Raydafon (Ningbo Raydafon)

Raydafon is a leading supplier of CNC rotary tables, actively advancing R&D innovation, production technology, and customer service. The company designs and produces CNC rotary tables tailored to customer needs, demonstrating its innovative capabilities. Raydafon's main products include 4-axis and 5-axis CNC rotary tables and horizontal 4-axis rotary tables for machine tools. The company's products are widely used in non-standard automatic special machines, metal cutting machines, and various processing equipment in 3C, automotive, energy, military, aerospace, and other fields. Raydafon is committed to becoming a reliable professional service provider and leading brand in China's machine tool industry. RTS-500 Rotary Table CNC Machine Tools Accessories Rotary Table with Worm and Worm Gear Index Table

Explore Our Products

We invite you to explore our range of CNC rotary tables and contact us to purchase. Our team is ready to assist you in finding the perfect CNC rotary table for your needs.

FAQs

Q: What is the lead time for the RTS-500 model?A: For common models, the lead time is about 5-7 workdays. For customized models, it may take about 30 workdays.
Q: What are the benefits of using a CNC rotary table?A: CNC rotary tables improve production efficiency, enhance product quality, and reduce labor costs.
Q: What is the worm gear system in CNC rotary tables?A: The worm gear system provides high transmission ratios, enabling greater torque output in a compact space. It offers precise positioning and stable rotary motion, making it ideal for tasks requiring accurate control and stability.
