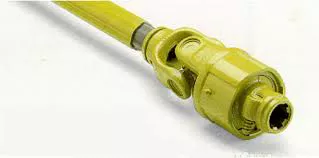

A ratchet torque limiter is a device able to interrupt the transmission of power in the event of a torque peak or overload that exceeds the setting. The torque limiter is automatically re-engaged after the cause of the overload is removed. Ratchet torque limiters for PTO shaft are generally employed to protect implements subject to constant or alternating torques from overloads.

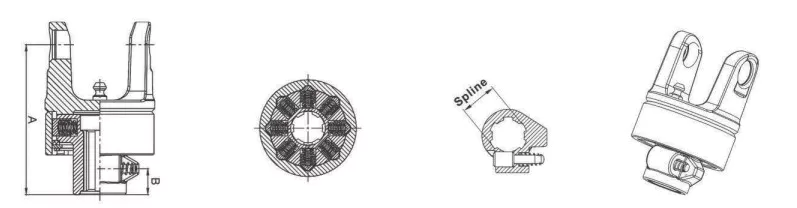

SA1 Series Ratchet Torque Limiter

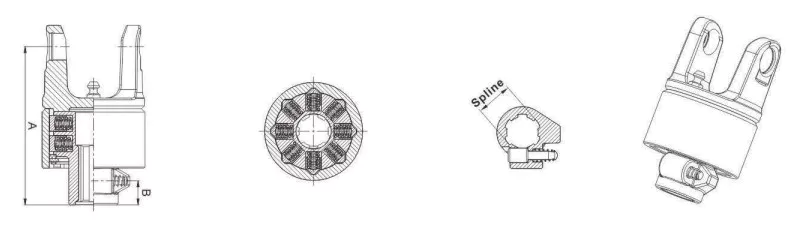

Series	Max Torque(Nm)	Spline	A(mm)	B(mm)
1SA1	400	1 3/8" Z6	138	21
2SA1			138
3SA1			149
4SA1			150

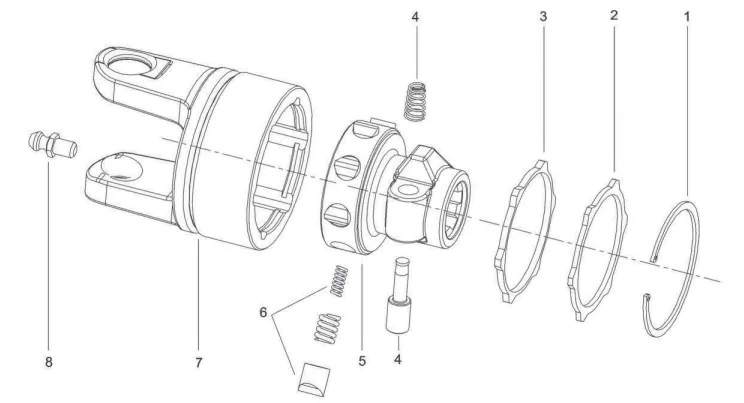

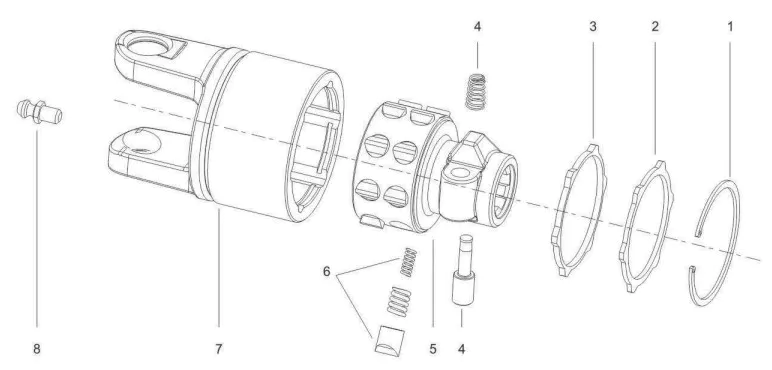

1. Circlip
2. Retaining washer
3. Dust guard ring
4. Pushpin kit
5. Hub
6. Pawl kit(Qty=8)
7. Housing with yoke
8. Grease nipple



SA2 Series Ratchet Torque Limiter

Series	Max Torque(Nm)	Spline	A(mm)	B(mm)
1SA2	800	1 3/8" Z6	156	21
2SA2			156
3SA2			167
4SA2			168
5SA2			172
6SA2			178
7SA2			189
7NSA2			175
8SA2			189

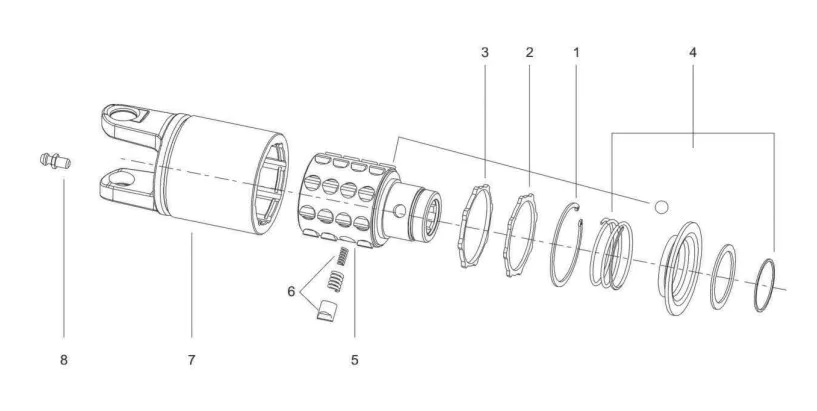

1. Circlip
2. Retaining washer
3. Dust guard ring
4. Pushpin kit
5. Hub
6. Pawl kit(Qty=16)
7. Housing with yoke
8. Grease nipple

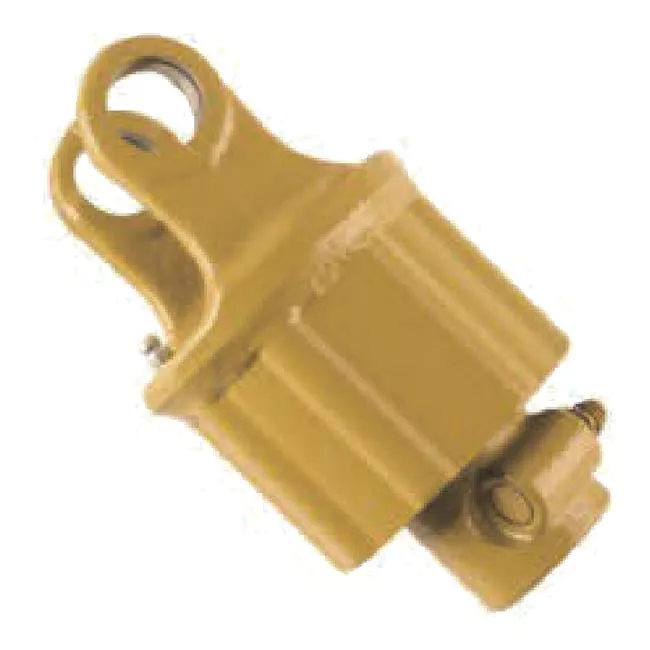

SA3 Series Ratchet Torque Limiter

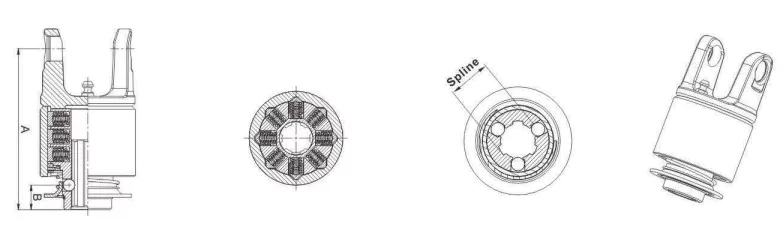

Series	Max Torque(Nm)	Spline	A(mm)	B(mm)
2SA3	1200	1 3/8" Z6	171	22
3SA3			182
4SA3			183
5SA3			187
6SA3			193
7SA3			204
7NSA3			190
8SA3			204

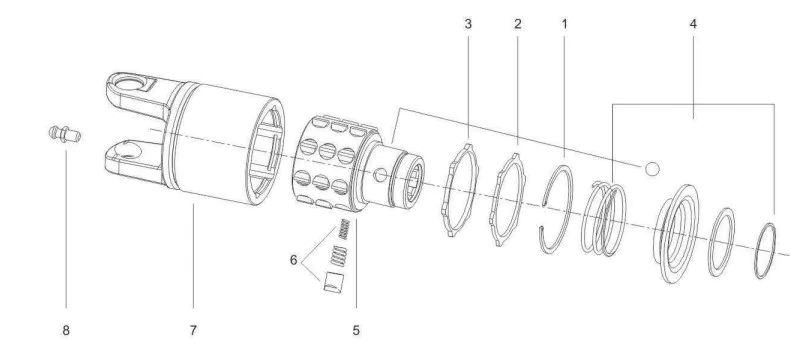

1. Circlip
2. Retaining washer
3. Dust guard ring
4. Pushpin kit
5. Hub
6. Pawl kit(Qty=24)
7. Housing with yoke
8. Grease nipple

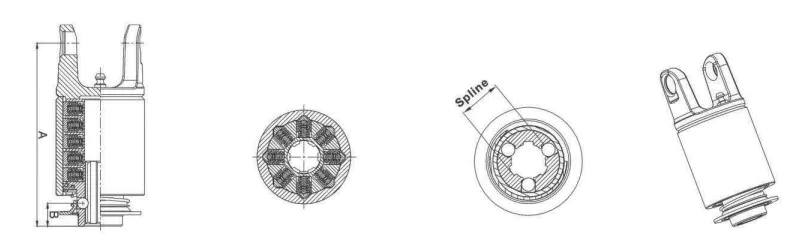

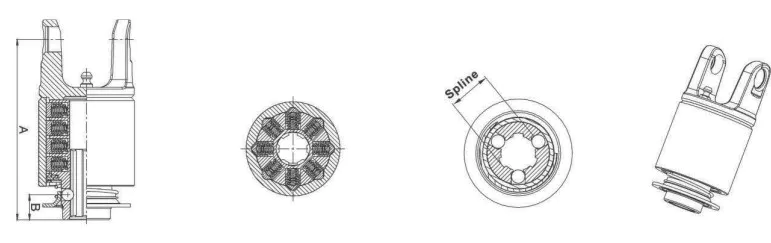

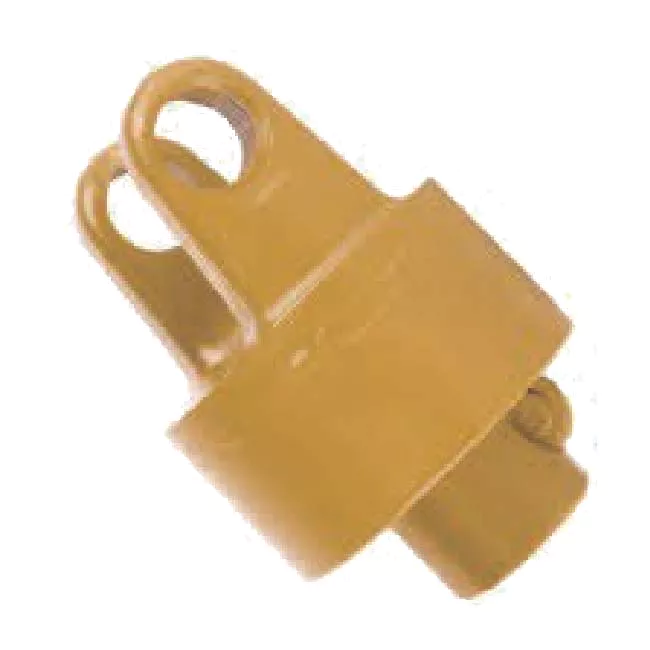

SA4 Series Ratchet Torque Limiter

Series	Max Torque(Nm)	Spline	A(mm)	B(mm)
5SA4	1600	1 3/8" Z6	206	22
6SA4			212	22

1. Circlip
2. Retaining washer
3. Dust guard ring
4. Pushpin kit
5. Hub
6. Pawl kit(Qty=32)
7. Housing with yoke
8. Grease nipple

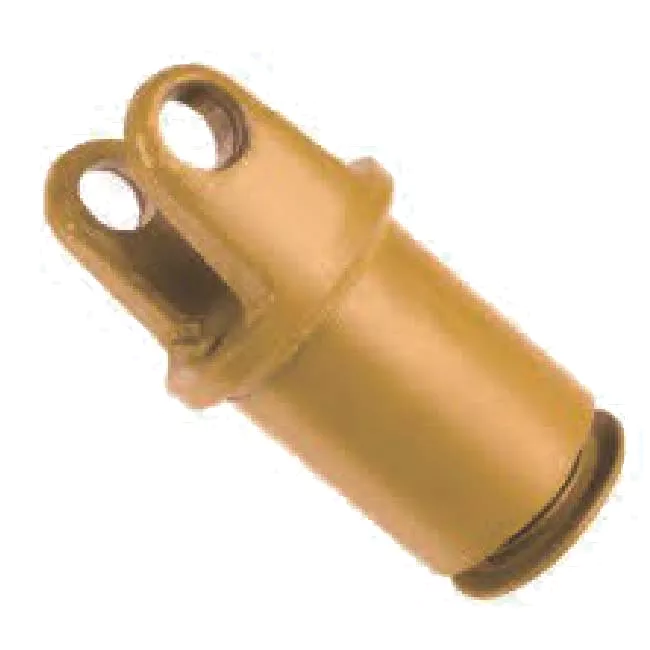

SA5 Series Ratchet Torque Limiter

Series	Max Torque(Nm)	Spline	A(mm)	B(mm)
6SA5	2000	1 3/8" Z6	231	22

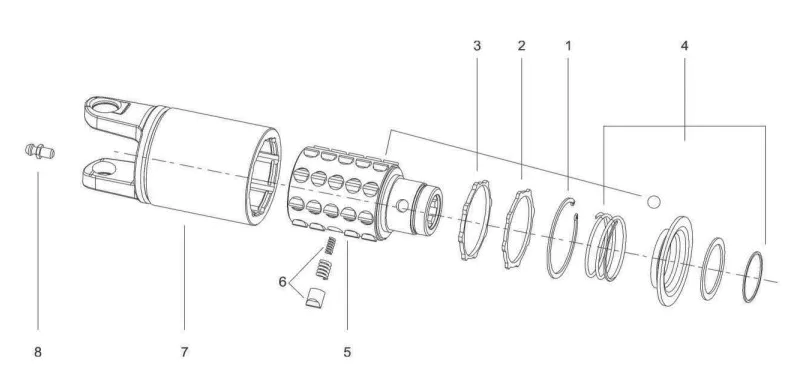

1. Circlip
2. Retaining washer
3. Dust guard ring
4. Pushpin kit
5. Hub
6. Pawl kit(Qty=40)
7. Housing with yoke
8. Grease nipple
